AT200L-BLMSKK (1993)
Toyota Celica

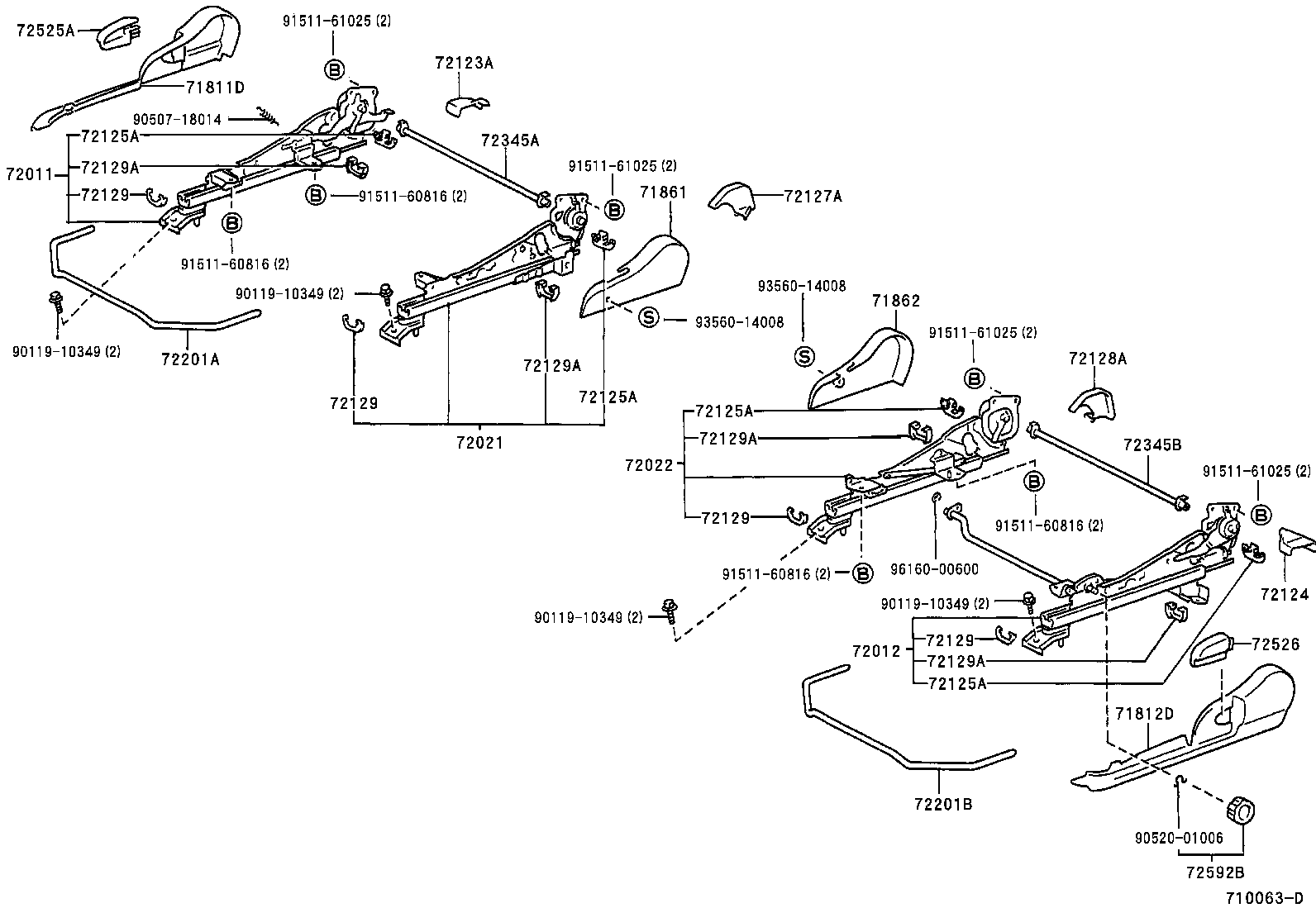

ILLUST NO. 2 OF 2(9508-9510)CP,LB ; (9510- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-16240C0 |
AT200,ST204..CP,LB BLACK,TRIM0#,2# |
1 | ||
| 71811-20280C0 |
AT200,ST204..CP,LB SHADOW GRAY,TRIM0#,2# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-20250C0 |
AT200,ST204..CP,LB BLACK,TRIM0#,2# |
1 | ||
| 71812-16190C0 |
AT200,ST204..CP,LB BLACK,TRIM0#,2# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-20130C0 |
AT200,ST204..CP,LB BLACK,TRIM0#,2# |
1 | ||
| 71861-20120C0 |
AT200,ST204..CP,LB BLACK,TRIM0#,2# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-20120C0 |
AT200,ST204..CP,LB BLACK,TRIM0#,2# |
1 | ||
| 71862-20130C0 |
AT200,ST204..CP,LB BLACK,TRIM0#,2# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-20200 |
AT200,ST204 |
1 | ||
| 72011-20230 |
AT200,ST204..CP,LB |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-20250 |
AT200,ST204 |
1 | ||
| 72012-20280 |
AT200,ST204..CP,LB |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-20200 |
AT200,ST204..CP,LB |
1 | ||
| 72021-20170 |
AT200,ST204 |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-20220 |
AT200,ST204 |
1 | ||
| 72022-20250 |
AT200,ST204..CP,LB |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-20150 |
AT200,ST204 |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-20070 |
AT200,ST204 |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72157-20040C0 |
AT200,ST204 BLACK,TRIM0#,2# |
1 | ||
| 72157-20040 |
AT200,ST204 |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72158-20030 |
AT200,ST204 |
1 | ||
| 72201A - HANDLE SUB-ASSY, SEAT TRACK RH | ||||
| 72201-20100 |
AT200,ST204..CP,LB |
1 | ||
| 72201-20100 |
AT200,ST204 |
1 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72201-20100 |
AT200,ST204..CP,LB |
1 | ||
| 72201-20100 |
AT200,ST204 |
1 | ||
| 72345A - PIPE, RECLINING CONNECTING | ||||
| 72345-20040 |
AT200,ST204 |
1 | ||
| 72345-20040 |
AT200,ST204..CP,LB |
1 | ||
| 72345B - PIPE, RECLINING CONNECTING | ||||
| 72345-20040 |
AT200,ST204..CP,LB |
1 | ||
| 72345-20040 |
AT200,ST204 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-20070C0 |
AT200,ST204..CP,LB BLACK,TRIM0#,2# |
1 | ||
| 72525-16010C0 |
AT200,ST204..CP,LB BLACK,TRIM0#,2# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-20110C0 |
AT200,ST204..CP,LB BLACK,TRIM0#,2# |
1 | ||
| 72526-16010C0 |
AT200,ST204..CP,LB BLACK,TRIM0#,2# |
1 | ||
| 72592B - KNOB,RECLINING ADJUSTER, LH | ||||
| 72592-20040C0 |
AT200,ST204..CP,LB BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 90119-10349 | ||||
| 90507-18014 | ||||
| 90520-01006 | ||||
| 90520-01274 | ||||
| 91511-60816 | ||||
| 91511-61025 | ||||
| 93560-14008 | ||||
| 96160-00600 | ||||

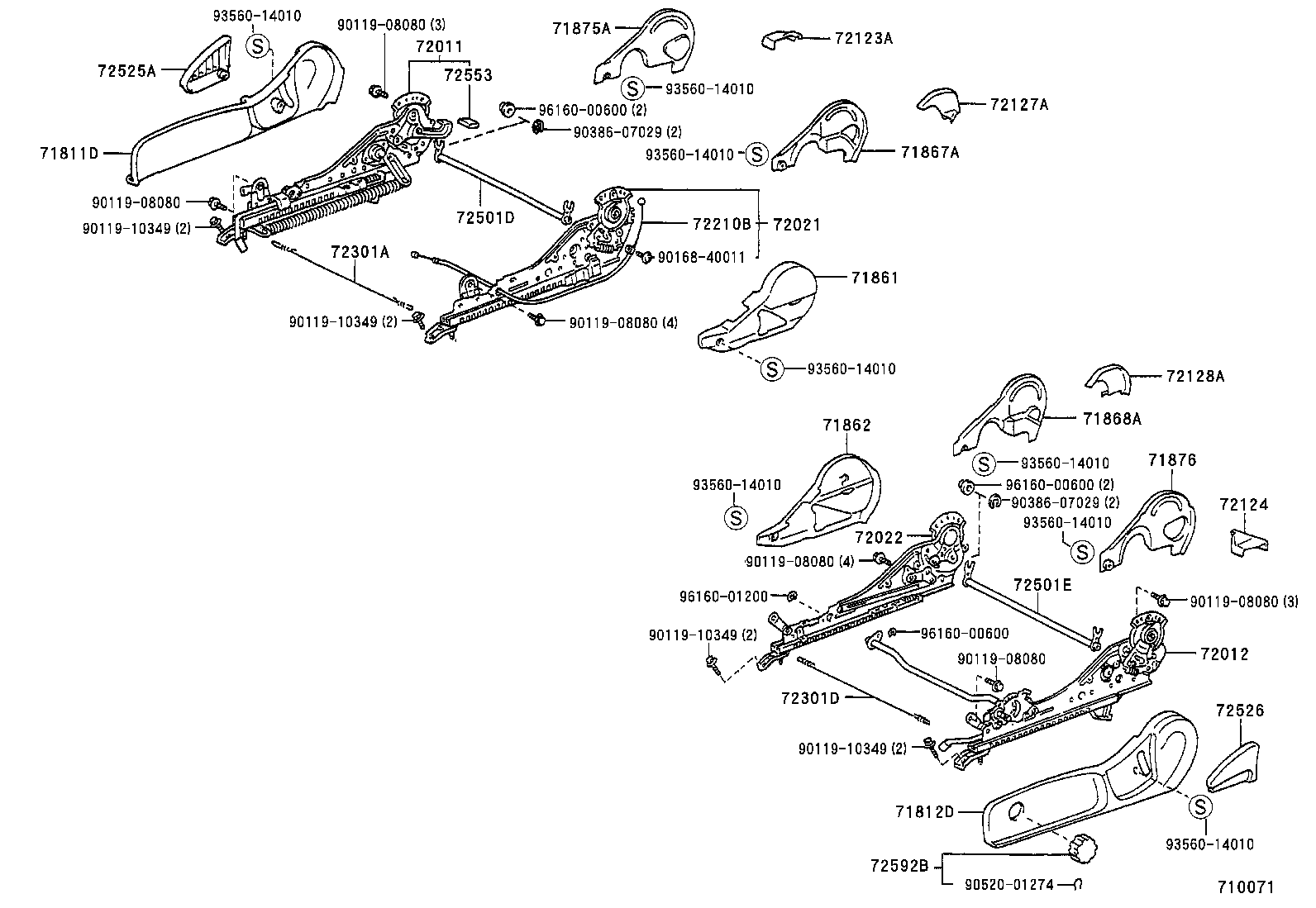

ILLUST NO. 2 OF 2(9309-9508) ; (9508-9510)CVT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-16240C0 |
AT200,ST204..CP,LB BLACK,TRIM0#,2# |
1 | ||
| 71811-20280C0 |
AT200,ST204..CP,LB SHADOW GRAY,TRIM0#,2# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-20250C0 |
AT200,ST204..CP,LB BLACK,TRIM0#,2# |
1 | ||
| 71812-16190C0 |
AT200,ST204..CP,LB BLACK,TRIM0#,2# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-20130C0 |
AT200,ST204..CP,LB BLACK,TRIM0#,2# |
1 | ||
| 71861-20120C0 |
AT200,ST204..CP,LB BLACK,TRIM0#,2# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-20120C0 |
AT200,ST204..CP,LB BLACK,TRIM0#,2# |
1 | ||
| 71862-20130C0 |
AT200,ST204..CP,LB BLACK,TRIM0#,2# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-20030C0 |
AT200,ST204..CP,LB BLACK,TRIM0#,2# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-20030C0 |
AT200,ST204..CP,LB BLACK,TRIM0#,2# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-20050C0 |
AT200,ST204..CP,LB BLACK,TRIM0#,2# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-20040C0 |
AT200,ST204..CP,LB BLACK,TRIM0#,2# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-20200 |
AT200,ST204 |
1 | ||
| 72011-20230 |
AT200,ST204..CP,LB |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-20250 |
AT200,ST204 |
1 | ||
| 72012-20280 |
AT200,ST204..CP,LB |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-20200 |
AT200,ST204..CP,LB |
1 | ||
| 72021-20170 |
AT200,ST204 |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-20220 |
AT200,ST204 |
1 | ||
| 72022-20250 |
AT200,ST204..CP,LB |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-20150 |
AT200,ST204 |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-20070 |
AT200,ST204 |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72157-20040C0 |
AT200,ST204 BLACK,TRIM0#,2# |
1 | ||
| 72157-20040 |
AT200,ST204 |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72158-20030 |
AT200,ST204 |
1 | ||
| 72210B - CABLE ASSY, SEAT TRACK CONTROL, RH | ||||
| 72210-20080 |
AT200,ST204 |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-20280 |
AT200,ST204 |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-20280 |
AT200,ST204 |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72501-20050 |
AT200,ST204 |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72501-20050 |
AT200,ST204 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-20070C0 |
AT200,ST204..CP,LB BLACK,TRIM0#,2# |
1 | ||
| 72525-16010C0 |
AT200,ST204..CP,LB BLACK,TRIM0#,2# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-20110C0 |
AT200,ST204..CP,LB BLACK,TRIM0#,2# |
1 | ||
| 72526-16010C0 |
AT200,ST204..CP,LB BLACK,TRIM0#,2# |
1 | ||
| 72553 - COVER, RECLINING PEDAL | ||||
| 72553-12040 |
AT200,ST204 |
1 | ||
| 72592B - KNOB,RECLINING ADJUSTER, LH | ||||
| 72592-20040C0 |
AT200,ST204..CP,LB BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10349 | ||||
| 90168-40011 | ||||
| 90386-07029 | ||||
| 90520-01274 | ||||
| 93560-14010 | ||||
| 96160-00600 | ||||
| 96160-01200 | ||||
ILLUST NO. 1 OF 2(9309- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2G510C0 |
AT200 BLACK,TRIM2# |
1 | ||
| 71071-2G510A0 |
AT200 1V0RY,TRIM0# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2G060C0 |
AT200 BLACK,TRIM2# |
1 | ||
| 71072-2G060A0 |
AT200 IVORY,TRIM0# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2G360A0 |
AT200 IVORY,TRIM0# |
1 | ||
| 71073-2G360C0 |
AT200 BLACK,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-2G360A0 |
AT200 IVORY,TRIM0# |
1 | ||
| 71073-2G360C0 |
AT200 BLACK,TRIM2# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-20280 |
AT200,ST204 |
1 | ||
| 71505-20370 |
AT200,ST204..CP,LB |
1 | ||
| 71505-20370 |
AT200;ST204..GT |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71505-20370 |
AT200,ST204..CP,LB |
1 | ||
| 71505-20370 |
AT200;ST204..GT |
1 | ||
| 71505-20280 |
AT200,ST204 |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-20730 |
AT200;ST204..GT |
1 | ||
| 71511-20680 |
AT200,ST204 |
1 | ||
| 71511-20730 |
AT200,ST204..CP,LB |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-20720 |
AT200;ST204..GT |
1 | ||
| 71511-20720 |
AT200,ST204..CP,LB |
1 | ||
| 71511-20680 |
AT200,ST204 |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-20520 |
AT200,ST204 |
1 | ||
| 71610-20550 |
AT200;ST204..GT |
1 | ||
| 71610-20550 |
AT200,ST204..CP,LB |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71610-20530 |
AT200,ST204 |
1 | ||
| 71610-20540 |
AT200,ST204..CP,LB |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-20030 |
AT200,ST204 |
2 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-20010 |
AT200,ST204 |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2B770C0 |
AT200;ST204..CVT BLACK,TRIM2# |
2 | ||
| 71910-2B770A0 |
AT200,ST204..CP,LB IVORY,TRIM0# |
2 | ||
| 71910-2B771A0 |
AT200 IVORY,TRIM0# |
2 | ||
| 71910-2B860C0 |
AT200,ST204..CP,LB BLACK,TRIM2# |
2 | ||
| 71910-2B860C0 |
AT200,ST204 BLACK,TRIM2# |
2 | ||
| 71910-2B860A0 |
AT200,ST204..CP,LB IVORY,TRIM0# |
2 | ||
| 71910-2B771C0 |
AT200;ST204..CVT BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-12070C0 |
AT200;ST204..CVT W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-12040C0 |
AT200;ST204..CVT W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-12070A0 |
AT200,ST204..CP,LB W(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-20080C0 |
AT200,ST204..CP,LB W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-32020C0 |
AT200;ST204..CVT W(LOCK),W(KAIPER VERTICAL ADJUSTER),BLACK,TRIM2# |
2 | ||
| 71931-32020C0 |
AT200,ST204..CP,LB W/O(LOCK),W(KAIPER VERTICAL ADJUSTER),BLACK,TRIM0#,2# |
2 | ||
| 71930-20120C0 |
AT200,ST204..CP,LB W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-12040A0 |
AT200,ST204..CP,LB W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-32020C0 |
AT200,ST204 W/O(LOCK),W(KAIPER VERTICAL ADJUSTER),BLACK,TRIM2# |
2 | ||
| 71931-20080A0 |
AT200,ST204..CP,LB W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-20080C0 |
AT200,ST204 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-32020A0 |
AT200,ST204..CP,LB W/O(LOCK),W(KAIPER VERTICAL ADJUSTER),IVORY,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-12070C0 |
AT200;ST204..CVT W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-12040C0 |
AT200;ST204..CVT W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-12070A0 |
AT200,ST204..CP,LB W(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-20080C0 |
AT200,ST204..CP,LB W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-32020C0 |
AT200;ST204..CVT W(LOCK),W(KAIPER VERTICAL ADJUSTER),BLACK,TRIM2# |
2 | ||
| 71931-32020C0 |
AT200,ST204..CP,LB W/O(LOCK),W(KAIPER VERTICAL ADJUSTER),BLACK,TRIM0#,2# |
2 | ||
| 71930-20120C0 |
AT200,ST204..CP,LB W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-12040A0 |
AT200,ST204..CP,LB W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-32020C0 |
AT200,ST204 W/O(LOCK),W(KAIPER VERTICAL ADJUSTER),BLACK,TRIM2# |
2 | ||
| 71931-20080A0 |
AT200,ST204..CP,LB W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-20080C0 |
AT200,ST204 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-32020A0 |
AT200,ST204..CP,LB W/O(LOCK),W(KAIPER VERTICAL ADJUSTER),IVORY,TRIM0# |
2 | ||
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18071 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
