AT200L-BCPSKA (1993)
Toyota Celica
Production
Sep 1993
-
Dec 1997
Engine
7AFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9309- )AT200

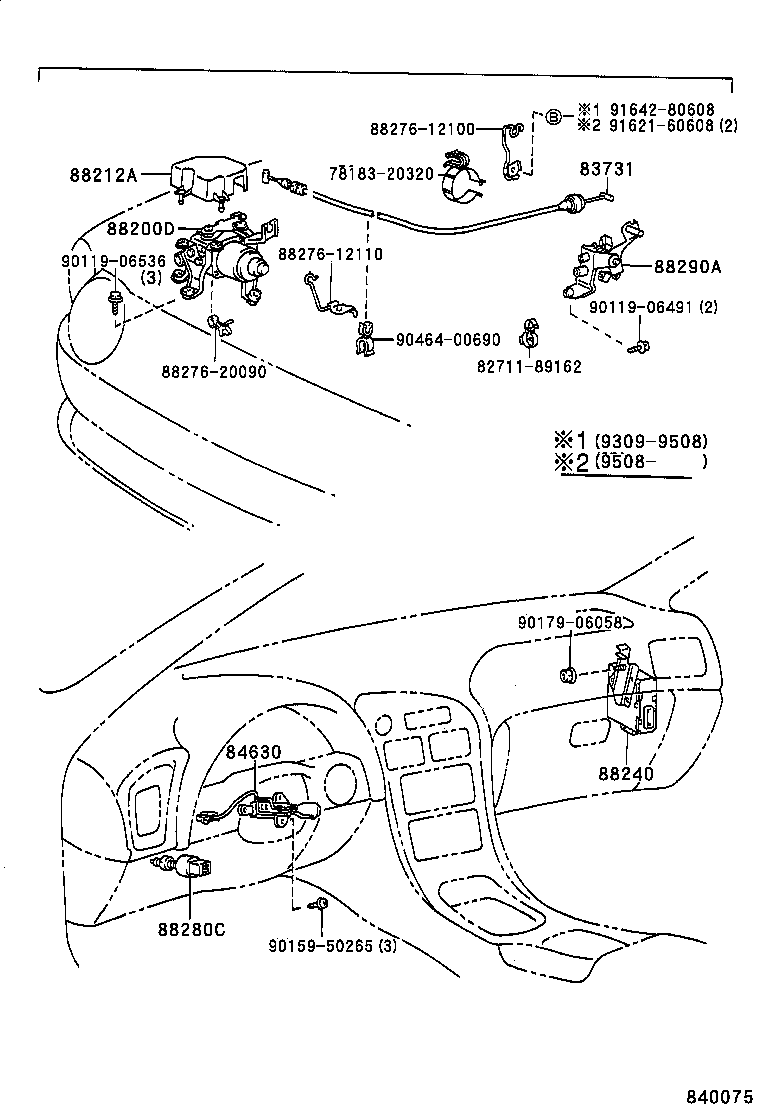

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83731 - CABLE, CRUISE CONTROL | ||||
| 83731-20160 |
AT200 |
1 | ||
| 84630 - SWITCH ASSY, CRUISE CONTROL MAIN | ||||
| 84630-33020 |
AT200,ST204 |
1 | ||
| 88200D - ACTUATOR ASSY, CRUISE CONTROL | ||||
| 88200-20160 |
AT200 |
1 | ||
| 88200-20161 |
AT200 |
1 | ||
| 88212A - COVER, CRUISE CONTROL ACTUATOR | ||||
| 88212-20071 |
AT200 |
1 | ||
| 88212-20070 |
AT200 |
1 | ||
| 88240 - COMPUTER ASSY, CRUISE CONTROL | ||||
| 88240-20430 |
AT200,ST204 |
1 | ||
| 88240-20440 |
AT200,ST204..CP,LB |
1 | ||
| 88290A - BELLCRANK ASSY, CRUISE CONTROL | ||||
| 88290-20050 |
AT200,ST204 |
1 | ||
| Common parts | ||||
| 78183-20320 | ||||
| 82711-89162 | ||||
| 88276-12100 | ||||
| 88276-12110 | ||||
| 88276-20090 | ||||
| 90119-06491 | ||||
| 90119-06536 | ||||
| 90159-50265 | ||||
| 90179-06058 | ||||
| 90464-00690 | ||||
| 91621-60608 | ||||
| 91642-80608 | ||||
