AT180L-BCPSKA (1989)
Toyota Celica

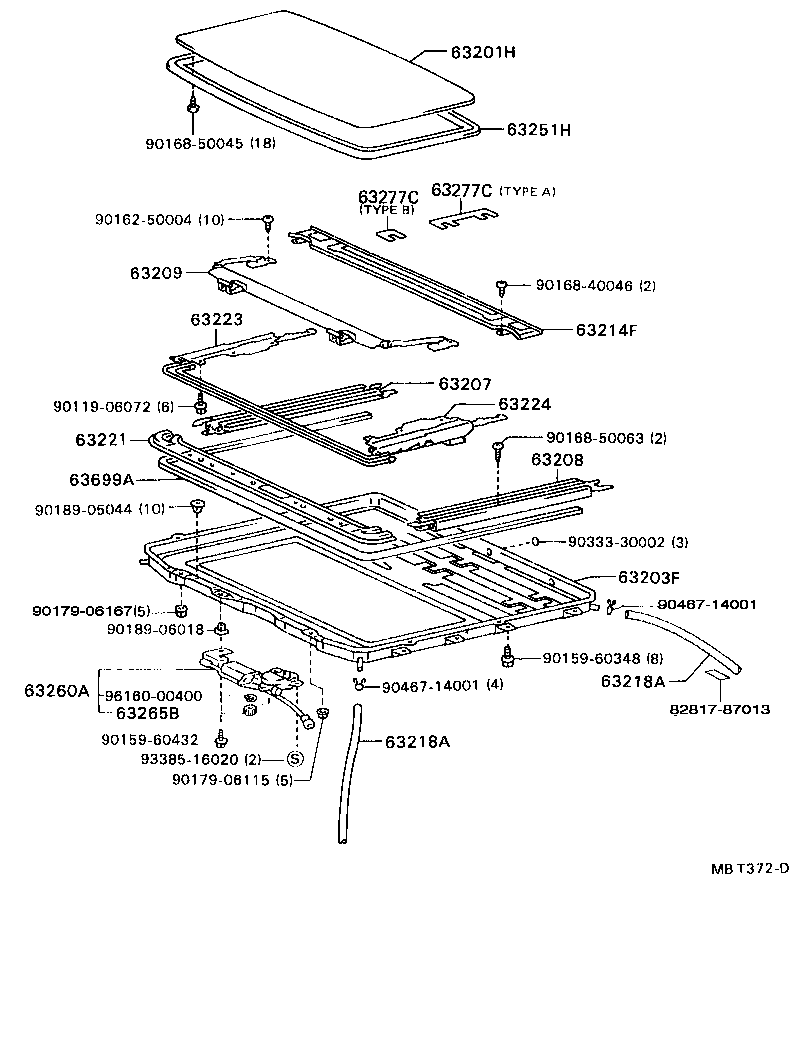

ILLUST NO. 2 OF 2(8909- )CP,LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201H - PANEL SUB-ASSY, SLIDE ROOF | ||||
| 63201-20080 |
AT180,ST18#..CP,LB |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-20050 |
AT180,ST18#..CP,LB |
1 | ||
| 63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH | ||||
| 63207-20060 |
AT180,ST18#..CP,LB |
1 | ||
| 63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH | ||||
| 63208-20060 |
AT180,ST18#..CP,LB |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-20060 |
AT180,ST18#..CP,LB |
1 | ||
| 63214F - CHANNEL, ROOF DRIP, REAR | ||||
| 63214-20010 |
AT180,ST18#..CP,LB |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-20170 |
AT180,ST18#..CP,LB FRONT |
2 | ||
| 63249-20180 |
AT180,ST18#..CP,LB REAR |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-20170 |
AT180,ST18#..CP,LB FRONT |
2 | ||
| 63249-20180 |
AT180,ST18#..CP,LB REAR |
2 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-20050 |
AT180,ST18#..CP,LB |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-20070 |
AT180,ST18#..CP,LB |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-20070 |
AT180,ST18#..CP,LB |
1 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63250-20010 |
AT180,ST18#..CP,LB |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-20060 |
AT180,ST18#..CP,LB |
1 | ||
| 63260-20061 |
AT180,ST18#..CP,LB |
1 | ||
| 63265B - GEAR, SLIDING ROOF DRIVE | ||||
| 63265-20010 |
AT180,ST18#..CP,LB |
1 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-20020 |
AT180,ST18#..CP,LB T=1.0,T=1.0, TYPE A |
1 | ||
| 63277-20030 |
AT180,ST18#..CP,LB T=1.0,T=1.0, TYPE B |
1 | ||
| 63277-20050 |
AT180,ST18#..CP,LB T=2.0,T=2.0,TYPE B |
1 | ||
| 63277-20020 |
AT180,ST18#..CP,LB T=1.0,T=1.0,TYPE A |
1 | ||
| 63277-20050 |
AT180,ST18#..CP,LB T=2.0,T=2.0, TYPE B |
1 | ||
| 63277-20040 |
AT180,ST18#..CP,LB T=2.0,T=2.0, TYPE A |
1 | ||
| 63277-20030 |
AT180,ST18#..CP,LB T=1.0,T=1.0,TYPE B |
1 | ||
| 63277-20040 |
AT180,ST18#..CP,LB T=2.0,T=2.0,TYPE A |
1 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-20020 |
AT180,ST18#..CP,LB T=1.0,T=1.0, TYPE A |
1 | ||
| 63277-20030 |
AT180,ST18#..CP,LB T=1.0,T=1.0, TYPE B |
1 | ||
| 63277-20050 |
AT180,ST18#..CP,LB T=2.0,T=2.0,TYPE B |
1 | ||
| 63277-20020 |
AT180,ST18#..CP,LB T=1.0,T=1.0,TYPE A |
1 | ||
| 63277-20050 |
AT180,ST18#..CP,LB T=2.0,T=2.0, TYPE B |
1 | ||
| 63277-20040 |
AT180,ST18#..CP,LB T=2.0,T=2.0, TYPE A |
1 | ||
| 63277-20030 |
AT180,ST18#..CP,LB T=1.0,T=1.0,TYPE B |
1 | ||
| 63277-20040 |
AT180,ST18#..CP,LB T=2.0,T=2.0,TYPE A |
1 | ||
| 63699A - SEAL, SLIDING ROOF GUIDE RAIL | ||||
| 63699-20030 |
AT180,ST18#..CP,LB |
1 | ||
| Common parts | ||||
| 82817-87013 | ||||
| 90119-06072 | ||||
| 90159-60348 | ||||
| 90159-60432 | ||||
| 90162-50004 | ||||
| 90168-40046 | ||||
| 90168-50045 | ||||
| 90168-50063 | ||||
| 90179-06115 | ||||
| 90179-06167 | ||||
| 90189-05044 | ||||
| 90189-06018 | ||||
| 90333-30002 | ||||
| 90467-14001 | ||||
| 93385-16020 | ||||
| 96160-00400 | ||||

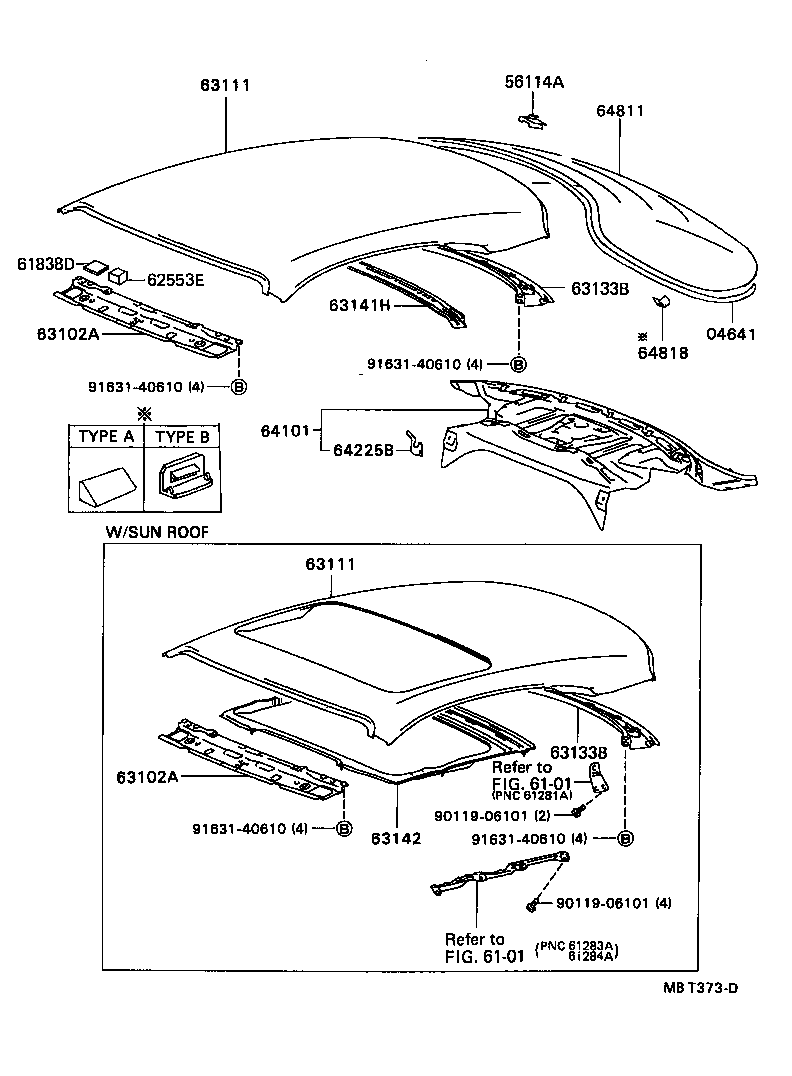

ILLUST NO. 1 OF 2(8909- )CP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04641 - DAM KIT, BACK WINDOW GLASS | ||||
| 04562-12010 |
AT180,ST184..CP |
1 | ||
| 56114A - RETAINER, BACK WINDOW GLASS | ||||
| 56114-20020 |
AT180,ST184..CP |
2 | ||
| 61838D - PLATE, NOISE CONTROL, NO.5 | ||||
| 61838-20030 |
AT180,ST184..CP,CVT |
2 | ||
| 62553E - PAD, PILLAR, NO.3 | ||||
| 62553-20050 |
AT180,ST18# |
2 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-20900 |
AT180,ST18# |
1 | ||
| 63102-20190 |
AT180,ST184 |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-20900 |
AT180,ST18# |
1 | ||
| 63102-20190 |
AT180,ST184 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-20400 |
AT180,ST184..CP W(SUN ROOF) |
1 | ||
| 63111-20390 |
AT180,ST184..CP,CVT |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-20400 |
AT180,ST184..CP W(SUN ROOF) |
1 | ||
| 63111-20390 |
AT180,ST184..CP,CVT |
1 | ||
| 63133B - FRAME, BACK WINDOW | ||||
| 63133-20180 |
AT180,ST184..CP,CVT |
1 | ||
| 63133B - FRAME, BACK WINDOW | ||||
| 63133-20180 |
AT180,ST184..CP,CVT |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-20120 |
AT180,ST184..CP |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-20060 |
AT180,ST18#..CP,LB |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-20470 |
AT180,ST184..CP |
1 | ||
| 64101-20470 |
AT180 |
1 | ||
| 64101-20470 |
AT180 |
1 | ||
| 64225B - HANGER, REAR SEAT CUSHION SUPPORT | ||||
| 64225-50010 |
AT180 |
2 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-2B200 |
AT180..USA *EHTT,T=3.5,BLUE,W(ANTENA) |
1 | ||
| 64811-2B200 |
AT180..USA *EHTT,T=3.5,BLUE,W(ANTENA) |
1 | ||
| 64811-2B210 |
AT180..USA *EHTT,T=3.5,BLUE,COLD SPEC & W(ANTENA) |
1 | ||
| 64811-2B190 |
AT180,ST184..CP..USA *EHTT,T=3.5,BLUE,COLD SPEC |
1 | ||
| 64811-2B180 |
AT180,ST184..CP..USA *EHTT,T=3.5,BLUE |
1 | ||
| 64818 - SPACER, BACK WINDOW GLASS | ||||
| 67272-20010 |
AT180,ST184..CP TYPE A |
7 | ||
| 64818-22060 |
AT180,ST184..CP TYPE B |
9 | ||
| 67272-20010 |
AT180,ST184..CP TYPE A |
10 | ||
| Common parts | ||||
| 90119-06101 | ||||
| 91631-40610 | ||||
| Linked diagrams | ||||
| 6101 | ||||
