AT180L-BCPSKA (1989)

Toyota Celica

Production Sep 1989 - Sep 1993
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8909- )USA

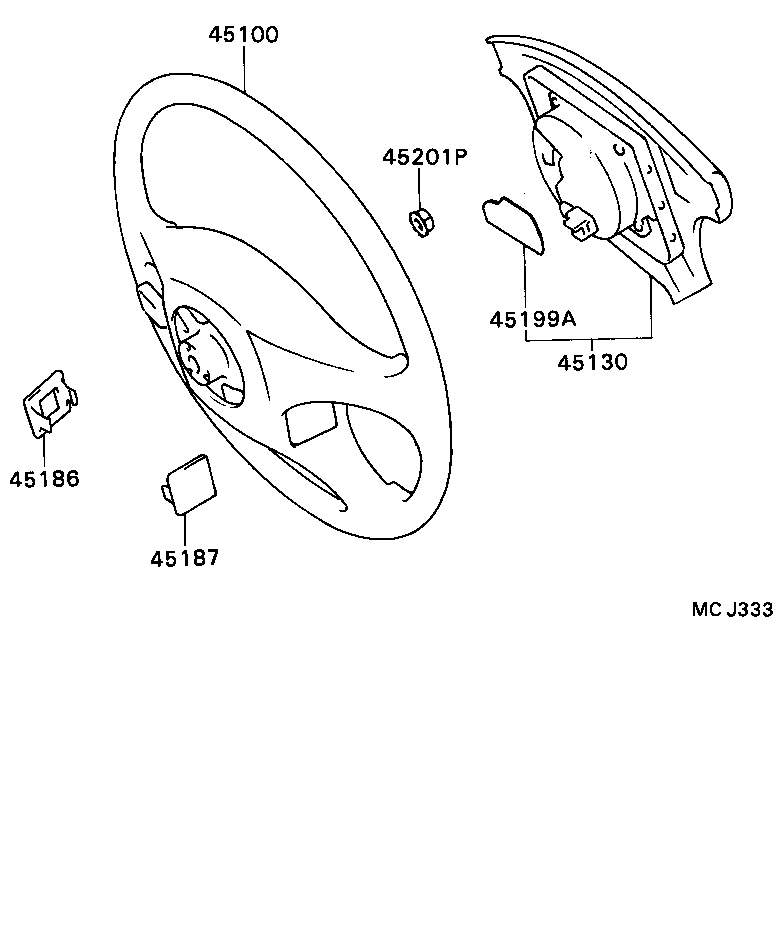

Click highlighted areas on diagram

diagram 45100 45130 45186 45187 45199A 45201P
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-2066002

AT180,ST184..(CP,LB)..NOB..USA

RED,TRIM3#

 1
45100-2066003

AT180,ST184..NOB..USA

SHADOW GRAY,TRIM1#

 1
45100-2066004

AT180,ST184..(CP,LB)..NOB..USA

DARK BLUE,TRIM8#

 1
45100-20670L6

AT180,ST184..(CP,LB)..NOB..USA

W(CRUISE CONTROL),CHOCOLATE BROWN,TRIM4#

 1
45100-2066016

AT180,ST184..(CP,LB)..NOB..USA

CHOCOLATE BROWN,TRIM4#

 1
45100-20670R8

AT180,ST184..(CP,LB)..NOB..USA

W(CRUISE CONTROL),DARK BLUE,TRIM8#

 1
45100-20670P0

AT180,ST184..NOB..USA

W(CRUISE CONTROL),SHADOW GRAY,TRIM1#

 1
45100-2066004

AT180,ST184..(CP,LB)..USA

DARK BLUE,TRIM8#

 1
45100-20670P0

AT180..USA;ST184..CVT

W(CRUISE CONTROL),SHADOW GRAY,TRIM1#

 1
45100-2066003

AT180,ST184..USA

SHADOW GRAY,TRIM1#

 1
45100-20670R8

AT180..USA

W(CRUISE CONTROL),DARK BLUE,TRIM8#

 1
45100-2066003

AT180;ST184..USA;ST184..GT..CND

SHADOW GRAY,TRIM1#

 1
45100-20670R8

AT180

W(CRUISE CONTROL),DARK BLUE,TRIM8#

 1
45100-20670P0

AT180

W(CRUISE CONTROL),SHADOW GRAY,TRIM1#

 1
45100-2066004

AT180;ST184..GT..CND;ST184..(CP,LB)..USA

DARK BLUE,TRIM8#

 1
45100-20670P0

AT180..USA

W(CRUISE CONTROL),SHADOW GRAY,TRIM1#

 1
45100-20661P0

AT180;ST184..USA;ST184..GT..CND

SHADOW GRAY,TRIM1#

 1
45100-20671P0

AT180

W(CRUISE CONTROL),SHADOW GRAY,TRIM1#

 1
45100-20661R8

AT180;ST184..GT..CND;ST184..(CP,LB)..USA

DARK BLUE,TRIM8#

 1
45100-20671R8

AT180

W(CRUISE CONTROL),DARK BLUE,TRIM8#

 1
45130 - BUTTON ASSY, HORN
45130-2083103

AT180,ST18#..GT,GTS,ST,TBO4W

SHADOW GRAY,TRIM1#

 1
45130-2083102

AT180,ST184..(CP,LB)..USA

RED,TRIM3#

 1
45130-2083106

AT180,ST184..(CP,LB)..USA

CHOCOLATE BROWN,TRIM4#

 1
45130-2083104

AT180,ST184..(CP,LB)..USA

DARK BLUE,TRIM8#

 1
45130-20832P0

AT180,ST18#..GT,GTS,ST,TBO4W

SHADOW GRAY,TRIM1#

 1
45130-2083103

AT180,ST184..USA

SHADOW GRAY,TRIM1#

 1
45130-20832R8

AT180,ST184..CP,LB

DARK BLUE,TRIM8#

 1
45130-2083104

AT180,ST184..CP,LB

DARK BLUE,TRIM8#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-2003002

AT180,ST184..(CP,LB)..USA

RED,TRIM3#

 1
45186-2004004

AT180,ST184..(CP,LB)..NOB..USA

W(CRUISE CONTROL),DARK BLUE,TRIM8#

 1
45186-2003003

AT180,ST184..USA

SHADOW GRAY,TRIM1#

 1
45186-2004003

AT180..USA;ST184..CVT

W(CRUISE CONTROL),SHADOW GRAY,TRIM1#

 1
45186-2004004

AT180..USA

W(CRUISE CONTROL),DARK BLUE,TRIM8#

 1
45186-2004016

AT180,ST184..(CP,LB)..NOB..USA

W(CRUISE CONTROL),CHOCOLATE BROWN,TRIM4#

 1
45186-2004003

AT180,ST184..NOB..USA

W(CRUISE CONTROL),SHADOW GRAY,TRIM1#

 1
45186-2003004

AT180,ST184..CP,LB

DARK BLUE,TRIM8#

 1
45186-2003016

AT180,ST184..(CP,LB)..USA

CHOCOLATE BRONWN,TRIM4#

 1
45186-2003003

AT180,ST184

SHADOW GRAY,TRIM1#

 1
45186-2004003

AT180..USA;ST184..GT..CND

W(CRUISE CONTROL),SHADOW GRAY,TRIM1#

 1
45186-2003004

AT180,ST184..(CP,LB)..USA

DARK BLUE,TRIM8#

 1
45186-2004003

AT180..USA

W(CRUISE CONTROL),SHADOW GRAY,TRIM1#

 1
45186-2004004

AT180..USA;ST184..GT..CND

W(CRUISE CONTROL),DARK BLUE,TRIM8#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-2002004

AT180,ST18#..(CP,LB)..USA

DARK BLUE,TRIM8#

 1
45187-2002003

AT180,ST18#..USA

SHADOW GRAY,TRIM1#

 1
45187-2002003

AT180,ST18#

SHADOW GRAY,TRIM1#

 1
45187-2002004

AT180,ST184..(CP,LB)..USA

DARK BLUE,TRIM8#

 1
45187-2002004

AT180,ST184..CP,LB

DARK BLUE,TRIM8#

 1
45187-2002002

AT180,ST18#..(CP,LB)..USA

RED,TRIM3#

 1
45187-2002016

AT180,ST18#..(CP,LB)..USA

CHOCOLATE BROWN,TRIM4#

 1
45199A - LABEL, INFLATOR REPLACE CAUTION(FOR STEERING WHEEL PAD)
45199-32010

AT180,ST18#..USA

 1
45199-32010

AT180,ST18#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

AT180,ST18#

 1
90179-12086

AT180,ST18#

 1
