AT180L-BCMSKK (1989)
Toyota Celica
Production
Sep 1989
-
Sep 1993
Engine
4AFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

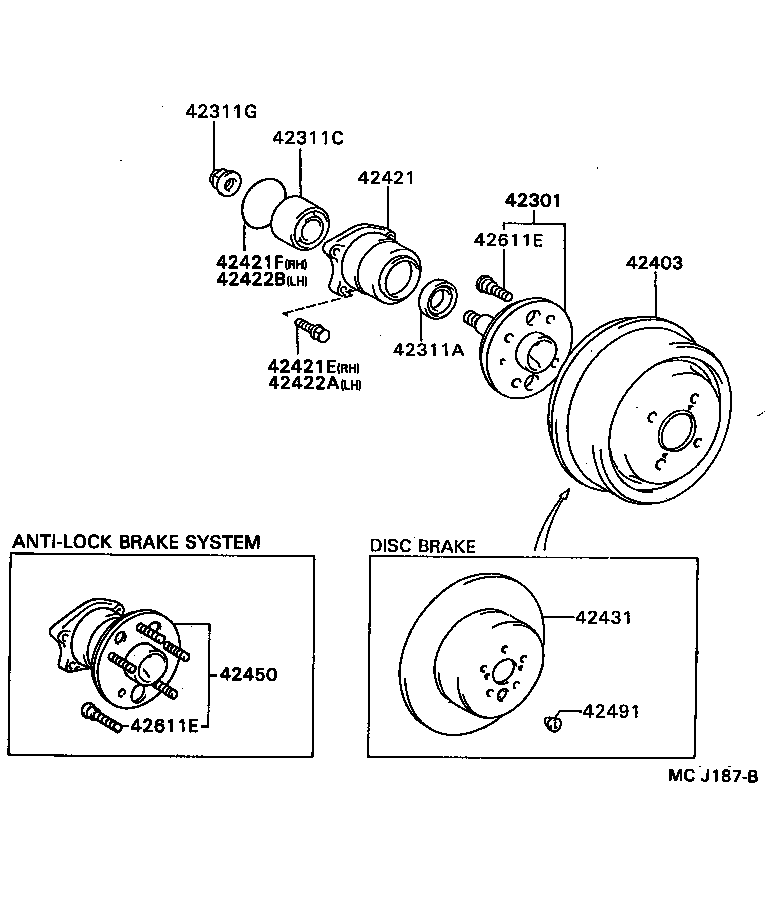

(8909-9307)AT180,ST184
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42301 - SHAFT SUB-ASSY, REAR AXLE | ||||
| 42301-20130 |
AT180 |
2 | ||
| 42301-20140 |
AT180,ST184 |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90311-42018 |
AT180,ST184 |
2 | ||
| 42311C - BEARING (FOR REAR AXLE SHAFT) | ||||
| 90369-30044 |
AT180,ST184 |
2 | ||
| 42311G - NUT (FOR REAR AXLE SHAFT) | ||||
| 90179-20017 |
AT180,ST184 |
1 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-20080 |
AT180 |
2 | ||
| 42431-32020 |
AT180;ST184..CVT |
2 | ||
| 42431-32020 |
AT180 |
2 | ||
| 42421 - CASE, REAR AXLE BEARING | ||||
| 42421-20020 |
AT180,ST184 |
1 | ||
| 42421E - BOLT (FOR REAR AXLE BEARING CASE RH) | ||||
| 90105-10124 |
AT180,ST184 |
4 | ||
| 42421F - RING, O (FOR REAR AXLE BEARING CASE RH) | ||||
| 90301-63003 |
AT180,ST184 |
1 | ||
| 42422A - BOLT (FOR REAR AXLE BEARING CASE LH) | ||||
| 90105-10124 |
AT180,ST184 |
4 | ||
| 42422B - RING, O (FOR REAR AXLE BEARING CASE LH) | ||||
| 90301-63003 |
AT180,ST184 |
1 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02047 |
AT180,ST18# |
5 | ||
| 90942-02047 |
AT180 |
4 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02047 |
AT180,ST18# |
5 | ||
| 90942-02047 |
AT180 |
4 | ||

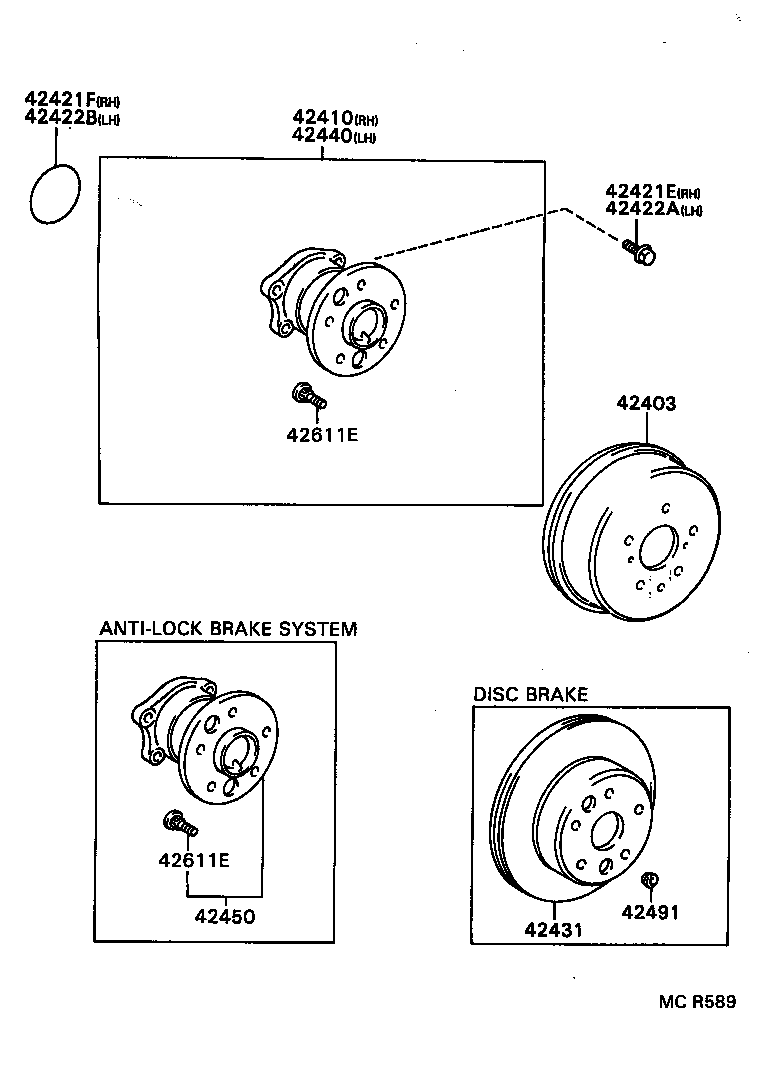

(9307- )AT180,ST184
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-20080 |
AT180 |
2 | ||
| 42431-32020 |
AT180;ST184..CVT |
2 | ||
| 42431-32020 |
AT180 |
2 | ||
| 42410 - HUB & BEARING ASSY, REAR AXLE, RH | ||||
| 42410-20140 |
AT180,ST184 |
1 | ||
| 42421E - BOLT (FOR REAR AXLE BEARING CASE RH) | ||||
| 90105-10124 |
AT180,ST184 |
4 | ||
| 42421F - RING, O (FOR REAR AXLE BEARING CASE RH) | ||||
| 90301-63003 |
AT180,ST184 |
1 | ||
| 42422A - BOLT (FOR REAR AXLE BEARING CASE LH) | ||||
| 90105-10124 |
AT180,ST184 |
4 | ||
| 42422B - RING, O (FOR REAR AXLE BEARING CASE LH) | ||||
| 90301-63003 |
AT180,ST184 |
1 | ||
| 42440 - HUB & BEARING ASSY, REAR AXLE, LH | ||||
| 42410-20140 |
AT180,ST184 |
1 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02047 |
AT180,ST18# |
5 | ||
| 90942-02047 |
AT180 |
4 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02047 |
AT180,ST18# |
5 | ||
| 90942-02047 |
AT180 |
4 | ||
