AT180L-BCMSKA (1989)
Toyota Celica

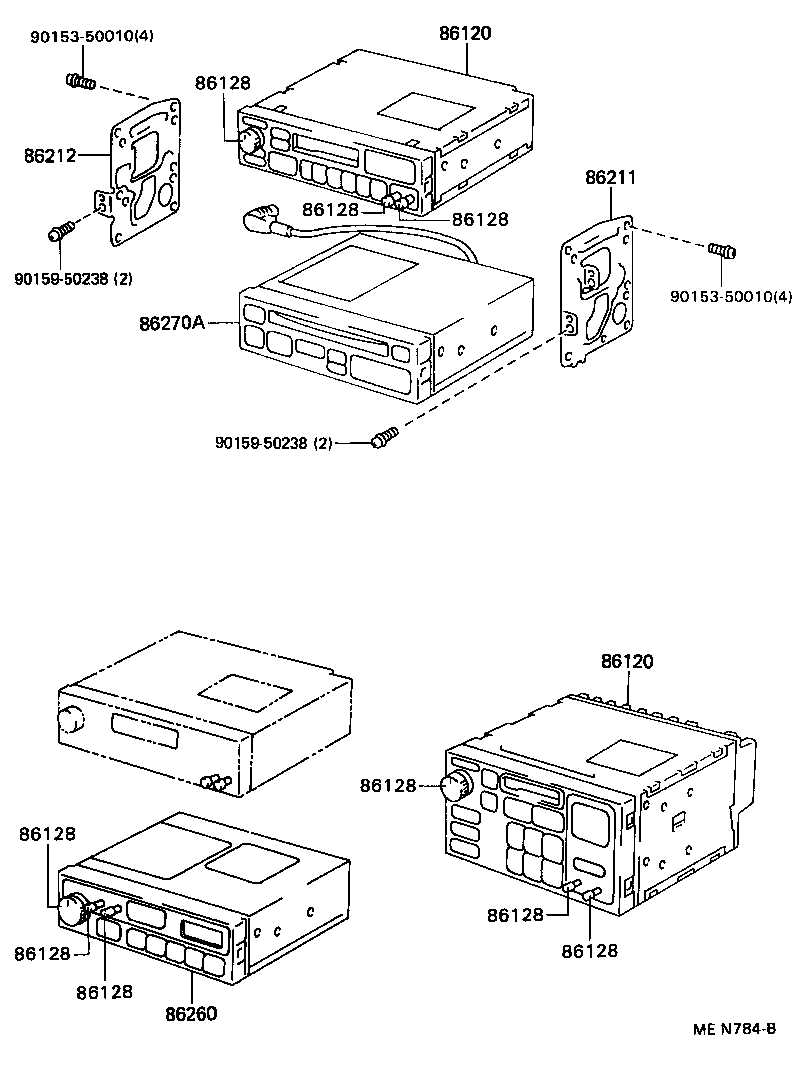

ILLUST NO. 1 OF 3(8909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-16571 |
AT180,ST184..NOB AM/FM MPX ETR 6SP |
1 | ||
| 86120-20880 |
AT180,ST18#..(CP,LB)..USA AM MPX/FM MPX ETR CST 6SP |
1 | ||
| 86120-32390 |
AT180,ST18#..(CP,LB)..USA FUJITSU TEN,AM/FM MPX ETR 4SP US TERRITORIES |
1 | ||
| 86120-28040 |
AT180,ST184..NOB |
1 | ||
| 86120-16570 |
AT180,ST184..NOB AM/FM MPX ETR 6SP |
1 | ||
| 86120-12730 |
AT180..USA;ST184..MTM..USA;ST184..ATM..GT..USA AM/FM MPX ETR CST 4SP |
1 | ||
| 86120-14772 |
AT180,ST18#..CP,LB AM/FM MPX ETR CST 6SP |
1 | ||
| 86120-2B060 |
AT180,ST18#..(CP,LB)..USA AM/FM MPX ETR 2SP US TERRITORIES |
1 | ||
| 86120-28041 |
AT180,ST184..NOB AM/FM MPX ETR |
1 | ||
| 86120-12850 |
AT180 FUJITSU TEN,AM/FM MPX ETR CST 6SP |
1 | ||
| 86120-2B400 |
AT180,ST18#..(CP,LB)..USA FUJITSU TEN,AM/FM MPX ETR CST 4SP |
1 | ||
| 86120-12840 |
AT180,ST184..(CP,LB)..NOB FUJITSU TEN,AM/FM MPX ETR |
1 | ||
| 86120-12850 |
AT180 FUJITSU TEN,AM/FM MPX ETR CST 6SP |
1 | ||
| 86120-12840 |
AT180,ST184..NOB FUJITSU TEN,AM/FM MPX ETR |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-16571 |
AT180,ST184..NOB AM/FM MPX ETR 6SP |
1 | ||
| 86120-20880 |
AT180,ST18#..(CP,LB)..USA AM MPX/FM MPX ETR CST 6SP |
1 | ||
| 86120-32390 |
AT180,ST18#..(CP,LB)..USA FUJITSU TEN,AM/FM MPX ETR 4SP US TERRITORIES |
1 | ||
| 86120-28040 |
AT180,ST184..NOB |
1 | ||
| 86120-16570 |
AT180,ST184..NOB AM/FM MPX ETR 6SP |
1 | ||
| 86120-12730 |
AT180..USA;ST184..MTM..USA;ST184..ATM..GT..USA AM/FM MPX ETR CST 4SP |
1 | ||
| 86120-14772 |
AT180,ST18#..CP,LB AM/FM MPX ETR CST 6SP |
1 | ||
| 86120-2B060 |
AT180,ST18#..(CP,LB)..USA AM/FM MPX ETR 2SP US TERRITORIES |
1 | ||
| 86120-28041 |
AT180,ST184..NOB AM/FM MPX ETR |
1 | ||
| 86120-12850 |
AT180 FUJITSU TEN,AM/FM MPX ETR CST 6SP |
1 | ||
| 86120-2B400 |
AT180,ST18#..(CP,LB)..USA FUJITSU TEN,AM/FM MPX ETR CST 4SP |
1 | ||
| 86120-12840 |
AT180,ST184..(CP,LB)..NOB FUJITSU TEN,AM/FM MPX ETR |
1 | ||
| 86120-12850 |
AT180 FUJITSU TEN,AM/FM MPX ETR CST 6SP |
1 | ||
| 86120-12840 |
AT180,ST184..NOB FUJITSU TEN,AM/FM MPX ETR |
1 | ||
| 86128 - KNOB, RADIO RECEIVER | ||||
| 86128-28140 |
AT180,ST18#..CP,LB AM MPX/FM MPX ETR CST 6SP,PWR/VOL |
1 | ||
| 86128-12300 |
AT180 AM/FM MPX ETR 6SP,PWR/VOL |
1 | ||
| 86128-12300 |
AT180,ST18# PWR/VOL |
1 | ||
| 86128-28140 |
AT180,ST18#..(CP,LB)..USA AM MPX/FM MPX ETR CST 6SP,PWR/VOL |
1 | ||
| 86128-28160 |
AT180..USA AM/FM MPX ETR 6SP;AM/FM MPX ETR 4SP,BASS/TREB,BAL/FADE |
2 | ||
| 86128-28160 |
AT180..USA BAL,BASS/FREB |
2 | ||
| 86128-12360 |
AT180..USA PWR/VOL |
1 | ||
| 86128-28160 |
AT180,ST18# BASS/TREB,BAL/FADE |
2 | ||
| 86128-12360 |
AT180,ST184..(CP,LB)..NOB..USA PWR/VOL |
1 | ||
| 86128-28160 |
AT180,ST184..(CP,LB)..NOB..USA BAL,BASS/FREB |
2 | ||
| 86128 - KNOB, RADIO RECEIVER | ||||
| 86128-28140 |
AT180,ST18#..CP,LB AM MPX/FM MPX ETR CST 6SP,PWR/VOL |
1 | ||
| 86128-12300 |
AT180 AM/FM MPX ETR 6SP,PWR/VOL |
1 | ||
| 86128-12300 |
AT180,ST18# PWR/VOL |
1 | ||
| 86128-28140 |
AT180,ST18#..(CP,LB)..USA AM MPX/FM MPX ETR CST 6SP,PWR/VOL |
1 | ||
| 86128-28160 |
AT180..USA AM/FM MPX ETR 6SP;AM/FM MPX ETR 4SP,BASS/TREB,BAL/FADE |
2 | ||
| 86128-28160 |
AT180..USA BAL,BASS/FREB |
2 | ||
| 86128-12360 |
AT180..USA PWR/VOL |
1 | ||
| 86128-28160 |
AT180,ST18# BASS/TREB,BAL/FADE |
2 | ||
| 86128-12360 |
AT180,ST184..(CP,LB)..NOB..USA PWR/VOL |
1 | ||
| 86128-28160 |
AT180,ST184..(CP,LB)..NOB..USA BAL,BASS/FREB |
2 | ||
| 86128 - KNOB, RADIO RECEIVER | ||||
| 86128-28140 |
AT180,ST18#..CP,LB AM MPX/FM MPX ETR CST 6SP,PWR/VOL |
1 | ||
| 86128-12300 |
AT180 AM/FM MPX ETR 6SP,PWR/VOL |
1 | ||
| 86128-12300 |
AT180,ST18# PWR/VOL |
1 | ||
| 86128-28140 |
AT180,ST18#..(CP,LB)..USA AM MPX/FM MPX ETR CST 6SP,PWR/VOL |
1 | ||
| 86128-28160 |
AT180..USA AM/FM MPX ETR 6SP;AM/FM MPX ETR 4SP,BASS/TREB,BAL/FADE |
2 | ||
| 86128-28160 |
AT180..USA BAL,BASS/FREB |
2 | ||
| 86128-12360 |
AT180..USA PWR/VOL |
1 | ||
| 86128-28160 |
AT180,ST18# BASS/TREB,BAL/FADE |
2 | ||
| 86128-12360 |
AT180,ST184..(CP,LB)..NOB..USA PWR/VOL |
1 | ||
| 86128-28160 |
AT180,ST184..(CP,LB)..NOB..USA BAL,BASS/FREB |
2 | ||
| 86128 - KNOB, RADIO RECEIVER | ||||
| 86128-28140 |
AT180,ST18#..CP,LB AM MPX/FM MPX ETR CST 6SP,PWR/VOL |
1 | ||
| 86128-12300 |
AT180 AM/FM MPX ETR 6SP,PWR/VOL |
1 | ||
| 86128-12300 |
AT180,ST18# PWR/VOL |
1 | ||
| 86128-28140 |
AT180,ST18#..(CP,LB)..USA AM MPX/FM MPX ETR CST 6SP,PWR/VOL |
1 | ||
| 86128-28160 |
AT180..USA AM/FM MPX ETR 6SP;AM/FM MPX ETR 4SP,BASS/TREB,BAL/FADE |
2 | ||
| 86128-28160 |
AT180..USA BAL,BASS/FREB |
2 | ||
| 86128-12360 |
AT180..USA PWR/VOL |
1 | ||
| 86128-28160 |
AT180,ST18# BASS/TREB,BAL/FADE |
2 | ||
| 86128-12360 |
AT180,ST184..(CP,LB)..NOB..USA PWR/VOL |
1 | ||
| 86128-28160 |
AT180,ST184..(CP,LB)..NOB..USA BAL,BASS/FREB |
2 | ||
| 86128 - KNOB, RADIO RECEIVER | ||||
| 86128-28140 |
AT180,ST18#..CP,LB AM MPX/FM MPX ETR CST 6SP,PWR/VOL |
1 | ||
| 86128-12300 |
AT180 AM/FM MPX ETR 6SP,PWR/VOL |
1 | ||
| 86128-12300 |
AT180,ST18# PWR/VOL |
1 | ||
| 86128-28140 |
AT180,ST18#..(CP,LB)..USA AM MPX/FM MPX ETR CST 6SP,PWR/VOL |
1 | ||
| 86128-28160 |
AT180..USA AM/FM MPX ETR 6SP;AM/FM MPX ETR 4SP,BASS/TREB,BAL/FADE |
2 | ||
| 86128-28160 |
AT180..USA BAL,BASS/FREB |
2 | ||
| 86128-12360 |
AT180..USA PWR/VOL |
1 | ||
| 86128-28160 |
AT180,ST18# BASS/TREB,BAL/FADE |
2 | ||
| 86128-12360 |
AT180,ST184..(CP,LB)..NOB..USA PWR/VOL |
1 | ||
| 86128-28160 |
AT180,ST184..(CP,LB)..NOB..USA BAL,BASS/FREB |
2 | ||
| 86128 - KNOB, RADIO RECEIVER | ||||
| 86128-28140 |
AT180,ST18#..CP,LB AM MPX/FM MPX ETR CST 6SP,PWR/VOL |
1 | ||
| 86128-12300 |
AT180 AM/FM MPX ETR 6SP,PWR/VOL |
1 | ||
| 86128-12300 |
AT180,ST18# PWR/VOL |
1 | ||
| 86128-28140 |
AT180,ST18#..(CP,LB)..USA AM MPX/FM MPX ETR CST 6SP,PWR/VOL |
1 | ||
| 86128-28160 |
AT180..USA AM/FM MPX ETR 6SP;AM/FM MPX ETR 4SP,BASS/TREB,BAL/FADE |
2 | ||
| 86128-28160 |
AT180..USA BAL,BASS/FREB |
2 | ||
| 86128-12360 |
AT180..USA PWR/VOL |
1 | ||
| 86128-28160 |
AT180,ST18# BASS/TREB,BAL/FADE |
2 | ||
| 86128-12360 |
AT180,ST184..(CP,LB)..NOB..USA PWR/VOL |
1 | ||
| 86128-28160 |
AT180,ST184..(CP,LB)..NOB..USA BAL,BASS/FREB |
2 | ||
| 86128 - KNOB, RADIO RECEIVER | ||||
| 86128-28140 |
AT180,ST18#..CP,LB AM MPX/FM MPX ETR CST 6SP,PWR/VOL |
1 | ||
| 86128-12300 |
AT180 AM/FM MPX ETR 6SP,PWR/VOL |
1 | ||
| 86128-12300 |
AT180,ST18# PWR/VOL |
1 | ||
| 86128-28140 |
AT180,ST18#..(CP,LB)..USA AM MPX/FM MPX ETR CST 6SP,PWR/VOL |
1 | ||
| 86128-28160 |
AT180..USA AM/FM MPX ETR 6SP;AM/FM MPX ETR 4SP,BASS/TREB,BAL/FADE |
2 | ||
| 86128-28160 |
AT180..USA BAL,BASS/FREB |
2 | ||
| 86128-12360 |
AT180..USA PWR/VOL |
1 | ||
| 86128-28160 |
AT180,ST18# BASS/TREB,BAL/FADE |
2 | ||
| 86128-12360 |
AT180,ST184..(CP,LB)..NOB..USA PWR/VOL |
1 | ||
| 86128-28160 |
AT180,ST184..(CP,LB)..NOB..USA BAL,BASS/FREB |
2 | ||
| 86128 - KNOB, RADIO RECEIVER | ||||
| 86128-28140 |
AT180,ST18#..CP,LB AM MPX/FM MPX ETR CST 6SP,PWR/VOL |
1 | ||
| 86128-12300 |
AT180 AM/FM MPX ETR 6SP,PWR/VOL |
1 | ||
| 86128-12300 |
AT180,ST18# PWR/VOL |
1 | ||
| 86128-28140 |
AT180,ST18#..(CP,LB)..USA AM MPX/FM MPX ETR CST 6SP,PWR/VOL |
1 | ||
| 86128-28160 |
AT180..USA AM/FM MPX ETR 6SP;AM/FM MPX ETR 4SP,BASS/TREB,BAL/FADE |
2 | ||
| 86128-28160 |
AT180..USA BAL,BASS/FREB |
2 | ||
| 86128-12360 |
AT180..USA PWR/VOL |
1 | ||
| 86128-28160 |
AT180,ST18# BASS/TREB,BAL/FADE |
2 | ||
| 86128-12360 |
AT180,ST184..(CP,LB)..NOB..USA PWR/VOL |
1 | ||
| 86128-28160 |
AT180,ST184..(CP,LB)..NOB..USA BAL,BASS/FREB |
2 | ||
| 86128 - KNOB, RADIO RECEIVER | ||||
| 86128-28140 |
AT180,ST18#..CP,LB AM MPX/FM MPX ETR CST 6SP,PWR/VOL |
1 | ||
| 86128-12300 |
AT180 AM/FM MPX ETR 6SP,PWR/VOL |
1 | ||
| 86128-12300 |
AT180,ST18# PWR/VOL |
1 | ||
| 86128-28140 |
AT180,ST18#..(CP,LB)..USA AM MPX/FM MPX ETR CST 6SP,PWR/VOL |
1 | ||
| 86128-28160 |
AT180..USA AM/FM MPX ETR 6SP;AM/FM MPX ETR 4SP,BASS/TREB,BAL/FADE |
2 | ||
| 86128-28160 |
AT180..USA BAL,BASS/FREB |
2 | ||
| 86128-12360 |
AT180..USA PWR/VOL |
1 | ||
| 86128-28160 |
AT180,ST18# BASS/TREB,BAL/FADE |
2 | ||
| 86128-12360 |
AT180,ST184..(CP,LB)..NOB..USA PWR/VOL |
1 | ||
| 86128-28160 |
AT180,ST184..(CP,LB)..NOB..USA BAL,BASS/FREB |
2 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-20300 |
AT180,ST18# |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-20290 |
AT180,ST18# |
1 | ||
| 86260 - TAPE PLAYER ASSY | ||||
| 86260-12180 |
ST184..GT..CND;ST184..(CP,LB)..USA;AT180,ST185..ST,TBOAT |
1 | ||
| 86260-12180 |
AT180,ST184..(CP,LB)..NOB |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90159-50238 | ||||

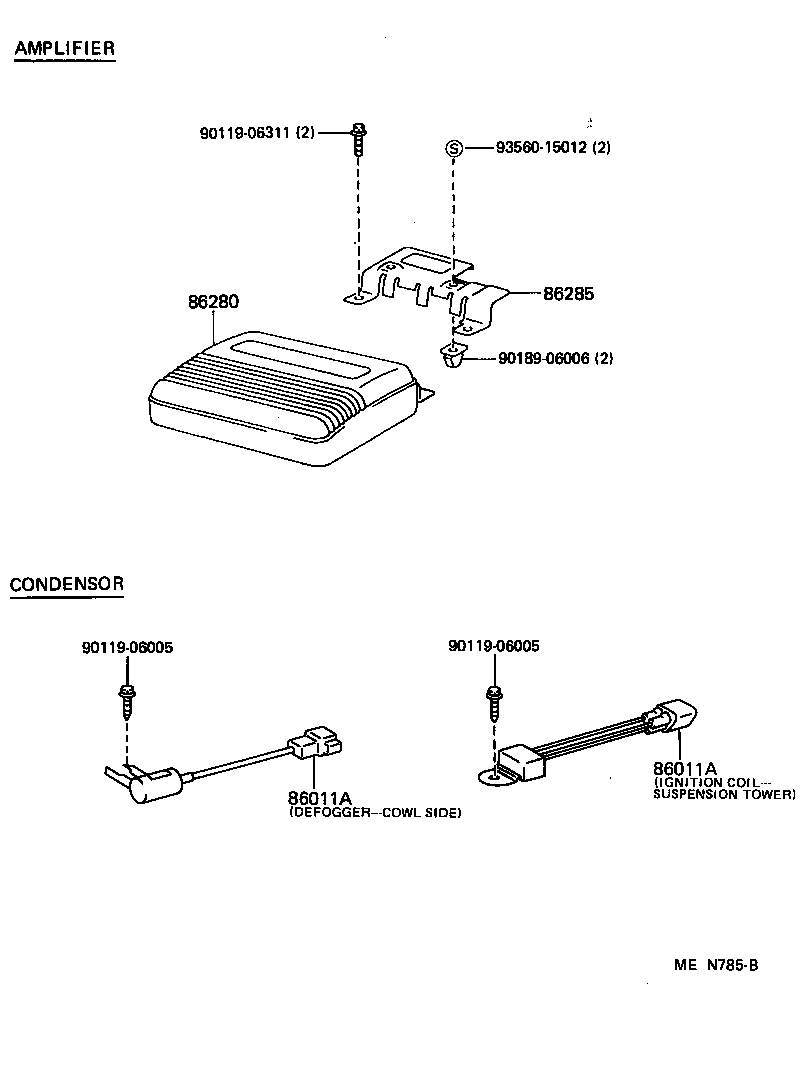

ILLUST NO. 3 OF 3(8909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04071 |
AT180,ST18# IGNITTION COIL |
1 | ||
| 90980-04062 |
AT180,ST18# DEFOGGER |
1 | ||
| 90980-04071 |
AT180,ST18#..CP,LB IGNITION COIL |
1 | ||
| 90980-04071 |
AT180,ST18# IGNITION COIL |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04071 |
AT180,ST18# IGNITTION COIL |
1 | ||
| 90980-04062 |
AT180,ST18# DEFOGGER |
1 | ||
| 90980-04071 |
AT180,ST18#..CP,LB IGNITION COIL |
1 | ||
| 90980-04071 |
AT180,ST18# IGNITION COIL |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-20250 |
AT180 |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-20090 |
AT180,ST18# |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06311 | ||||
| 90189-06006 | ||||
| 93560-15012 | ||||

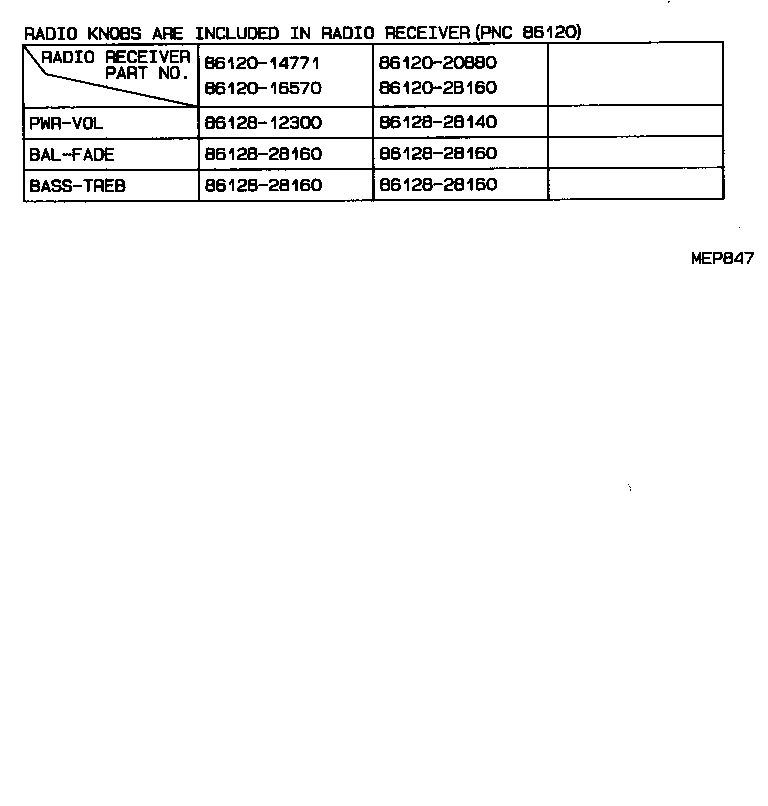

ILLUST NO. 2 OF 3(8909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 86120-14771 | ||||
| 86120-16570 | ||||
| 86120-20880 | ||||
| 86120-2B160 | ||||
| 86128-12300 | ||||
| 86128-28140 | ||||
| 86128-28160 | ||||
