AT180L-BCMSKA (1989)

Toyota Celica

Production Sep 1989 - Sep 1993
Engine 4AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8909- )

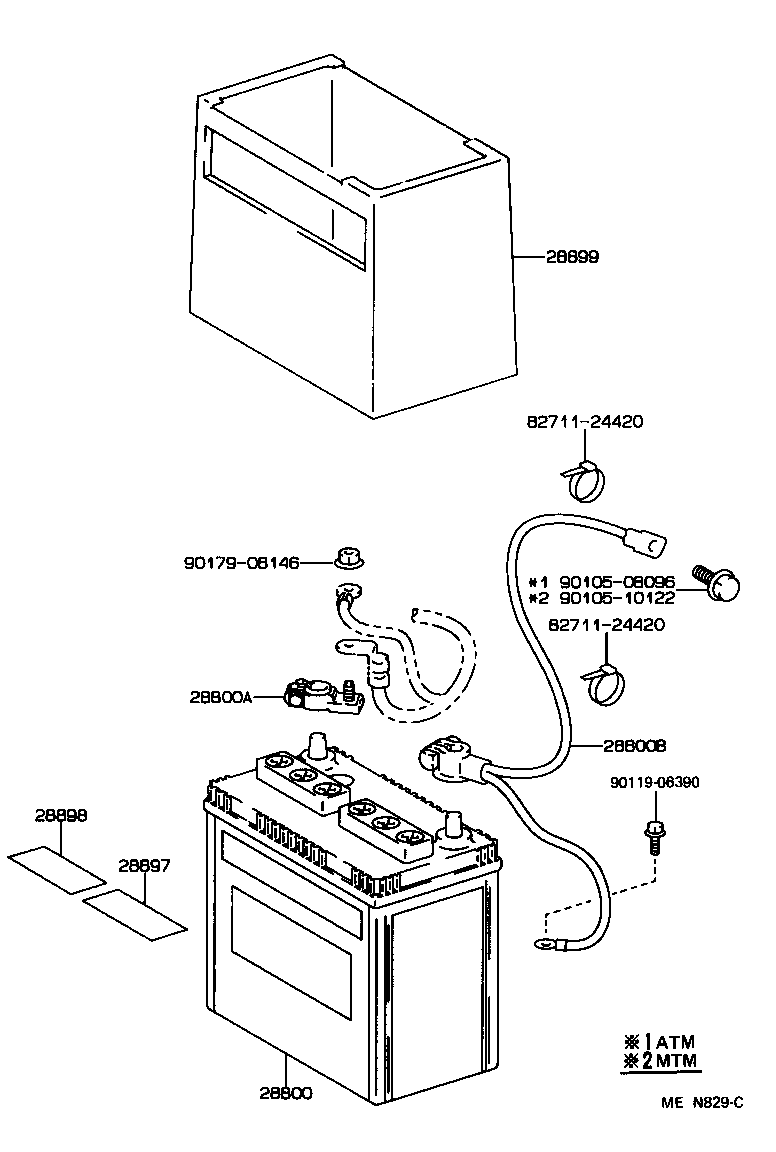

Click highlighted areas on diagram

diagram 28800 28800A 28800B 28897 28898 28899 8271124420 8271124420 9010508096 9010510122 9011906390 9017908146
Part # Description Qty Price
28800 - BATTERY
28800-43250

4AFE,3SGTE,5SFE..AT180,ST18#

55D23L

 1
28800-31031

4AFE,5SFE..AT180,ST184..USA

32C24L

 1
28800-43250

4AFE,3SGTE..AT180,ST185

55D23L

 1
28800-31021

4AFE,5SFE..AT180,ST184..(CP,LB)..USA

32C24L

 1
28800-43261

4AFE,3SGTE..AT180,ST185

55D23L

 1
28800-43250

5SFE..ST184..CVT;4AFE,3SGTE..AT180,ST185

55D23L

 1
28800-31021

4AFE..AT180..USA

32C24L

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05030

4AFE,3SGTE,5SFE..AT180,ST18#

 1
28800B - CABLE, BATTERY TO GROUND
82123-20120

4AFE..AT180

 1
82123-20121

4AFE..AT180

 1
28897 - PLATE, BATTERY CAUTION
28897-26010

4AFE..AT180..USA

 1
28897-26010

4AFE,5SFE..AT180,ST184..(CP,LB)..USA

 1
28898 - PLATE, BATTERY
28898-26010

4AFE,3SGTE,5SFE..AT180,ST18#..USA

 1
28899 - INSULATOR, BATTERY
28899-74070

4AFE,3SGTE,5SFE..AT180,ST18#

 1
28899-74080

4AFE..AT180..USA

W(32C24L BATTERY)

 1
28899-74080

4AFE,5SFE..AT180,ST184..(CP,LB)..USA

W(32C24L BATTERY)

 1
28899-74070

4AFE,3SGTE..AT180,ST185

 1
28899-74070

5SFE..ST184..CVT;4AFE,3SGTE..AT180,ST185

 1
Common parts
82711-24420
90105-08096
90105-10122
90119-06390
90179-08146
