AT180L-BCMSKA (1989)

Toyota Celica

Production Sep 1989 - Sep 1993
Engine 4AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

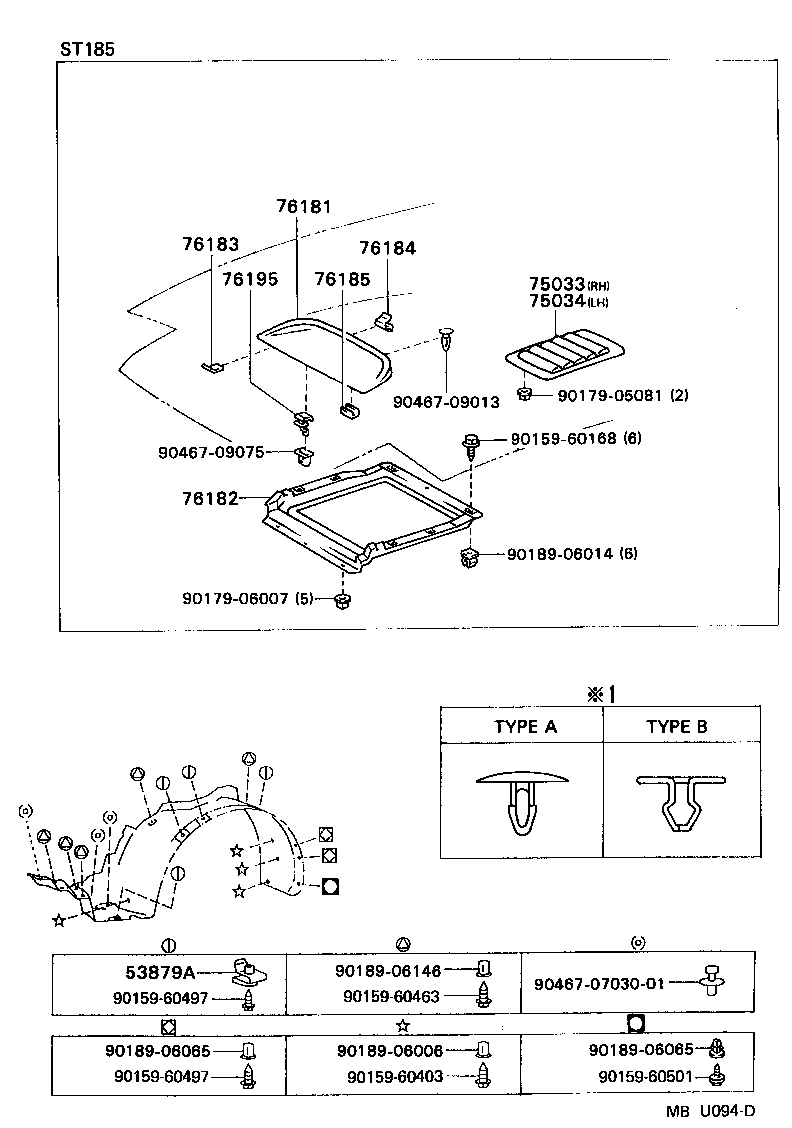

ILLUST NO. 2 OF 2(8909- )

Click highlighted areas on diagram

diagram 53879A 75033 75034 76181 76182 76183 76184 76185 76195 9015960168 9015960403 9015960463 9015960497 9015960497 9015960501 9017905081 9017906007 9018906006 9018906014 9018906065 9018906065 9018906146 904670703001 9046709013 9046709075
Part # Description Qty Price
53879A - RETAINER, FRONT FENDER LINER
53879-14010

AT180,ST18#

 8
Common parts
90159-60168
90159-60403
90159-60463
90159-60497
90159-60501
90179-05081
90179-06007
90189-06006
90189-06014
90189-06065
90189-06146
90467-0703001
90467-09013
90467-09075

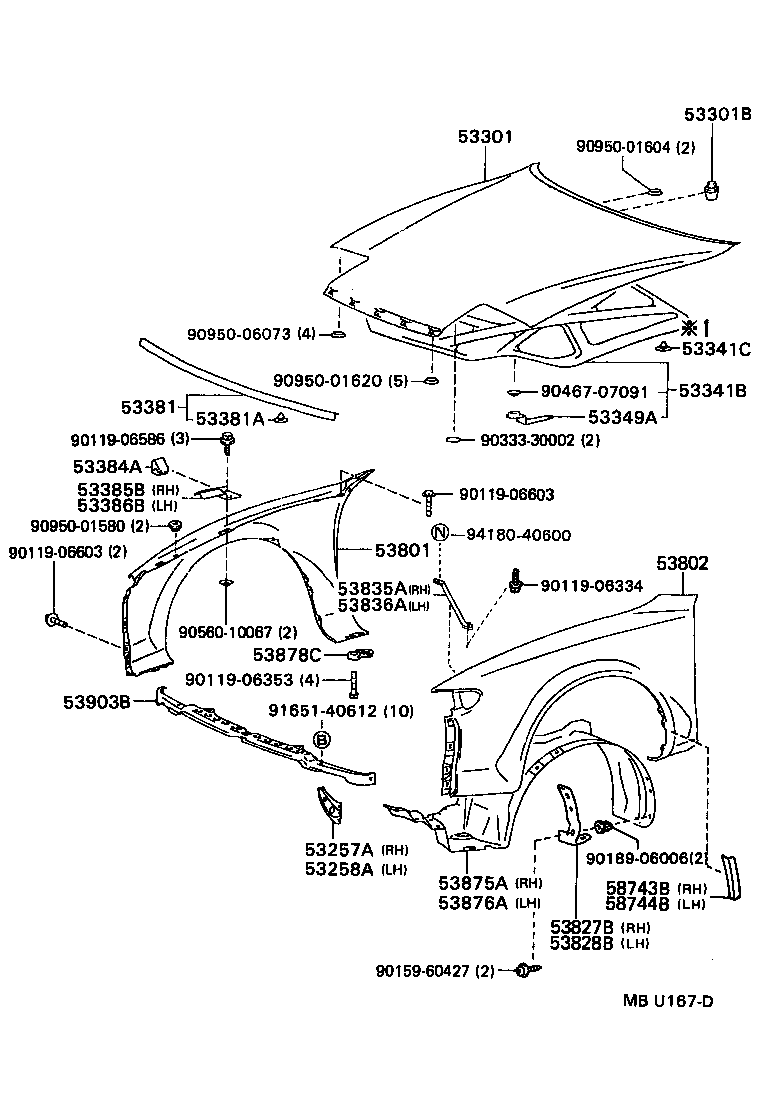

ILLUST NO. 1 OF 2(8909- )

Click highlighted areas on diagram

diagram 53257A 53258A 53301 53301B 53341B 53341C 53349A 53381 53381A 53384A 53385B 53386B 53801 53802 53827B 53828B 53835A 53836A 53875A 53876A 53878C 53903B 58743B 58744B 9011906334 9011906353 9011906586 9011906603 9011906603 9015960427 9018906006 9033330002 9046707091 9056010067 9095001580 9095001604 9095001620 9095006073 9165140612 9418040600
Part # Description Qty Price
53257A - BRACKET, FRONT END PANEL MOUNTING, RH
53257-20010

AT180,ST18#

 1
53258A - BRACKET, FRONT END PANEL MOUNTING, LH
53258-20010

AT180,ST18#

 1
53301 - HOOD SUB-ASSY
53301-20320

AT180,ST184

 1
53301-20410

AT180,ST184..CP,LB

 1
53301-20410

AT180,ST184

 1
53301B - CUSHION, HOOD BUMPER
90541-09077

AT180,ST18#

 3
90541-09077

AT180,ST18#

 1
90541-09055

AT180,ST18#

 1
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-20110

AT180,ST18#

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

AT180,ST18#

 4
53384A - BUMPER, FENDER TO HOOD
53384-20030

AT180,ST18#

 2
53385B - BRACKET, FENDER TO HOOD BUMPER, RH
53385-14010

AT180,ST18#

 1
53386B - BRACKET, FENDER TO HOOD BUMPER, LH
53386-14010

AT180,ST18#

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-2B150

AT180,ST184..(CP,LB)..NOB

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-2B150

AT180,ST184..(CP,LB)..NOB

 1
53827B - PROTECTOR, FRONT FENDER SIDE PANEL
53827-20020

AT180,ST184..(CP,LB)..NOB

 1
53827-20020

AT180,ST184..NOB

 1
53828B - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53828-20020

AT180,ST184..(CP,LB)..NOB

 1
53828-20020

AT180,ST184..NOB

 1
53835A - BRACE, FRONT FENDER TO APRON, RH
53835-20060

AT180,ST18#

 1
53836A - BRACE, FRONT FENDER TO APRON, LH
53835-20060

AT180,ST18#

 1
53875A - LINER, FRONT FENDER, RH
53875-20170

AT180,ST184..NOB

 1
53875-20190

AT180,ST184..(CP,LB)..NOB

 1
53875-20190

AT180,ST184..NOB

 1
53876A - LINER, FRONT FENDER, LH
53876-20200

AT180,ST184..(CP,LB)..NOB

 1
53876-20180

AT180,ST184..NOB

 1
53876-20200

AT180,ST184..NOB

 1
53878C - SPACER, FRONT FENDER
53878-20040

AT180,ST18#

 2
53903B - PANEL SUB-ASSY, FRONT END
53903-20010

AT180,ST18#

 1
58743B - PROTECTER, FRONT FENDER PANEL, RH
58743-20030

AT180,ST18#..CP,LB

 1
58744B - PROTECTER, FRONT FENDER PANEL, LH
58743-20030

AT180,ST18#..CP,LB

 1
Common parts
90119-06334
90119-06353
90119-06586
90119-06603
90159-60427
90189-06006
90333-30002
90467-07091
90560-10067
90950-01580
90950-01604
90950-01620
90950-06073
91651-40612
94180-40600
