AT180L-BCMSKA (1989)
Toyota Celica
(8909- )

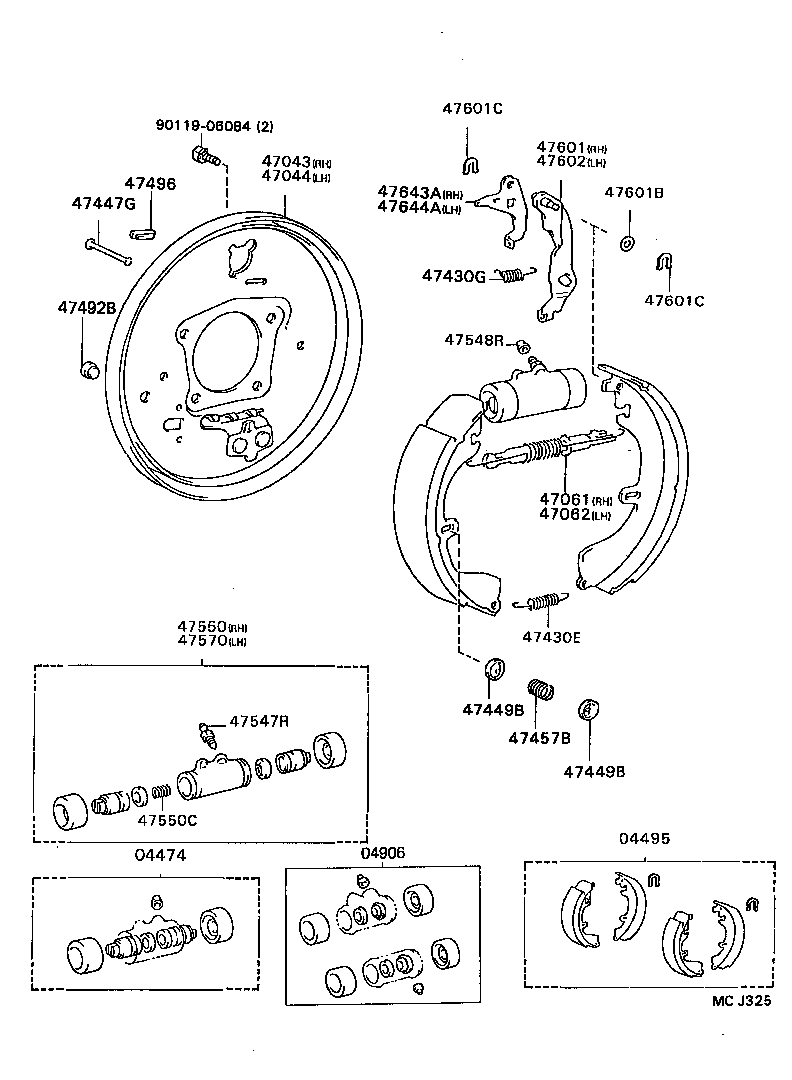

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-10032 |
AT180;ST184..CVT |
2 | ||
| 04474-10032 |
AT180 |
2 | ||
| 04474-10032 |
AT180,ST184..NOB |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-20150 |
AT180;ST184..CVT |
1 | ||
| 04495-20150 |
AT180,ST184..NOB |
1 | ||
| 04495-20150 |
AT180 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-10021 |
AT180,ST184..NOB |
1 | ||
| 04906-10021 |
AT180 |
1 | ||
| 04906-10021 |
AT180 |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-32010 |
AT180;ST184..CVT |
1 | ||
| 47043-32010 |
AT180,ST184..NOB |
1 | ||
| 47043-32010 |
AT180 |
1 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-32010 |
AT180 |
1 | ||
| 47044-32010 |
AT180;ST184..CVT |
1 | ||
| 47044-32010 |
AT180,ST184..NOB |
1 | ||
| 47061 - STRUT SET, PARKING BRAKE SHOE, RH | ||||
| 47061-20020 |
AT180,ST184..NOB |
1 | ||
| 47061-20020 |
AT180;ST184..CVT |
1 | ||
| 47061-20020 |
AT180 |
1 | ||
| 47062 - STRUT SET, PARKING BRAKE SHOE, LH | ||||
| 47062-20020 |
AT180,ST184..NOB |
1 | ||
| 47062-20020 |
AT180 |
1 | ||
| 47062-20020 |
AT180;ST184..CVT |
1 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-18034 |
AT180 |
2 | ||
| 90506-18034 |
AT180;ST184..CVT |
2 | ||
| 90506-18034 |
AT180,ST184..NOB |
2 | ||
| 47430G - SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER) | ||||
| 90506-12036 |
AT180,ST184..NOB |
2 | ||
| 90506-12036 |
AT180;ST184..CVT |
2 | ||
| 90506-12036 |
AT180 |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-30010 |
AT180 |
4 | ||
| 47447-30010 |
AT180,ST184..NOB |
4 | ||
| 47447-30010 |
AT180;ST184..CVT |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30030 |
AT180;ST184..CVT |
8 | ||
| 47449-30030 |
AT180,ST184..NOB |
8 | ||
| 47449-30030 |
AT180 |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30030 |
AT180;ST184..CVT |
8 | ||
| 47449-30030 |
AT180,ST184..NOB |
8 | ||
| 47449-30030 |
AT180 |
8 | ||
| 47457B - SPRING, COMPRESSION(FOR REAR SHOE HOLD DOWN SPRING PIN) | ||||
| 90501-18017 |
AT180,ST184..NOB |
4 | ||
| 90501-18017 |
AT180;ST184..CVT |
4 | ||
| 90501-18017 |
AT180 |
4 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-32010 |
AT180;ST184..CVT |
2 | ||
| 47492-32010 |
AT180,ST184..NOB |
2 | ||
| 47492-32010 |
AT180 |
2 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-20011 |
AT180;ST184..CVT |
2 | ||
| 47491-20011 |
AT180 |
2 | ||
| 47491-20011 |
AT180,ST184..NOB |
2 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-22020 |
AT180;ST184..CVT |
1 | ||
| 47547-22020 |
AT180,ST184..NOB |
1 | ||
| 47547-22020 |
AT180 |
1 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
AT180 |
2 | ||
| 31478-30010 |
AT180;ST184..CVT |
2 | ||
| 31478-30010 |
AT180,ST184..NOB |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-20141 |
AT180;ST184..CVT |
1 | ||
| 47550-20141 |
AT180 |
1 | ||
| 47550-20141 |
AT180,ST184..NOB |
1 | ||
| 47550-20140 |
AT180,ST184..NOB |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-07006 |
AT180;ST184..CVT |
1 | ||
| 90501-07006 |
AT180,ST184..NOB |
1 | ||
| 90501-07006 |
AT180 |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-20050 |
AT180,ST184..NOB |
1 | ||
| 47570-20051 |
AT180,ST184..NOB |
1 | ||
| 47570-20051 |
AT180;ST184..CVT |
1 | ||
| 47570-20051 |
AT180 |
1 | ||
| 47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE) | ||||
| 47601-32010 |
AT180,ST184..NOB |
1 | ||
| 47601-32010 |
AT180;ST184..CVT |
1 | ||
| 47601-32010 |
AT180 |
1 | ||
| 47601B - SHIM, REAR PARKING BRAKE SHOE LEVER | ||||
| 90564-08151 |
AT180,ST184..NOB T=0.6 |
1 | ||
| 90564-08152 |
AT180,ST184..NOB T=0.9 |
1 | ||
| 90564-08150 |
AT180,ST184..NOB T=0.3 |
1 | ||
| 90564-08150 |
AT180;ST184..CVT T=0.3 |
1 | ||
| 90564-08152 |
AT180 T=0.9 |
1 | ||
| 90564-08172 |
AT180,ST184..NOB T=0.2 |
1 | ||
| 90564-08173 |
AT180;ST184..CVT T=0.4 |
1 | ||
| 90564-08172 |
AT180;ST184..CVT T=0.2 |
1 | ||
| 90564-08173 |
AT180,ST184..NOB T=0.4 |
1 | ||
| 90564-08174 |
AT180;ST184..CVT T=0.5 |
1 | ||
| 90564-08151 |
AT180;ST184..CVT T=0.6 |
1 | ||
| 90564-08151 |
AT180 T=0.6 |
1 | ||
| 90564-08150 |
AT180 T=0.3 |
1 | ||
| 90564-08174 |
AT180 T=0.5 |
1 | ||
| 90564-08174 |
AT180,ST184..NOB T=0.5 |
1 | ||
| 90564-08173 |
AT180 T=0.4 |
1 | ||
| 90564-08152 |
AT180;ST184..CVT T=0.9 |
1 | ||
| 90564-08172 |
AT180 T=0.2 |
1 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-06013 |
AT180 T=1.2 |
4 | ||
| 90213-06013 |
AT180,ST184..NOB T=1.2 |
4 | ||
| 90213-06013 |
AT180;ST184..CVT T=1.2 |
4 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-06013 |
AT180 T=1.2 |
4 | ||
| 90213-06013 |
AT180,ST184..NOB T=1.2 |
4 | ||
| 90213-06013 |
AT180;ST184..CVT T=1.2 |
4 | ||
| 47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE) | ||||
| 47602-32010 |
AT180;ST184..CVT |
1 | ||
| 47602-32010 |
AT180,ST184..NOB |
1 | ||
| 47602-32010 |
AT180 |
1 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47643-32010 |
AT180,ST184..NOB |
1 | ||
| 47643-32010 |
AT180;ST184..CVT |
1 | ||
| 47643-32010 |
AT180 |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47644-32010 |
AT180,ST184..NOB |
1 | ||
| 47644-32010 |
AT180;ST184..CVT |
1 | ||
| 47644-32010 |
AT180 |
1 | ||
| Common parts | ||||
| 90119-06084 | ||||
