AHV40L-CEXGBA (2006)

Toyota Camry Hv (Nap)

Production Oct 2006 - Mar 2009
Engine 2AZFXE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0610-0903)NAP

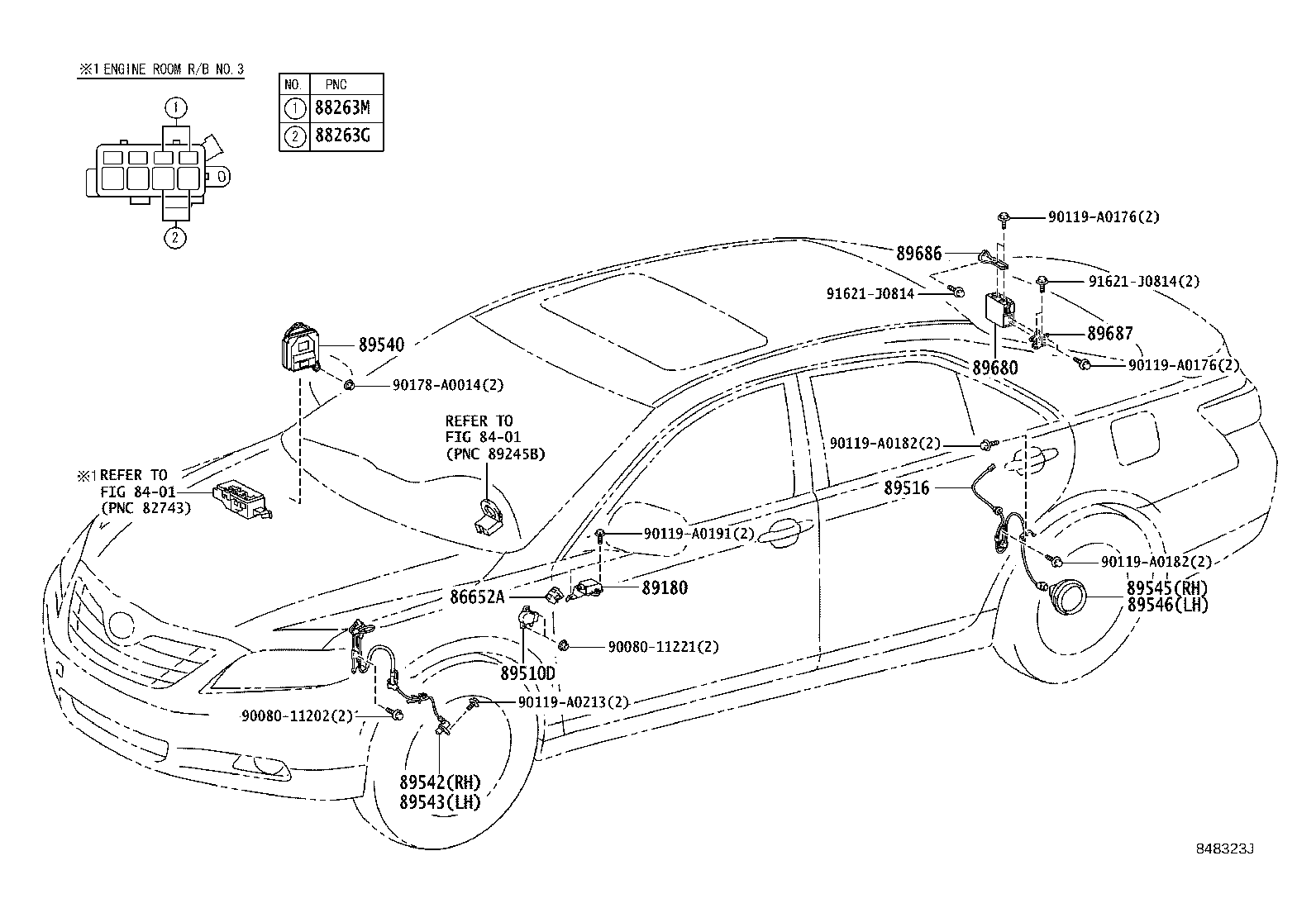

Click highlighted areas on diagram

diagram 8401 8401 86652A 88263G 88263M 89180 89510D 89516 89540 89542 89543 89545 89546 89680 89686 89687 9008011202 9008011221 90119A0176 90119A0176 90119A0182 90119A0182 90119A0191 90119A0213 90178A0014 91621J0814 91621J0814
Part # Description Qty Price
86652A - BUZZER ASSY, SKID CONTROL
86652-04010

AHV40..NAP

 1
88263G - RELAY, SKID CONTROL
88263-21010

AHV40..NAP

 2
88263M - RELAY, ABS SOLENOID
88263-08010

AHV40..NAP

 2
89180 - SENSOR ASSY, YAWRATE
89180-33060

AHV40..NAP

 1
89510D - SENSOR ASSY, BRAKE PEDAL STROKE
89510-47010

AHV40..NAP

 1
89516 - WIRE, SKID CONTROL SENSOR
89516-06040

AHV40..NAP

LH

 1
89516-06030

AHV40..NAP

RH

 1
89540 - COMPUTER ASSY, SKID CONTROL
89540-33390

AHV40..NAP

 1
89542 - SENSOR, SPEED, FRONT RH
89542-07030

AHV40..NAP

 1
89543 - SENSOR, SPEED, FRONT LH
89543-07030

AHV40..NAP

 1
89545 - SENSOR, SPEED, REAR RH
89544-06010

AHV40..NAP

 1
89546 - SENSOR, SPEED, REAR LH
89544-06010

AHV40..NAP

 1
89680 - SUPPLY ASSY, BRAKE CONTROL POWER
89680-33010

AHV40..NAP

 1
89686 - BRACKET, BRAKE CONTROL POWER SUPPLY, NO.1
89686-06010

AHV40..NAP

 1
89687 - BRACKET, BRAKE CONTROL POWER SUPPLY, NO.2
89687-06010

AHV40..NAP

 1
Common parts
90080-11202
90080-11221
90119-A0176
90119-A0182
90119-A0191
90119-A0213
90178-A0014
91621-J0814
Linked diagrams
8401
