AHV40L-CEXGBA (2006)

Toyota Camry Hv (Nap)

Production Oct 2006 - Mar 2009
Engine 2AZFXE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0610-0903)NAP

Click highlighted areas on diagram

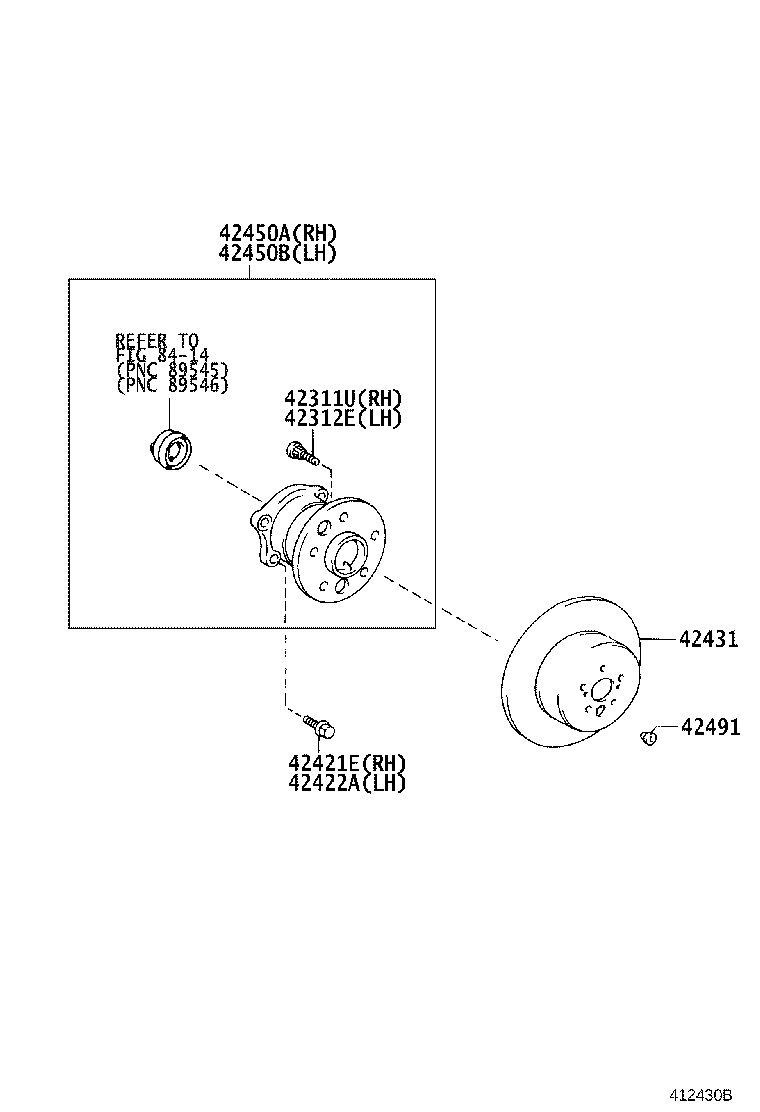

diagram 42311U 42312E 42421E 42422A 42431 42450A 42450B 42491 8414
Part # Description Qty Price
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02049

AHV40..NAP

 5
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02049

AHV40..NAP

 5
42421E - BOLT (FOR REAR AXLE BEARING CASE RH)
90105-A0021

AHV40..NAP

 4
42422A - BOLT (FOR REAR AXLE BEARING CASE LH)
90105-A0021

AHV40..NAP

 4
42431 - DISC, REAR
42431-06110

AHV40..NAP

 2
42450A - HUB & BEARING ASSY, REAR AXLE, RH
42450-06021

AHV40..NAP

 1
42450B - HUB & BEARING ASSY, REAR AXLE, LH
42460-06021

AHV40..NAP

 1
42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)
47491-22020

AHV40..NAP

(J)

 2
47493-0E010

AHV40..NAP

 2
47493-0E010

AHV40..NAP

(L)

 2
Linked diagrams
8414
