AHV40L-CEXGBA (2006)
Toyota Camry Hv (Nap)

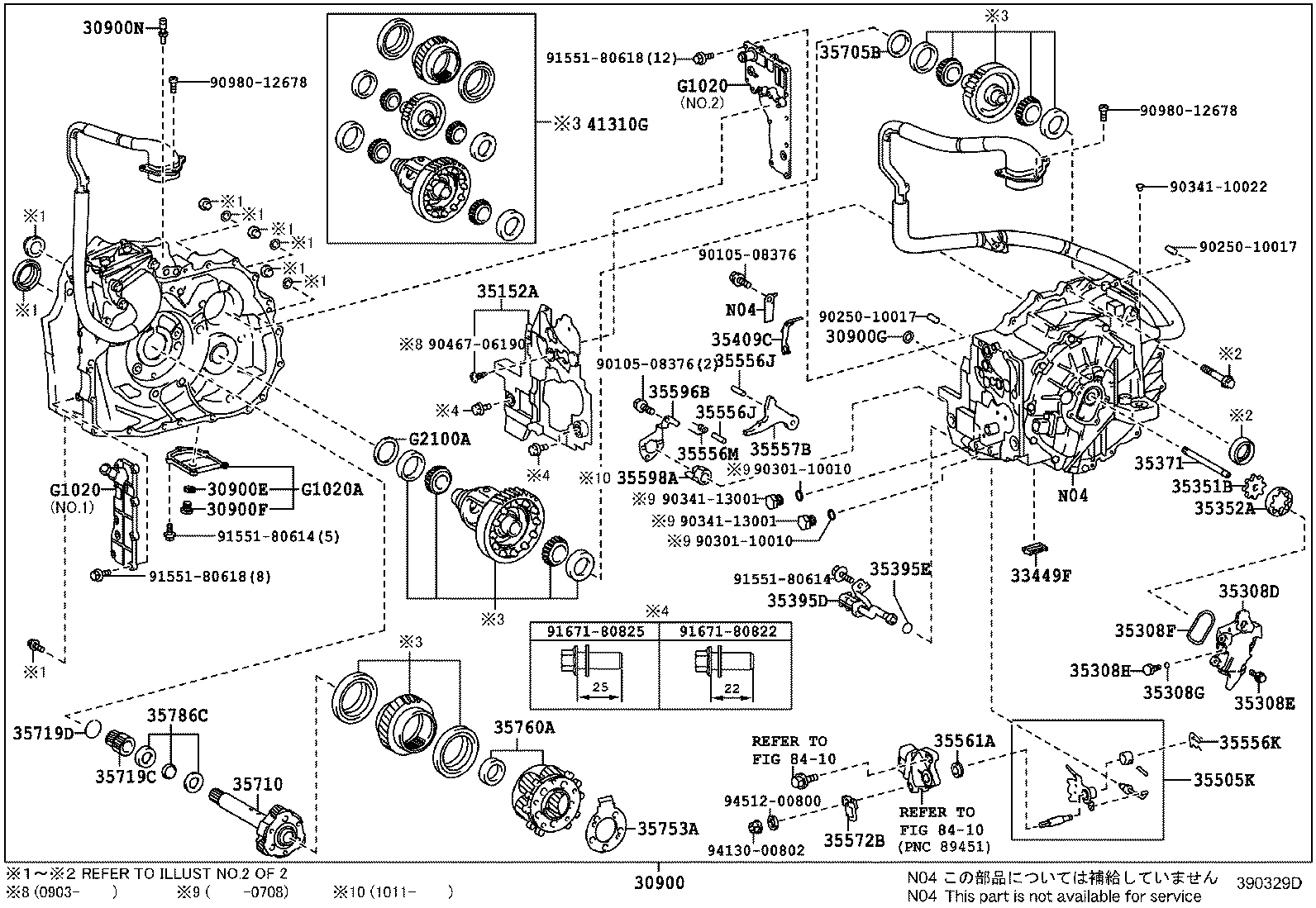

ILLUST NO. 1 OF 2(0610- )NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30900 - TRANSAXLE ASSY, HYBRID VEHICLE | ||||
| 30900-33011 |
AHV40..NAP |
1 | ||
| 30900-33010 |
AHV40..NAP |
1 | ||
| 30900E - GASKET(FOR TRANSAXLE HOUSING & CASE) | ||||
| 90430-18008 |
AHV40..NAP |
2 | ||
| 30900F - PLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR TRANSAXLE HSG & C | ||||
| 90341-18016 |
AHV40..NAP |
2 | ||
| 30900G - GASKET, NO.2(FOR TRANSAXLE HOUSING & CASE) | ||||
| 35145-48010 |
AHV40..NAP |
1 | ||
| 30900N - PLUG, BREATHER(FOR TRANSAXLE) | ||||
| 90930-03179 |
AHV40..NAP |
1 | ||
| 33449F - MAGNET, TRANSMISSION NO.1 | ||||
| 33449-12020 |
AHV40..NAP |
1 | ||
| 35152A - COVER, AUTOMATIC TRANSMISSION CASE, NO.2 | ||||
| 35151-33100 |
AHV40..NAP |
1 | ||
| 35308D - COVER SUB-ASSY, TRANSMISSION OIL PUMP | ||||
| 35308-33010 |
AHV40..NAP |
1 | ||
| 35308E - BOLT, W/WASHER (FOR TRANSMISSION OIL PUMP COVER) | ||||
| 90105-06300 |
AHV40..NAP |
5 | ||
| 35308F - RING, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER) | ||||
| 90903-01009 |
AHV40..NAP |
1 | ||
| 35308G - RING, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER) | ||||
| 90301-06196 |
AHV40..NAP |
1 | ||
| 35308H - PLUG (FOR TRANSMISSION OIL PUMP COVER) | ||||
| 90341-08001 |
AHV40..NAP |
1 | ||
| 35351B - ROTOR, TRANSAXLE OIL PUMP DRIVE | ||||
| 35351-47030 |
AHV40..NAP |
1 | ||
| 35352A - ROTOR, TRANSMISSION OIL PUMP DRIVEN | ||||
| 35352-47020 |
AHV40..NAP |
1 | ||
| 35371 - SHAFT, OIL PUMP DRIVE | ||||
| 35371-33050 |
AHV40..NAP |
1 | ||
| 35395D - STRAINER, TRANSMISSION OIL | ||||
| 35395-48010 |
AHV40..NAP |
1 | ||
| 35395E - RING, O(FOR TRANSAXLE OIL STRAINER) | ||||
| 90301-11019 |
AHV40..NAP |
1 | ||
| 35409C - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-48030 |
AHV40..NAP |
1 | ||
| 35409-48011 |
AHV40..NAP |
1 | ||
| 35505K - LEVER SUB-ASSY, PARKING LOCK, NO.1 | ||||
| 35505-49005 |
AHV40..NAP |
1 | ||
| 35556J - SHAFT, PARKING LOCK PAWL | ||||
| 35556-48010 |
AHV40..NAP |
2 | ||
| 35556J - SHAFT, PARKING LOCK PAWL | ||||
| 35556-48010 |
AHV40..NAP |
2 | ||
| 35556K - SPRING, RETAINER | ||||
| 90524-09001 |
AHV40..NAP |
1 | ||
| 35556M - SPRING, TORSION | ||||
| 90949-03134 |
AHV40..NAP |
1 | ||
| 35557B - PAWL, PARKING LOCK | ||||
| 35557-48010 |
AHV40..NAP |
1 | ||
| 35561A - SEAL, TYPE T OIL(FOR PARKING LOCK SHAFT) | ||||
| 90311-12002 |
AHV40..NAP |
1 | ||
| 35572B - LEVER, TRANSMISSION, OUTER | ||||
| 35572-33030 |
AHV40..NAP |
1 | ||
| 35596B - PLATE, PAWL STOPPER | ||||
| 35596-48010 |
AHV40..NAP |
1 | ||
| 35705B - SHIM(FOR COUNTER DRIVEN GEAR) | ||||
| 90564-63007 |
AHV40..NAP T=1.87,MARK 7 |
1 | ||
| 90564-63006 |
AHV40..NAP T=1.85,MARK 6 |
1 | ||
| 90564-63005 |
AHV40..NAP T=1.83,MARK 5 |
1 | ||
| 90564-63008 |
AHV40..NAP T=1.89,MARK 8 |
1 | ||
| 90564-63001 |
AHV40..NAP T=1.75,MARK 1 |
1 | ||
| 90564-63012 |
AHV40..NAP T=1.97,MARK 12 |
1 | ||
| 90564-63003 |
AHV40..NAP T=1.79,MARK 3 |
1 | ||
| 90564-63002 |
AHV40..NAP T=1.77,MARK 2 |
1 | ||
| 90564-63022 |
AHV40..NAP T=2.17,MARK 22 |
1 | ||
| 90564-63013 |
AHV40..NAP T=1.99,MARK 13 |
1 | ||
| 90564-63023 |
AHV40..NAP T=2.19,MARK 23 |
1 | ||
| 90564-63020 |
AHV40..NAP T=2.13,MARK 20 |
1 | ||
| 90564-63019 |
AHV40..NAP T=2.11,MARK 19 |
1 | ||
| 90564-63024 |
AHV40..NAP T=2.21,MARK 24 |
1 | ||
| 90564-63014 |
AHV40..NAP T=2.01,MARK 14 |
1 | ||
| 90564-63010 |
AHV40..NAP T=1.93,MARK 10 |
1 | ||
| 90564-63004 |
AHV40..NAP T=1.81,MARK 4 |
1 | ||
| 90564-63009 |
AHV40..NAP T=1.91,MARK 9 |
1 | ||
| 90564-63015 |
AHV40..NAP T=2.03,MARK 15 |
1 | ||
| 90564-63016 |
AHV40..NAP T=2.05,MARK 16 |
1 | ||
| 90564-63029 |
AHV40..NAP T=2.31,MARK 29 |
1 | ||
| 90564-63021 |
AHV40..NAP T=2.15,MARK 21 |
1 | ||
| 90564-63017 |
AHV40..NAP T=2.07,MARK 17 |
1 | ||
| 90564-63011 |
AHV40..NAP T=1.95,MARK 11 |
1 | ||
| 90564-63026 |
AHV40..NAP T=2.25,MARK 26 |
1 | ||
| 90564-63031 |
AHV40..NAP T=2.35,MARK 31 |
1 | ||
| 90564-63018 |
AHV40..NAP T=2.09,MARK 18 |
1 | ||
| 90564-63027 |
AHV40..NAP T=2.27,MARK 27 |
1 | ||
| 90564-63035 |
AHV40..NAP T=2.43,MARK 35 |
1 | ||
| 90564-63038 |
AHV40..NAP T=2.49,MARK 38 |
1 | ||
| 90564-63032 |
AHV40..NAP T=2.37,MARK 32 |
1 | ||
| 90564-63043 |
AHV40..NAP T=2.59,MARK 43 |
1 | ||
| 90564-63036 |
AHV40..NAP T=2.45,MARK 36 |
1 | ||
| 90564-63042 |
AHV40..NAP T=2.57,MARK 42 |
1 | ||
| 90564-63033 |
AHV40..NAP T=2.39,MARK 33 |
1 | ||
| 90564-63030 |
AHV40..NAP T=2.33,MARK 30 |
1 | ||
| 90564-63044 |
AHV40..NAP T=2.61,MARK 44 |
1 | ||
| 90564-63034 |
AHV40..NAP T=2.41,MARK 34 |
1 | ||
| 90564-63025 |
AHV40..NAP T=2.23,MARK 25 |
1 | ||
| 90564-63051 |
AHV40..NAP T=2.75,MARK 51 |
1 | ||
| 90564-63041 |
AHV40..NAP T=2.55,MARK 41 |
1 | ||
| 90564-63045 |
AHV40..NAP T=2.63,MARK 45 |
1 | ||
| 90564-63053 |
AHV40..NAP T=2.79,MARK 53 |
1 | ||
| 90564-63049 |
AHV40..NAP T=2.71,MARK 49 |
1 | ||
| 90564-63047 |
AHV40..NAP T=2.67,MARK 47 |
1 | ||
| 90564-63028 |
AHV40..NAP T=2.29,MARK 28 |
1 | ||
| 90564-63052 |
AHV40..NAP T=2.77,MARK 52 |
1 | ||
| 90564-63037 |
AHV40..NAP T=2.47,MARK 37 |
1 | ||
| 90564-63054 |
AHV40..NAP T=2.81,MARK 54 |
1 | ||
| 90564-63039 |
AHV40..NAP T=2.51,MARK 39 |
1 | ||
| 90564-60102 |
AHV40..NAP T=1.79,MARK 3 |
1 | ||
| 90564-63048 |
AHV40..NAP T=2.69,MARK 48 |
1 | ||
| 90564-60105 |
AHV40..NAP T=1.85,MARK 6 |
1 | ||
| 90564-60100 |
AHV40..NAP T=1.75,MARK 1 |
1 | ||
| 90564-63046 |
AHV40..NAP T=2.65,MARK 46 |
1 | ||
| 90564-60108 |
AHV40..NAP T=1.91,MARK 9 |
1 | ||
| 90564-60106 |
AHV40..NAP T=1.87,MARK 7 |
1 | ||
| 90564-63040 |
AHV40..NAP T=2.53,MARK 40 |
1 | ||
| 90564-60111 |
AHV40..NAP T=1.97,MARK 12 |
1 | ||
| 90564-60112 |
AHV40..NAP T=1.99,MARK 13 |
1 | ||
| 90564-60110 |
AHV40..NAP T=1.95,MARK 11 |
1 | ||
| 90564-60109 |
AHV40..NAP T=1.93,MARK 10 |
1 | ||
| 90564-60116 |
AHV40..NAP T=2.07,MARK 17 |
1 | ||
| 90564-60120 |
AHV40..NAP T=2.15,MARK 21 |
1 | ||
| 90564-60107 |
AHV40..NAP T=1.89,MARK 8 |
1 | ||
| 90564-60119 |
AHV40..NAP T=2.13,MARK 20 |
1 | ||
| 90564-60123 |
AHV40..NAP T=2.21,MARK 24 |
1 | ||
| 90564-60103 |
AHV40..NAP T=1.81,MARK 4 |
1 | ||
| 90564-60118 |
AHV40..NAP T=2.11,MARK 19 |
1 | ||
| 90564-60115 |
AHV40..NAP T=2.05,MARK 16 |
1 | ||
| 90564-60104 |
AHV40..NAP T=1.83,MARK 5 |
1 | ||
| 90564-60113 |
AHV40..NAP T=2.01,MARK 14 |
1 | ||
| 90564-60122 |
AHV40..NAP T=2.19,MARK 23 |
1 | ||
| 90564-60101 |
AHV40..NAP T=1.77,MARK 2 |
1 | ||
| 90564-60124 |
AHV40..NAP T=2.23,MARK 25 |
1 | ||
| 90564-60114 |
AHV40..NAP T=2.03,MARK 15 |
1 | ||
| 90564-60117 |
AHV40..NAP T=2.09,MARK 18 |
1 | ||
| 90564-60125 |
AHV40..NAP T=2.25,MARK 26 |
1 | ||
| 90564-60128 |
AHV40..NAP T=2.31,MARK 29 |
1 | ||
| 90564-63050 |
AHV40..NAP T=2.73,MARK 50 |
1 | ||
| 90564-60134 |
AHV40..NAP T=2.43,MARK 35 |
1 | ||
| 90564-60143 |
AHV40..NAP T=2.61,MARK 44 |
1 | ||
| 90564-60132 |
AHV40..NAP T=2.39,MARK 33 |
1 | ||
| 90564-60129 |
AHV40..NAP T=2.33,MARK 30 |
1 | ||
| 90564-60139 |
AHV40..NAP T=2.53,MARK 40 |
1 | ||
| 90564-60131 |
AHV40..NAP T=2.37,MARK 32 |
1 | ||
| 90564-60138 |
AHV40..NAP T=2.51,MARK 39 |
1 | ||
| 90564-60127 |
AHV40..NAP T=2.29,MARK 28 |
1 | ||
| 90564-60142 |
AHV40..NAP T=2.59,MARK 43 |
1 | ||
| 90564-60137 |
AHV40..NAP T=2.49,MARK 38 |
1 | ||
| 90564-60146 |
AHV40..NAP T=2.67,MARK 47 |
1 | ||
| 90564-60135 |
AHV40..NAP T=2.45,MARK 36 |
1 | ||
| 90564-60126 |
AHV40..NAP T=2.27,MARK 27 |
1 | ||
| 90564-60148 |
AHV40..NAP T=2.71,MARK 49 |
1 | ||
| 90564-60141 |
AHV40..NAP T=2.57,MARK 42 |
1 | ||
| 90564-60133 |
AHV40..NAP T=2.41,MARK 34 |
1 | ||
| 90564-60145 |
AHV40..NAP T=2.65,MARK 46 |
1 | ||
| 90564-60149 |
AHV40..NAP T=2.73,MARK 50 |
1 | ||
| 90564-60130 |
AHV40..NAP T=2.35,MARK 31 |
1 | ||
| 90564-60147 |
AHV40..NAP T=2.69,MARK 48 |
1 | ||
| 90564-60153 |
AHV40..NAP T=2.81,MARK 54 |
1 | ||
| 90564-60144 |
AHV40..NAP T=2.63,MARK 45 |
1 | ||
| 90564-60140 |
AHV40..NAP T=2.55,MARK 41 |
1 | ||
| 90564-60121 |
AHV40..NAP T=2.17,MARK 22 |
1 | ||
| 90564-60151 |
AHV40..NAP T=2.77,MARK 52 |
1 | ||
| 90564-60150 |
AHV40..NAP T=2.75,MARK 51 |
1 | ||
| 90564-60152 |
AHV40..NAP T=2.79,MARK 53 |
1 | ||
| 90564-60136 |
AHV40..NAP T=2.47,MARK 37 |
1 | ||
| 35710 - SHAFT ASSY, INPUT | ||||
| 35710-33030 |
AHV40..NAP |
1 | ||
| 35719C - GEAR, PLANETARY SUN | ||||
| 35719-48010 |
AHV40..NAP |
1 | ||
| 35719D - RING, SNAP(FOR PLANETARY SUN GEAR) | ||||
| 90520-37023 |
AHV40..NAP T=4.06,MARK 7 |
1 | ||
| 90520-37027 |
AHV40..NAP T=4.18,MARK 11 |
1 | ||
| 90520-37028 |
AHV40..NAP T=4.21,MARK 12 |
1 | ||
| 90520-37018 |
AHV40..NAP T=3.91,MARK 2 |
1 | ||
| 90520-37019 |
AHV40..NAP T=3.94,MARK 3 |
1 | ||
| 90520-37020 |
AHV40..NAP T=3.97,MARK 4 |
1 | ||
| 90520-37022 |
AHV40..NAP T=4.03,MARK 6 |
1 | ||
| 90520-37017 |
AHV40..NAP T=3.88,MARK 1 |
1 | ||
| 90520-37021 |
AHV40..NAP T=4.00,MARK 5 |
1 | ||
| 90520-37038 |
AHV40..NAP T=4.48,MARK 21 |
1 | ||
| 90520-37029 |
AHV40..NAP T=4.24,MARK 13 |
1 | ||
| 90520-37024 |
AHV40..NAP T=4.09,MARK 8 |
1 | ||
| 90520-37033 |
AHV40..NAP T=4.33,MARK 16 |
1 | ||
| 90520-37040 |
AHV40..NAP T=4.54,MARK 23 |
1 | ||
| 90520-37030 |
AHV40..NAP T=4.27,MARK 14 |
1 | ||
| 90520-37034 |
AHV40..NAP T=4.36,MARK 17 |
1 | ||
| 90520-37037 |
AHV40..NAP T=4.45,MARK 20 |
1 | ||
| 90520-37026 |
AHV40..NAP T=4.15,MARK 10 |
1 | ||
| 90520-37039 |
AHV40..NAP T=4.51,MARK 22 |
1 | ||
| 90520-37036 |
AHV40..NAP T=4.42,MARK 19 |
1 | ||
| 90520-37045 |
AHV40..NAP T=4.69,MARK 28 |
1 | ||
| 90520-37025 |
AHV40..NAP T=4.12,MARK 9 |
1 | ||
| 90520-37043 |
AHV40..NAP T=4.63,MARK 26 |
1 | ||
| 90520-37041 |
AHV40..NAP T=4.57,MARK 24 |
1 | ||
| 90520-37031 |
AHV40..NAP T=4.30,MARK 15 |
1 | ||
| 90520-37046 |
AHV40..NAP T=4.72,MARK 29 |
1 | ||
| 90520-37035 |
AHV40..NAP T=4.39,MARK 18 |
1 | ||
| 90520-37042 |
AHV40..NAP T=4.60,MARK 25 |
1 | ||
| 90520-37044 |
AHV40..NAP T=4.66,MARK 27 |
1 | ||
| 35753A - RECEIVER, PLANETARY OIL | ||||
| 35753-48021 |
AHV40..NAP |
1 | ||
| 35760A - GEAR ASSY, REAR PLANETARY NO.1 | ||||
| 35760-48030 |
AHV40..NAP |
1 | ||
| 35786C - RACE, THRUST BEARING, NO.1 | ||||
| 35786-49015 |
AHV40..NAP |
1 | ||
| 41310G - GEAR KIT, DIFFERENTIAL & COUNTER DRIVEN | ||||
| 41310-33901 |
AHV40..NAP |
1 | ||
| G1020 - COVER ASSY, MOTOR WATER JACKET, NO.1 | ||||
| G1020-33010 |
AHV40..NAP NO.1 |
1 | ||
| G1020-48040 |
AHV40..NAP NO.2 |
1 | ||
| G1020 - COVER ASSY, MOTOR WATER JACKET, NO.1 | ||||
| G1020-33010 |
AHV40..NAP NO.1 |
1 | ||
| G1020-48040 |
AHV40..NAP NO.2 |
1 | ||
| G1020A - COVER ASSY, MOTOR WATER JACKET, NO.2 | ||||
| G1020-48030 |
AHV40..NAP |
1 | ||
| G2100A - SHIM(FOR DIFFERENTIAL CASE RH) | ||||
| 90564-74001 |
AHV40..NAP T=2.00,MARK 1 |
1 | ||
| 90564-74007 |
AHV40..NAP T=2.12,MARK 7 |
1 | ||
| 90564-74003 |
AHV40..NAP T=2.04,MARK 3 |
1 | ||
| 90564-74008 |
AHV40..NAP T=2.14,MARK 8 |
1 | ||
| 90564-74012 |
AHV40..NAP T=2.22,MARK 12 |
1 | ||
| 90564-74010 |
AHV40..NAP T=2.18,MARK 10 |
1 | ||
| 90564-74004 |
AHV40..NAP T=2.06,MARK 4 |
1 | ||
| 90564-74005 |
AHV40..NAP T=2.08,MARK 5 |
1 | ||
| 90564-74002 |
AHV40..NAP T=2.02,MARK 2 |
1 | ||
| 90564-74016 |
AHV40..NAP T=2.30,MARK 16 |
1 | ||
| 90564-74013 |
AHV40..NAP T=2.24,MARK 13 |
1 | ||
| 90564-74014 |
AHV40..NAP T=2.26,MARK 14 |
1 | ||
| 90564-74006 |
AHV40..NAP T=2.10,MARK 6 |
1 | ||
| 90564-74015 |
AHV40..NAP T=2.28,MARK 15 |
1 | ||
| 90564-74025 |
AHV40..NAP T=2.48,MARK 25 |
1 | ||
| 90564-74009 |
AHV40..NAP T=2.16,MARK 9 |
1 | ||
| 90564-74026 |
AHV40..NAP T=2.50,MARK 26 |
1 | ||
| 90564-74011 |
AHV40..NAP T=2.20,MARK 11 |
1 | ||
| 90564-74027 |
AHV40..NAP T=2.52,MARK 27 |
1 | ||
| 90564-74028 |
AHV40..NAP T=2.54,MARK 28 |
1 | ||
| 90564-74019 |
AHV40..NAP T=2.36,MARK 19 |
1 | ||
| 90564-74024 |
AHV40..NAP T=2.46,MARK 24 |
1 | ||
| 90564-74017 |
AHV40..NAP T=2.32,MARK 17 |
1 | ||
| 90564-74023 |
AHV40..NAP T=2.44,MARK 23 |
1 | ||
| 90564-74037 |
AHV40..NAP T=2.72,MARK 37 |
1 | ||
| 90564-74022 |
AHV40..NAP T=2.42,MARK 22 |
1 | ||
| 90564-74031 |
AHV40..NAP T=2.60,MARK 31 |
1 | ||
| 90564-74018 |
AHV40..NAP T=2.34,MARK 18 |
1 | ||
| 90564-74036 |
AHV40..NAP T=2.70,MARK 36 |
1 | ||
| 90564-74020 |
AHV40..NAP T=2.38,MARK 20 |
1 | ||
| 90564-74021 |
AHV40..NAP T=2.40,MARK 21 |
1 | ||
| 90564-74030 |
AHV40..NAP T=2.58,MARK 30 |
1 | ||
| 90564-74040 |
AHV40..NAP T=2.78,MARK 40 |
1 | ||
| 90564-74041 |
AHV40..NAP T=2.80,MARK 41 |
1 | ||
| 90564-74035 |
AHV40..NAP T=2.68,MARK 35 |
1 | ||
| 90564-74033 |
AHV40..NAP T=2.64,MARK 33 |
1 | ||
| 90564-74043 |
AHV40..NAP T=2.84,MARK 43 |
1 | ||
| 90564-74032 |
AHV40..NAP T=2.62,MARK 32 |
1 | ||
| 90564-74038 |
AHV40..NAP T=2.74,MARK 38 |
1 | ||
| 90564-74039 |
AHV40..NAP T=2.76,MARK 39 |
1 | ||
| 90564-74029 |
AHV40..NAP T=2.56,MARK 29 |
1 | ||
| 90564-74044 |
AHV40..NAP T=2.86,MARK 44 |
1 | ||
| 90564-74042 |
AHV40..NAP T=2.82,MARK 42 |
1 | ||
| 90564-74034 |
AHV40..NAP T=2.66,MARK 34 |
1 | ||
| Common parts | ||||
| 90105-08376 | ||||
| 90250-10017 | ||||
| 90301-10010 | ||||
| 90341-10022 | ||||
| 90341-13001 | ||||
| 90467-06190 | ||||
| 90980-12678 | ||||
| 91551-80614 | ||||
| 91551-80618 | ||||
| 91671-80822 | ||||
| 91671-80825 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 8410 | ||||

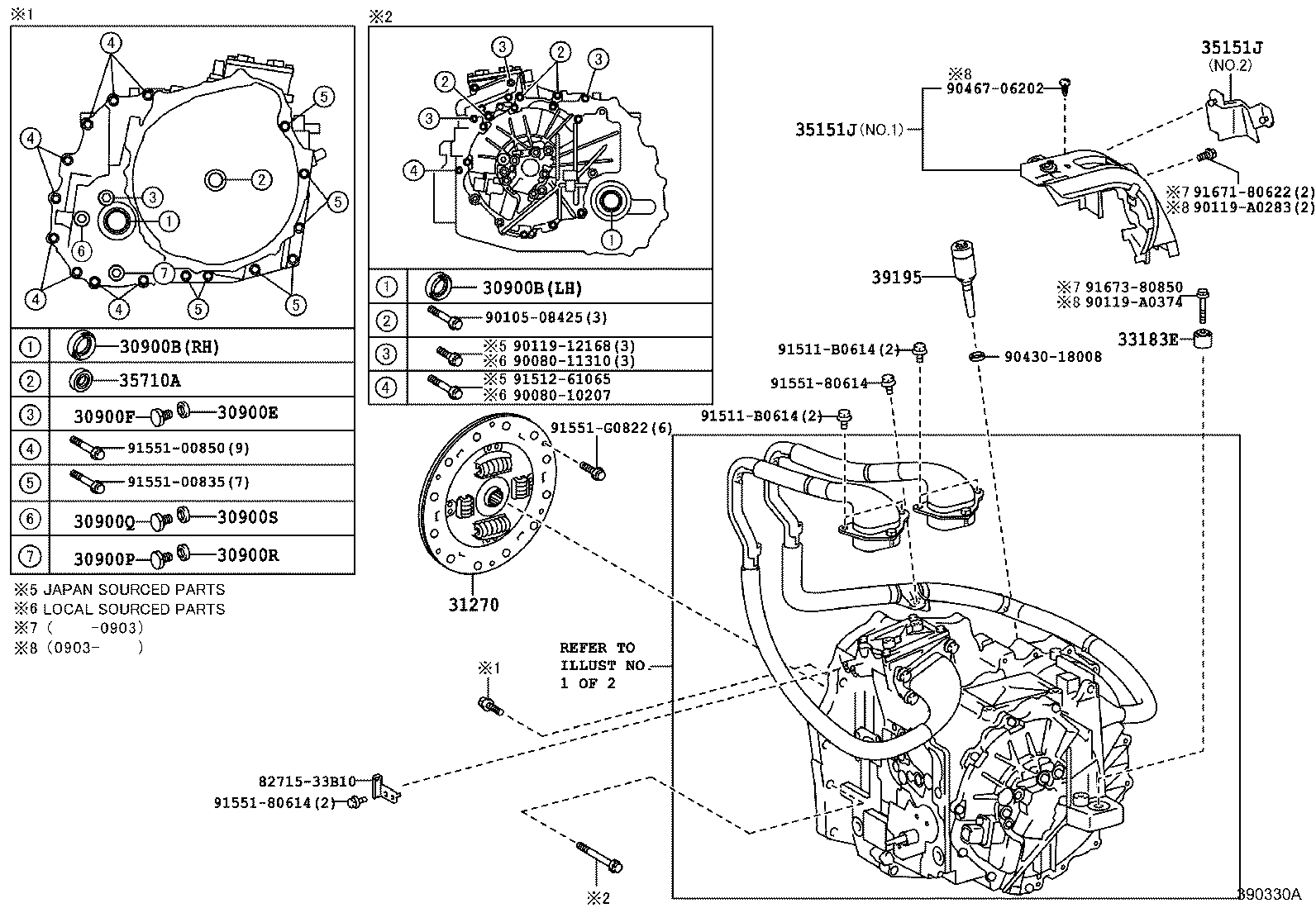

ILLUST NO. 2 OF 2(0610- )NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30900B - SEAL, TYPE T OIL(FOR HYBRID VEHICLE TRANSAXLE ASSY) | ||||
| 90311-50031 |
AHV40..NAP LH |
1 | ||
| 90311-40029 |
AHV40..NAP RH |
1 | ||
| 30900B - SEAL, TYPE T OIL(FOR HYBRID VEHICLE TRANSAXLE ASSY) | ||||
| 90311-50031 |
AHV40..NAP LH |
1 | ||
| 90311-40029 |
AHV40..NAP RH |
1 | ||
| 30900E - GASKET(FOR TRANSAXLE HOUSING & CASE) | ||||
| 90430-18008 |
AHV40..NAP |
2 | ||
| 30900F - PLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR TRANSAXLE HSG & C | ||||
| 90341-18016 |
AHV40..NAP |
2 | ||
| 30900P - PLUG, DRAIN(HV) | ||||
| 90341-18016 |
AHV40..NAP |
1 | ||
| 30900Q - PLUG, FILLER(HV) | ||||
| 90341-18016 |
AHV40..NAP |
1 | ||
| 30900R - GASKET, DRAIN PLUG(HV) | ||||
| 90430-18008 |
AHV40..NAP |
1 | ||
| 30900S - GASKET, FILLER PLUG(HV) | ||||
| 90430-18008 |
AHV40..NAP |
1 | ||
| 31270 - DAMPER ASSY, TRANSMISSION INPUT | ||||
| 31270-33010 |
AHV40..NAP |
1 | ||
| 33183E - DAMPER, DYNAMIC | ||||
| 33183-33040 |
AHV40..NAP |
1 | ||
| 35151J - COVER, AUTOMATIC TRANSMISSION CASE | ||||
| 35151-33090 |
AHV40..NAP NO.2 |
1 | ||
| 35151-33080 |
AHV40..NAP NO.1 |
1 | ||
| 35151J - COVER, AUTOMATIC TRANSMISSION CASE | ||||
| 35151-33090 |
AHV40..NAP NO.2 |
1 | ||
| 35151-33080 |
AHV40..NAP NO.1 |
1 | ||
| 35710A - SEAL, TYPE T OIL(FOR INPUT SHAFT) | ||||
| 90311-25027 |
AHV40..NAP |
1 | ||
| 39195 - DAMPER, HV TRANSAXLE MASS | ||||
| 39195-33010 |
AHV40..NAP |
1 | ||
| Common parts | ||||
| 82715-33B10 | ||||
| 90080-10207 | ||||
| 90080-11310 | ||||
| 90105-08425 | ||||
| 90119-12168 | ||||
| 90119-A0283 | ||||
| 90119-A0374 | ||||
| 90430-18008 | ||||
| 90467-06202 | ||||
| 91511-B0614 | ||||
| 91512-61065 | ||||
| 91551-00835 | ||||
| 91551-00850 | ||||
| 91551-80614 | ||||
| 91551-G0822 | ||||
| 91671-80622 | ||||
| 91673-80850 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
