AHV40L-AEXGBA (2006)
Toyota Camry Hv (Jpp)
Production
Mar 2006
-
Jan 2009
Engine
2AZFXE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

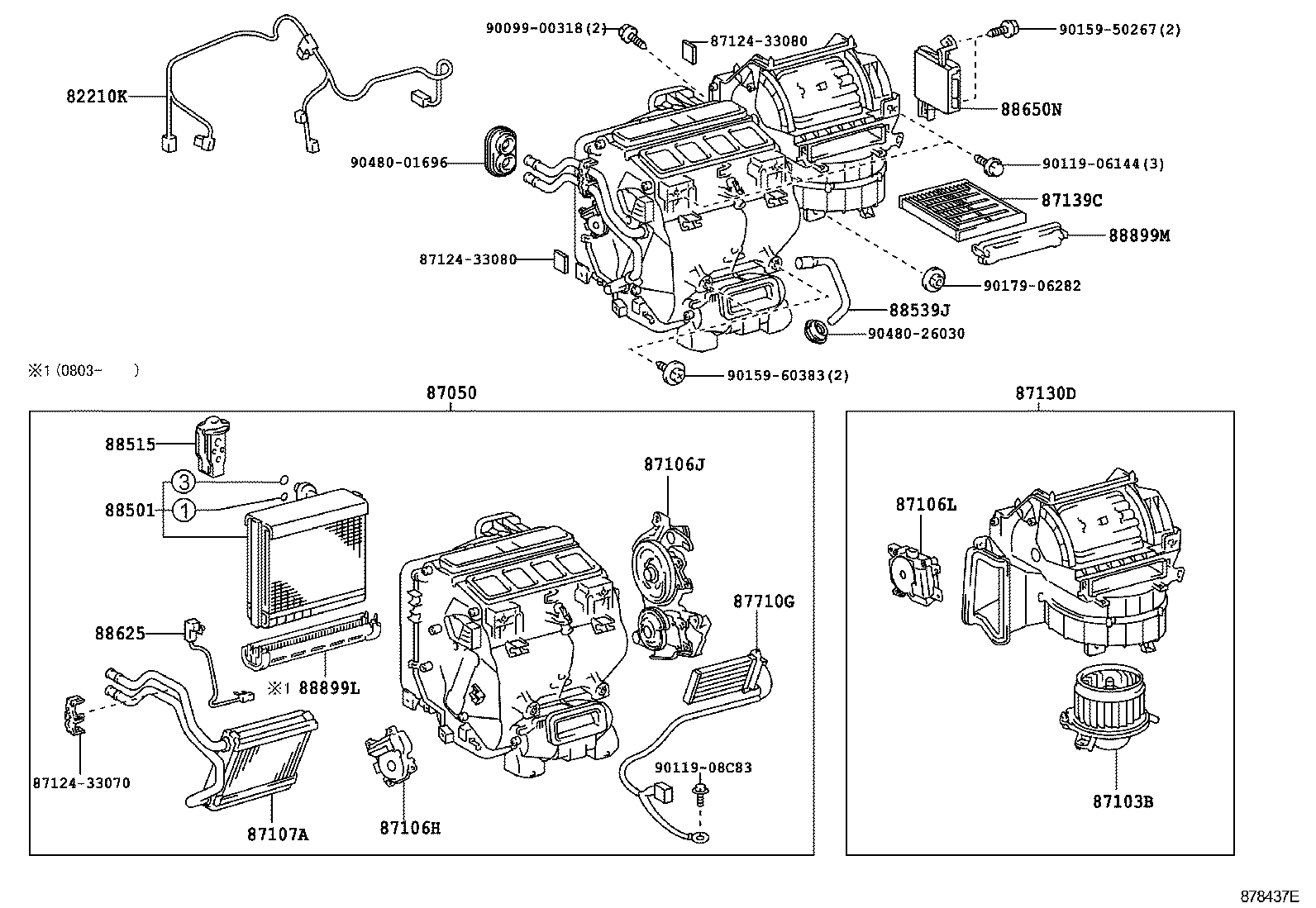

ILLUST NO. 1 OF 2(0603- )JPP
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-33020 |
AHV40..JPP |
1 | ||
| 82212-33021 |
AHV40..JPP |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-33610 |
AHV40..JPP |
1 | ||
| 87050-33611 |
AHV40..JPP |
1 | ||
| 87050-33613 |
AHV40..JPP |
1 | ||
| 87050-33612 |
AHV40..JPP |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-33090 |
AHV40..JPP |
1 | ||
| 87103-48080 |
AHV40..JPP |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-33260 |
AHV40..JPP |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-33250 |
AHV40..JPP |
1 | ||
| 87106-33290 |
AHV40..JPP |
1 | ||
| 87106L - SERVO SUB-ASSY, DAMPER | ||||
| 87106-33270 |
AHV40..JPP |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-33120 |
AHV40..JPP |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-33200 |
AHV40..JPP |
1 | ||
| 87130-48200 |
AHV40..JPP |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-30040 |
AHV40..JPP |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-33010 |
AHV40..JPP |
1 | ||
| 87710-33011 |
AHV40..JPP |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-33120 |
AHV40..JPP |
1 | ||
| 88501-33180 |
AHV40..JPP |
1 | ||
| 88501-28410 |
AHV40..JPP |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-33020 |
AHV40..JPP |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-33090 |
AHV40..JPP |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-33190 |
AHV40..JPP |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-33771 |
AHV40..JPP |
1 | ||
| 88650-33770 |
AHV40..JPP |
1 | ||
| 88899L - PARTS, COOLING UNIT | ||||
| 88899-33050 |
AHV40..JPP |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-33040 |
AHV40..JPP |
1 | ||
| Common parts | ||||
| 87124-33070 | ||||
| 87124-33080 | ||||
| 90099-00318 | ||||
| 90119-06144 | ||||
| 90119-08C83 | ||||
| 90159-50267 | ||||
| 90159-60383 | ||||
| 90179-06282 | ||||
| 90480-01696 | ||||
| 90480-26030 | ||||

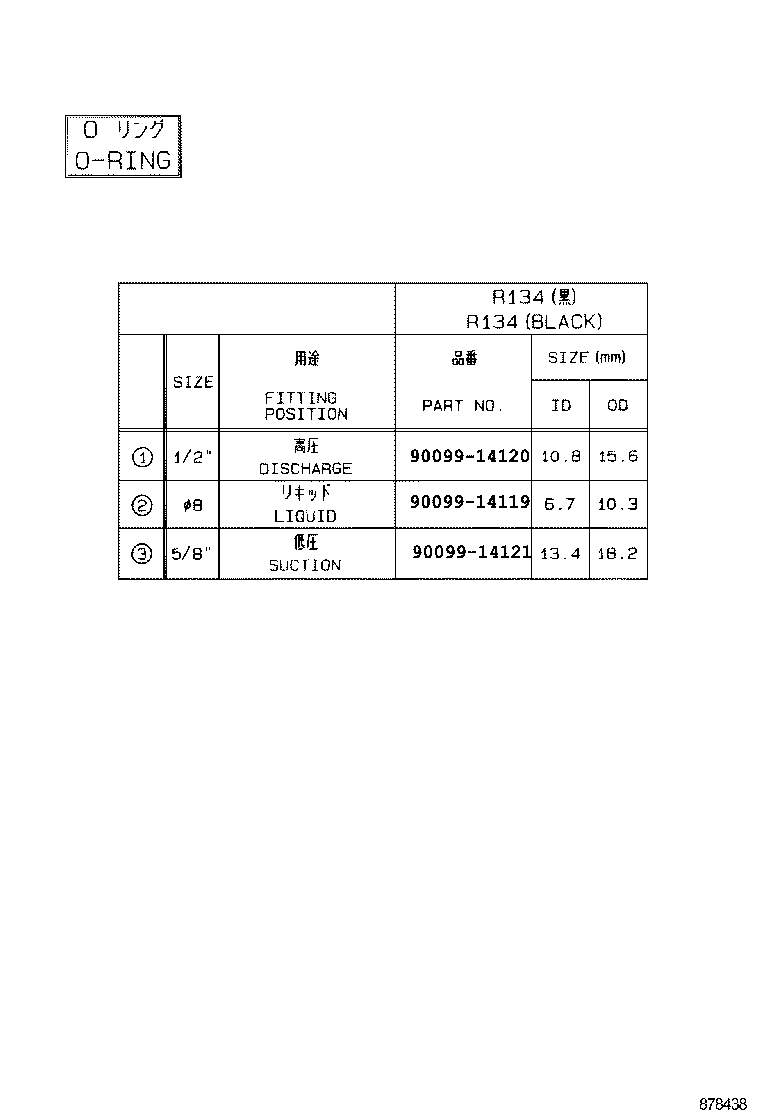

ILLUST NO. 2 OF 2(0603- )JPP
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
