AHV40L-AEXGBA (2006)
Toyota Camry Hv (Jpp)

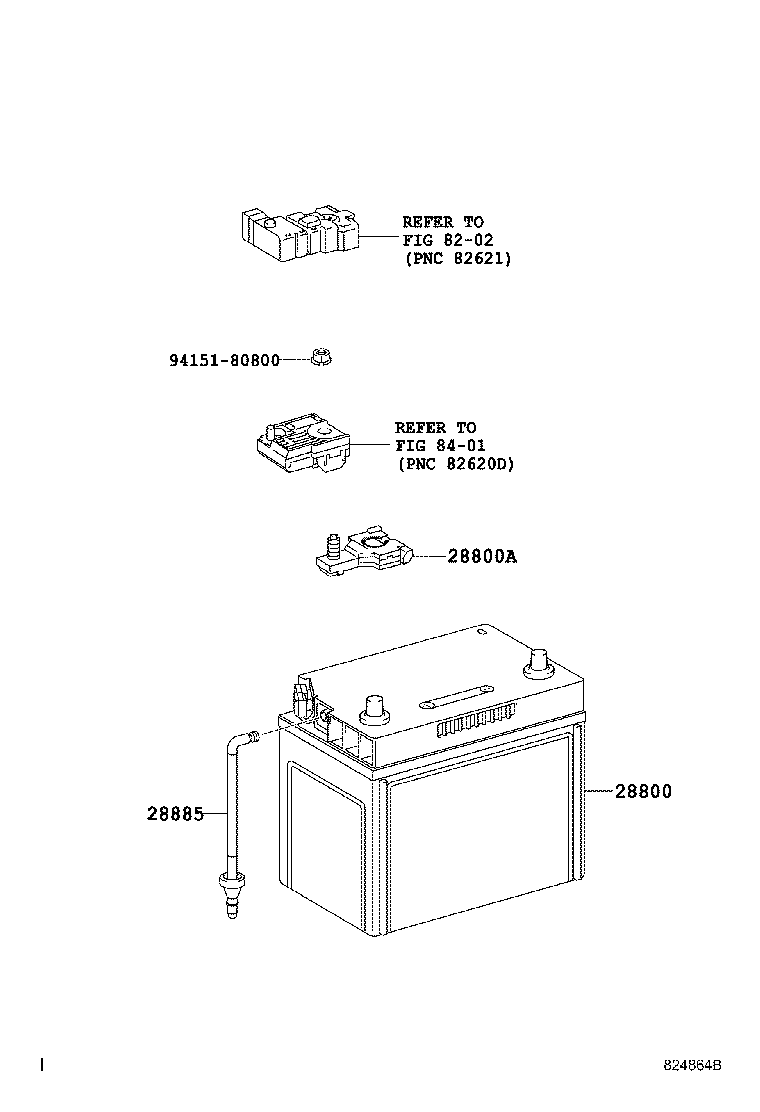

ILLUST NO. 1 OF 4(0603- )JPP
12V BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28800 - BATTERY | ||||
| 28800-28090 |
2AZFXE..AHV40..JPP S65D26R |
1 | ||
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05054 |
2AZFXE..AHV40..JPP |
1 | ||
| 28885 - HOSE, BATTERY ROOM VENTILATION | ||||
| 28885-28080 |
2AZFXE..AHV40..JPP |
1 | ||
| Common parts | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||

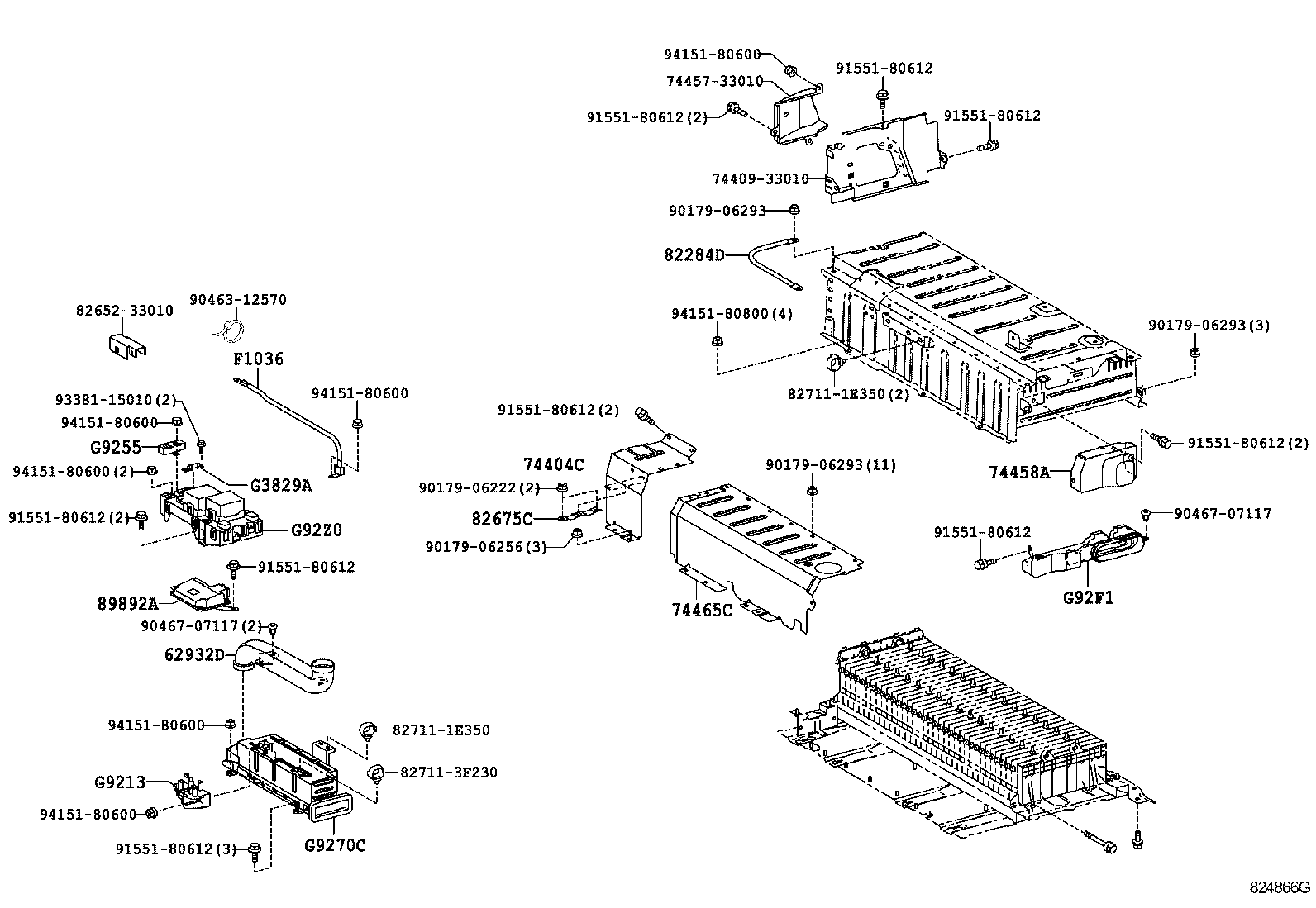

ILLUST NO. 3 OF 4(0603- )JPP
HV BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62932D - DUCT, VENTILATOR, INNER | ||||
| 62963-33010 |
AHV40..JPP |
1 | ||
| 74404C - CARRIER SUB-ASSY, BATTERY, UPR | ||||
| 74404-33130 |
AHV40..JPP |
1 | ||
| 74458A - LID, BATTERY COVER, NO.1 | ||||
| 74458-33010 |
AHV40..JPP |
1 | ||
| 74465C - PANEL, BATTERY CARRIER, NO.5 | ||||
| 74465-33010 |
AHV40..JPP |
1 | ||
| 82284D - WIRE, EARTH | ||||
| 82284-33010 |
AHV40..JPP |
1 | ||
| 82675C - TERMINAL, JUNCTION | ||||
| 82675-47080 |
AHV40..JPP |
1 | ||
| 89892A - SENSOR, BATTERY VOLTAGE | ||||
| 89892-33010 |
AHV40..JPP |
1 | ||
| F1036 - WIRE SUB-ASSY, CONVERTER, NO.1 | ||||
| F1036-33010 |
AHV40..JPP |
1 | ||
| G3829A - FUSE, ELECTRIC VEHICLE | ||||
| 90982-11051 |
AHV40..JPP 15A |
1 | ||
| G9213 - TERMINAL, INVERTER | ||||
| G9213-33010 |
AHV40..JPP |
1 | ||
| G9255 - CAPACITOR, FILTER NOISE | ||||
| G9255-33010 |
AHV40..JPP |
1 | ||
| G9270C - CONVERTER, HV | ||||
| G9270-33010 |
AHV40..JPP |
1 | ||
| G9270-33011 |
AHV40..JPP |
1 | ||
| G92F1 - DUCT, HYBRID BATTERY EXHAUST, NO.1 | ||||
| G92F1-33010 |
AHV40..JPP |
1 | ||
| G92Z0 - BLOCK ASSY, HV BATTERY JUNCTION | ||||
| G92Z0-33010 |
AHV40..JPP |
1 | ||
| Common parts | ||||
| 74409-33010 | ||||
| 74457-33010 | ||||
| 82652-33010 | ||||
| 82711-1E350 | ||||
| 82711-3F230 | ||||
| 90179-06222 | ||||
| 90179-06256 | ||||
| 90179-06293 | ||||
| 90463-12570 | ||||
| 90467-07117 | ||||
| 91551-80612 | ||||
| 93381-15010 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||

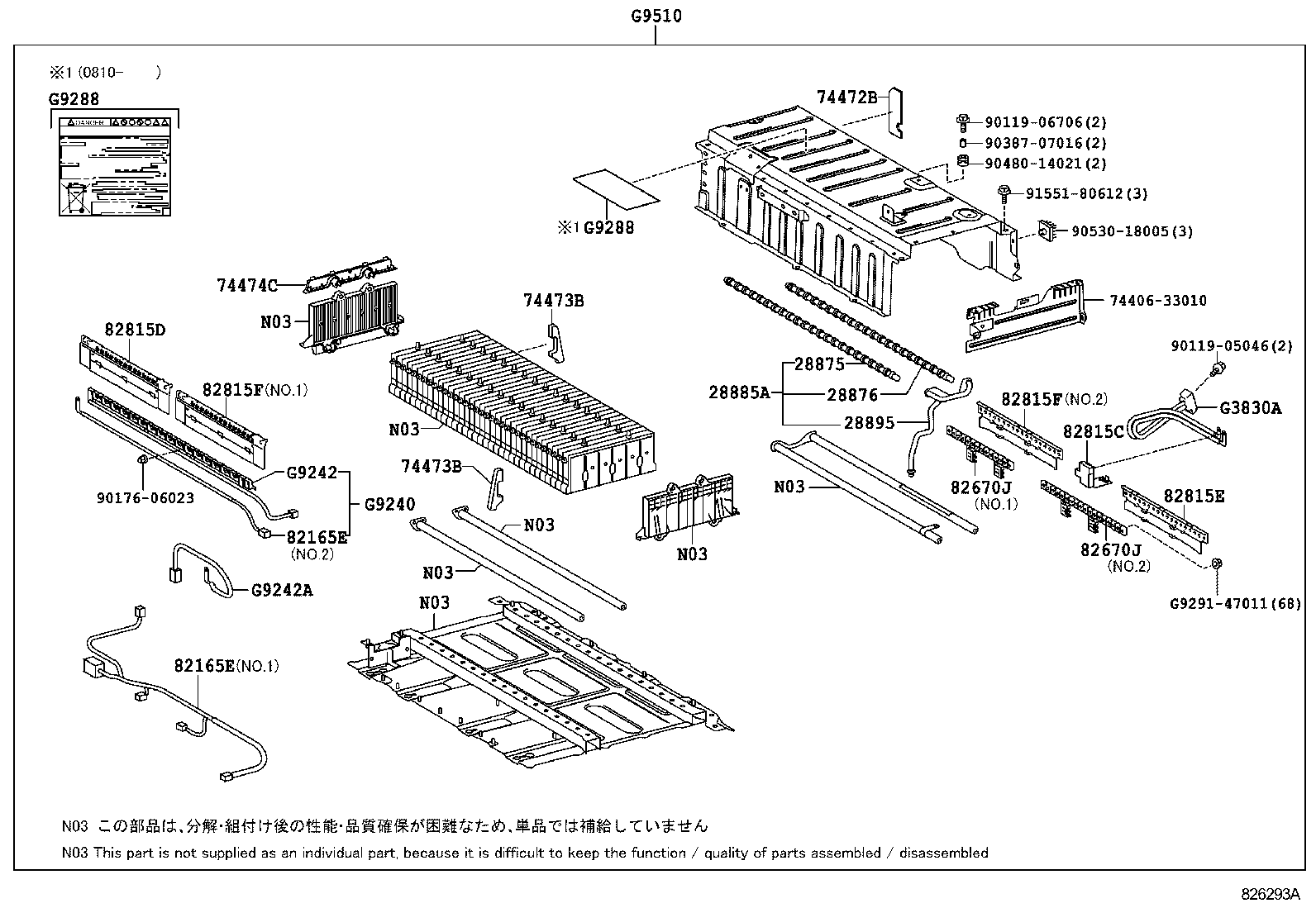

ILLUST NO. 4 OF 4(0603- )JPP
HV BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28875 - DUCT, BATTERY INSULATOR, NO.1 | ||||
| 28875-28020 |
2AZFXE..AHV40..JPP |
1 | ||
| 28876 - DUCT, BATTERY INSULATOR, NO.2 | ||||
| 28876-28020 |
2AZFXE..AHV40..JPP |
1 | ||
| 28885A - HOSE, BATTERY ROOM VENTILATION | ||||
| 28885-28090 |
2AZFXE..AHV40..JPP |
1 | ||
| 28895 - RUBBER, BATTERY INSULATOR | ||||
| 28895-28040 |
2AZFXE..AHV40..JPP |
1 | ||
| 74472B - PAD, BATTERY CARRIER | ||||
| 74472-33010 |
AHV40..JPP |
1 | ||
| 74472-33010 |
AHV40..JPP |
1 | ||
| 74473B - CUSHION, BATTERY CARRIER, NO.3 | ||||
| 74473-47020 |
AHV40..JPP |
2 | ||
| 74473B - CUSHION, BATTERY CARRIER, NO.3 | ||||
| 74473-47020 |
AHV40..JPP |
2 | ||
| 74474C - SPACER, BATTERY, NO.2 | ||||
| 74473-47010 |
AHV40..JPP |
1 | ||
| 82165E - WIRE, BATTERY PACK | ||||
| 82165-33030 |
AHV40..JPP NO.2 |
1 | ||
| 82165-33020 |
AHV40..JPP NO.1 |
1 | ||
| 82165E - WIRE, BATTERY PACK | ||||
| 82165-33030 |
AHV40..JPP NO.2 |
1 | ||
| 82165-33020 |
AHV40..JPP NO.1 |
1 | ||
| 82670J - BLOCK ASSY, JUNCTION | ||||
| 82670-47070 |
AHV40..JPP NO.2 |
1 | ||
| 82670-33120 |
AHV40..JPP NO.1 |
1 | ||
| 82670J - BLOCK ASSY, JUNCTION | ||||
| 82670-47070 |
AHV40..JPP NO.2 |
1 | ||
| 82670-33120 |
AHV40..JPP NO.1 |
1 | ||
| 82815C - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-33320 |
AHV40..JPP |
1 | ||
| 82815D - COVER, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 82815-47130 |
AHV40..JPP |
1 | ||
| 82815E - COVER, WIRING HARNESS PROTECTOR, NO.3 | ||||
| 82815-47140 |
AHV40..JPP |
1 | ||
| 82815F - COVER, WIRING HARNESS PROTECTOR, NO.4 | ||||
| 82815-33240 |
AHV40..JPP NO.1 |
1 | ||
| 82815-33250 |
AHV40..JPP NO.2 |
1 | ||
| 82815F - COVER, WIRING HARNESS PROTECTOR, NO.4 | ||||
| 82815-33240 |
AHV40..JPP NO.1 |
1 | ||
| 82815-33250 |
AHV40..JPP NO.2 |
1 | ||
| G3830A - PLUG ASSY, ELECTRIC VEHICLE BATTERY | ||||
| G3830-33011 |
AHV40..JPP |
1 | ||
| G9240 - JUNCTION BLOCK ASSY, BATTERY W/CABLE | ||||
| G9240-33010 |
AHV40..JPP |
1 | ||
| G9242 - CABLE, MAIN BATTERY | ||||
| G9242-33020 |
AHV40..JPP |
1 | ||
| G9242A - CABLE, MAIN BATTERY, NO.2 | ||||
| G9242-33010 |
AHV40..JPP |
1 | ||
| G9288 - LABEL, BATTERY CHARGING NOTICE | ||||
| G9288-47100 |
AHV40..JPP |
1 | ||
| G9288 - LABEL, BATTERY CHARGING NOTICE | ||||
| G9288-47100 |
AHV40..JPP |
1 | ||
| G9510 - BATTERY ASSY, HV SUPPLY | ||||
| G9510-33010 |
AHV40..JPP |
1 | ||
| Common parts | ||||
| 74406-33010 | ||||
| 90119-05046 | ||||
| 90119-06706 | ||||
| 90176-06023 | ||||
| 90387-07016 | ||||
| 90480-14021 | ||||
| 90530-18005 | ||||
| 91551-80612 | ||||
| G9291-47011 | ||||

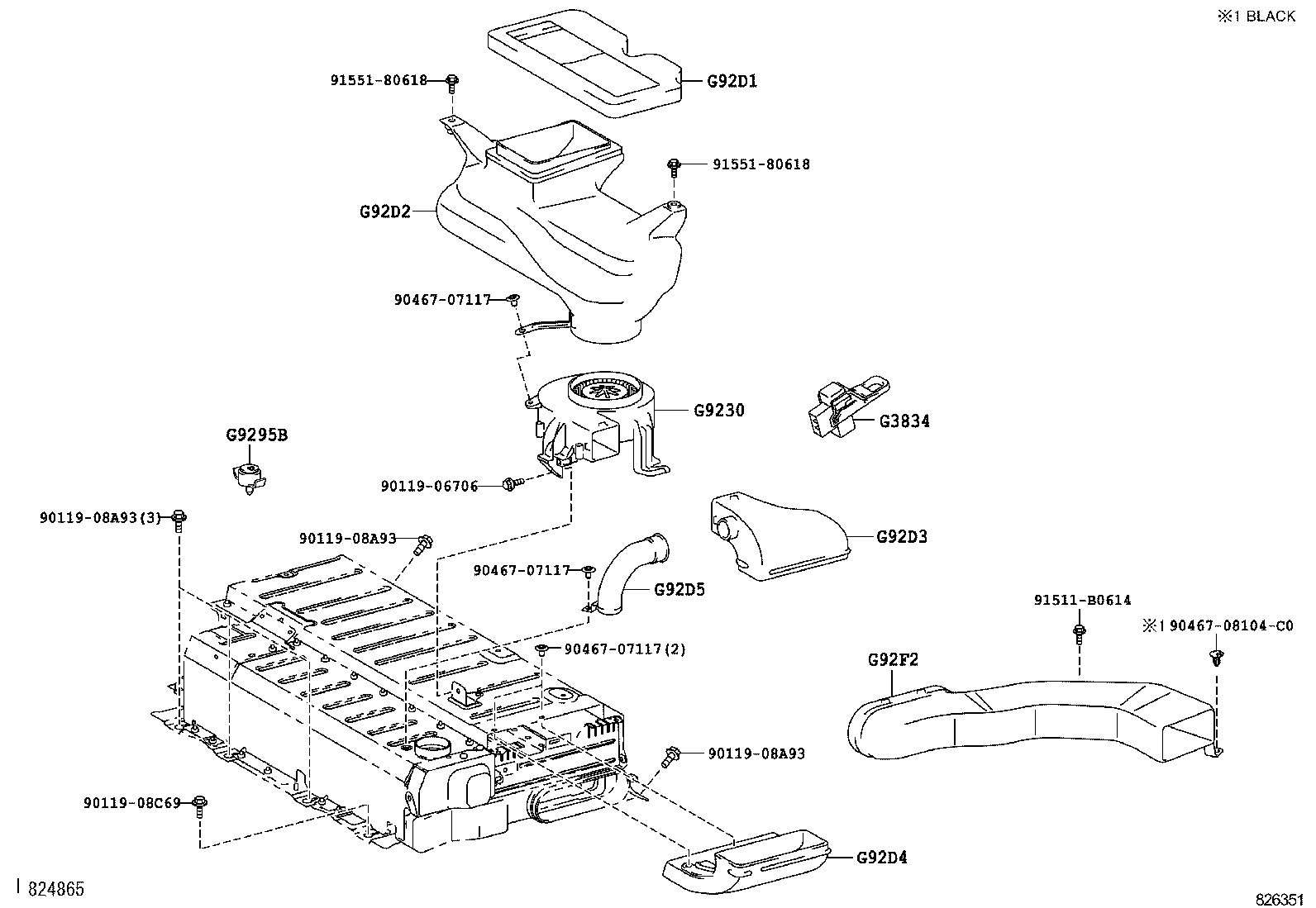

ILLUST NO. 2 OF 4(0603- )JPP
HV BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| G3834 - GRIP, SERVICE PLUG | ||||
| G9530-30020 |
AHV40..JPP |
1 | ||
| G9230 - BLOWER ASSY, BATTERY COOLING | ||||
| G9230-33010 |
AHV40..JPP |
1 | ||
| G9295B - STRIKER, BATTERY COVER LOCK | ||||
| G9295-30020 |
AHV40..JPP |
1 | ||
| G92D1 - DUCT, HYBRID BATTERY INTAKE, NO.1 | ||||
| G92D1-33010 |
AHV40..JPP |
1 | ||
| G92D2 - DUCT, HYBRID BATTERY INTAKE, NO.2 | ||||
| G92D2-33010 |
AHV40..JPP |
1 | ||
| G92D3 - DUCT, HYBRID BATTERY INTAKE, NO.3 | ||||
| G92D3-33010 |
AHV40..JPP |
1 | ||
| G92D4 - DUCT, HYBRID BATTERY INTAKE, NO.4 | ||||
| G92D4-33010 |
AHV40..JPP |
1 | ||
| G92D5 - DUCT, HYBRID BATTERY INTAKE, NO.5 | ||||
| G92D5-33010 |
AHV40..JPP |
1 | ||
| G92F2 - DUCT, HYBRID BATTERY EXHAUST, NO.2 | ||||
| G92F2-33010 |
AHV40..JPP |
1 | ||
| Common parts | ||||
| 90119-06706 | ||||
| 90119-08A93 | ||||
| 90119-08C69 | ||||
| 90467-07117 | ||||
| 90467-08104C0 | ||||
| 91511-B0614 | ||||
| 91551-80618 | ||||
