AHV40L-AEXGBA (2006)
Toyota Camry Hv (Jpp)

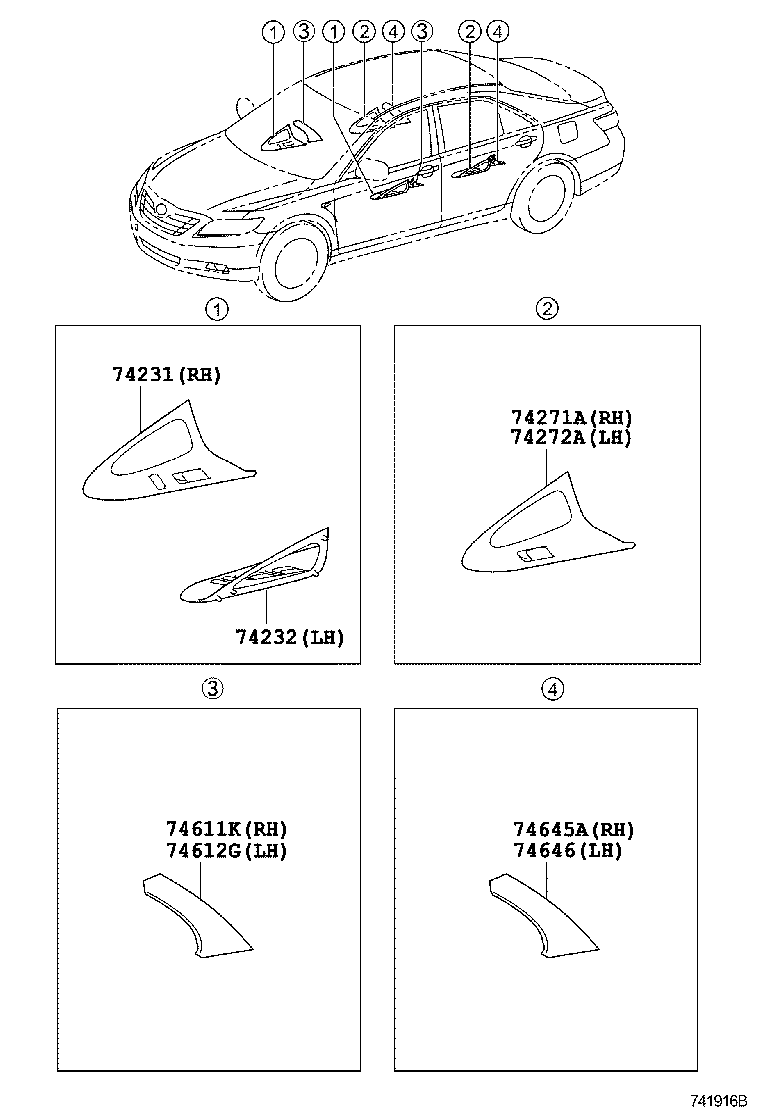

ILLUST NO. 1 OF 2(0603- )JPP
ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-33400B1 |
AHV40..JPP GRAY,TRIM1# |
1 | ||
| 74231-33400E0 |
AHV40..JPP GREGE,TRIM4# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-33330B1 |
AHV40..JPP GRAY,TRIM1# |
1 | ||
| 74232-33330E0 |
AHV40..JPP GREGE,TRIM4# |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-33240E0 |
AHV40..JPP GREGE,TRIM4# |
1 | ||
| 74271-33240B1 |
AHV40..JPP GRAY,TRIM1# |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74272-33240E0 |
AHV40..JPP GREGE,TRIM4# |
1 | ||
| 74272-33240B1 |
AHV40..JPP GRAY,TRIM1# |
1 | ||
| 74611K - COVER, ASSIST GRIP, RH FRONT SIDE | ||||
| 74612-33040B1 |
AHV40..JPP GRAY,TRIM1# |
1 | ||
| 74612-33040E0 |
AHV40..JPP GREGE,TRIM4# |
1 | ||
| 74612G - COVER, ASSIST GRIP, LH FRONT SIDE | ||||
| 74611-33030B1 |
AHV40..JPP GRAY,TRIM1# |
1 | ||
| 74611-33030E0 |
AHV40..JPP GREGE,TRIM4# |
1 | ||
| 74645A - COVER, DOOR ASSIST GRIP, RH | ||||
| 74645-33030E0 |
AHV40..JPP GREGE,TRIM4# |
1 | ||
| 74645-33030B1 |
AHV40..JPP GRAY,TRIM1# |
1 | ||
| 74646 - COVER, DOOR ASSIST GRIP, LH | ||||
| 74646-33030B1 |
AHV40..JPP GRAY,TRIM1# |
1 | ||
| 74646-33030E0 |
AHV40..JPP GREGE,TRIM4# |
1 | ||

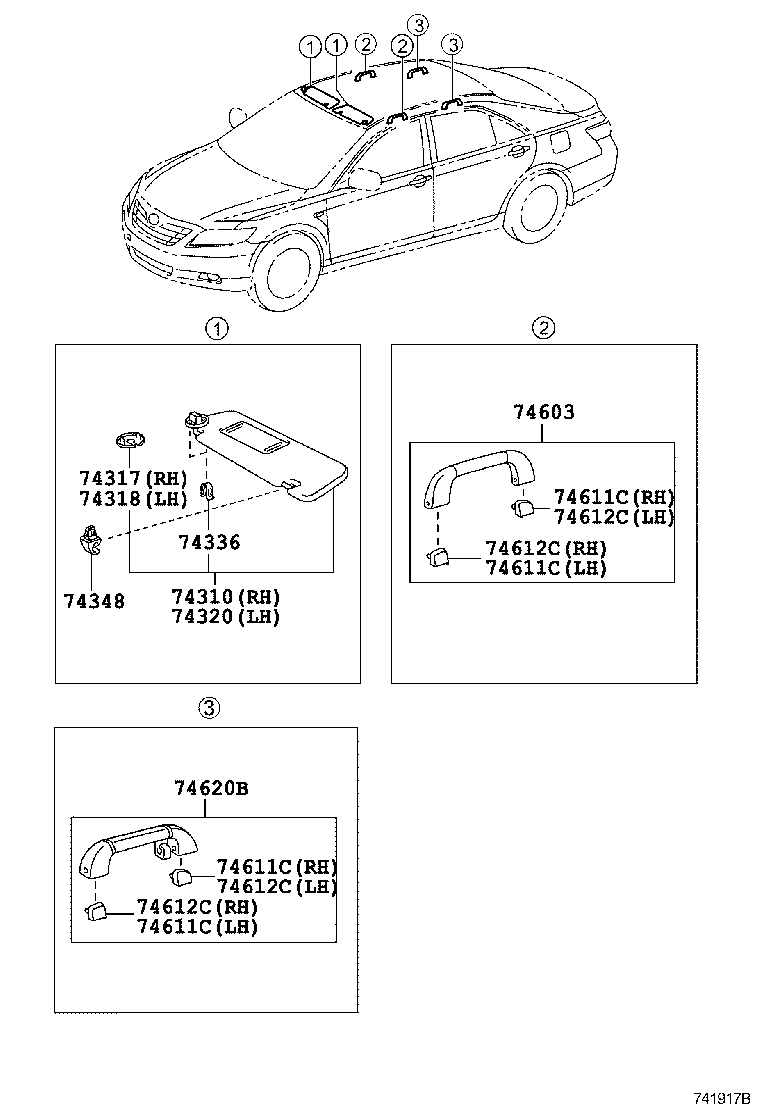

ILLUST NO. 2 OF 2(0603- )JPP
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-33A10E1 |
AHV40..JPP GREGE,TRIM4# |
1 | ||
| 74310-33A30E1 |
AHV40..JPP MOON ROOF-WITH,GREGE,TRIM4# |
1 | ||
| 74310-33A10B2 |
AHV40..JPP GRAY,TRIM1# |
1 | ||
| 74310-33A30B2 |
AHV40..JPP MOON ROOF-WITH,GRAY,TRIM1# |
1 | ||
| 74317 - COVER, VISOR BRACKET, RH | ||||
| 74317-52010E0 |
AHV40..JPP MOON ROOF-WITH,GREGE,TRIM4# |
1 | ||
| 74317-52010B0 |
AHV40..JPP MOON ROOF-WITH,GRAY,TRIM1# |
1 | ||
| 74317-52010B0 |
AHV40..JPP GRAY,TRIM1# |
1 | ||
| 74317-52010E0 |
AHV40..JPP GREGE,TRIM4# |
1 | ||
| 74318 - COVER, VISOR BRACKET, LH | ||||
| 74318-52020E0 |
AHV40..JPP MOON ROOF-WITH,GREGE,TRIM4# |
1 | ||
| 74318-52020E0 |
AHV40..JPP GREGE,TRIM4# |
1 | ||
| 74318-52020B0 |
AHV40..JPP MOON ROOF-WITH,GRAY,TRIM1# |
1 | ||
| 74318-52020B0 |
AHV40..JPP GRAY,TRIM1# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-33A20B2 |
AHV40..JPP MOON ROOF-WITH,GRAY,TRIM1# |
1 | ||
| 74320-33A00E1 |
AHV40..JPP GREGE,TRIM4# |
1 | ||
| 74320-33A20E1 |
AHV40..JPP MOON ROOF-WITH,GREGE,TRIM4# |
1 | ||
| 74320-33A00B2 |
AHV40..JPP GRAY,TRIM1# |
1 | ||
| 74336 - CLIP, VISOR ARM SET | ||||
| 74336-52010 |
AHV40..JPP |
4 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-33040B0 |
AHV40..JPP GRAY,TRIM1# |
2 | ||
| 74348-33040E0 |
AHV40..JPP GREGE,TRIM4# |
2 | ||
| 74603 - GRIP SUB-ASSY, ASSIST, FRONT | ||||
| 74610-30240E0 |
AHV40..JPP GREGE,TRIM4# |
2 | ||
| 74610-30240B1 |
AHV40..JPP GRAY,TRIM1# |
2 | ||
| 74620B - GRIP ASSY, ASSIST, REAR | ||||
| 74610-30330B1 |
AHV40..JPP GRAY,TRIM1#,LH |
1 | ||
| 74610-30320E1 |
AHV40..JPP GREGE,TRIM4#,RH |
1 | ||
| 74610-30320B1 |
AHV40..JPP GRAY,TRIM1#,RH |
1 | ||
| 74610-30330E1 |
AHV40..JPP GREGE,TRIM4#,LH |
1 | ||
