AHV40L-AEXGBA (2006)
Toyota Camry Hv (Jpp)
Production
Mar 2006
-
Jan 2009
Engine
2AZFXE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0603- )JPP

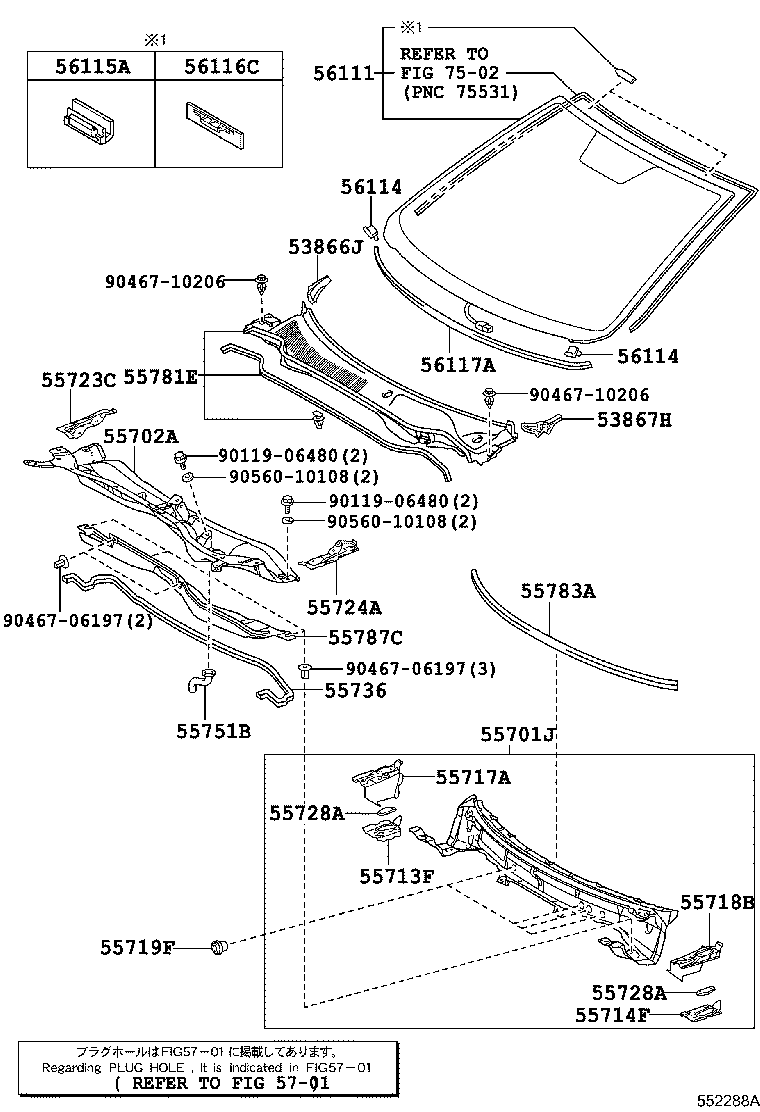

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53866J - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-33060 |
AHV40..JPP |
1 | ||
| 53867H - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-33060 |
AHV40..JPP |
1 | ||
| 55701J - PANEL SUB-ASSY, COWL TOP, OUTER | ||||
| 55701-33150 |
AHV40..JPP |
1 | ||
| 55702A - PANEL SUB-ASSY, COWL TOP, OUTER FRONT | ||||
| 55702-33030 |
AHV40..JPP |
1 | ||
| 55713F - REINFORCEMENT, COWL TOP SIDE, RH | ||||
| 55713-33030 |
AHV40..JPP |
1 | ||
| 55714F - REINFORCEMENT, COWL TOP SIDE, LH | ||||
| 55714-33030 |
AHV40..JPP |
1 | ||
| 55717A - PANEL, COWL TOP SIDE, INNER RH | ||||
| 55717-33040 |
AHV40..JPP |
1 | ||
| 55718B - PANEL, COWL TOP SIDE, INNER LH | ||||
| 55718-33040 |
AHV40..JPP |
1 | ||
| 55719F - PACKING, FRONT LOWER PANEL | ||||
| 55719-33020 |
AHV40..JPP |
4 | ||
| 55723C - REINFORCEMENT, COWL TOP SIDE, RH | ||||
| 55723-33040 |
AHV40..JPP |
1 | ||
| 55724A - REINFORCEMENT, COWL TOP SIDE, LH | ||||
| 55724-33040 |
AHV40..JPP |
1 | ||
| 55728A - REINFORCEMENT, HOOD STOPPER | ||||
| 55728-33030 |
AHV40..JPP |
2 | ||
| 55728A - REINFORCEMENT, HOOD STOPPER | ||||
| 55728-33030 |
AHV40..JPP |
2 | ||
| 55736 - SEAL, WATER GUARD PLATE | ||||
| 55736-33020 |
AHV40..JPP |
1 | ||
| 55751B - HOSE, COWL WATER EXTRACT, NO.1 | ||||
| 55751-33030 |
AHV40..JPP |
1 | ||
| 55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR | ||||
| 55708-33100 |
AHV40..JPP |
1 | ||
| 55783A - PAD, COWL TOP SILENCER | ||||
| 55783-33060 |
AHV40..JPP |
2 | ||
| 55787C - INSULATOR, COWL TOP PANEL, NO.1 | ||||
| 55787-33070 |
AHV40..JPP |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56101-33680 |
AHV40..JPP *HSEAL,T=4.88,GREEN |
1 | ||
| 56114 - RETAINER, WINDSHIELD GLASS | ||||
| 56114-22050 |
AHV40..JPP |
2 | ||
| 56114-33050 |
AHV40..JPP |
2 | ||
| 56114 - RETAINER, WINDSHIELD GLASS | ||||
| 56114-22050 |
AHV40..JPP |
2 | ||
| 56114-33050 |
AHV40..JPP |
2 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-30120 |
AHV40..JPP |
1 | ||
| 56116C - STOPPER, WINDSHIELD GLASS, NO.2 | ||||
| 56116-22050 |
AHV40..JPP |
1 | ||
| 56117A - DAM, WINDOW GLASS ADHESIVE | ||||
| 56117-33100 |
AHV40..JPP L=1480 |
1 | ||
| Common parts | ||||
| 90119-06480 | ||||
| 90467-06197 | ||||
| 90467-10206 | ||||
| 90560-10108 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 7502 | ||||
