VZV21L-AEPNKA (1989)
Toyota Camry (Nap)
Production
Sep 1989
-
Sep 1991
Engine
2VZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8909- )VZV21..4FC

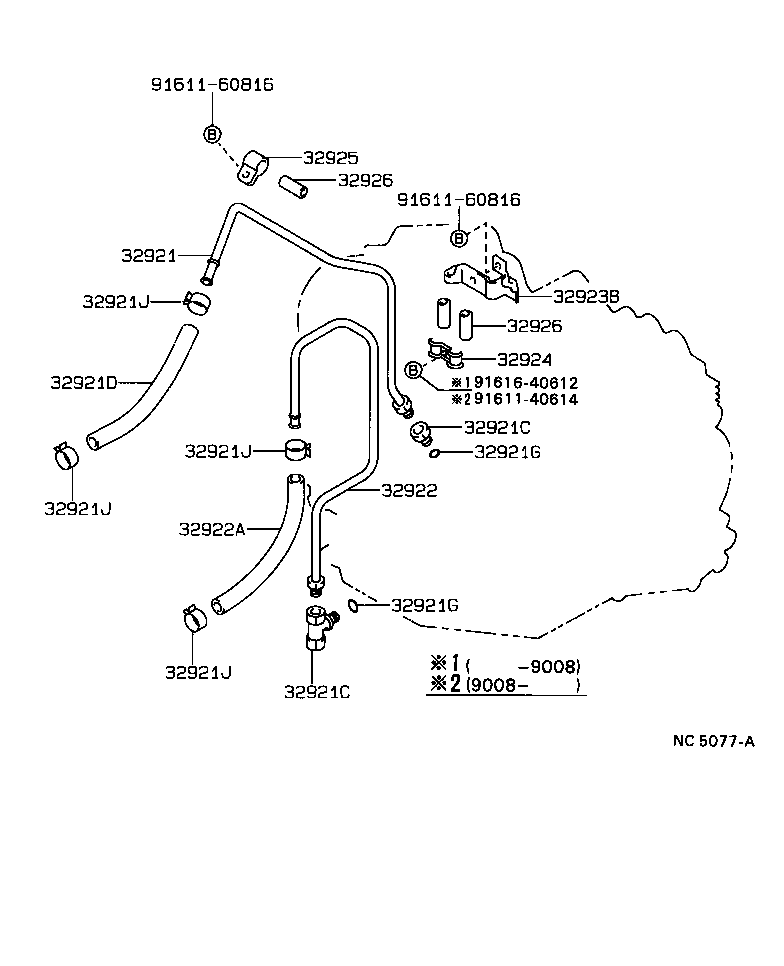

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-32071 |
VZV21..4FC |
1 | ||
| 32921-32072 |
VZV21..4FC |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16031 |
VZV21..4FC INLET |
1 | ||
| 32901-32050 |
VZV21..4FC OUTLET |
1 | ||
| 90404-16021 |
VZV21..4FC INLET |
1 | ||
| 32901-32020 |
VZV21..4FC OUTLET |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16031 |
VZV21..4FC INLET |
1 | ||
| 32901-32050 |
VZV21..4FC OUTLET |
1 | ||
| 90404-16021 |
VZV21..4FC INLET |
1 | ||
| 32901-32020 |
VZV21..4FC OUTLET |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32941-32060 |
VZV21..4FC |
1 | ||
| 32941-32150 |
VZV21..4FC |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
VZV21..4FC |
4 | ||
| 90301-10189 |
VZV21..4FC |
6 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
VZV21..4FC |
4 | ||
| 90301-10189 |
VZV21..4FC |
6 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
VZV21..4FC |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
VZV21..4FC |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
VZV21..4FC |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
VZV21..4FC |
4 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-32021 |
VZV21..4FC |
1 | ||
| 32922-32020 |
VZV21..4FC |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-17076 |
VZV21..4FC |
1 | ||
| 90445-17105 |
VZV21..4FC |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32923-32040 |
VZV21..4FC |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 90462-12044 |
VZV21..4FC |
1 | ||
| 32925 - CLAMP, OIL COOLER TUBE, NO.3 | ||||
| 90461-06207 |
VZV21..4FC |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
VZV21..4FC L=35,ID=10 |
2 | ||
| 32926-32010 |
VZV21..4FC L=40,ID=10 |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
VZV21..4FC L=35,ID=10 |
2 | ||
| 32926-32010 |
VZV21..4FC L=40,ID=10 |
1 | ||
| Common parts | ||||
| 91611-40614 | ||||
| 91611-60816 | ||||
| 91616-40612 | ||||
