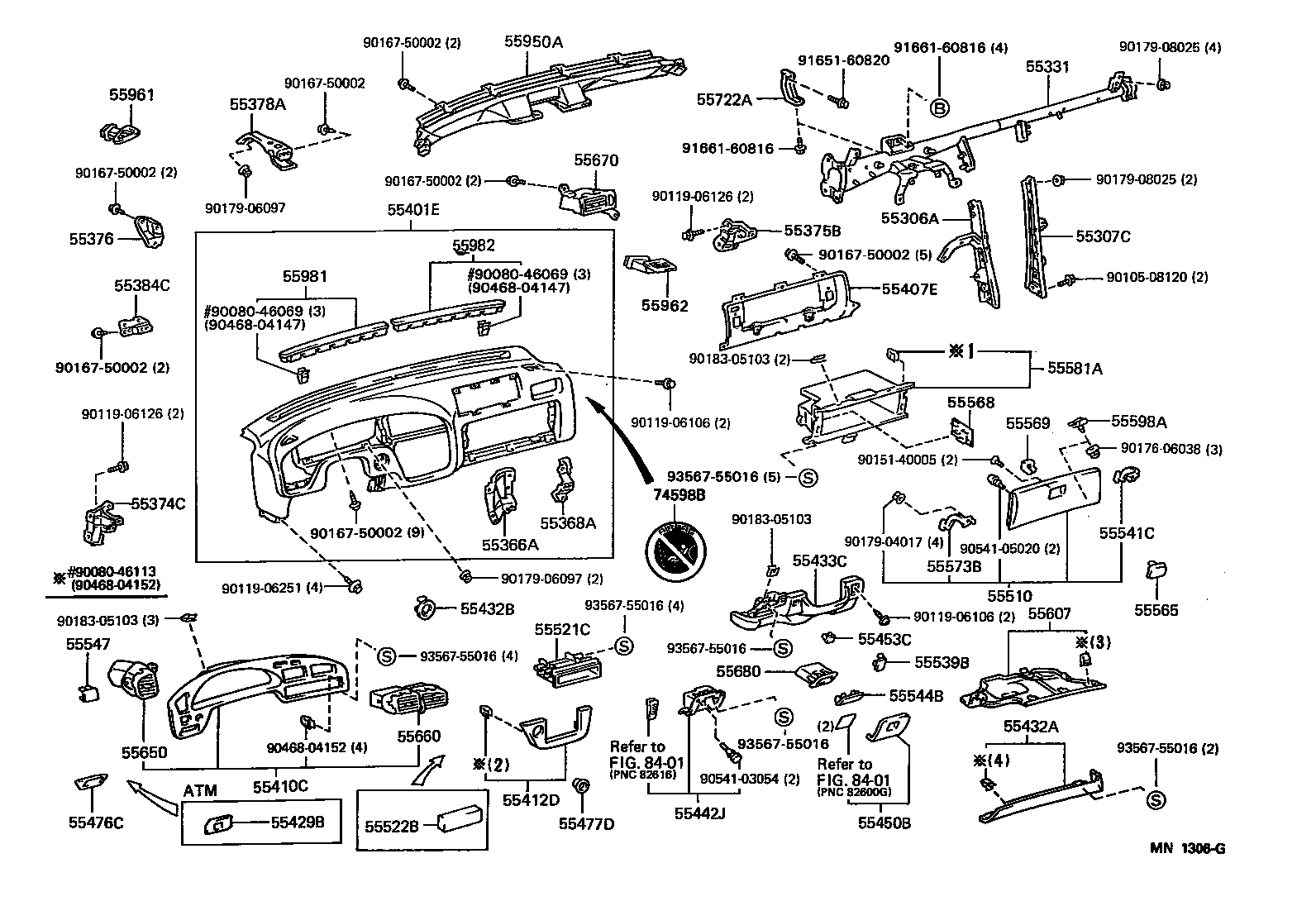

VCV10L-CEPDKA (1991)
Toyota Camry (Nap)
(9109- )NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-06010 |
MCV10,SXV10,VCV10..NAP |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-06010 |
MCV10,SXV10,VCV10..NAP |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-06010 |
SXV10,VCV10..NAP |
1 | ||
| 55330-06011 |
SXV10,VCV10..NAP |
1 | ||
| 55366A - BRACKET, RADIO MOUNTING, NO.1 | ||||
| 55366-33010 |
MCV10,SXV10,VCV10..NAP |
1 | ||
| 55368A - BRACKET, RADIO MOUNTING, NO.2 | ||||
| 55368-06010 |
MCV10,SXV10,VCV10..NAP |
1 | ||
| 55374C - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1 | ||||
| 55374-06010 |
MCV10,SXV10,VCV10..NAP |
1 | ||
| 55375B - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2 | ||||
| 55375-06010 |
SXV10,VCV10..NAP |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-06010 |
MCV10,SXV10,VCV10..NAP |
1 | ||
| 55378A - BRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING | ||||
| 55308-06010 |
SXV10,VCV10..NAP |
1 | ||
| 55384C - BRACKET, FINISH PANEL MOUNTING, NO.4 | ||||
| 55384-06010 |
MCV10,VCV10..NAP..(DX,LE,XLE) |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-06010K0 |
SXV10,VCV10..NAP..SED TAUPE,TRIM9# |
1 | ||
| 55401-06010J0 |
SXV10,VCV10..NAP DARK BLUE,TRIM8# |
1 | ||
| 55401-06010B0 |
SXV10,VCV10..NAP MEDIUM GRAY,TRIM1# |
1 | ||
| 55401-06010E0 |
SXV10,VCV10..NAP OAK,TRIM4# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-06010 |
MCV10,SXV10,VCV10..NAP |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-06010 |
MCV10,SXV10,VCV10..NAP |
1 | ||
| 55429B - PROTECTOR, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55429-06010 |
MCV10,VCV10..NAP..(DX,LE,XLE) |
1 | ||
| 55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55303-06010J0 |
SXV10,VCV10..NAP DARK BLUE,TRIM8# |
1 | ||
| 55303-06010K0 |
MCV10,SXV10,VCV10..NAP..(CP,SED) TAUPE,TRIM9# |
1 | ||
| 55303-06010B0 |
MCV10,SXV10,VCV10..NAP MEDIUM GRAY,TRIM1# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55480-06010 |
MCV10,SXV10,VCV10..NAP |
1 | ||
| 55433C - PANEL, INSTRUMENT PANEL FINISH, LOWER LH | ||||
| 55403-06010K0 |
MCV10,SXV10,VCV10..NAP..(CP,SED) TAUPE,TRIM9# |
1 | ||
| 55403-06010B0 |
SXV10,VCV10..NAP MEDIUM GRAY,TRIM1# |
1 | ||
| 55403-06010J0 |
SXV10,VCV10..NAP DARK BLUE,TRIM8# |
1 | ||
| 55442J - BEZEL, INSTRUMENT PANEL COIN BOX | ||||
| 55442-33010 |
SXV10,VCV10..NAP |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-33010K0 |
SXV10,VCV10..NAP..SED TAUPE,TRIM9# |
1 | ||
| 55450-33010E0 |
SXV10,VCV10..NAP OAK,TRIM4# |
1 | ||
| 55450-33010J0 |
SXV10,VCV10..NAP DARK BLUE,TRIM8# |
1 | ||
| 55450-33010B0 |
SXV10,VCV10..NAP MEDIUM GRAY,TRIM1# |
1 | ||
| 55453C - COVER, INSTRUMENT PANEL SAFETY PAD, NO.2 | ||||
| 55453-06010K0 |
MCV10,SXV10,VCV10..NAP..(CP,SED) TAUPE,TRIM9# |
1 | ||
| 55453-06010B0 |
SXV10,VCV10..NAP MEDIUM GRAY,TRIM1# |
1 | ||
| 55453-06010J0 |
SXV10,VCV10..NAP DARK BLUE,TRIM8# |
1 | ||
| 55476C - GARNISH, INSTRUMENT PANEL FINISH PLATE | ||||
| 55476-06010 |
SXV10..NAP;MCV10,VCV10..NAP..SE |
1 | ||
| 55477D - COVER, CIGARETTE LIGHTER HOLE | ||||
| 55477-06010 |
MCV10,SXV10,VCV10..NAP |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-06010E0 |
SXV10,VCV10..NAP OAK,TRIM4# |
1 | ||
| 55550-06010J0 |
SXV10,VCV10..NAP DARK BLUE,TRIM8# |
1 | ||
| 55550-06010B0 |
SXV10,VCV10..NAP MEDIUM GRAY,TRIM1# |
1 | ||
| 55550-06010K0 |
SXV10,VCV10..NAP..SED TAUPE,TRIM9# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-06010 |
SXV10,VCV10..NAP |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-33010 |
VCV10..NAP..ATM..SE |
1 | ||
| 55522-33010 |
VCV10..NAP..DX;SXV10..NAP..MTM..USA;SXV10..NAP..WG..DX..USA |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55479-06010J0 |
SXV10,VCV10..NAP DARK BLUE,TRIM8# |
1 | ||
| 55479-06010K0 |
MCV10,SXV10,VCV10..NAP..(CP,SED) TAUPE,TRIM9# |
1 | ||
| 55479-06010B0 |
SXV10,VCV10..NAP MEDIUM GRAY,TRIM1# |
1 | ||
| 55541C - ARM, GLOVE COMPARTMENT HINGE, RH | ||||
| 55541-33010 |
MCV10,SXV10,VCV10..NAP |
1 | ||
| 55544B - COVER, INSTRUMENT PANEL LOWER REGISTER HOLE | ||||
| 55544-06010B0 |
SXV10,VCV10..NAP..DX;SXV10,VCV10..NAP..LE..CND MEDIUM GRAY,TRIM1# |
1 | ||
| 55544-06010E0 |
SXV10,VCV10..NAP..DX;SXV10,VCV10..NAP..LE..CND OAK,TRIM4# |
1 | ||
| 55544-06010J0 |
SXV10,VCV10..NAP..DX;SXV10,VCV10..NAP..LE..CND DARK BLUE,TRIM8# |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-06010 |
MCV10,SXV10,VCV10..NAP..(DX,SE)..USA |
1 | ||
| 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-22020B0 |
SXV10,VCV10..NAP MEDIUM GRAY,TRIM1# |
1 | ||
| 55565-22020K0 |
MCV10,SXV10,VCV10..NAP..(CP,SED) TAUPE,TRIM9# |
1 | ||
| 55565-22020J0 |
SXV10,VCV10..NAP DARK BLUE,TRIM8# |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-22030B0 |
SXV10,VCV10..NAP MEDIUM GRAY,TRIM1# |
1 | ||
| 55569-22030K0 |
MCV10,SXV10,VCV10..NAP..(CP,SED) TAUPE,TRIM9# |
1 | ||
| 55569-22030J0 |
SXV10,VCV10..NAP DARK BLUE,TRIM8# |
1 | ||
| 55573B - ARM, GLOVE COMPARTMENT DOOR CHECK, LH | ||||
| 55542-33010 |
MCV10,SXV10,VCV10..NAP |
1 | ||
| 55581A - COMPARTMENT, GLOVE | ||||
| 55581-06010 |
SXV10,VCV10..NAP |
1 | ||
| 55598A - BRACKET, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55598-33010 |
SXV10,VCV10..NAP |
3 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-06010 |
SXV10,VCV10..NAP |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-33010 |
SXV10,VCV10..NAP |
1 | ||
| 55650-06010 |
SXV10,VCV10..NAP |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-06010 |
MCV10,SXV10,VCV10..NAP |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-06010K0 |
SXV10,VCV10..NAP..SED TAUPE,TRIM9# |
1 | ||
| 55670-06010J0 |
SXV10,VCV10..NAP DARK BLUE,TRIM8# |
1 | ||
| 55670-06010B0 |
SXV10,VCV10..NAP MEDIUM GRAY,TRIM1# |
1 | ||
| 55670-06010E0 |
SXV10,VCV10..NAP OAK,TRIM4# |
1 | ||
| 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-06010B0 |
VCV10..NAP..DX;SXV10..NAP..MTM MEDIUM GRAY,TRIM1# |
1 | ||
| 55680-06010J0 |
VCV10..NAP..DX;SXV10..NAP..MTM DARK BLUE,TRIM8# |
1 | ||
| 55680-06010B0 |
SXV10,VCV10..NAP..DX;SXV10,VCV10..NAP..LE..CND MEDIUM GRAY,TRIM1# |
1 | ||
| 55680-33010W3 |
VCV10..NAP..DX;SXV10..NAP..MTM DARK BLUE,TRIM8# |
1 | ||
| 55680-06010J0 |
SXV10,VCV10..NAP..DX;SXV10,VCV10..NAP..LE..CND DARK BLUE,TRIM8# |
1 | ||
| 55680-06010J0 |
SXV10,VCV10..NAP..(LE,SE,XLE)..USA DARK BLUE,TRIM8# |
1 | ||
| 55680-33010K0 |
VCV10..NAP..DX;SXV10..NAP..MTM TAUPE,TRIM9# |
1 | ||
| 55680-06010K0 |
VCV10..NAP..DX;SXV10..NAP..MTM TAUPE,TRIM9# |
1 | ||
| 55680-06010B0 |
SXV10,VCV10..NAP..(LE,SE,XLE)..USA MEDIUM GRAY,TRIM1# |
1 | ||
| 55680-33010S4 |
VCV10..NAP..DX;SXV10..NAP..MTM MEDIUM GRAY,TRIM1# |
1 | ||
| 55680-06010K0 |
SXV10,VCV10..NAP..SED..DX TAUPE,TRIM9# |
1 | ||
| 55680-33010S4 |
SXV10,VCV10..NAP..DX;SXV10,VCV10..NAP..LE..CND MEDIUM GRAY,TRIM1# |
1 | ||
| 55680-33010E0 |
SXV10,VCV10..NAP..DX;SXV10,VCV10..NAP..LE..CND OAK,TRIM4# |
1 | ||
| 55680-06010E0 |
SXV10,VCV10..NAP..DX;SXV10,VCV10..NAP..LE..CND OAK,TRIM4# |
1 | ||
| 55680-33010W3 |
SXV10,VCV10..NAP..DX;SXV10,VCV10..NAP..LE..CND DARK BLUE,TRIM8# |
1 | ||
| 55680-33010K0 |
SXV10,VCV10..NAP..SED..DX TAUPE,TRIM9# |
1 | ||
| 55680-06010E0 |
SXV10,VCV10..NAP..(LE,SE,XLE)..USA OAK,TRIM4# |
1 | ||
| 55680-06010K0 |
SXV10,VCV10..NAP..SED..(LE,SE,XLE) TAUPE,TRIM9# |
1 | ||
| 55722A - BRACE, COWL TOP TO COWL, INNER NO.2 | ||||
| 55722-33010 |
SXV10,VCV10..NAP |
1 | ||
| 55722-06010 |
MCV10,SXV10,VCV10..NAP |
1 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-33010 |
SXV10,VCV10..NAP |
1 | ||
| 55950-06010 |
MCV10,SXV10,VCV10..NAP |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-06010B0 |
MCV10,SXV10,VCV10..NAP MEDIUM GRAY,TRIM1# |
1 | ||
| 55961-06010J0 |
SXV10,VCV10..NAP DARK BLUE,TRIM8# |
1 | ||
| 55961-06010K0 |
MCV10,SXV10,VCV10..NAP..(CP,SED) TAUPE,TRIM9# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-06010B0 |
MCV10,SXV10,VCV10..NAP MEDIUM GRAY,TRIM1# |
1 | ||
| 55962-06010K0 |
MCV10,SXV10,VCV10..NAP..(CP,SED) TAUPE,TRIM9# |
1 | ||
| 55962-06010J0 |
SXV10,VCV10..NAP DARK BLUE,TRIM8# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-06010 |
MCV10,SXV10,VCV10..NAP |
1 | ||
| 55982 - GARNISH, DEFROSTER NOZZLE, NO.2 | ||||
| 55982-06010 |
MCV10,SXV10,VCV10..NAP |
1 | ||
| Common parts | ||||
| 90080-46069 | ||||
| 90080-46113 | ||||
| 90105-08120 | ||||
| 90119-06106 | ||||
| 90119-06126 | ||||
| 90119-06251 | ||||
| 90151-40005 | ||||
| 90167-50002 | ||||
| 90176-06038 | ||||
| 90179-04017 | ||||
| 90179-06097 | ||||
| 90179-08025 | ||||
| 90183-05103 | ||||
| 90468-04147 | ||||
| 90468-04152 | ||||
| 90541-03054 | ||||
| 90541-05020 | ||||
| 91651-60820 | ||||
| 91661-60816 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(9308- )NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91635-60620 | ||||
| 91651-60816 | ||||
