VCV10L-CEPDKA (1991)

Toyota Camry (Nap)

Production Sep 1991 - Sep 1993
Engine 3VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9109- )NAP..ATM

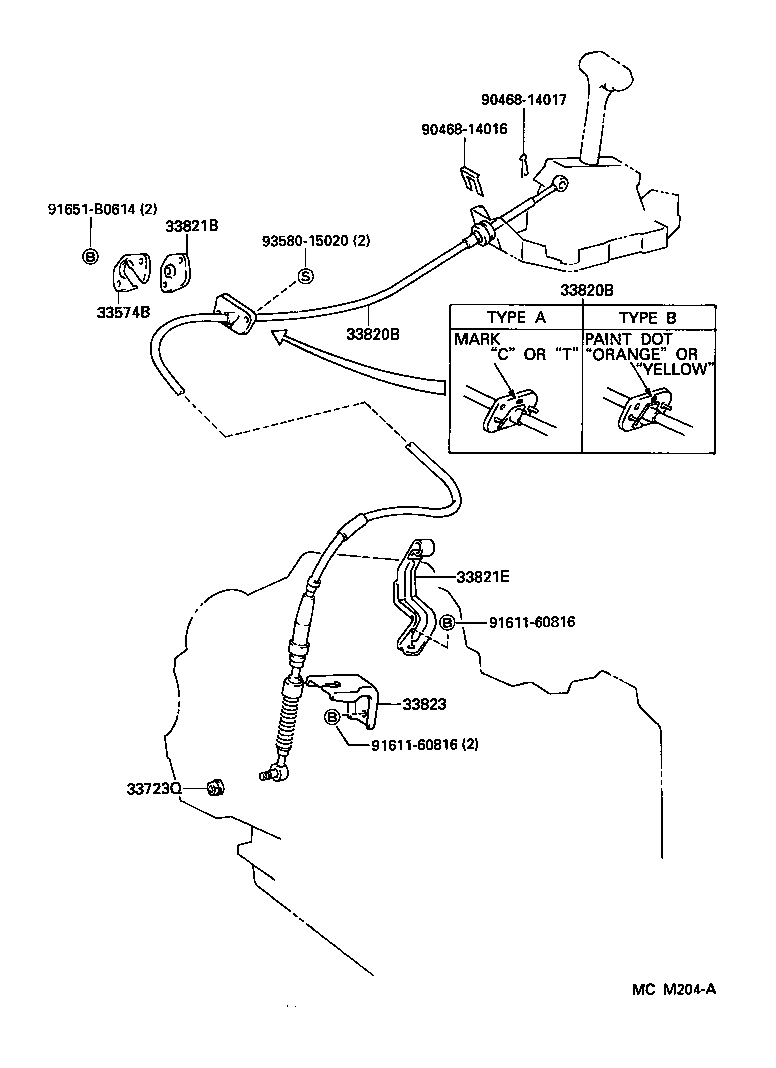

Click highlighted areas on diagram

diagram 33574B 33723Q 33820B 33820B 33821B 33821E 33823 9046814016 9046814017 9161160816 9161160816 91651B0614 9358015020
Part # Description Qty Price
33574B - RETAINER, SHIFT CABLE GROMMET, NO.2
33574-06020

MCV10,SXV10,VCV10..NAP..ATM

 1
33723Q - NUT (FOR CONNECTING ROD SWIVEL)
90179-08054

MCV10,SXV10,VCV10..NAP..ATM

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-06010

MCV10,VCV10..NAP..ATM

TYPE A

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-06010

MCV10,VCV10..NAP..ATM

TYPE A

 1
33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE)
90480-01590

MCV10,SXV10,VCV10..NAP..ATM

 1
33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE)
90949-01715

VCV10..NAP..ATM

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-33020

VCV10..NAP..ATM

 1
Common parts
90468-14016
90468-14017
91611-60816
91651-B0614
93580-15020
