SXV20L-CEPGKA (1996)

Toyota Camry (Nap)

Production Jul 1996 - Jul 2001
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9607- )NAP

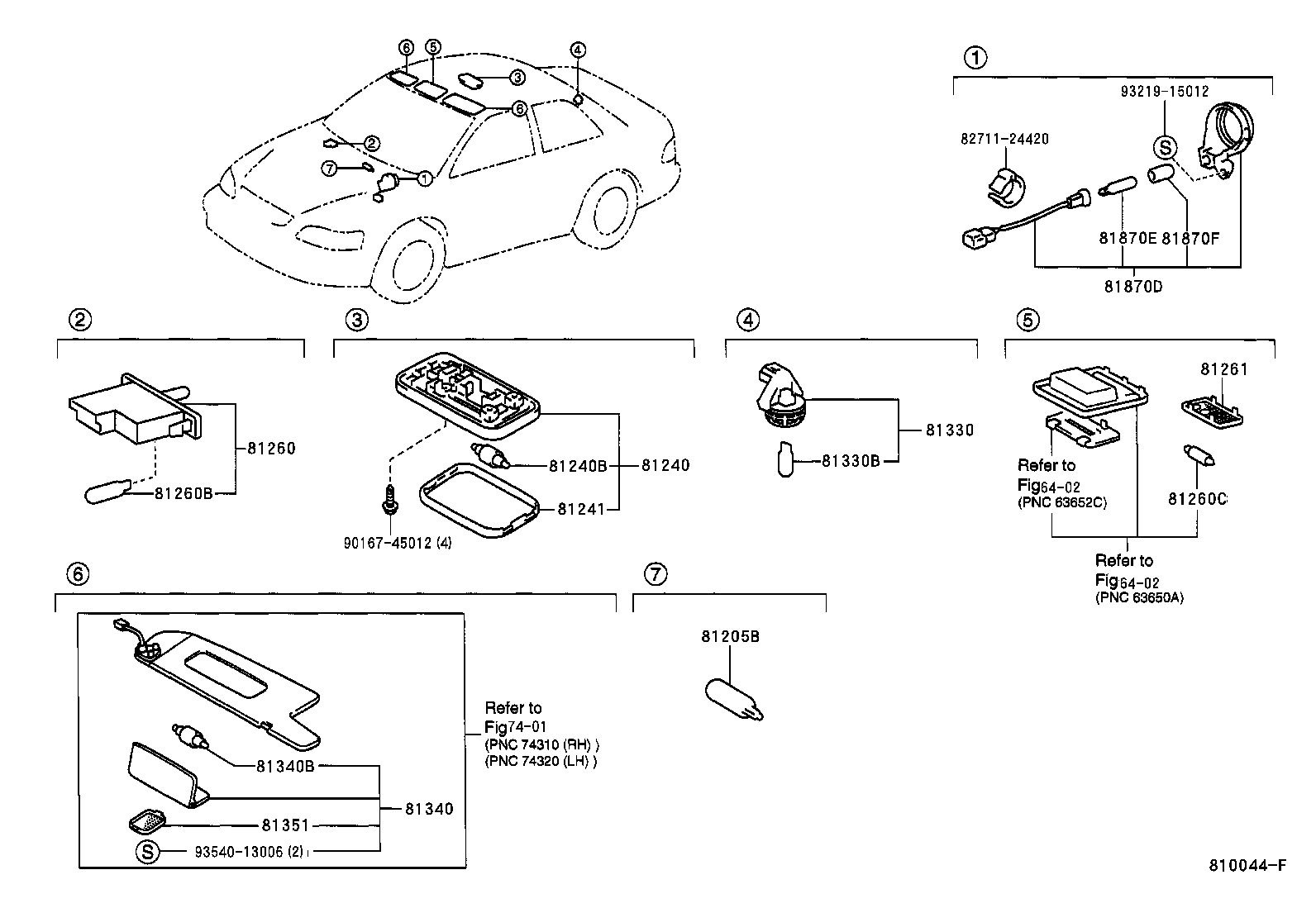

Click highlighted areas on diagram

diagram 6402 6402 7401 81205B 81240 81240B 81241 81260 81260B 81260C 81261 81330 81330B 81340 81340B 81351 81870D 81870E 81870F 8271124420 9016745012 9321915012 9354013006
Part # Description Qty Price
81205B - BULB, ASH RECEPTACLE LAMP
90981-11014

MCV20,SXV20..NAP

14V 1.4W

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-06010G0

MCV20,SXV20..NAP

SAGE,TRIM6#,II STANLEY

 1
81240-06010B2

MCV20,SXV20..NAP

LT.GRAY,TRIM1#,II STANLEY

 1
81240-AA010G0

MCV20,SXV20..NAP

SAGE,TRIM6#

 1
81240-06010A0

MCV20,SXV20..NAP

IVORY,TRIM4#,II STANLEY

 1
81240-AA010A0

MCV20,SXV20..NAP

IVORY,TRIM4#

 1
81240-AA010B0

MCV20,SXV20..NAP

LT.GRAY,TRIM1#

 1
81240B - BULB, ROOM LAMP, NO.1
90084-98054

MCV20,SXV20..NAP

12V 8W,DONNELLY

 1
90084-98054

MCV20,SXV20..NAP

12V 8W

 1
90080-81029

MCV20,SXV20..NAP

12V 8W,II STANLEY

 1
81241 - LENS, ROOM LAMP, NO.1
81241-06020

MCV20,SXV20..NAP

II STANLEY

 1
81241-AA010

MCV20,SXV20..NAP

DONNELLY

 1
81241-AA010

MCV20,SXV20..NAP

 1
81260 - LAMP ASSY, GLOVE BOX
81260-33030

MCV20,SXV20..NAP

 1
81260B - BULB(FOR GLOVE BOX)
90981-11018

MCV20,SXV20..NAP

12V 1.2W W/O SOCKET

 1
81260C - BULB(FOR MAP LAMP)
90084-98049

MCV20,SXV20..NAP..(LE,XLE)

12V 8W

 1
81261 - LENS AND COVER, MAP LAMP
81231-AA010

MCV20,SXV20..NAP..(LE,XLE)

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-02010

MCV20,SXV20..NAP

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
90981-11020

MCV20,SXV20..NAP

12V 3.8W

 1
81340 - LAMP ASSY, VANITY
81350-AC030G0

MCV20,SXV20..NAP..XLE

SAGE,TRIM6#

 2
81350-AC030A0

MCV20,SXV20..NAP..XLE

IVORY,TRIM4#

 2
81350-AC031A0

MCV20,SXV20..NAP..XLE

IVORY,TRIM4#

 2
81350-AC030G1

MCV20,SXV20..NAP..XLE

SAGE,TRIM6#

 2
81350-AC030B2

MCV20,SXV20..NAP..XLE

LIGHT GRAY,TRIM1#

 2
81350-AC031G1

MCV20,SXV20..NAP..XLE

SAGE,TRIM6#

 2
81350-AC031B4

MCV20,SXV20..NAP..XLE

LT.GRAY,TRIM1#

 2
81350-AC030B4

MCV20,SXV20..NAP..XLE

LT.GRAY,TRIM1#

 2
81340B - BULB (FOR VANITY LAMP)
90084-98013

MCV20,SXV20..NAP..XLE

 2
81351 - LENS, SURGICAL LAMP
81351-AC010

MCV20,SXV20..NAP..XLE

 2
81870D - LAMP ASSY, KEY CYLINDER
81870-33030

MCV20,SXV20..NAP

 1
81870-33030

MCV20,SXV20..NAP..(CE,LE)

 1
81870-41020

MCV20..NAP;SXV20..NAP..ATM

W(IMMOBILIZER)

 1
81870-33050

MCV20,SXV20..NAP..(LE,XLE)

W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER))

 1
81870E - BULB, KEY CYLINDER LAMP
90981-11014

MCV20,SXV20..NAP

14V 1.4W

 1
81870F - CAP, KEY CYLINDER LAMP BULB
84998-10070

MCV20,SXV20..NAP

 1
Common parts
82711-24420
90167-45012
93219-15012
93540-13006
Linked diagrams
6402
7401
