SXV20L-CEPGKA (1996)

Toyota Camry (Nap)

Production Jul 1996 - Jul 2001
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9607- )NAP

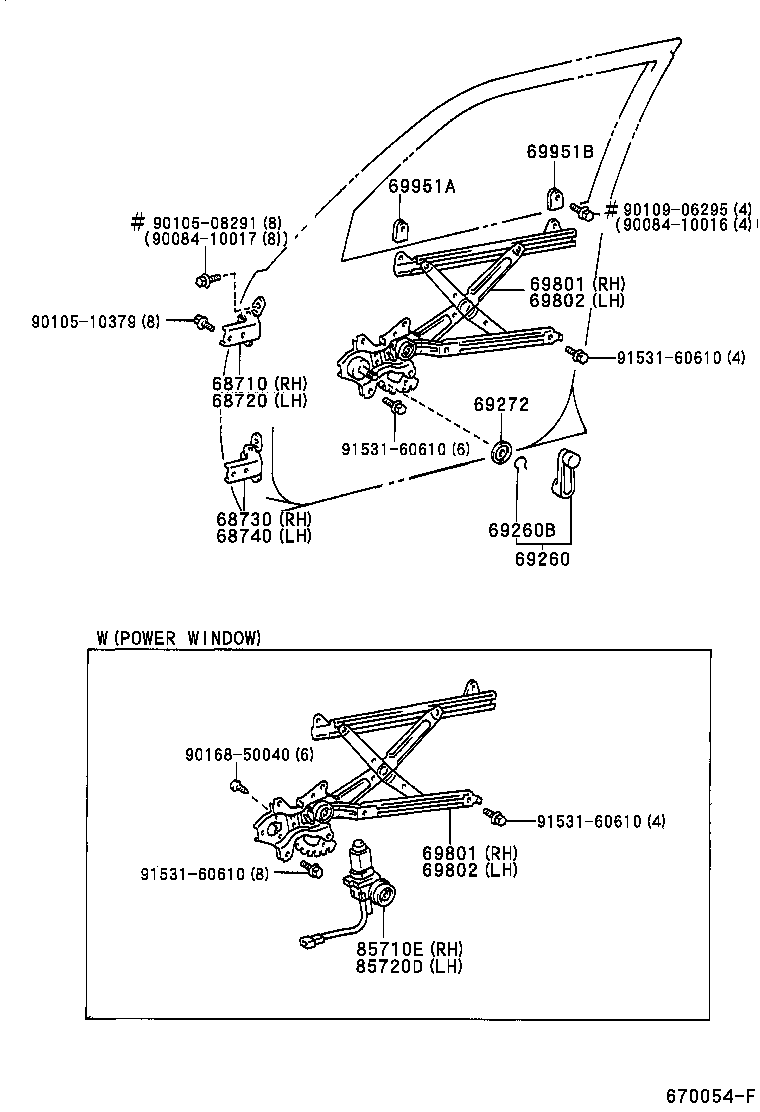

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69260 69260B 69272 69801 69801 69802 69802 69951A 69951B 85710E 85720D 9008410016 9008410017 9010508291 9010510379 9010906295 9016850040 9153160610 9153160610 9153160610 9153160610
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-07010

MCV20,SXV20..NAP

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-07010

MCV20,SXV20..NAP

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68720-07010

MCV20,SXV20..NAP

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68710-07010

MCV20,SXV20..NAP

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-AA010G0

MCV20,SXV20..NAP..CE

SAGE.,TRIM6#

 2
69260-AA010B0

MCV20,SXV20..NAP..CE

BLUE GRAY,TRIM1#

 2
69260-AA010E0

MCV20,SXV20..NAP..CE

MD.OAK,TRIM4#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90080-52001

MCV20,SXV20..NAP..CE

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69268-01020

SXV20..NAP..CE

(L)

 2
69268-20020

SXV20..NAP..CE

(J)

 2
69268-01020

MCV20,SXV20..NAP..CE

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-AA020

MCV20,SXV20..NAP

W(POWER WINDOW)

 1
69810-AA030

MCV20,SXV20..NAP..CE

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-AA020

MCV20,SXV20..NAP

W(POWER WINDOW)

 1
69810-AA030

MCV20,SXV20..NAP..CE

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-AA030

MCV20,SXV20..NAP..CE

 1
69802-AA020

MCV20,SXV20..NAP

W(POWER WINDOW)

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-AA030

MCV20,SXV20..NAP..CE

 1
69802-AA020

MCV20,SXV20..NAP

W(POWER WINDOW)

 1
69951A - CHANNEL, FRONT DOOR GLASS
69951-AA010

MCV20,SXV20..NAP

 2
69951-AA030

MCV20,SXV20..NAP

(L)

 2
69961-33020

MCV20,SXV20..NAP

(J)

 2
69951B - CHANNEL, FRONT DOOR GLASS
69951-AA040

MCV20,SXV20..NAP

(L)

 2
69951-AA020

MCV20,SXV20..NAP

 2
69963-33020

MCV20,SXV20..NAP

(J)

 2
85710E - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-AA020

MCV20,SXV20..NAP

 1
85720D - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-AA020

MCV20,SXV20..NAP

 1
Common parts
90084-10016
90084-10017
90105-08291
90105-10379
90109-06295
90168-50040
91531-60610
