SXV20L-CEPGKA (1996)

Toyota Camry (Nap)

Production Jul 1996 - Jul 2001
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9607- )NAP

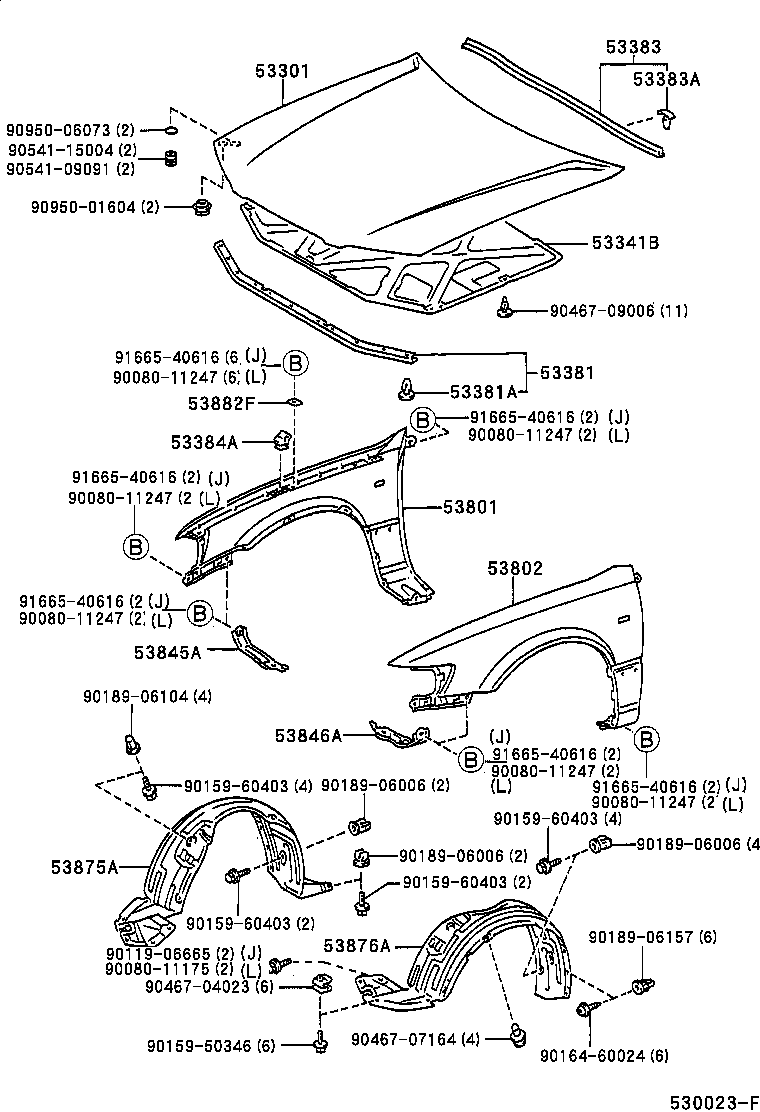

Click highlighted areas on diagram

diagram 53301 53341B 53381 53381A 53383 53383A 53384A 53801 53802 53845A 53846A 53875A 53876A 53882F 9008011175 9008011247 9008011247 9008011247 9008011247 9008011247 9008011247 9011906665 9015950346 9015960403 9015960403 9015960403 9015960403 9016460024 9018906006 9018906006 9018906006 9018906104 9018906157 9046704023 9046707164 9046709006 9054109091 9054115004 9095001604 9095006073 9166540616 9166540616 9166540616 9166540616 9166540616 9166540616
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-AA010

MCV20,SXV20..NAP

 1
53301-AA020

MCV20,SXV20..NAP

 1
53301-AA040

MCV20,SXV20..NAP

 1
53341B - INSULATOR, HOOD
53341-06030

MCV20,SXV20..NAP

 1
53341-06031

MCV20,SXV20..NAP

 1
53341-33050

MCV20,SXV20..NAP

(J)

 1
53341-06030

MCV20,SXV20..NAP

(L)

 1
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-AA010

MCV20,SXV20..NAP

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90080-46010

MCV20,SXV20..NAP

 10
53383 - SEAL, HOOD TO COWL TOP
53383-AA020

MCV20,SXV20..NAP

 1
53383-AA010

MCV20,SXV20..NAP

 1
53383A - CLIP(FOR HOOD TO COWL TOP SEAL)
90467-08101

MCV20,SXV20..NAP

 7
53384A - BUMPER, FENDER TO HOOD
53384-AA010

MCV20,SXV20..NAP

 2
53801 - FENDER SUB-ASSY, FRONT RH
53811-AA020

MCV20,SXV20..NAP

 1
53811-AA010

MCV20,SXV20..NAP

 1
53802 - FENDER SUB-ASSY, FRONT LH
53812-AA010

MCV20,SXV20..NAP

 1
53812-AA020

MCV20,SXV20..NAP

 1
53845A - BRACE, FRONT WHEEL OPENING APRON, RH
53845-AA010

MCV20,SXV20..NAP

 1
53846A - BRACE, FRONT WHEEL OPENING APRON, LH
53846-AA010

MCV20,SXV20..NAP

 1
53875A - LINER, FRONT FENDER, RH
53875-06020

MCV20,SXV20..NAP

 1
53875-06021

MCV20,SXV20..NAP

 1
53876A - LINER, FRONT FENDER, LH
53876-06021

MCV20,SXV20..NAP

 1
53876-06020

MCV20,SXV20..NAP

 1
53882F - SEAL, FRONT FENDER
53882-16030

MCV20,SXV20..NAP

 10
Common parts
90080-11175
90080-11247
90119-06665
90159-50346
90159-60403
90164-60024
90189-06006
90189-06104
90189-06157
90467-04023
90467-07164
90467-09006
90541-09091
90541-15004
90950-01604
90950-06073
91665-40616
