SXV20L-CEPGKA (1996)

Toyota Camry (Nap)

Production Jul 1996 - Jul 2001
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

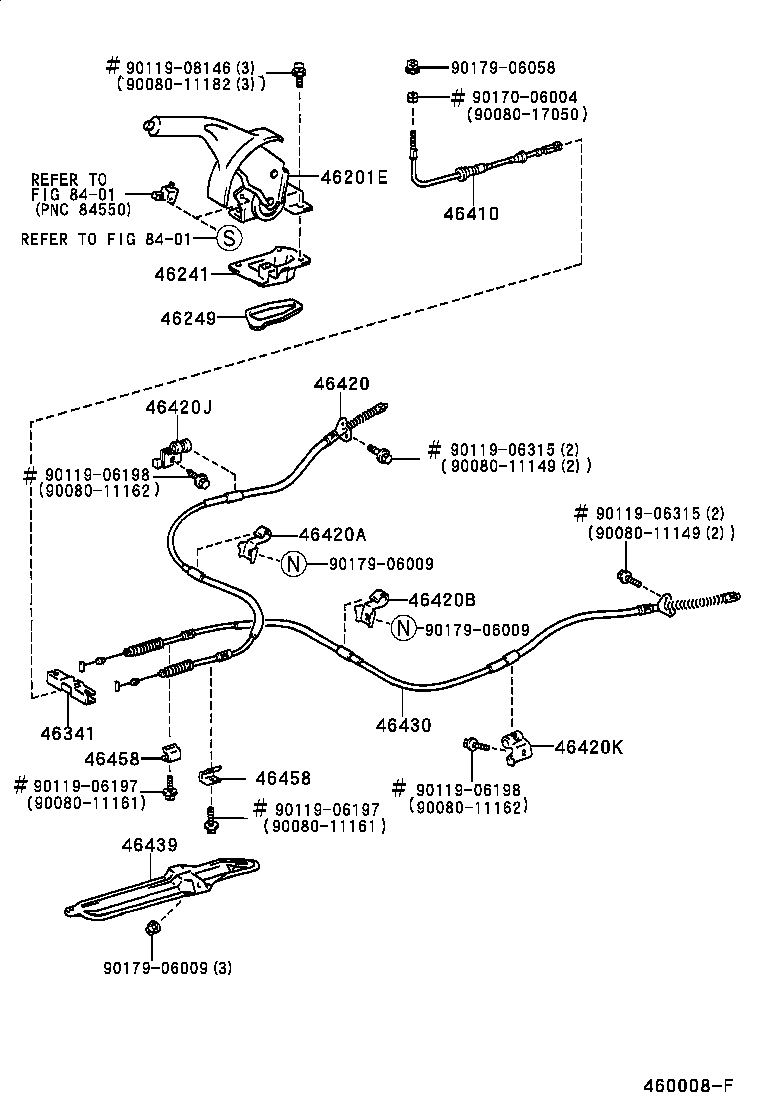

ILLUST NO. 1 OF 2(9607- )NAP

Click highlighted areas on diagram

diagram 46201E 46241 46249 46341 46410 46420 46420A 46420B 46420J 46420K 46430 46439 46458 46458 8401 8401 9008011149 9008011149 9008011161 9008011161 9008011162 9008011162 9008011182 9008017050 9011906197 9011906197 9011906198 9011906198 9011906315 9011906315 9011908146 9017006004 9017906009 9017906009 9017906009 9017906058
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-06050G0

SXV20..NAP

DK.SAGE,TRIM6#

 1
46201-06050B0

SXV20..NAP

BLUISH GRAY,TRIM1#

 1
46201-06050E0

SXV20..NAP

OAK,TRIM4#

 1
46241 - BOOT, PARKING BRAKE LEVER
46241-06020

MCV20,SXV20..NAP

 1
46249 - SHIELD, PARKING BRAKE HOLE
46249-06020

MCV20,SXV20..NAP

 1
46341 - EQUALIZER, PARKING BRAKE
46341-AA010

SXV20..NAP;MCV20..NAP..ATM;MCV20..NAP..CE..USA

 1
46341-AA010

MCV20,SXV20..NAP

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-06020

MCV20,SXV20..NAP

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-06030

SXV20..NAP

 1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90949-01663

MCV20,SXV20..NAP

 1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
90949-01B08

MCV20,SXV20..NAP

 1
90949-01664

MCV20,SXV20..NAP

 1
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
90949-01A66

MCV20,SXV20..NAP

 1
46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE)
90949-01A67

MCV20,SXV20..NAP

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-06030

SXV20..NAP

 1
46439 - INSULATOR, PARKING BRAKE CABLE HEAT
46439-06010

MCV20,SXV20..NAP

 1
46458 - RETAINER, CABLE
46458-AC010

MCV20,SXV20..NAP

 2
46458-28010

MCV20,SXV20..NAP

 2
46458 - RETAINER, CABLE
46458-AC010

MCV20,SXV20..NAP

 2
46458-28010

MCV20,SXV20..NAP

 2
Common parts
90080-11149
90080-11161
90080-11162
90080-11182
90080-17050
90119-06197
90119-06198
90119-06315
90119-08146
90170-06004
90179-06009
90179-06058
Linked diagrams
8401
