Toyota Camry (nap) SXV20 DISC WHEEL & WHEEL CAP

Manufacturers Home
Toyota
US
CAMRY (NAP)
SXV20L-CEPGKA (1996)
4103 - DISC WHEEL & WHEEL CAP

SXV20L-CEPGKA (1996)

Toyota Camry (Nap)

Production Jul 1996 - Jul 2001

Engine 5SFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

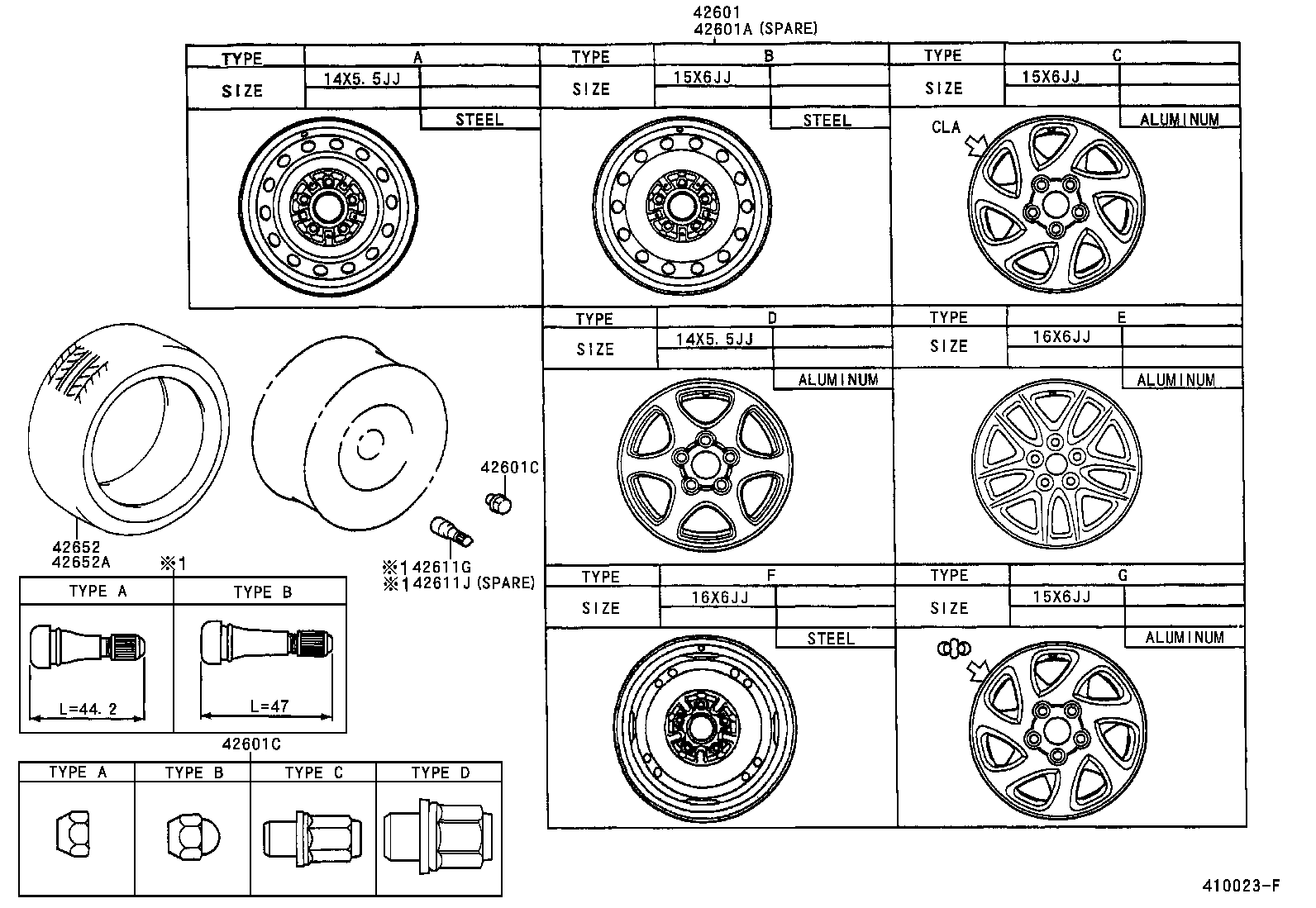

ILLUST NO. 1 OF 4(9607- )NAP

Click highlighted areas on diagram

Part #	Description	Period	Qty
42601 - WHEEL, DISC
42611-06010	SXV20..NAP..(CE,LE) 14X5.5JJ,TYPE A:REFER TO ILLUSTRATION	07/1996 - 08/1999	4
42611-06010	SXV20..NAP..CE 14X5.5JJ,TYPE A:REFER TO ILLUSTRATION	08/1999 - 08/2000	4
42611-06110	SXV20..NAP..(LE,XLE) 14X5.5JJ,TYPE D:REFER TO ILLUSTRATION	07/1996 - 08/1999	4
42611-06030	MCV20,SXV20..NAP..(CE,LE) 15X6JJ,TYPE B:REFER TO ILLUSTRATION	08/1999 - 12/2999	4
42611-06120	MCV20,SXV20..NAP..(LE,XLE) 15X6JJ,TYPE C:REFER TO ILLUSTRATION	08/1999 - 12/2999	4
42611-33110	MCV20,SXV20..NAP..(LE,XLE) 15X6JJ,OFFSET 45,TYPE G:REFER TO ILLUSTRATION	03/2000 - 12/2999	4
42601A - WHEEL, DISC (FOR SPARE)
42611-06030	MCV20,SXV20..NAP 15X6JJ,TYPE B:REFER TO ILLUSTRATION	08/1999 - 12/2999	1
42611-06010	SXV20..NAP..CE 14X5.5JJ,TYPE A:REFER TO ILLUSTRATION	08/1999 - 08/2000	1
42611-06010	SXV20..NAP 14X5.5JJ,TYPE A:REFER TO ILLUSTRATION	07/1996 - 08/1999	1
42601C - NUT, HUB (FOR AXLE)
90080-17035	SXV20..NAP..CE;MCV20..NAP..CND;MCV20..NAP..(CE,LE)..USA TYPE A:REFER TO ILLUSTRATION	07/1996 - 08/1999	20
90942-01021	SXV20..NAP..LE TYPE B:REFER TO ILLUSTRATION	07/1996 - 08/1999	20
90080-17036	MCV20,SXV20..NAP..(LE,XLE) TYPE C:REFER TO ILLUSTRATION,W(15 INCHES DISC WHEEL)	07/1996 - 06/2001	20
90080-17035	SXV20..NAP..CE TYPE A:REFER TO ILLUSTRATION	08/1999 - 06/2001	20
90942-01021	MCV20,SXV20..NAP..LE TYPE B:REFER TO ILLUSTRATION	08/1999 - 07/2001	20
90084-94002	MCV20,SXV20..NAP..(LE,XLE) TYPE D:REFER TO ILLUSTRATION,W(15 INCHES DISC WHEEL)	06/2001 - 07/2001	20
90080-17035	MCV20,SXV20..NAP..(CE,LE) TYPE A:REFER TO ILLUSTRATION	06/2001 - 07/2001	20
42601C - NUT, HUB (FOR AXLE)
90080-17035	SXV20..NAP..CE;MCV20..NAP..CND;MCV20..NAP..(CE,LE)..USA TYPE A:REFER TO ILLUSTRATION	07/1996 - 08/1999	20
90942-01021	SXV20..NAP..LE TYPE B:REFER TO ILLUSTRATION	07/1996 - 08/1999	20
90080-17036	MCV20,SXV20..NAP..(LE,XLE) TYPE C:REFER TO ILLUSTRATION,W(15 INCHES DISC WHEEL)	07/1996 - 06/2001	20
90080-17035	SXV20..NAP..CE TYPE A:REFER TO ILLUSTRATION	08/1999 - 06/2001	20
90942-01021	MCV20,SXV20..NAP..LE TYPE B:REFER TO ILLUSTRATION	08/1999 - 07/2001	20
90084-94002	MCV20,SXV20..NAP..(LE,XLE) TYPE D:REFER TO ILLUSTRATION,W(15 INCHES DISC WHEEL)	06/2001 - 07/2001	20
90080-17035	MCV20,SXV20..NAP..(CE,LE) TYPE A:REFER TO ILLUSTRATION	06/2001 - 07/2001	20
42611G - VALVE (FOR TUBELESS TIRE)
90080-45006	MCV20,SXV20..NAP TYPE B:REFER TO ILLUSTRATION	07/1996 - 12/2999	4
90080-45001	MCV20,SXV20..NAP TYPE A:REFER TO ILLUSTRATION	08/1999 - 12/2999	4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90080-45001	MCV20,SXV20..NAP TYPE A:REFER TO ILLUSTRATION	08/1999 - 12/2999	1
90080-45006	MCV20,SXV20..NAP TYPE B:REFER TO ILLUSTRATION	07/1996 - 12/2999	1
42652 - TIRE
42652-33280	MCV20,SXV20..NAP 205/65R15 92H,*B/S	08/2000 - 12/2999	4
42652A - TIRE (FOR SPARE)
42652-33280	MCV20,SXV20..NAP 205/65R15 92H,*B/S	08/2000 - 12/2999	1

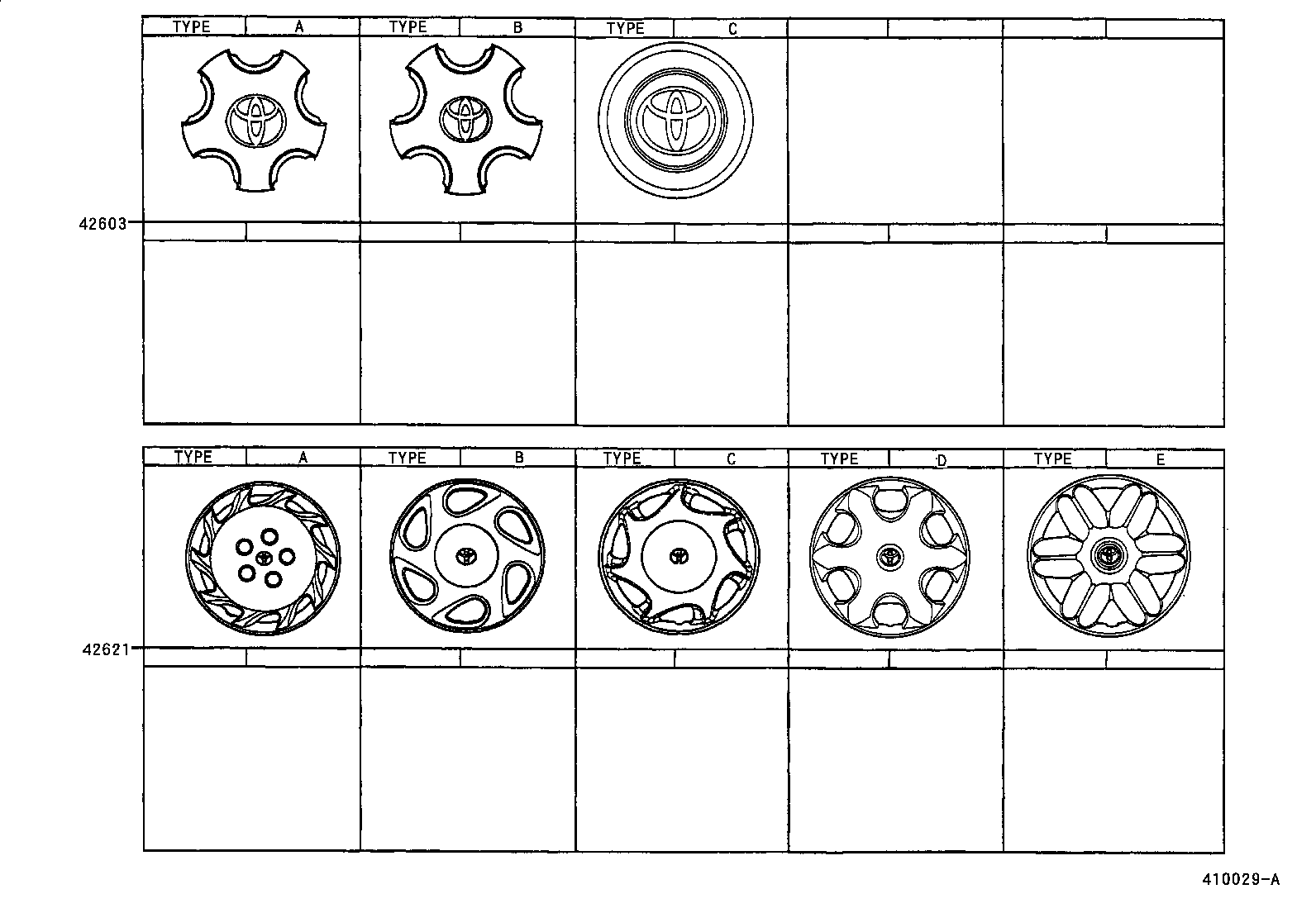

ILLUST NO. 2 OF 4(9607- )NAP

Click highlighted areas on diagram

Part #	Description	Period	Qty
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-AA020	MCV20,SXV20..NAP..(LE,XLE) *ALU,TYPE B:REFER TO ILLUSTRATION	08/1999 - 03/2000	4
42603-33070	MCV20,SXV20..NAP..(LE,XLE) *ALU,TYPE B:REFER TO ILLUSTRATION ,W(ALUMINUM WHEEL TYPE G)	03/2000 - 07/2001	4
42603-AA020	MCV20,SXV20..NAP..(LE,XLE) *ALU,TYPE B:REFER TO ILLUSTRATION ,W(ALUMINUM WHEEL TYPE C)	03/2000 - 07/2001	4
42603-AA010	SXV20..NAP..(LE,XLE) TYPE A:REFER TO ILLUSTRATION	07/1996 - 08/1999	4
42621 - CAP, WHEEL
42621-AA070	MCV20,SXV20..NAP..LE TYPE E:REFER TO ILLUSTRATION	08/1999 - 07/2001	4
42621-AA020	SXV20..NAP..CE TYPE C:REFER TO ILLUSTRATION	07/1996 - 08/2000	4
42621-AA060	SXV20..NAP..CE TYPE D:REFER TO ILLUSTRATION	08/1999 - 07/2001	4
42621-AA030	SXV20..NAP..LE TYPE A:REFER TO ILLUSTRATION	07/1996 - 08/1999	4

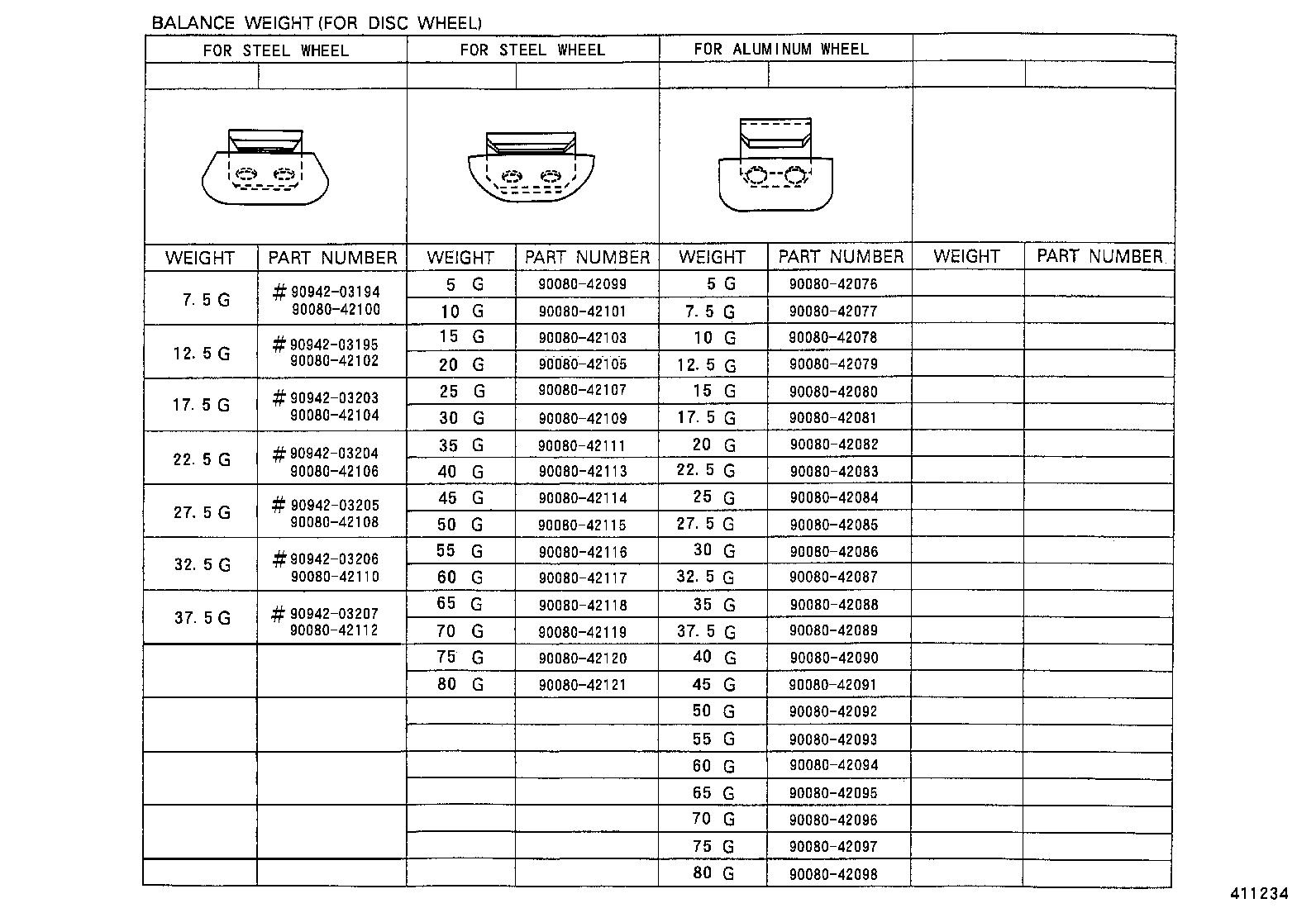

ILLUST NO. 3 OF 4(9607- )NAP

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90080-42076
90080-42077
90080-42078
90080-42079
90080-42080
90080-42081
90080-42082
90080-42083
90080-42084
90080-42085
90080-42086
90080-42087
90080-42088
90080-42089
90080-42090
90080-42091
90080-42092
90080-42093
90080-42094
90080-42095
90080-42096
90080-42097
90080-42098
90080-42099
90080-42100
90080-42101
90080-42102
90080-42103
90080-42104
90080-42105
90080-42106
90080-42107
90080-42108
90080-42109
90080-42110
90080-42111
90080-42112
90080-42113
90080-42114
90080-42115
90080-42116
90080-42117
90080-42118
90080-42119
90080-42120
90080-42121
90942-03194
90942-03195
90942-03203
90942-03204
90942-03205
90942-03206
90942-03207

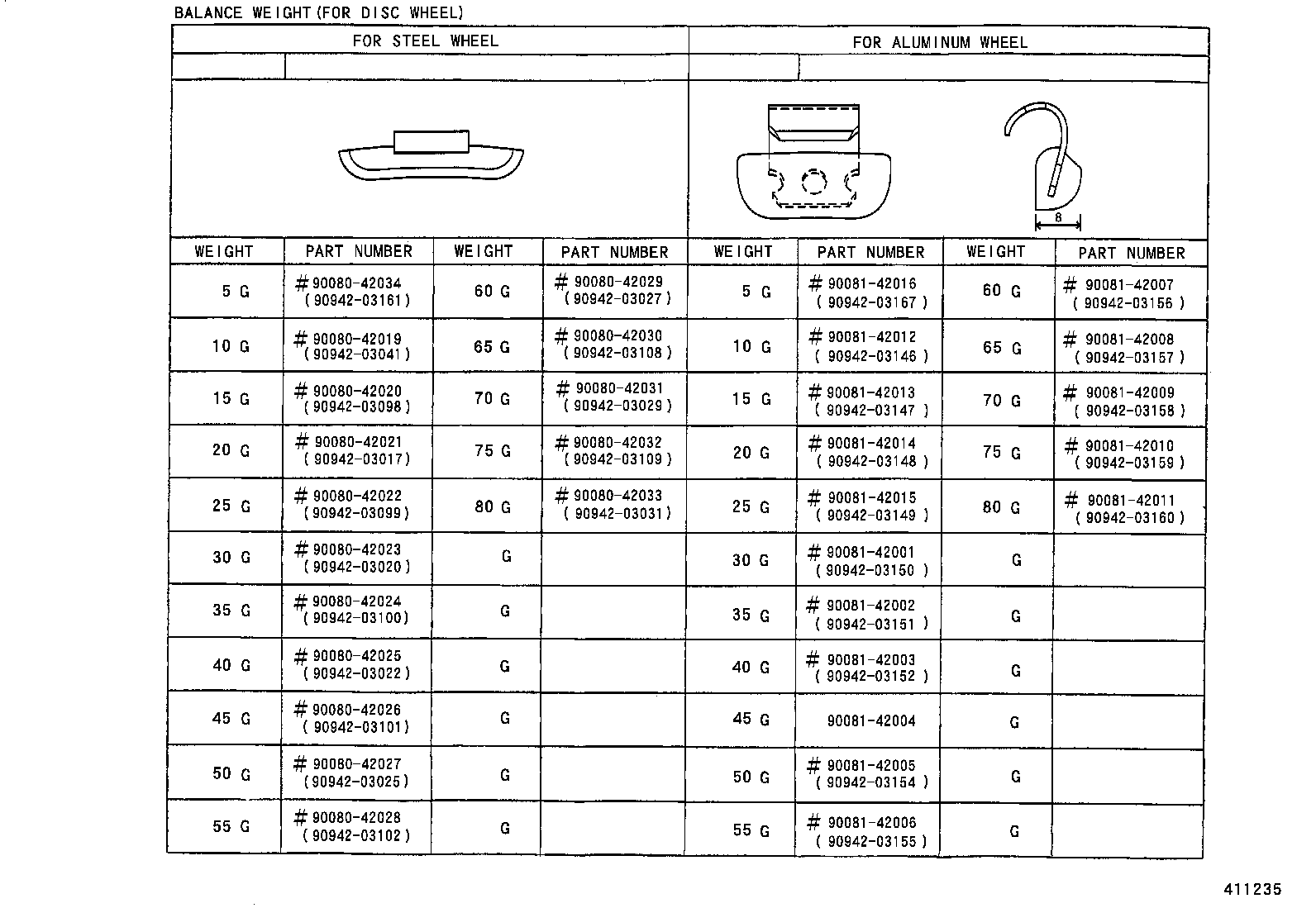

ILLUST NO. 4 OF 4(9607-0009)NAP

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90080-42019
90080-42020
90080-42021
90080-42022
90080-42023
90080-42024
90080-42025
90080-42026
90080-42027
90080-42028
90080-42029
90080-42030
90080-42031
90080-42032
90080-42033
90080-42034
90081-42001
90081-42002
90081-42003
90081-42004
90081-42005
90081-42006
90081-42007
90081-42008
90081-42009
90081-42010
90081-42011
90081-42012
90081-42013
90081-42014
90081-42015
90081-42016
90942-03017
90942-03020
90942-03022
90942-03025
90942-03027
90942-03029
90942-03031
90942-03041
90942-03098
90942-03099
90942-03100
90942-03101
90942-03102
90942-03108
90942-03109
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03154
90942-03155
90942-03156
90942-03157
90942-03158
90942-03159
90942-03160
90942-03161
90942-03167
