SXV20L-CEPGKA (1996)
Toyota Camry (Nap)
Production
Jul 1996
-
Jul 2001
Engine
5SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9607- )5SFE..NAP

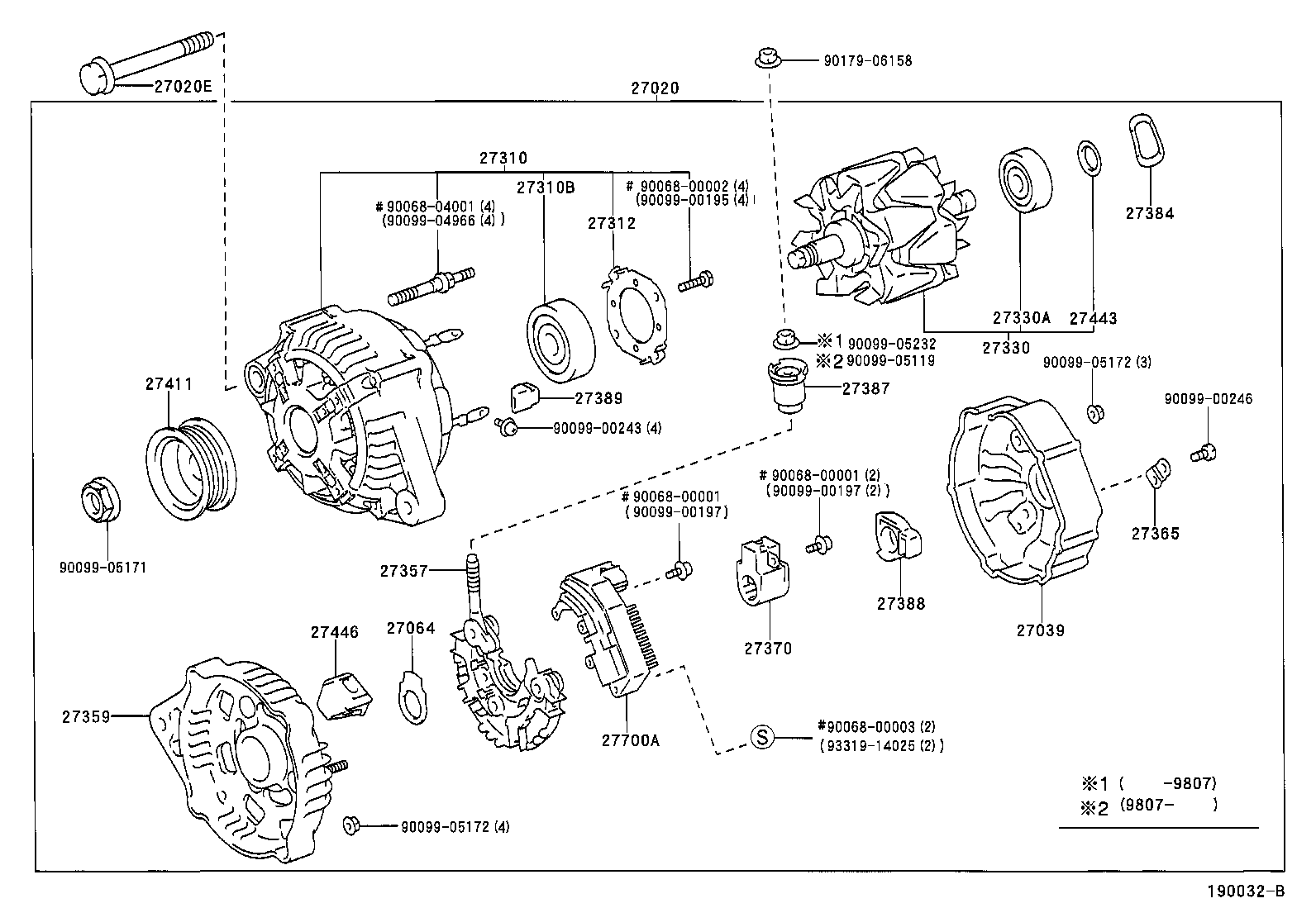

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-03060 |
5SFE..SXV20..NAP 12V 80A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10249 |
5SFE..SXV20..NAP (J) |
1 | ||
| 90080-10113 |
5SFE..SXV20..NAP (L) |
1 | ||
| 90105-10249 |
5SFE..SXV20..NAP |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-03050 |
5SFE..SXV20..NAP |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-0A020 |
5SFE..SXV20..NAP |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-03050 |
5SFE..SXV20..NAP |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90068-10002 |
5SFE..SXV20..NAP |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-0A020 |
5SFE..SXV20..NAP |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-0D010 |
5SFE..SXV20..NAP |
1 | ||
| 27330-03050 |
5SFE..SXV20..NAP |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90068-10001 |
5SFE..SXV20..NAP |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-0A020 |
5SFE..SXV20..NAP |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-03050 |
5SFE..SXV20..NAP |
1 | ||
| 27365 - PLATE, TERMINAL | ||||
| 27365-55080 |
1MZFE,5SFE..MCV20,SXV20..NAP |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
1MZFE,5SFE..MCV20,SXV20..NAP |
1 | ||
| 27384 - WASHER | ||||
| 27384-0A020 |
5SFE..SXV20..NAP |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-42021 |
1MZFE,5SFE..MCV20,SXV20..NAP |
1 | ||
| 27387-42020 |
1MZFE,5SFE..MCV20,SXV20..NAP |
1 | ||
| 27387-42020 |
5SFE..SXV20..NAP |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-0A020 |
5SFE..SXV20..NAP |
1 | ||
| 27389 - INSULATOR, TERMINAL | ||||
| 27389-0A020 |
5SFE..SXV20..NAP |
4 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-03050 |
5SFE..SXV20..NAP |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-0A020 |
5SFE..SXV20..NAP |
1 | ||
| 27446 - CLIP, ALTERNATOR CORD | ||||
| 27446-74370 |
5SFE..SXV20..NAP |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-74040 |
5SFE..SXV20..NAP |
1 | ||
| Common parts | ||||
| 90068-00001 | ||||
| 90068-00002 | ||||
| 90068-00003 | ||||
| 90068-04001 | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05232 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||
