SXV20L-CEPGKA (1996)
Toyota Camry (Nap)
(9607- )5SFE..NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13502 - IDLER SUB-ASSY, TIMING BELT, NO.2 | ||||
| 13503-63011 |
5SFE..SXV20..NAP |
1 | ||
| 13505 - IDLER SUB-ASSY, TIMING BELT, NO.1 | ||||
| 13505-74011 |
5SFE..SXV20..NAP |
1 | ||
| 13505A - SPRING, TENSION(FOR IDLER) | ||||
| 90507-17003 |
5SFE..SXV20..NAP |
1 | ||
| 90507-18030 |
5SFE..SXV20..NAP |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-03010 |
5SFE..SXV20..NAP (L) |
1 | ||
| 13501-74050 |
5SFE..SXV20..NAP (J) |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-74030 |
5SFE..SXV20..NAP (J) |
1 | ||
| 13502-03010 |
5SFE..SXV20..NAP (L) |
1 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13523-74040 |
5SFE..SXV20..NAP (J) |
1 | ||
| 13523-03030 |
5SFE..SXV20..NAP (L) |
1 | ||
| 13529 - GEAR, CAMSHAFT SUB | ||||
| 13529-74900 |
5SFE..SXV20..NAP |
1 | ||
| 13568 - BELT, TIMING | ||||
| 13568-79095 |
5SFE..SXV20..NAP (J) |
1 | ||
| 13568-09040 |
5SFE..SXV20..NAP (L) |
1 | ||
| 13568-79225 |
5SFE..SXV20..NAP (J) |
1 | ||
| 13568-09041 |
5SFE..SXV20..NAP (L) |
1 | ||
| 13579 - WASHER, CAMSHAFT TIMING GEAR BOLT | ||||
| 13579-74010 |
5SFE..SXV20..NAP |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-03020 |
5SFE..SXV20..NAP (L) |
8 | ||
| 13711-74080 |
5SFE..SXV20..NAP (J) |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02088 |
5SFE..SXV20..NAP NO.2 |
8 | ||
| 90913-02090 |
5SFE..SXV20..NAP NO.1 |
8 | ||
| 90913-02066 |
5SFE..SXV20..NAP NO.2 |
8 | ||
| 90913-02103 |
5SFE..SXV20..NAP NO.2 |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02088 |
5SFE..SXV20..NAP NO.2 |
8 | ||
| 90913-02090 |
5SFE..SXV20..NAP NO.1 |
8 | ||
| 90913-02066 |
5SFE..SXV20..NAP NO.2 |
8 | ||
| 90913-02103 |
5SFE..SXV20..NAP NO.2 |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90504-37002 |
5SFE..SXV20..NAP (J) |
16 | ||
| 90080-50158 |
5SFE..SXV20..NAP (L) |
16 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90504-37002 |
5SFE..SXV20..NAP (J) |
16 | ||
| 90080-50158 |
5SFE..SXV20..NAP (L) |
16 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-03020 |
5SFE..SXV20..NAP (L) |
8 | ||
| 13715-74080 |
5SFE..SXV20..NAP (J) |
8 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-50020 |
5SFE..SXV20..NAP |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-50020 |
5SFE..SXV20..NAP |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03021 |
5SFE..SXV20..NAP |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03021 |
5SFE..SXV20..NAP |
32 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-74020 |
5SFE..SXV20..NAP |
16 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-74020 |
5SFE..SXV20..NAP |
16 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-74070 |
5SFE..SXV20..NAP T=2.65 |
16 | ||
| 13753-74110 |
5SFE..SXV20..NAP T=2.75 |
16 | ||
| 13753-74130 |
5SFE..SXV20..NAP T=2.80 |
16 | ||
| 13753-74010 |
5SFE..SXV20..NAP T=2.50 |
16 | ||
| 13753-74090 |
5SFE..SXV20..NAP T=2.70 |
16 | ||
| 13753-74030 |
5SFE..SXV20..NAP T=2.55 |
16 | ||
| 13753-74210 |
5SFE..SXV20..NAP T=3.00 |
16 | ||
| 13753-74150 |
5SFE..SXV20..NAP T=2.85 |
16 | ||
| 13753-74170 |
5SFE..SXV20..NAP T=2.90 |
16 | ||
| 13753-74190 |
5SFE..SXV20..NAP T=2.95 |
16 | ||
| 13753-74250 |
5SFE..SXV20..NAP T=3.10 |
16 | ||
| 13753-74270 |
5SFE..SXV20..NAP T=3.15 |
16 | ||
| 13753-74230 |
5SFE..SXV20..NAP T=3.05 |
16 | ||
| 13753-74050 |
5SFE..SXV20..NAP T=2.60 |
16 | ||
| 13753-74290 |
5SFE..SXV20..NAP T=3.20 |
16 | ||
| 13753-74310 |
5SFE..SXV20..NAP T=3.25 |
16 | ||
| 13753-74330 |
5SFE..SXV20..NAP T=3.30 |
16 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-74070 |
5SFE..SXV20..NAP T=2.65 |
16 | ||
| 13753-74110 |
5SFE..SXV20..NAP T=2.75 |
16 | ||
| 13753-74130 |
5SFE..SXV20..NAP T=2.80 |
16 | ||
| 13753-74010 |
5SFE..SXV20..NAP T=2.50 |
16 | ||
| 13753-74090 |
5SFE..SXV20..NAP T=2.70 |
16 | ||
| 13753-74030 |
5SFE..SXV20..NAP T=2.55 |
16 | ||
| 13753-74210 |
5SFE..SXV20..NAP T=3.00 |
16 | ||
| 13753-74150 |
5SFE..SXV20..NAP T=2.85 |
16 | ||
| 13753-74170 |
5SFE..SXV20..NAP T=2.90 |
16 | ||
| 13753-74190 |
5SFE..SXV20..NAP T=2.95 |
16 | ||
| 13753-74250 |
5SFE..SXV20..NAP T=3.10 |
16 | ||
| 13753-74270 |
5SFE..SXV20..NAP T=3.15 |
16 | ||
| 13753-74230 |
5SFE..SXV20..NAP T=3.05 |
16 | ||
| 13753-74050 |
5SFE..SXV20..NAP T=2.60 |
16 | ||
| 13753-74290 |
5SFE..SXV20..NAP T=3.20 |
16 | ||
| 13753-74310 |
5SFE..SXV20..NAP T=3.25 |
16 | ||
| 13753-74330 |
5SFE..SXV20..NAP T=3.30 |
16 | ||
| 19300A - SENSOR ASSY, CAM POSITION | ||||
| 19300-03010 |
5SFE..SXV20..NAP (L) |
1 | ||
| 19300-74010 |
5SFE..SXV20..NAP |
1 | ||
| 19300-74010 |
5SFE..SXV20..NAP (J) |
1 | ||
| Common parts | ||||
| 90080-10163 | ||||
| 90080-11284 | ||||
| 90080-11287 | ||||
| 90080-19010 | ||||
| 90099-04366 | ||||
| 90105-10032 | ||||
| 90119-10469 | ||||
| 90201-16031 | ||||
| 90206-42001 | ||||
| 90520-41004 | ||||
| 90901-19041 | ||||
| 90919-05025 | ||||
| 91511-40616 | ||||

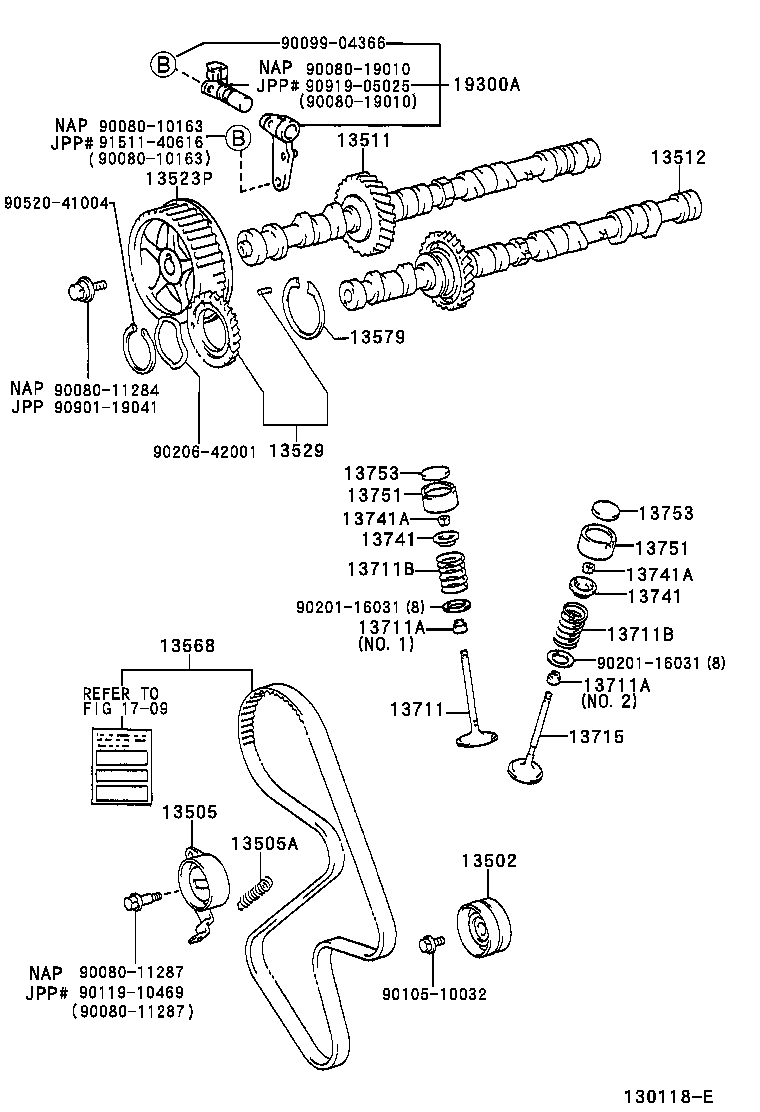

| Linked diagrams | ||||
| 1709 | ||||
