Toyota Camry (nap) SXV10 WIRING & CLAMP

SXV10L-CEMDKA (1991)

Toyota Camry (Nap)

Production Sep 1991 - Jul 1996

Engine 5SFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9109-9608)SXV10..NAP

Click highlighted areas on diagram

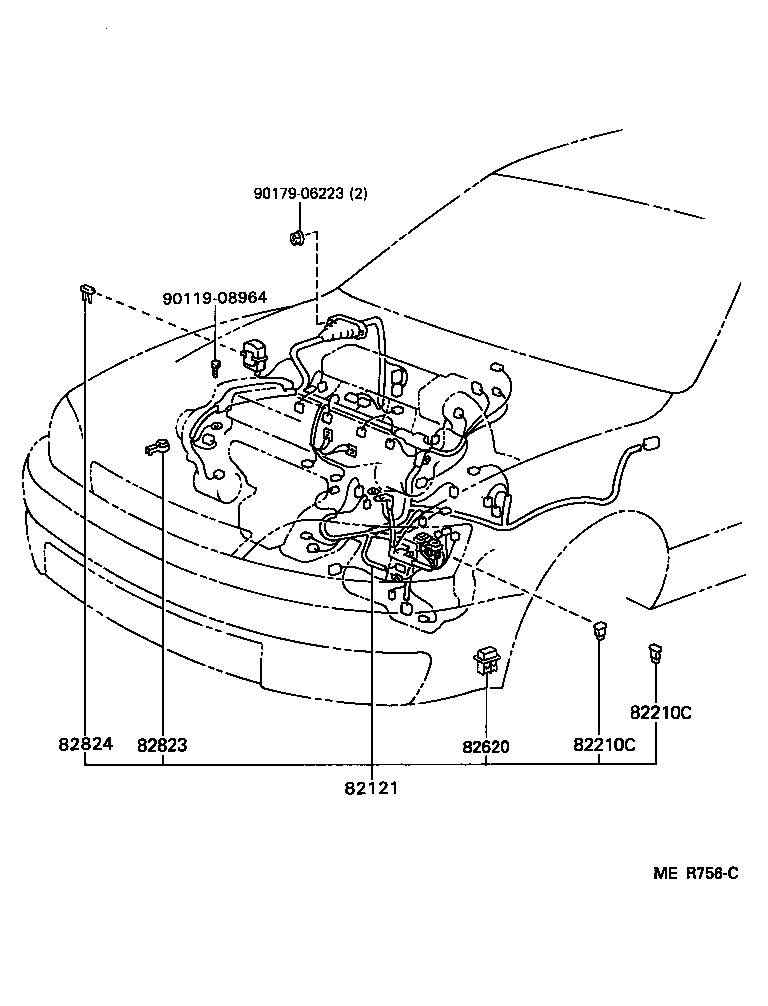

ENGINE WIRE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-06010	SXV10..NAP..MTM	09/1991 - 09/1992	1
82121-06040	SXV10..NAP..MTM..USA CALIFORNIA SPEC	09/1991 - 09/1992	1
82121-06011	SXV10..NAP..MTM	09/1992 - 09/1993	1
82121-06130	SXV10..NAP..MTM..USA CALIFORNIA SPEC	09/1993 - 08/1994	1
82121-06150	SXV10..NAP..MTM	08/1994 - 08/1995	1
82121-06110	SXV10..NAP..MTM	09/1993 - 08/1994	1
82121-06170	SXV10..NAP..MTM..USA CALIFORNIA SPEC	08/1994 - 08/1995	1
82121-06041	SXV10..NAP..MTM..USA CALIFORNIA SPEC	09/1992 - 09/1993	1
82121-06151	SXV10..NAP..MTM	08/1995 - 07/1996	1
82210C - FUSIBLE LINK
90982-08202	MCV10,SXV10,VCV10..NAP 60A,TERM.:MALE,YEL	09/1991 - 08/1995	1
90982-08246	SXV10..NAP 100A,TERM.:MALE,BLUE	08/1995 - 07/1996	1
90982-08246	MCV10,SXV10,VCV10..NAP 100A,TERM.:MALE,BLUE	09/1991 - 08/1995	1
90982-08202	SXV10..NAP 60A,TERM.:MALE,YEL	08/1995 - 07/1996	1
82210C - FUSIBLE LINK
90982-08202	MCV10,SXV10,VCV10..NAP 60A,TERM.:MALE,YEL	09/1991 - 08/1995	1
90982-08246	SXV10..NAP 100A,TERM.:MALE,BLUE	08/1995 - 07/1996	1
90982-08246	MCV10,SXV10,VCV10..NAP 100A,TERM.:MALE,BLUE	09/1991 - 08/1995	1
90982-08202	SXV10..NAP 60A,TERM.:MALE,YEL	08/1995 - 07/1996	1
82620 - BLOCK ASSY, FUSIBLE LINK
82620-30030	SXV10..NAP	08/1995 - 07/1996	1
82620-30030	MCV10,SXV10..NAP	08/1994 - 08/1995	1
82823 - CAP, TERMINAL, NO.1
82823-22050	MCV10,SXV10..NAP	11/1994 - 07/1996	1
82823-22060	MCV10,SXV10,VCV10..NAP	09/1991 - 08/1994	1
Common parts
90119-08964
90179-06223

(9109-9608)NAP

Click highlighted areas on diagram

INSTRUMENT PANEL WIRE

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-06010	SXV10..NAP..MTM..USA	09/1991 - 09/1992	1
82141-06011	SXV10,VCV10..NAP..MTM..USA	09/1992 - 09/1993	1
82141-06220	SXV10..NAP..MTM..USA W(*EL)	09/1993 - 08/1994	1
82141-06210	SXV10..NAP..MTM..USA	09/1993 - 08/1994	1
82141-06500	SXV10..NAP..MTM..DX W(POWER WINDOW)	08/1994 - 07/1996	1
82141-06210	SXV10..NAP..MTM..DX	08/1994 - 07/1996	1
Common parts
90119-06390

(9109-9608)NAP

Click highlighted areas on diagram

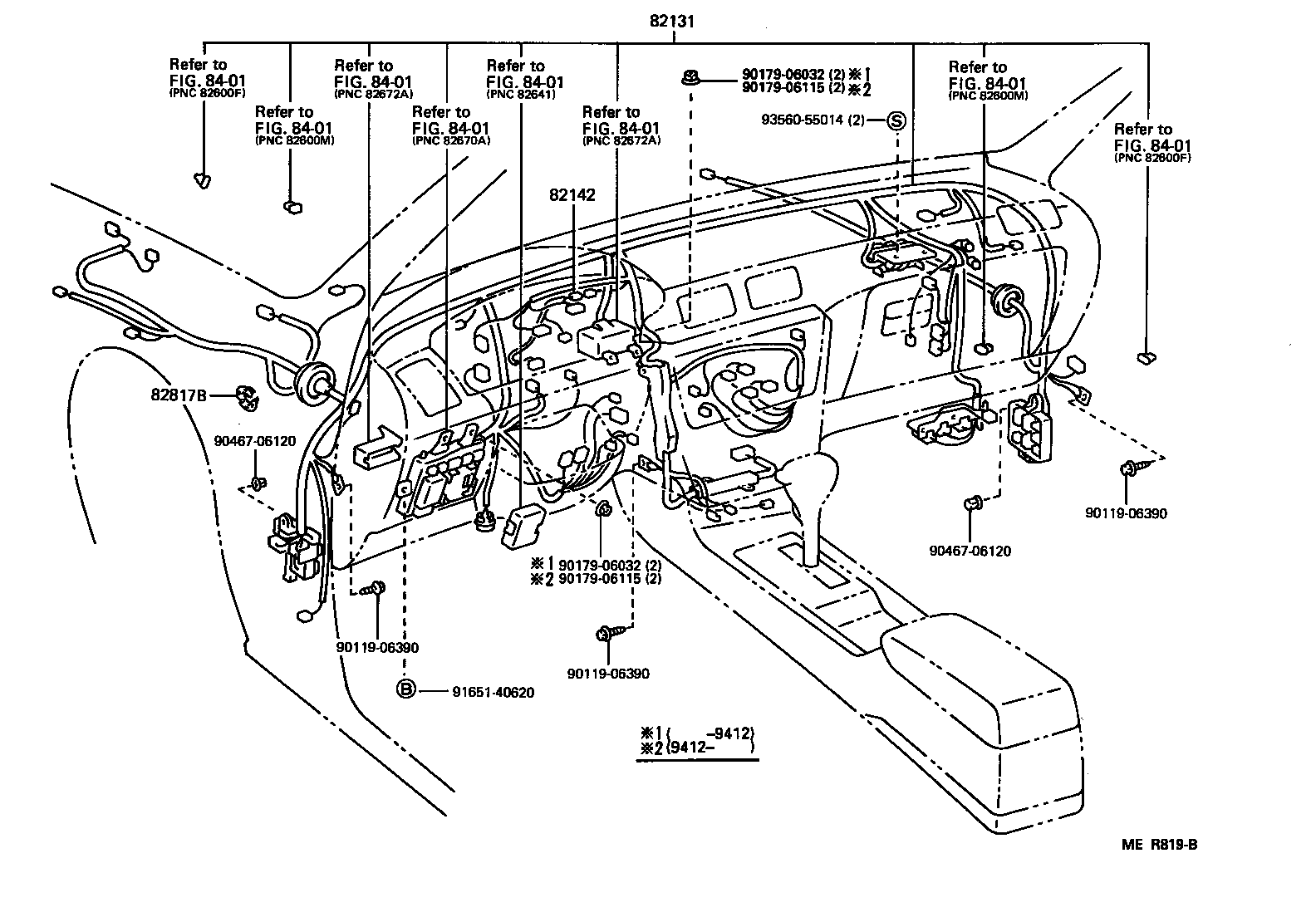

COWL WIRE

Part #	Description	Period	Qty
82131 - WIRE, COWL
82131-06020	SXV10..NAP..MTM..USA	09/1991 - 09/1992	1
82131-06030	SXV10..NAP..MTM..USA W(*66)	09/1991 - 09/1992	1
82131-06021	SXV10..NAP..MTM..USA	09/1992 - 01/1993	1
82131-06031	SXV10..NAP..MTM..USA W(*66)	09/1992 - 01/1993	1
82131-06032	SXV10..NAP..MTM..USA W(*66)	01/1993 - 09/1993	1
82131-06022	SXV10..NAP..MTM..USA	01/1993 - 09/1993	1
82131-06420	SXV10..NAP..MTM..USA	09/1993 - 08/1994	1
82131-06570	SXV10..NAP..MTM..USA CALIFORNIA SPEC	09/1993 - 08/1994	1
82131-06850	SXV10..NAP..MTM..USA CALIFORNIA SPEC	08/1994 - 08/1995	1
82131-06810	SXV10..NAP..MTM..USA	08/1994 - 08/1995	1
82131-06811	SXV10..NAP..MTM..USA	08/1995 - 07/1996	1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-2B730	SXV10..NAP..DX..USA SUSPENSON SUPPORT	09/1993 - 08/1994	1
82817-2B730	SXV10..NAP..MTM..USA CALIFORNIA SPEC,SUSPENSION SUPPORT	09/1993 - 08/1994	1
82817-2B730	MCV10,SXV10..NAP	08/1994 - 07/1996	1
82817-2B730	SXV10,VCV10..NAP SUSPENSION SUPPORT	09/1991 - 09/1993	1
Common parts
90119-06390
90179-06032
90179-06115
90467-06120
91651-40620
93560-55014
Linked diagrams
8401

(9109-9608)NAP

Click highlighted areas on diagram

DOOR WIRE & ROOF WIRE

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-06010	MCV10,SXV10,VCV10..NAP..(SED,WG)..(DX,SE)..USA	09/1991 - 08/1994	1
82151-06460	MCV10,SXV10..NAP..(SED,WG)..DX W(POWER WINDOW)	08/1994 - 07/1996	1
82151-06470	MCV10,SXV10..NAP..(SED,WG)..(LE,SE,XLE)..USA W(6 SPEAKER)	08/1994 - 07/1996	1
82151-06440	MCV10,SXV10..NAP..(SED,WG)..DX	08/1994 - 07/1996	1
82151-06460	MCV10,SXV10..NAP..(SED,WG)..(LE,SE,XLE)	08/1994 - 07/1996	1
82151-06310	SXV10..NAP..(SED,WG)..DX..USA W(*EL)	09/1993 - 08/1994	1
82152 - WIRE, FRONT DOOR, LH
82152-06310	SXV10..NAP..(SED,WG)..DX..USA W(*EL)	09/1993 - 08/1994	1
82152-06010	MCV10,SXV10,VCV10..NAP..(SED,WG)..(DX,SE)..USA	09/1991 - 08/1994	1
82152-06460	MCV10,SXV10..NAP..(SED,WG)..DX	08/1994 - 07/1996	1
82152-06490	MCV10,SXV10..NAP..(SED,WG)..(LE,SE)..USA W(6 SPEAKER)	08/1994 - 07/1996	1
82152-06480	MCV10,SXV10..NAP..WG..LE..USA;MCV10,SXV10..NAP..SED..(LE,SE)	08/1994 - 07/1996	1
82152-06480	MCV10,SXV10..NAP..(SED,WG)..DX W(POWER WINDOW)	08/1994 - 07/1996	1
82153 - WIRE, REAR DOOR, NO.1
82153-06110	SXV10..NAP..SED..DX..USA	09/1993 - 08/1994	1
82153-06130	MCV10,SXV10..NAP..SED	08/1994 - 07/1996	1
82154 - WIRE, REAR DOOR, NO.2
82154-06110	SXV10..NAP..SED..DX..USA	09/1993 - 08/1994	1
82154-06130	MCV10,SXV10..NAP..SED	08/1994 - 07/1996	1
82171 - WIRE, ROOF, NO.1
82171-06010	SXV10..NAP..SED..DX..CND;MCV10,SXV10,VCV10..NAP..SED..(DX,LE,SE)..USA	09/1991 - 08/1994	1
82171-06020	MCV10,SXV10,VCV10..NAP..SED..(LE,SE)..USA W(MOON ROOF)	09/1991 - 08/1994	1
82171-06320	MCV10,SXV10..NAP..(CP,SED)..(DX,LE,SE)	08/1994 - 07/1996	1
82171-06330	MCV10,SXV10..NAP..SED..(LE,SE)..USA W(MOON ROOF)	08/1994 - 07/1996	1
Common parts
90119-06390
90950-01060
90950-01275

(9109-9608)NAP..CP,SED

Click highlighted areas on diagram

FLOOR WIRE,SEAT WIRE & LUGGAGE WIRE

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-06220	SXV10..NAP..SED..DX..USA W(*EL)	09/1993 - 03/1994	1
82161-06210	MCV10,SXV10..NAP..SED..(DX,SE)	09/1993 - 03/1994	1
82161-06010	SXV10,VCV10..NAP..SED..(DX,SE)	09/1991 - 09/1993	1
82161-06221	SXV10..NAP..SED..DX..USA W(*EL)	03/1994 - 08/1994	1
82161-06211	MCV10,SXV10..NAP..SED..(DX,SE)	03/1994 - 08/1994	1
82161-06340	MCV10,SXV10..NAP..SED..DX	08/1994 - 07/1996	1
82161-06350	MCV10,SXV10..NAP..SED..(LE,SE)	08/1994 - 07/1996	1
82161-06350	MCV10,SXV10..NAP..SED..DX W(POWER WINDOW)	08/1994 - 07/1996	1
82162 - WIRE, FLOOR, NO.2
82162-06020	SXV10,VCV10..NAP..SED..(DX,SE)	09/1991 - 09/1993	1
82162-06110	SXV10..NAP..SED..DX	09/1993 - 08/1994	1
82162-06130	SXV10..NAP..SED..DX..USA W(*EL)	09/1993 - 08/1994	1
82162-06220	MCV10,SXV10..NAP..SED..(LE,SE,XLE)	08/1994 - 07/1996	1
82162-06190	MCV10,SXV10..NAP..SED..DX	08/1994 - 07/1996	1
82162-06210	SXV10..NAP..SED..DX..USA W(*PW)	08/1994 - 07/1996	1
82166 - WIRE, CONSOLE BOX
82166-06010	SXV10,VCV10..NAP..(LE,SE,XLE)	09/1991 - 09/1993	1
82166-06040	MCV10,SXV10..NAP..(LE,SE,XLE)	09/1993 - 07/1996	1
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-06010	MCV10,SXV10,VCV10..NAP..SED	09/1991 - 08/1994	1
82181-06040	MCV10,SXV10..NAP..(CP,SED)	08/1994 - 07/1996	1
82182 - WIRE, LUGGAGE ROOM, NO.2
82182-06040	MCV10,SXV10..NAP..SED..(DX,LE,XLE)	08/1994 - 07/1996	1
82182-06010	MCV10,SXV10,VCV10..NAP..SED..(DX,LE,XLE)	09/1991 - 08/1994	1
82187 - WIRE, REAR WINDOW, NO.2
82187-06030	MCV10,SXV10..NAP..SED	08/1994 - 07/1996	1
82187-06010	MCV10,SXV10,VCV10..NAP..SED	09/1991 - 08/1994	1
82412 - WIRE, FUEL GAGE
82412-06010	SXV10..NAP..SED	09/1991 - 09/1993	1
82412-06020	MCV10,SXV10..NAP	09/1993 - 03/1994	1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-32710	MCV10,SXV10..NAP..SED	08/1994 - 07/1996	1
Common parts
82711-2A420
90119-06390
90333-20001

(9109-9608)NAP

Click highlighted areas on diagram

REPAIR WIRE

Part #	Description	Period	Qty
82981 - WIRE, HEADLAMP REPAIR
82981-33010	MCV10,SXV10..NAP;VCV10..NAP..(LE,SE,XLE) LOW BEAM	09/1991 - 07/1996	1
82981-33021	MCV10,SXV10..NAP;VCV10..NAP..(LE,SE,XLE) HIGH BEAM	09/1991 - 07/1996	1
82981 - WIRE, HEADLAMP REPAIR
82981-33010	MCV10,SXV10..NAP;VCV10..NAP..(LE,SE,XLE) LOW BEAM	09/1991 - 07/1996	1
82981-33021	MCV10,SXV10..NAP;VCV10..NAP..(LE,SE,XLE) HIGH BEAM	09/1991 - 07/1996	1
82982 - WIRE, CLEARANCE LAMP REPAIR
82982-33011	MCV10,SXV10..NAP;VCV10..NAP..(LE,SE,XLE)	09/1991 - 08/1994	1
82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR
82983-33010	MCV10,SXV10..NAP;VCV10..NAP..(LE,SE,XLE)	09/1991 - 08/1994	1
82984 - WIRE, HORN REPAIR
82984-22010	MCV10,SXV10..NAP;VCV10..NAP..(LE,SE,XLE)	09/1991 - 08/1994	1
82988 - WIRE, AIR BAG REPAIR
82988-33010	MCV10,SXV10..NAP;VCV10..NAP..(LE,SE,XLE)	09/1991 - 07/1996	1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-20080	MCV10,SXV10..NAP;VCV10..NAP..(LE,SE,XLE)	09/1991 - 08/1994	1
Common parts
82981-33010
82981-33021
82982-33011
82983-33010
82984-22010
82988-33010
82991-20080

(9109-9608)SXV10..NAP

Click highlighted areas on diagram

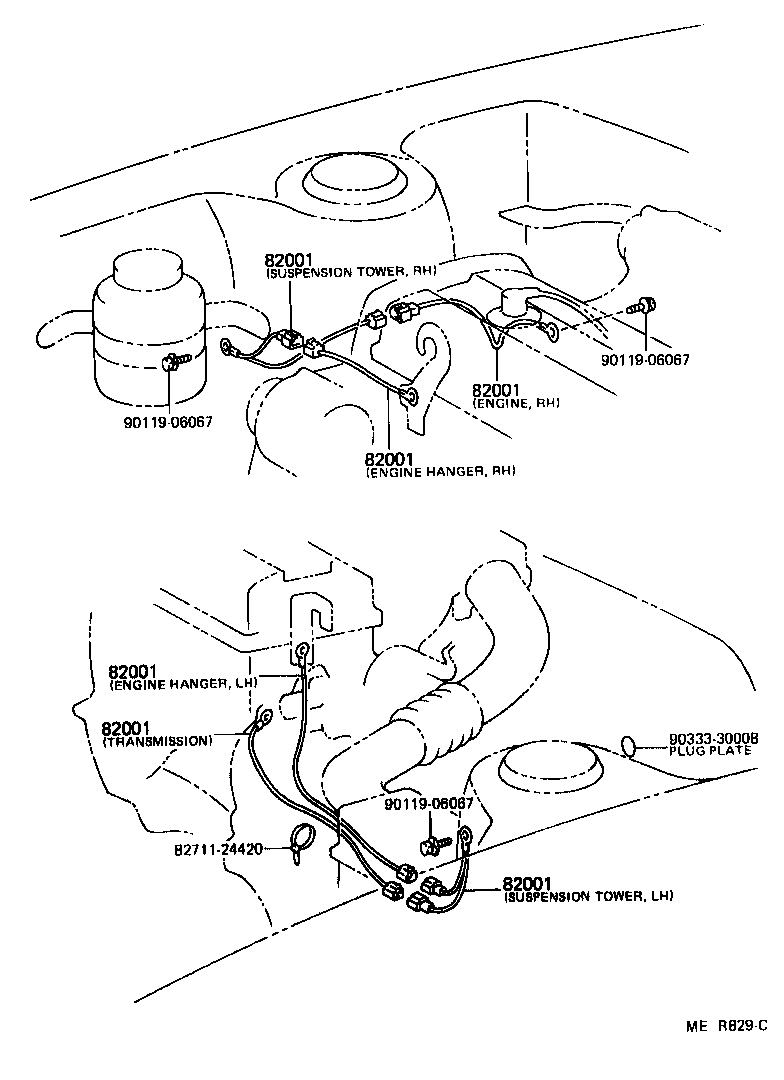

CABLE BOND

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07315	SXV10..NAP ENGINE,RH	09/1991 - 07/1996	1
90980-07350	MCV10,SXV10,VCV10..NAP SUSPENSION TOWER,LH	09/1991 - 08/1994	1
90980-07346	MCV10,SXV10,VCV10..NAP SUSPENSION TOWER,RH	09/1991 - 08/1994	1
90080-82026	SXV10..NAP SUSPENSION TOWER,RH	09/1993 - 07/1996	1
90980-07280	SXV10..NAP ENGINE HANGER,RH	09/1991 - 07/1996	1
90080-82025	SXV10..NAP ENGINE HANGER,RH	09/1993 - 07/1996	1
90980-07355	SXV10..NAP ENGINE HANGER,LH	09/1991 - 10/1993	1
90980-07372	SXV10..NAP ENGINE HANGER,LH	10/1993 - 07/1996	1
90080-82029	SXV10..NAP TRANSMISSION	09/1993 - 07/1996	1
90080-82030	SXV10..NAP ENGINE HANGER,LH	09/1993 - 07/1996	1
90084-98005	SXV10..NAP SUSPENSION TOWER,LH	08/1994 - 07/1996	1
90080-82027	SXV10..NAP SUSPENSION TOWER,LH	09/1993 - 07/1996	1
90080-82028	SXV10..NAP ENGINE,RH	09/1993 - 07/1996	1
90980-07326	SXV10..NAP TRANSMISSION	08/1994 - 07/1996	1
90980-07326	MCV10,SXV10,VCV10..NAP TRANSMISSION	09/1991 - 08/1994	1
90084-98001	SXV10..NAP TRANSMISSION	08/1994 - 07/1996	1
90980-07346	SXV10..NAP SUSPENSION TOWER,RH	08/1994 - 07/1996	1
90084-98003	SXV10..NAP SUSPENSION TOWER,RH	08/1994 - 07/1996	1
90980-07350	SXV10..NAP SUSPENSION TOWER,LH	08/1994 - 07/1996	1
82001 - CABLE, BOND, NO.1
90980-07315	SXV10..NAP ENGINE,RH	09/1991 - 07/1996	1
90980-07350	MCV10,SXV10,VCV10..NAP SUSPENSION TOWER,LH	09/1991 - 08/1994	1
90980-07346	MCV10,SXV10,VCV10..NAP SUSPENSION TOWER,RH	09/1991 - 08/1994	1
90080-82026	SXV10..NAP SUSPENSION TOWER,RH	09/1993 - 07/1996	1
90980-07280	SXV10..NAP ENGINE HANGER,RH	09/1991 - 07/1996	1
90080-82025	SXV10..NAP ENGINE HANGER,RH	09/1993 - 07/1996	1
90980-07355	SXV10..NAP ENGINE HANGER,LH	09/1991 - 10/1993	1
90980-07372	SXV10..NAP ENGINE HANGER,LH	10/1993 - 07/1996	1
90080-82029	SXV10..NAP TRANSMISSION	09/1993 - 07/1996	1
90080-82030	SXV10..NAP ENGINE HANGER,LH	09/1993 - 07/1996	1
90084-98005	SXV10..NAP SUSPENSION TOWER,LH	08/1994 - 07/1996	1
90080-82027	SXV10..NAP SUSPENSION TOWER,LH	09/1993 - 07/1996	1
90080-82028	SXV10..NAP ENGINE,RH	09/1993 - 07/1996	1
90980-07326	SXV10..NAP TRANSMISSION	08/1994 - 07/1996	1
90980-07326	MCV10,SXV10,VCV10..NAP TRANSMISSION	09/1991 - 08/1994	1
90084-98001	SXV10..NAP TRANSMISSION	08/1994 - 07/1996	1
90980-07346	SXV10..NAP SUSPENSION TOWER,RH	08/1994 - 07/1996	1
90084-98003	SXV10..NAP SUSPENSION TOWER,RH	08/1994 - 07/1996	1
90980-07350	SXV10..NAP SUSPENSION TOWER,LH	08/1994 - 07/1996	1
82001 - CABLE, BOND, NO.1
90980-07315	SXV10..NAP ENGINE,RH	09/1991 - 07/1996	1
90980-07350	MCV10,SXV10,VCV10..NAP SUSPENSION TOWER,LH	09/1991 - 08/1994	1
90980-07346	MCV10,SXV10,VCV10..NAP SUSPENSION TOWER,RH	09/1991 - 08/1994	1
90080-82026	SXV10..NAP SUSPENSION TOWER,RH	09/1993 - 07/1996	1
90980-07280	SXV10..NAP ENGINE HANGER,RH	09/1991 - 07/1996	1
90080-82025	SXV10..NAP ENGINE HANGER,RH	09/1993 - 07/1996	1
90980-07355	SXV10..NAP ENGINE HANGER,LH	09/1991 - 10/1993	1
90980-07372	SXV10..NAP ENGINE HANGER,LH	10/1993 - 07/1996	1
90080-82029	SXV10..NAP TRANSMISSION	09/1993 - 07/1996	1
90080-82030	SXV10..NAP ENGINE HANGER,LH	09/1993 - 07/1996	1
90084-98005	SXV10..NAP SUSPENSION TOWER,LH	08/1994 - 07/1996	1
90080-82027	SXV10..NAP SUSPENSION TOWER,LH	09/1993 - 07/1996	1
90080-82028	SXV10..NAP ENGINE,RH	09/1993 - 07/1996	1
90980-07326	SXV10..NAP TRANSMISSION	08/1994 - 07/1996	1
90980-07326	MCV10,SXV10,VCV10..NAP TRANSMISSION	09/1991 - 08/1994	1
90084-98001	SXV10..NAP TRANSMISSION	08/1994 - 07/1996	1
90980-07346	SXV10..NAP SUSPENSION TOWER,RH	08/1994 - 07/1996	1
90084-98003	SXV10..NAP SUSPENSION TOWER,RH	08/1994 - 07/1996	1
90980-07350	SXV10..NAP SUSPENSION TOWER,LH	08/1994 - 07/1996	1
82001 - CABLE, BOND, NO.1
90980-07315	SXV10..NAP ENGINE,RH	09/1991 - 07/1996	1
90980-07350	MCV10,SXV10,VCV10..NAP SUSPENSION TOWER,LH	09/1991 - 08/1994	1
90980-07346	MCV10,SXV10,VCV10..NAP SUSPENSION TOWER,RH	09/1991 - 08/1994	1
90080-82026	SXV10..NAP SUSPENSION TOWER,RH	09/1993 - 07/1996	1
90980-07280	SXV10..NAP ENGINE HANGER,RH	09/1991 - 07/1996	1
90080-82025	SXV10..NAP ENGINE HANGER,RH	09/1993 - 07/1996	1
90980-07355	SXV10..NAP ENGINE HANGER,LH	09/1991 - 10/1993	1
90980-07372	SXV10..NAP ENGINE HANGER,LH	10/1993 - 07/1996	1
90080-82029	SXV10..NAP TRANSMISSION	09/1993 - 07/1996	1
90080-82030	SXV10..NAP ENGINE HANGER,LH	09/1993 - 07/1996	1
90084-98005	SXV10..NAP SUSPENSION TOWER,LH	08/1994 - 07/1996	1
90080-82027	SXV10..NAP SUSPENSION TOWER,LH	09/1993 - 07/1996	1
90080-82028	SXV10..NAP ENGINE,RH	09/1993 - 07/1996	1
90980-07326	SXV10..NAP TRANSMISSION	08/1994 - 07/1996	1
90980-07326	MCV10,SXV10,VCV10..NAP TRANSMISSION	09/1991 - 08/1994	1
90084-98001	SXV10..NAP TRANSMISSION	08/1994 - 07/1996	1
90980-07346	SXV10..NAP SUSPENSION TOWER,RH	08/1994 - 07/1996	1
90084-98003	SXV10..NAP SUSPENSION TOWER,RH	08/1994 - 07/1996	1
90980-07350	SXV10..NAP SUSPENSION TOWER,LH	08/1994 - 07/1996	1
82001 - CABLE, BOND, NO.1
90980-07315	SXV10..NAP ENGINE,RH	09/1991 - 07/1996	1
90980-07350	MCV10,SXV10,VCV10..NAP SUSPENSION TOWER,LH	09/1991 - 08/1994	1
90980-07346	MCV10,SXV10,VCV10..NAP SUSPENSION TOWER,RH	09/1991 - 08/1994	1
90080-82026	SXV10..NAP SUSPENSION TOWER,RH	09/1993 - 07/1996	1
90980-07280	SXV10..NAP ENGINE HANGER,RH	09/1991 - 07/1996	1
90080-82025	SXV10..NAP ENGINE HANGER,RH	09/1993 - 07/1996	1
90980-07355	SXV10..NAP ENGINE HANGER,LH	09/1991 - 10/1993	1
90980-07372	SXV10..NAP ENGINE HANGER,LH	10/1993 - 07/1996	1
90080-82029	SXV10..NAP TRANSMISSION	09/1993 - 07/1996	1
90080-82030	SXV10..NAP ENGINE HANGER,LH	09/1993 - 07/1996	1
90084-98005	SXV10..NAP SUSPENSION TOWER,LH	08/1994 - 07/1996	1
90080-82027	SXV10..NAP SUSPENSION TOWER,LH	09/1993 - 07/1996	1
90080-82028	SXV10..NAP ENGINE,RH	09/1993 - 07/1996	1
90980-07326	SXV10..NAP TRANSMISSION	08/1994 - 07/1996	1
90980-07326	MCV10,SXV10,VCV10..NAP TRANSMISSION	09/1991 - 08/1994	1
90084-98001	SXV10..NAP TRANSMISSION	08/1994 - 07/1996	1
90980-07346	SXV10..NAP SUSPENSION TOWER,RH	08/1994 - 07/1996	1
90084-98003	SXV10..NAP SUSPENSION TOWER,RH	08/1994 - 07/1996	1
90980-07350	SXV10..NAP SUSPENSION TOWER,LH	08/1994 - 07/1996	1
82001 - CABLE, BOND, NO.1
90980-07315	SXV10..NAP ENGINE,RH	09/1991 - 07/1996	1
90980-07350	MCV10,SXV10,VCV10..NAP SUSPENSION TOWER,LH	09/1991 - 08/1994	1
90980-07346	MCV10,SXV10,VCV10..NAP SUSPENSION TOWER,RH	09/1991 - 08/1994	1
90080-82026	SXV10..NAP SUSPENSION TOWER,RH	09/1993 - 07/1996	1
90980-07280	SXV10..NAP ENGINE HANGER,RH	09/1991 - 07/1996	1
90080-82025	SXV10..NAP ENGINE HANGER,RH	09/1993 - 07/1996	1
90980-07355	SXV10..NAP ENGINE HANGER,LH	09/1991 - 10/1993	1
90980-07372	SXV10..NAP ENGINE HANGER,LH	10/1993 - 07/1996	1
90080-82029	SXV10..NAP TRANSMISSION	09/1993 - 07/1996	1
90080-82030	SXV10..NAP ENGINE HANGER,LH	09/1993 - 07/1996	1
90084-98005	SXV10..NAP SUSPENSION TOWER,LH	08/1994 - 07/1996	1
90080-82027	SXV10..NAP SUSPENSION TOWER,LH	09/1993 - 07/1996	1
90080-82028	SXV10..NAP ENGINE,RH	09/1993 - 07/1996	1
90980-07326	SXV10..NAP TRANSMISSION	08/1994 - 07/1996	1
90980-07326	MCV10,SXV10,VCV10..NAP TRANSMISSION	09/1991 - 08/1994	1
90084-98001	SXV10..NAP TRANSMISSION	08/1994 - 07/1996	1
90980-07346	SXV10..NAP SUSPENSION TOWER,RH	08/1994 - 07/1996	1
90084-98003	SXV10..NAP SUSPENSION TOWER,RH	08/1994 - 07/1996	1
90980-07350	SXV10..NAP SUSPENSION TOWER,LH	08/1994 - 07/1996	1
Common parts
82711-24420
90119-06067
90333-30008

(9109-9608)NAP

Click highlighted areas on diagram

ENGINE ROOM WIRE

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-06030	SXV10..NAP..USA W(*66)	09/1991 - 01/1993	1
82111-06020	SXV10..NAP..USA	09/1991 - 01/1993	1
82111-06031	SXV10..NAP..USA W(*66)	01/1993 - 04/1993	1
82111-06022	SXV10..NAP..USA	04/1993 - 09/1993	1
82111-06032	SXV10..NAP..USA W(*66)	04/1993 - 09/1993	1
82111-06021	SXV10..NAP..USA	01/1993 - 04/1993	1
82111-06310	SXV10..NAP..USA	09/1993 - 08/1994	1
82111-06320	SXV10..NAP..USA W(*66)	09/1993 - 11/1993	1
82111-06550	SXV10..NAP..(DX,LE)..USA	08/1994 - 08/1995	1
82111-06320	SXV10..NAP..USA W(*66)	11/1993 - 08/1994	1
82111-06560	SXV10..NAP..(DX,LE)..USA W(*66)	08/1994 - 08/1995	1
82111-06551	SXV10..NAP..(DX,LE)..USA	08/1995 - 07/1996	1
82111-06561	SXV10..NAP..(DX,LE)..USA W(*66)	08/1995 - 07/1996	1
82113 - WIRE, ENGINE ROOM, NO.3
82113-33010	SXV10..NAP	09/1991 - 08/1994	1
82113-06010	SXV10..NAP	09/1991 - 07/1996	1
82123 - WIRE, ENGINE, NO.3
82123-06010	SXV10,VCV10..NAP	09/1991 - 09/1993	1
82123-06020	MCV10,SXV10..NAP	09/1993 - 07/1996	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-2B730	MCV10,SXV10..NAP	08/1994 - 07/1996	1
82817-2B730	MCV10..NAP..USA;SXV10,VCV10..NAP	09/1991 - 08/1994	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-2B200	MCV10..NAP..USA;SXV10,VCV10..NAP	09/1991 - 08/1994	1
82817-33350	MCV10,SXV10..NAP KOJIMA	11/1995 - 07/1996	1
82817-2B200	MCV10,SXV10..NAP	08/1994 - 11/1995	1
82817-06020	MCV10,SXV10..NAP ITW DELTAR	11/1995 - 07/1996	1
82824D - CONNECTOR, WIRING HARNESS
82824-20050	MCV10,SXV10..NAP..DX	09/1993 - 07/1996	1
82824-20050	SXV10,VCV10..NAP..DX;SXV10,VCV10..NAP..LE..CND	09/1991 - 09/1993	1
Common parts
90105-08096
90119-06003
90119-06390
90179-08153
Linked diagrams
8401

(9109-9608)NAP

Click highlighted areas on diagram

ENGINE WIRE CLAMP

Part #	Description	Period	Qty	Price
Common parts
82711-24420
82711-26070
82711-2A420
82711-2A730
82711-2B710
82711-33340
82711-41040
82711-95015
82715-33010
82715-33040
82715-33050
82715-33090
82715-33100
82715-33110
82715-33140
82715-33150
82715-33190
82715-33200
82715-33210
90119-08708
91621-60612
91651-41022
91655-F0616

SXV10L-CEMDKA (1991)

(9109-9608)SXV10..NAP

(9109-9608)NAP

(9109-9608)NAP

(9109-9608)NAP

(9109-9608)NAP..CP,SED

(9109-9608)NAP

(9109-9608)SXV10..NAP

(9109-9608)NAP

(9109-9608)NAP

Part Price Details
