SXV10L-CEMDKA (1991)
Toyota Camry (Nap)
(9109- )NAP..SE ; (9109- )SXV10..NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-06010J0 |
SXV10..NAP;VCV10..NAP..SE DARK BLUE,TRIM8# |
1 | ||
| 55539-06010K0 |
MCV10,VCV10..NAP..SE;SXV10..NAP..(CP,SED) TAUPE,TRIM9# |
1 | ||
| 55539-06010E0 |
SXV10..NAP;MCV10,VCV10..NAP..SE OAK,TRIM4# |
1 | ||
| 55539-06010B0 |
SXV10..NAP;MCV10,VCV10..NAP..SE MEDIUM GRAY,TRIM1# |
1 | ||
| 55539-06010B0 |
SXV10..NAP;MCV10..NAP..SE MEDIUM GRAY,TRIM1# |
1 | ||
| 55539-06010E0 |
SXV10..NAP;MCV10..NAP..SE OAK,TRIM4# |
1 | ||
| 55539-06010K0 |
MCV10..NAP..SE;SXV10..NAP..(CP,SED) TAUPE,TRIM9# |
1 | ||
| 55539J - COVER, SPARE SWITCH HOLE | ||||
| 55539-06010J0 |
VCV10..NAP..SE;SXV10..NAP..SED;SXV10..NAP..WG..LE;SXV10..NAP..DX..CND DARK BLUE,TRIM8# |
1 | ||
| 55539-06010K0 |
MCV10,VCV10..NAP..SE;SXV10..NAP..(CP,SED) TAUPE,TRIM9# |
1 | ||
| 55539-06010E0 |
VCV10..NAP..SE;SXV10..NAP..SED;SXV10..NAP..WG..LE;SXV10..NAP..DX..CND OAK,TRIM4# |
1 | ||
| 55539-06010B0 |
VCV10..NAP..SE;SXV10..NAP..SED;SXV10..NAP..WG..LE;SXV10..NAP..DX..CND MEDIUM GRAY,TRIM1# |
1 | ||
| 55539-06010B0 |
SXV10..NAP;MCV10..NAP..SE MEDIUM GRAY,TRIM1# |
1 | ||
| 55539-06010B0 |
SXV10..NAP..(CP,SED) MEDIUM GRAY,TRIM1# |
1 | ||
| 55539-06010E0 |
SXV10..NAP..(CP,SED) OAK,TRIM4# |
1 | ||
| 55539-06010E0 |
SXV10..NAP;MCV10..NAP..SE OAK,TRIM4# |
1 | ||
| 55539-06010K0 |
MCV10..NAP..SE;SXV10..NAP..(CP,SED) TAUPE,TRIM9# |
1 | ||
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55620-06010J0 |
SXV10..NAP..SED..DX DARK BLUE,TRIM8#,(L) |
2 | ||
| 55620-06010B0 |
SXV10..NAP..SED..DX MEDIUM GRAY,TRIM1#,(L) |
2 | ||
| 55620-33010K0 |
SXV10..NAP..SED..DX TAUPE,TRIM9#,(J) |
1 | ||
| 55620-33010W3 |
SXV10..NAP..DX..USA DARK BLUE,TRIM8#,(J) |
1 | ||
| 55620-33010S4 |
SXV10..NAP..DX..USA MEDIUM GRAY,TRIM1#,(J) |
1 | ||
| 55620-06010B0 |
SXV10..NAP..DX;VCV10..NAP..SE;SXV10,VCV10..NAP..WG..LE MEDIUM GRAY,TRIM1#,(L) |
1 | ||
| 55620-06010K0 |
SXV10..NAP..SED..DX TAUPE,TRIM9#,(L) |
2 | ||
| 55620-33010S4 |
SXV10,VCV10..NAP MEDIUM GRAY,TRIM1#,(J) |
1 | ||
| 55620-06010E0 |
MCV10,SXV10,VCV10..NAP OAK,TRIM4#,(L) |
1 | ||
| 55620-06010J0 |
SXV10..NAP..DX;VCV10..NAP..SE;SXV10,VCV10..NAP..WG..LE DARK BLUE,TRIM8#,(L) |
1 | ||
| 55620-33010K0 |
SXV10,VCV10..NAP..SED TAUPE,TRIM9#,(J) |
1 | ||
| 55620-06010B0 |
MCV10,SXV10,VCV10..NAP MEDIUM GRAY,TRIM1# |
1 | ||
| 55620-06010J0 |
SXV10,VCV10..NAP DARK BLUE,TRIM8# |
1 | ||
| 55620-33010W3 |
SXV10,VCV10..NAP DARK BLUE,TRIM8#,(J) |
1 | ||
| 55620-06010K0 |
VCV10..NAP..SE;SXV10..NAP..SED..DX TAUPE,TRIM9#,(L) |
1 | ||
| 55620-06010K0 |
MCV10,SXV10,VCV10..NAP..(CP,SED) TAUPE,TRIM9# |
1 | ||
| 55620-33010E0 |
SXV10,VCV10..NAP OAK,TRIM4#,(J) |
1 | ||
| 58811A - BOX, CONSOLE, FRONT | ||||
| 58810-06010J0 |
SXV10,VCV10..NAP DARK BLUE,TRIM8# |
1 | ||
| 58810-06010B0 |
MCV10,SXV10..NAP MEDIUM GRAY,TRIM1# |
1 | ||
| 58810-06010K0 |
MCV10,SXV10,VCV10..NAP..(CP,SED) TAUPE,TRIM9# |
1 | ||
| 58810-06010B0 |
MCV10,SXV10,VCV10..NAP MEDIUM GRAY,TRIM1# |
1 | ||
| 58810-06010E0 |
MCV10,SXV10..NAP OAK,TRIM4# |
1 | ||
| 58810-06010K0 |
MCV10,SXV10..NAP..(CP,SED) TAUPE,TRIM9# |
1 | ||
| 58810-06010E0 |
MCV10,SXV10,VCV10..NAP OAK,TRIM4# |
1 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-06151J0 |
SXV10,VCV10..NAP DARK BLUE,TRIM8# |
2 | ||
| 90467-06151K0 |
MCV10,SXV10..NAP..(CP,SED) TAUPE,TRIM9# |
2 | ||
| 90467-06151B0 |
MCV10,SXV10..NAP MEDIUM GRAY,TRIM1# |
2 | ||
| 90467-06151E0 |
MCV10,SXV10,VCV10..NAP OAK,TRIM4# |
2 | ||
| 90467-06151K0 |
MCV10,SXV10,VCV10..NAP..(CP,SED) TAUPE,TRIM9# |
2 | ||
| 90467-06151B0 |
MCV10,SXV10,VCV10..NAP MEDIUM GRAY,TRIM1# |
2 | ||
| 90467-06151E0 |
MCV10,SXV10..NAP OAK,TRIM4# |
2 | ||
| 58821C - PANEL, CONSOLE, UPPER | ||||
| 58804-33010E0 |
SXV10..NAP..MTM OAK,TRIM4# |
1 | ||
| 58804-33010J0 |
SXV10..NAP..MTM DARK BLUE,TRIM8# |
1 | ||
| 58804-33010B0 |
SXV10..NAP..MTM MEDIUM GRAY,TRIM1# |
1 | ||
| 58804-33010K0 |
SXV10..NAP..(CP,SED)..MTM TAUPE,TRIM9# |
1 | ||
| 58821C - PANEL, CONSOLE, UPPER | ||||
| 58804-33010E0 |
SXV10..NAP..MTM OAK,TRIM4# |
1 | ||
| 58804-33010J0 |
SXV10..NAP..MTM DARK BLUE,TRIM8# |
1 | ||
| 58804-33010B0 |
SXV10..NAP..MTM MEDIUM GRAY,TRIM1# |
1 | ||
| 58804-33010K0 |
SXV10..NAP..(CP,SED)..MTM TAUPE,TRIM9# |
1 | ||
| 58833A - COVER, CONSOLE, UPPER | ||||
| 58833-33010K0 |
SXV10..NAP..SED..DX TAUPE,TRIM9# |
1 | ||
| 58833-33010B0 |
SXV10..NAP..DX..USA MEDIUM GRAY,TRIM1# |
1 | ||
| 58833-33010J0 |
SXV10..NAP..DX..USA DARK BLUE,TRIM8# |
1 | ||
| 58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING | ||||
| 58902-06010 |
SXV10,VCV10..NAP..MTM |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-33020K0 |
SXV10..NAP..SED..DX TAUPE,TRIM9# |
1 | ||
| 58905-06020J0 |
SXV10..NAP..DX DARK BLUE,TRIM8# |
1 | ||
| 58905-33020S4 |
SXV10..NAP..DX MEDIUM GRAY,TRIM1# |
1 | ||
| 58905-33020W3 |
SXV10..NAP..DX DARK BLUE,TRIM8# |
1 | ||
| 58905-33020E0 |
SXV10..NAP..DX OAK,TRIM4# |
1 | ||
| 58905-06020B0 |
SXV10..NAP..DX MEDIUM GRAY,TRIM1# |
1 | ||
| 58905-06020K0 |
SXV10..NAP..(CP,SED)..DX TAUPE,TRIM9# |
1 | ||
| 58905-06020E0 |
SXV10..NAP..DX OAK,TRIM4# |
1 | ||
| 58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58907-06010 |
SXV10..NAP;MCV10,VCV10..NAP..SE |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-50010 |
SXV10..NAP..DX |
1 | ||
| 58908-06010 |
SXV10..NAP;MCV10,VCV10..NAP..SE |
1 | ||
| 58910C - BOX ASSY, CONSOLE, REAR | ||||
| 58910-06040J0 |
SXV10..NAP..DX DARK BLUE,TRIM8# |
1 | ||
| 58910-06040K0 |
SXV10..NAP..(CP,SED)..DX TAUPE,TRIM9# |
1 | ||
| 58910-06040B0 |
SXV10..NAP..DX MEDIUM GRAY,TRIM1# |
1 | ||
| 58910-06040E0 |
SXV10..NAP..DX OAK,TRIM4# |
1 | ||
| Common parts | ||||
| 90080-16024 | ||||
| 90080-46113 | ||||
| 90119-06220 | ||||
| 90468-04152 | ||||
| 90468-04157 | ||||
| 91665-40616 | ||||
| 93540-54014 | ||||
| 93567-55016 | ||||
| 93567-55020 | ||||
| 93568-55016 | ||||

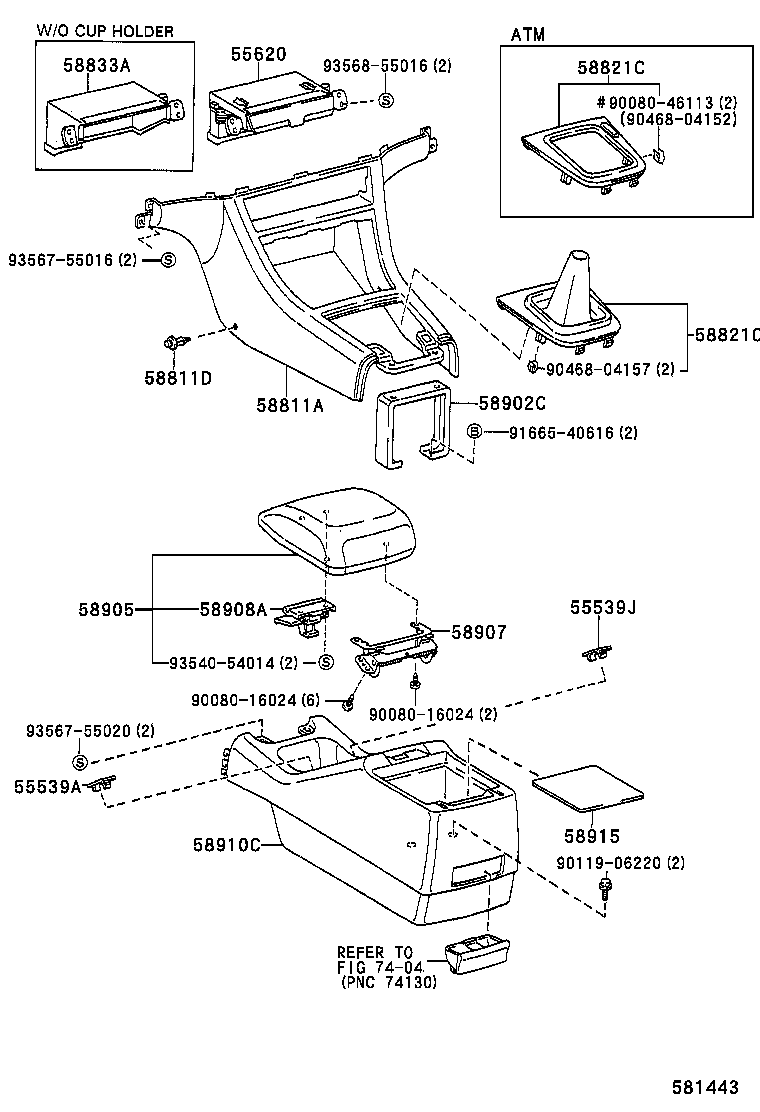

| Linked diagrams | ||||
| 7404 | ||||
