SXV10L-CEMDKA (1991)
Toyota Camry (Nap)
(9203- )SXV10..NAP

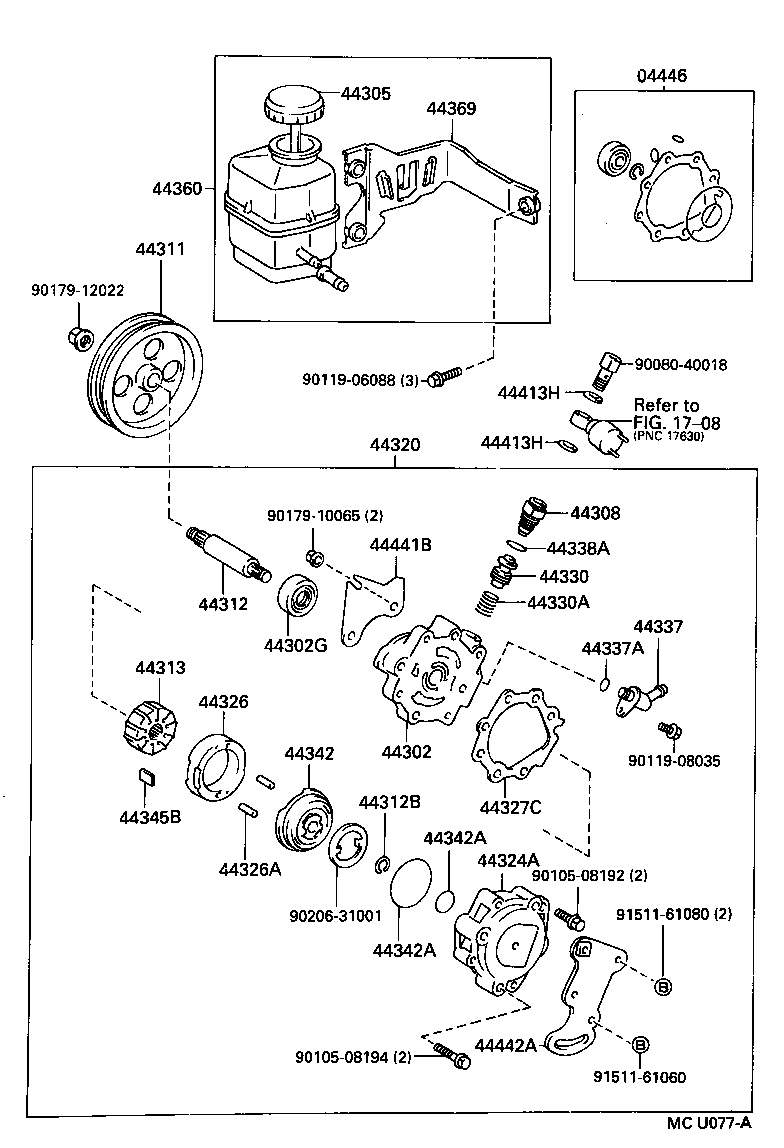

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-33021 |
SXV10..NAP |
1 | ||
| 04446-32011 |
SXV10..NAP |
1 | ||
| 04446-32021 |
MCV10,SXV10..NAP |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-32061 |
SXV10..NAP |
1 | ||
| 44302-06020 |
MCV10,SXV10..NAP |
1 | ||
| 44302-06020 |
SXV10..NAP |
1 | ||
| 44302-06021 |
SXV10..NAP |
1 | ||
| 44302-06020 |
SXV10..NAP |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90080-31020 |
MCV10,SXV10..NAP |
1 | ||
| 90080-31020 |
SXV10..NAP |
1 | ||
| 90311-18007 |
SXV10..NAP |
1 | ||
| 90311-18015 |
SXV10..NAP |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-06010 |
MCV10,SXV10..NAP |
1 | ||
| 44305-06010 |
SXV10..NAP |
1 | ||
| 44305-32020 |
MCV10,SXV10,VCV10..NAP |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-33060 |
SXV10..NAP |
1 | ||
| 44308-33010 |
SXV10..NAP |
1 | ||
| 44308-33060 |
MCV10,SXV10..NAP |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-06010 |
SXV10..NAP |
1 | ||
| 44311-06010 |
SXV10..NAP |
1 | ||
| 44311-20060 |
SXV10..NAP |
1 | ||
| 44311-32050 |
SXV10..NAP |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-32020 |
MCV10,SXV10..NAP |
1 | ||
| 44312-12030 |
SXV10..NAP |
1 | ||
| 44312-32020 |
SXV10..NAP |
1 | ||
| 44312-06010 |
MCV10,SXV10..NAP |
1 | ||
| 44312-06020 |
SXV10..NAP |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
SXV10..NAP |
1 | ||
| 90080-52033 |
SXV10..NAP |
1 | ||
| 90080-52033 |
MCV10,SXV10..NAP |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-22040 |
SXV10..NAP NO MARK |
1 | ||
| 44313-22080 |
SXV10..NAP MARK 4 |
1 | ||
| 44313-22050 |
SXV10..NAP MARK 1 |
1 | ||
| 44313-22060 |
SXV10..NAP MARK 2 |
1 | ||
| 44313-26060 |
MCV10,SXV10,VCV10..NAP NO MARK |
1 | ||
| 44313-22070 |
SXV10..NAP MARK 3 |
1 | ||
| 44313-06020 |
MCV10,SXV10..NAP MARK 1 |
1 | ||
| 44313-06040 |
MCV10,SXV10..NAP MARK 3 |
1 | ||
| 44313-26070 |
MCV10,SXV10,VCV10..NAP MARK 1 |
1 | ||
| 44313-26100 |
MCV10,SXV10,VCV10..NAP MARK 4 |
1 | ||
| 44313-26080 |
MCV10,SXV10,VCV10..NAP MARK 2 |
1 | ||
| 44313-06010 |
MCV10,SXV10..NAP NO MARK |
1 | ||
| 44313-06050 |
MCV10,SXV10..NAP MARK 4 |
1 | ||
| 44313-06030 |
MCV10,SXV10..NAP MARK 2 |
1 | ||
| 44313-26090 |
MCV10,SXV10,VCV10..NAP MARK 3 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-06011 |
SXV10..NAP |
1 | ||
| 44320-06010 |
SXV10..NAP |
1 | ||
| 44320-33040 |
SXV10..NAP |
1 | ||
| 44324A - HOUSING, PUMP, REAR | ||||
| 44324-06010 |
SXV10..NAP |
1 | ||
| 44324-12031 |
SXV10..NAP |
1 | ||
| 44324-32031 |
SXV10..NAP |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-30120 |
SXV10..NAP MARK 2 |
1 | ||
| 44325-30100 |
SXV10..NAP NO MARK |
1 | ||
| 44325-30140 |
SXV10..NAP MARK 4 |
1 | ||
| 44325-30130 |
SXV10..NAP MARK 3 |
1 | ||
| 44325-30110 |
SXV10..NAP MARK 1 |
1 | ||
| 44325-32310 |
SXV10..NAP MARK 4 |
1 | ||
| 44325-32280 |
SXV10..NAP MARK 1 |
1 | ||
| 44325-06020 |
MCV10,SXV10..NAP MARK 1 |
1 | ||
| 44325-32290 |
SXV10..NAP MARK 2 |
1 | ||
| 44325-32290 |
MCV10,SXV10..NAP MARK 2 |
1 | ||
| 44325-32270 |
SXV10..NAP NO MARK |
1 | ||
| 44325-06040 |
MCV10,SXV10..NAP MARK 3 |
1 | ||
| 44325-32310 |
MCV10,SXV10..NAP MARK 4 |
1 | ||
| 44325-06030 |
MCV10,SXV10..NAP MARK 2 |
1 | ||
| 44325-32270 |
MCV10,SXV10..NAP NO MARK |
1 | ||
| 44325-32300 |
MCV10,SXV10..NAP MARK 3 |
1 | ||
| 44325-32300 |
SXV10..NAP MARK 3 |
1 | ||
| 44325-32280 |
MCV10,SXV10..NAP MARK 1 |
1 | ||
| 44325-06010 |
MCV10,SXV10..NAP NO MARK |
1 | ||
| 44325-06050 |
MCV10,SXV10..NAP MARK 4 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04047 |
SXV10..NAP L=28,OD=4.0 |
1 | ||
| 90250-04049 |
SXV10..NAP L=43,OD=4.0 |
1 | ||
| 90250-04071 |
SXV10..NAP L=23.3,OD=4.0 |
2 | ||
| 90250-04071 |
MCV10,SXV10..NAP L=23.3,OD=4.0 |
2 | ||
| 44327C - GASKET, VANE PUMP HOUSING | ||||
| 44327-26010 |
MCV10,SXV10..NAP |
1 | ||
| 44327-26010 |
SXV10..NAP |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-33230 |
SXV10..NAP MARK E |
1 | ||
| 44330-33190 |
SXV10..NAP MARK A |
1 | ||
| 44330-33200 |
SXV10..NAP MARK B |
1 | ||
| 44330-33210 |
SXV10..NAP MARK C |
1 | ||
| 44330-33240 |
SXV10..NAP MARK F |
1 | ||
| 44330-33220 |
SXV10..NAP MARK D |
1 | ||
| 44330-26081 |
SXV10..NAP MARK B |
1 | ||
| 44330-26071 |
SXV10..NAP MARK A |
1 | ||
| 44330-26101 |
SXV10..NAP MARK D |
1 | ||
| 44330-26111 |
SXV10..NAP MARK E |
1 | ||
| 44330-26121 |
SXV10..NAP MARK F |
1 | ||
| 44330-26091 |
SXV10..NAP MARK C |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-13034 |
MCV10,SXV10..NAP |
1 | ||
| 90501-13034 |
SXV10..NAP |
1 | ||
| 90501-12103 |
SXV10..NAP |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-12020 |
SXV10..NAP |
1 | ||
| 44337-28030 |
SXV10..NAP |
1 | ||
| 44337-06010 |
SXV10..NAP |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-11010 |
MCV10,SXV10..NAP |
1 | ||
| 90301-12003 |
SXV10..NAP |
1 | ||
| 90080-30034 |
MCV10,SXV10..NAP |
1 | ||
| 90301-11010 |
SXV10..NAP |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90080-30035 |
MCV10,SXV10..NAP |
1 | ||
| 90301-19003 |
SXV10..NAP ID=19.5,OD=22.5 |
1 | ||
| 90301-19003 |
MCV10,SXV10..NAP ID=19.5,OD=22.5 |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-26020 |
SXV10..NAP |
1 | ||
| 44342-06010 |
SXV10..NAP |
1 | ||
| 44342-20010 |
SXV10..NAP |
1 | ||
| 44342-06010 |
MCV10,SXV10..NAP |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-18007 |
SXV10..NAP INNER |
1 | ||
| 90301-53004 |
SXV10..NAP |
1 | ||
| 90080-30031 |
MCV10,SXV10..NAP INNER |
1 | ||
| 90301-47001 |
MCV10,SXV10..NAP OUTER |
1 | ||
| 90301-18007 |
MCV10,SXV10..NAP INNER |
1 | ||
| 90080-30032 |
MCV10,SXV10..NAP OUTER |
1 | ||
| 90301-47001 |
SXV10..NAP OUTER |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-18007 |
SXV10..NAP INNER |
1 | ||
| 90301-53004 |
SXV10..NAP |
1 | ||
| 90080-30031 |
MCV10,SXV10..NAP INNER |
1 | ||
| 90301-47001 |
MCV10,SXV10..NAP OUTER |
1 | ||
| 90301-18007 |
MCV10,SXV10..NAP INNER |
1 | ||
| 90080-30032 |
MCV10,SXV10..NAP OUTER |
1 | ||
| 90301-47001 |
SXV10..NAP OUTER |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-12040 |
SXV10..NAP L=14.991,L=14.001 |
10 | ||
| 44345-12050 |
SXV10..NAP L=14.989,L=13.001 |
10 | ||
| 44345-12010 |
SXV10..NAP L=14.997,L=14.007 |
10 | ||
| 44345-12020 |
SXV10..NAP L=14.995,L=14.005 |
10 | ||
| 44345-26050 |
SXV10..NAP L=14.992,L=14.002 |
10 | ||
| 44345-26020 |
MCV10,SXV10,VCV10..NAP L=14.998,L=14.008 |
10 | ||
| 44345-26040 |
SXV10..NAP L=14.994,L=14.004 |
10 | ||
| 44345-12030 |
SXV10..NAP L=14.993,L=14.003 |
10 | ||
| 44345-26040 |
MCV10,SXV10..NAP L=14.994,L=14.004 |
10 | ||
| 44345-26030 |
MCV10,SXV10..NAP L=14.996,L=14.006 |
10 | ||
| 44345-26050 |
MCV10,SXV10..NAP L=14.992,L=14.002 |
10 | ||
| 44345-26010 |
MCV10,SXV10,VCV10..NAP L=15.000,L=15.000 |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-33020 |
SXV10..NAP |
1 | ||
| 44360-06010 |
SXV10..NAP |
1 | ||
| 44360-06010 |
MCV10,SXV10..NAP |
1 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-33020 |
SXV10..NAP |
1 | ||
| 44390-06010 |
MCV10,SXV10..NAP |
1 | ||
| 44390-06010 |
SXV10..NAP |
1 | ||
| 44413H - GASKET(FOR PRESSURE FEED TUBE NO.2) | ||||
| 90430-16242 |
SXV10..NAP |
2 | ||
| 44413H - GASKET(FOR PRESSURE FEED TUBE NO.2) | ||||
| 90430-16242 |
SXV10..NAP |
2 | ||
| 44441B - BRACKET, PUMP, FRONT | ||||
| 44441-06010 |
SXV10..NAP |
1 | ||
| 44441-06010 |
SXV10..NAP |
1 | ||
| 44441-33010 |
SXV10..NAP |
1 | ||
| 44442A - BRACKET, VANE PUMP, REAR | ||||
| 44442-33010 |
SXV10..NAP |
1 | ||
| 44442-06010 |
SXV10..NAP |
1 | ||
| Common parts | ||||
| 90080-40018 | ||||
| 90105-08192 | ||||
| 90105-08194 | ||||
| 90119-06088 | ||||
| 90119-08035 | ||||
| 90179-10065 | ||||
| 90179-12022 | ||||
| 90206-31001 | ||||
| 91511-61060 | ||||
| 91511-61080 | ||||
| Linked diagrams | ||||
| 1708 | ||||
