SXV10L-CEMDKA (1991)

Toyota Camry (Nap)

Production Sep 1991 - Jul 1996
Engine 5SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )SXV10..NAP..MTM

Click highlighted areas on diagram

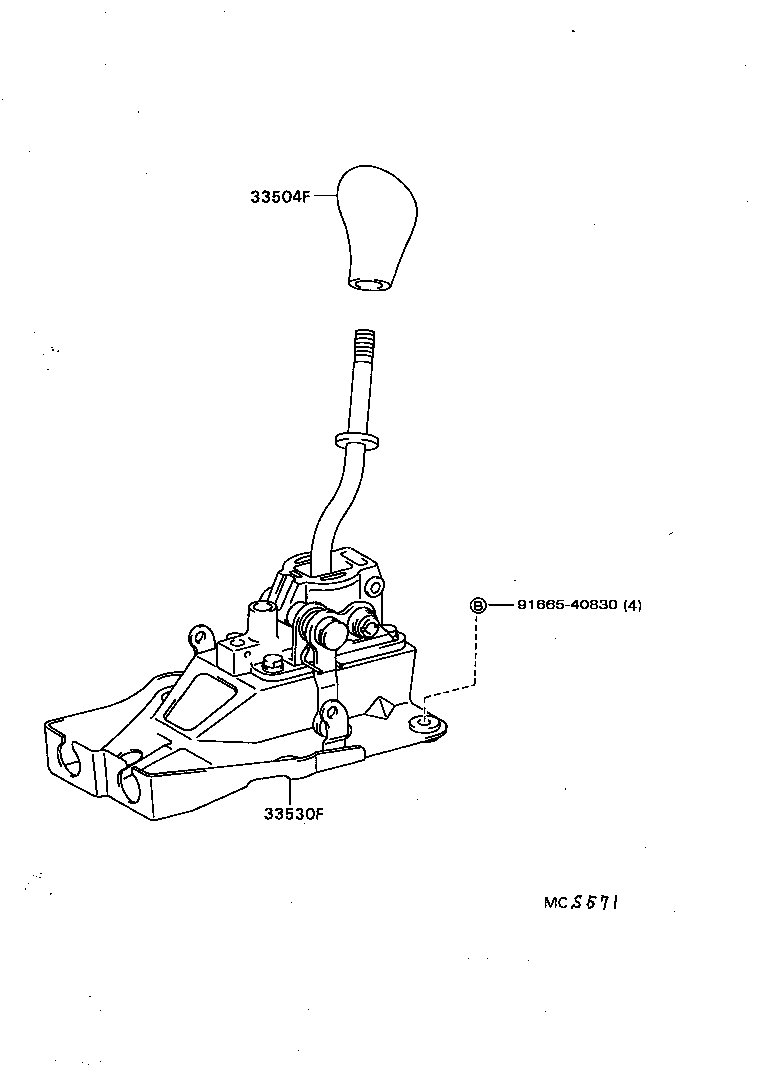

diagram 33504F 33530F 9166540830
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-12180J0

SXV10..NAP..MTM

DARK BLUE,TRIM8#

 1
33504-12180J0

SXV10..NAP..MTM

DARK BLUE,TRIM8#

 1
33504-12180E3

SXV10..NAP..MTM

OAK,TRIM4#

 1
33504-12180C0

SXV10..NAP..MTM..USA

BLACK,TRIM9#

 1
33504-12180B0

SXV10..NAP..MTM

MEDIUM GRAY,TRIM1#

 1
33504-12180K0

SXV10..NAP..(CP,SED)..MTM

TAUPE,TRIM9#

 1
33504-12180B0

SXV10..NAP..MTM

MEDIUM GRAY,TRIM1#

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-33060

SXV10..NAP..MTM

 1
Common parts
91665-40830
