Toyota Camry (nap) SXV10 EXHAUST PIPE

SXV10L-CEMDKA (1991)

Toyota Camry (Nap)

Production Sep 1991 - Jul 1996

Engine 5SFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

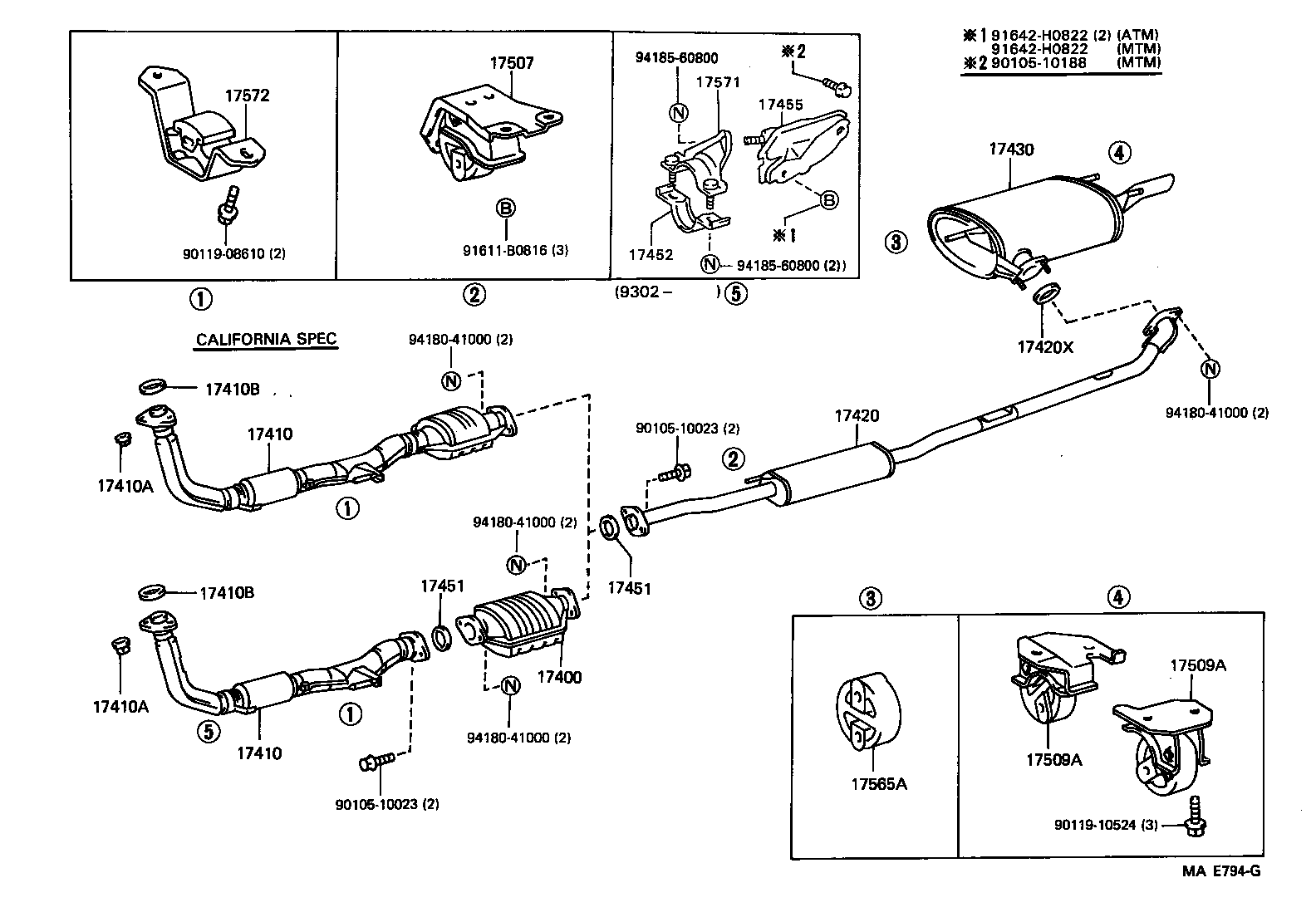

(9109-9309)5SFE..NAP

Click highlighted areas on diagram

Part #	Description	Period	Qty
17400 - CONVERTER ASSY, W/CATALYST
18450-76060	5SFE..SXV10..NAP (J)	09/1991 - 09/1993	1
18450-03030	5SFE..SXV10..NAP (L)	09/1991 - 09/1993	1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-03051	5SFE..SXV10..NAP..USA CALIFORNIA SPEC	10/1991 - 09/1993	1
17410-03040	5SFE..SXV10..NAP	09/1991 - 10/1991	1
17410-03050	5SFE..SXV10..NAP CALIFORNIA SPEC	09/1991 - 10/1991	1
17410-03200	5SFE..SXV10..NAP..USA CALIFORNIA SPEC	08/1994 - 08/1995	1
17410-03200	5SFE..SXV10..NAP	08/1995 - 07/1996	1
17410-03190	5SFE..SXV10..NAP	08/1994 - 08/1995	1
17410-03100	5SFE..SXV10..NAP	02/1993 - 09/1993	1
17410-03051	5SFE..SXV10..NAP	09/1993 - 08/1994	1
17410-03090	5SFE..SXV10..NAP..USA CALIFORNIA SPEC	09/1993 - 08/1994	1
17410-03041	5SFE..SXV10..NAP	10/1991 - 02/1993	1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-03051	5SFE..SXV10..NAP..USA CALIFORNIA SPEC	10/1991 - 09/1993	1
17410-03040	5SFE..SXV10..NAP	09/1991 - 10/1991	1
17410-03050	5SFE..SXV10..NAP CALIFORNIA SPEC	09/1991 - 10/1991	1
17410-03200	5SFE..SXV10..NAP..USA CALIFORNIA SPEC	08/1994 - 08/1995	1
17410-03200	5SFE..SXV10..NAP	08/1995 - 07/1996	1
17410-03190	5SFE..SXV10..NAP	08/1994 - 08/1995	1
17410-03100	5SFE..SXV10..NAP	02/1993 - 09/1993	1
17410-03051	5SFE..SXV10..NAP	09/1993 - 08/1994	1
17410-03090	5SFE..SXV10..NAP..USA CALIFORNIA SPEC	09/1993 - 08/1994	1
17410-03041	5SFE..SXV10..NAP	10/1991 - 02/1993	1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070	5SFE..SXV10..NAP	09/1991 - 07/1996	3
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070	5SFE..SXV10..NAP	09/1991 - 07/1996	3
17410B - GASKET, EXHAUST PIPE
90917-06066	5SFE..SXV10..NAP	08/1994 - 07/1996	1
90917-06042	5SFE..SXV10..NAP	09/1991 - 08/1994	1
17410B - GASKET, EXHAUST PIPE
90917-06066	5SFE..SXV10..NAP	08/1994 - 07/1996	1
90917-06042	5SFE..SXV10..NAP	09/1991 - 08/1994	1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-03040	5SFE..SXV10..NAP	09/1991 - 09/1993	1
17420-03050	5SFE..SXV10..NAP..USA CALIFORNIA SPEC	09/1991 - 09/1993	1
17420-03050	5SFE..SXV10..NAP	09/1993 - 07/1996	1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06045	5SFE,3VZFE..SXV10,VCV10..NAP	02/1992 - 07/1996	1
90917-06046	5SFE,3VZFE..SXV10,VCV10..NAP	09/1991 - 02/1992	1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-03040	5SFE..SXV10..NAP..SED	09/1991 - 12/1992	1
17430-03041	5SFE..SXV10..NAP..(CP,SED)	12/1992 - 08/1994	1
17430-03140	5SFE..SXV10..NAP..(CP,SED)	08/1994 - 07/1996	1
17451 - GASKET, EXHAUST PIPE
90917-06043	5SFE..SXV10..NAP FRONT	09/1991 - 09/1993	1
90917-06045	5SFE..SXV10..NAP	09/1993 - 07/1996	1
90917-06054	5SFE..SXV10..NAP REAR	09/1991 - 09/1993	1
90917-06045	5SFE..SXV10..NAP..USA CALIFORNIA SPEC	09/1991 - 09/1993	1
17451 - GASKET, EXHAUST PIPE
90917-06043	5SFE..SXV10..NAP FRONT	09/1991 - 09/1993	1
90917-06045	5SFE..SXV10..NAP	09/1993 - 07/1996	1
90917-06054	5SFE..SXV10..NAP REAR	09/1991 - 09/1993	1
90917-06045	5SFE..SXV10..NAP..USA CALIFORNIA SPEC	09/1991 - 09/1993	1
17452 - CLAMP, EXHAUST PIPE
17452-74080	5SFE..SXV10..NAP	02/1993 - 09/1993	1
17455 - BRACKET, EXHAUST PIPE
17455-74080	5SFE..SXV10..NAP	02/1993 - 09/1993	1
17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17507-07010	5SFE,3VZFE..SXV10,VCV10..NAP	09/1991 - 09/1993	1
17507-03020	5SFE..SXV10..NAP	09/1993 - 08/1994	1
17507-0A020	5SFE..SXV10..NAP	08/1994 - 07/1996	1
17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17509-07010	1MZFE,5SFE,3VZFE..MCV10,SXV10,VCV10..NAP RH	09/1991 - 08/1994	1
17509-07020	1MZFE,5SFE,3VZFE..MCV10,SXV10,VCV10..NAP LH	09/1991 - 07/1996	1
17509-07010	5SFE..SXV10..NAP RH	08/1994 - 07/1996	1
17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17509-07010	1MZFE,5SFE,3VZFE..MCV10,SXV10,VCV10..NAP RH	09/1991 - 08/1994	1
17509-07020	1MZFE,5SFE,3VZFE..MCV10,SXV10,VCV10..NAP LH	09/1991 - 07/1996	1
17509-07010	5SFE..SXV10..NAP RH	08/1994 - 07/1996	1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-07050	1MZFE,5SFE,3VZFE..MCV10,SXV10,VCV10..NAP	09/1991 - 07/1996	1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-74370	5SFE..SXV10..NAP	02/1993 - 09/1993	1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572-07020	5SFE..SXV10..NAP	09/1991 - 07/1996	1
Common parts
90105-10023
90105-10188
90119-08610
90119-10524
91611-B0816
91642-H0822
94180-41000
94185-60800

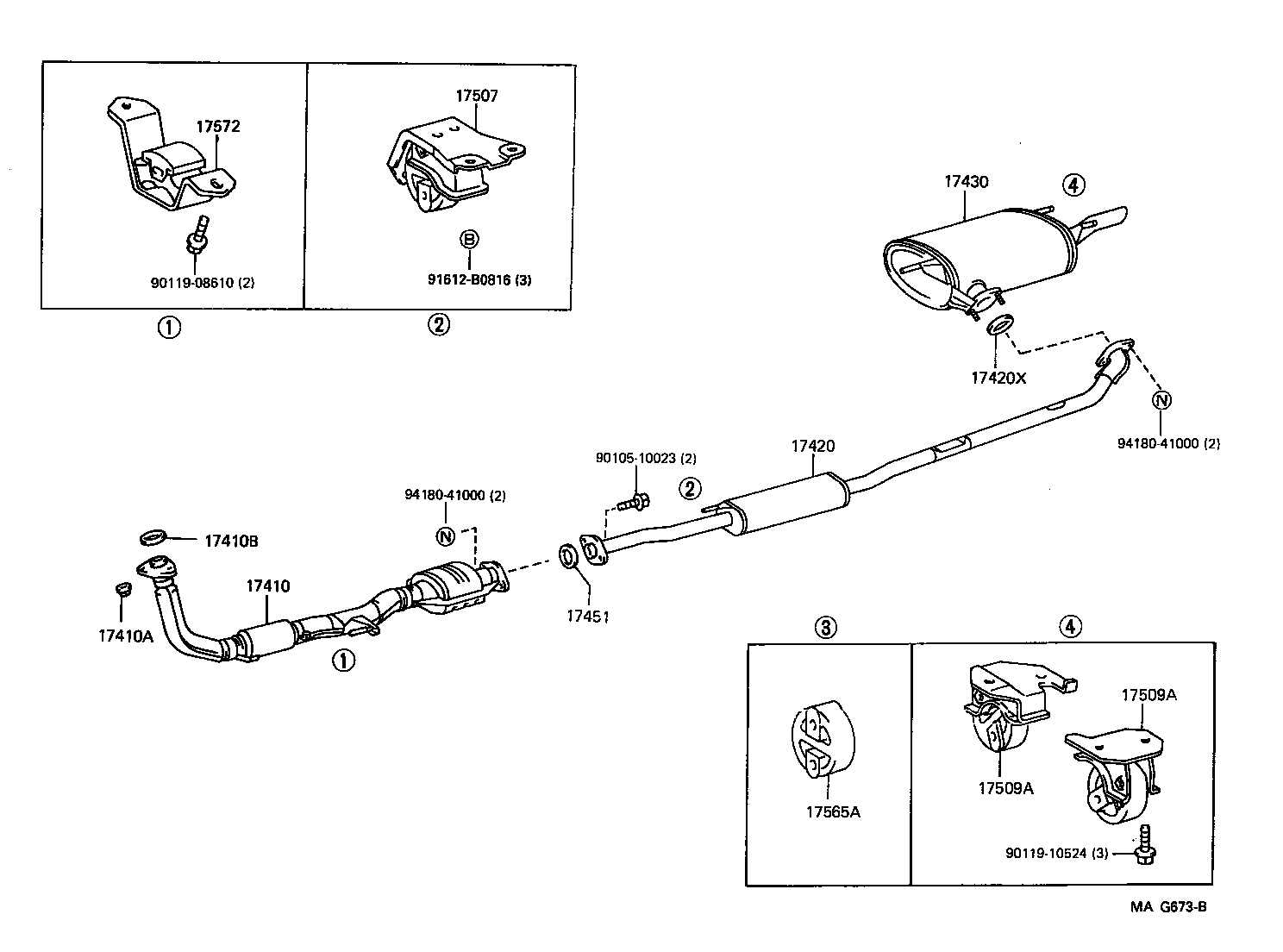

(9309- )5SFE..NAP

Click highlighted areas on diagram

Part #	Description	Period	Qty
17410 - PIPE ASSY, EXHAUST, FRONT
17410-03051	5SFE..SXV10..NAP..USA CALIFORNIA SPEC	10/1991 - 09/1993	1
17410-03040	5SFE..SXV10..NAP	09/1991 - 10/1991	1
17410-03050	5SFE..SXV10..NAP CALIFORNIA SPEC	09/1991 - 10/1991	1
17410-03200	5SFE..SXV10..NAP..USA CALIFORNIA SPEC	08/1994 - 08/1995	1
17410-03200	5SFE..SXV10..NAP	08/1995 - 07/1996	1
17410-03190	5SFE..SXV10..NAP	08/1994 - 08/1995	1
17410-03100	5SFE..SXV10..NAP	02/1993 - 09/1993	1
17410-03051	5SFE..SXV10..NAP	09/1993 - 08/1994	1
17410-03090	5SFE..SXV10..NAP..USA CALIFORNIA SPEC	09/1993 - 08/1994	1
17410-03041	5SFE..SXV10..NAP	10/1991 - 02/1993	1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070	5SFE..SXV10..NAP	09/1991 - 07/1996	3
17410B - GASKET, EXHAUST PIPE
90917-06066	5SFE..SXV10..NAP	08/1994 - 07/1996	1
90917-06042	5SFE..SXV10..NAP	09/1991 - 08/1994	1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-03040	5SFE..SXV10..NAP	09/1991 - 09/1993	1
17420-03050	5SFE..SXV10..NAP..USA CALIFORNIA SPEC	09/1991 - 09/1993	1
17420-03050	5SFE..SXV10..NAP	09/1993 - 07/1996	1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06045	5SFE,3VZFE..SXV10,VCV10..NAP	02/1992 - 07/1996	1
90917-06046	5SFE,3VZFE..SXV10,VCV10..NAP	09/1991 - 02/1992	1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-03040	5SFE..SXV10..NAP..SED	09/1991 - 12/1992	1
17430-03041	5SFE..SXV10..NAP..(CP,SED)	12/1992 - 08/1994	1
17430-03140	5SFE..SXV10..NAP..(CP,SED)	08/1994 - 07/1996	1
17451 - GASKET, EXHAUST PIPE
90917-06043	5SFE..SXV10..NAP FRONT	09/1991 - 09/1993	1
90917-06045	5SFE..SXV10..NAP	09/1993 - 07/1996	1
90917-06054	5SFE..SXV10..NAP REAR	09/1991 - 09/1993	1
90917-06045	5SFE..SXV10..NAP..USA CALIFORNIA SPEC	09/1991 - 09/1993	1
17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17507-07010	5SFE,3VZFE..SXV10,VCV10..NAP	09/1991 - 09/1993	1
17507-03020	5SFE..SXV10..NAP	09/1993 - 08/1994	1
17507-0A020	5SFE..SXV10..NAP	08/1994 - 07/1996	1
17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17509-07010	1MZFE,5SFE,3VZFE..MCV10,SXV10,VCV10..NAP RH	09/1991 - 08/1994	1
17509-07020	1MZFE,5SFE,3VZFE..MCV10,SXV10,VCV10..NAP LH	09/1991 - 07/1996	1
17509-07010	5SFE..SXV10..NAP RH	08/1994 - 07/1996	1
17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17509-07010	1MZFE,5SFE,3VZFE..MCV10,SXV10,VCV10..NAP RH	09/1991 - 08/1994	1
17509-07020	1MZFE,5SFE,3VZFE..MCV10,SXV10,VCV10..NAP LH	09/1991 - 07/1996	1
17509-07010	5SFE..SXV10..NAP RH	08/1994 - 07/1996	1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-07050	1MZFE,5SFE,3VZFE..MCV10,SXV10,VCV10..NAP	09/1991 - 07/1996	1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572-07020	5SFE..SXV10..NAP	09/1991 - 07/1996	1
Common parts
90105-10023
90119-08610
90119-10524
91612-B0816
94180-41000

SXV10L-CEMDKA (1991)

(9109-9309)5SFE..NAP

(9309- )5SFE..NAP
