Toyota Camry (nap) SV21 METER - JDM Part Detective

SV21L-AEPNKA (1988)

Toyota Camry (Nap)

Production Jul 1988 - Sep 1991

Engine 3SFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(8807- )DX,LE

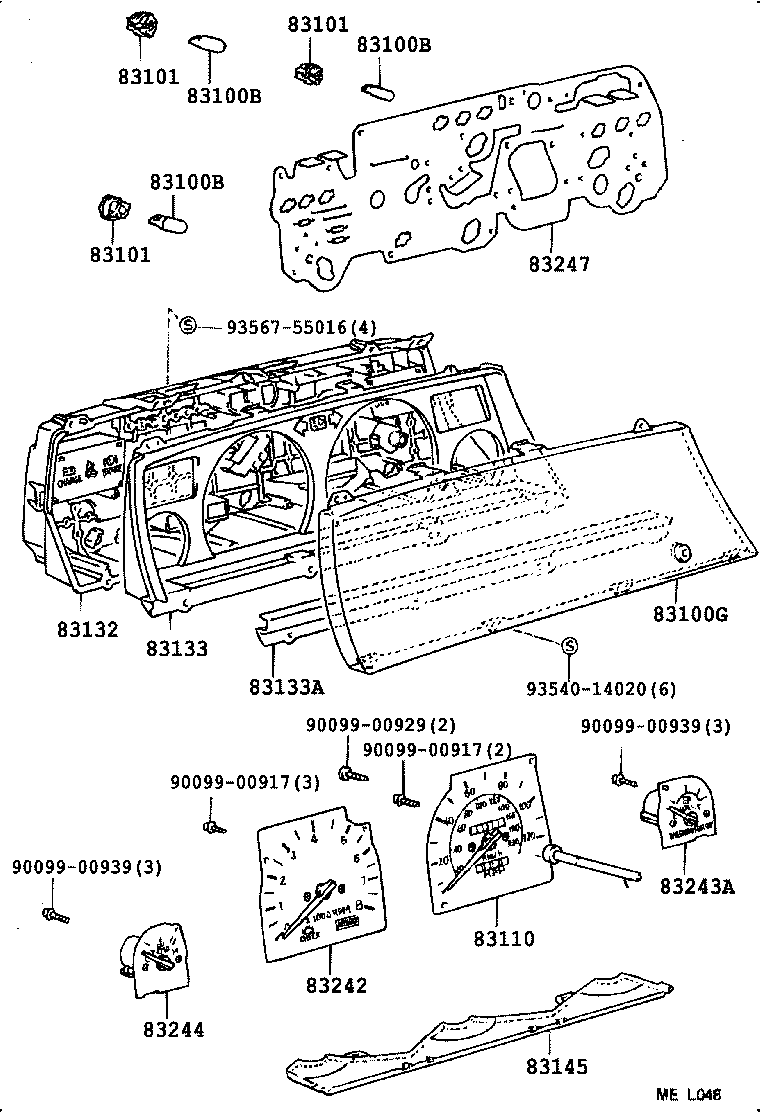

Click highlighted areas on diagram

ANALOG(W/TACHOMETER)

Part #	Description	Period	Qty
83100B - BULB, COMBINATION METER, NO.1
83109-10010	SV21..DX,LE 12V 1.4W,ORANGE CAP	07/1988 - 09/1991	1
90981-11018	SV21..DX,LE 12V 1.2W W/O SOCKET	07/1988 - 09/1991	10
99132-12034	SV21..DX,LE 12V 3.4W	07/1988 - 09/1991	15
83109-24020	SV21 12V3.4W W(GREEN CAP)	07/1988 - 09/1991	4
83100B - BULB, COMBINATION METER, NO.1
83109-10010	SV21..DX,LE 12V 1.4W,ORANGE CAP	07/1988 - 09/1991	1
90981-11018	SV21..DX,LE 12V 1.2W W/O SOCKET	07/1988 - 09/1991	10
99132-12034	SV21..DX,LE 12V 3.4W	07/1988 - 09/1991	15
83109-24020	SV21 12V3.4W W(GREEN CAP)	07/1988 - 09/1991	4
83100B - BULB, COMBINATION METER, NO.1
83109-10010	SV21..DX,LE 12V 1.4W,ORANGE CAP	07/1988 - 09/1991	1
90981-11018	SV21..DX,LE 12V 1.2W W/O SOCKET	07/1988 - 09/1991	10
99132-12034	SV21..DX,LE 12V 3.4W	07/1988 - 09/1991	15
83109-24020	SV21 12V3.4W W(GREEN CAP)	07/1988 - 09/1991	4
83100G - GLASS, COMBINATION METER
83138-32050	SV21	07/1988 - 09/1991	1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030	SV21..DX,LE NO.1	07/1988 - 09/1991	5
83101-14040	SV21..DX,LE NO.2	07/1988 - 09/1991	11
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030	SV21..DX,LE NO.1	07/1988 - 09/1991	5
83101-14040	SV21..DX,LE NO.2	07/1988 - 09/1991	11
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030	SV21..DX,LE NO.1	07/1988 - 09/1991	5
83101-14040	SV21..DX,LE NO.2	07/1988 - 09/1991	11
83110 - SPEEDOMETER ASSY
83110-32580	SV21..LE	07/1988 - 08/1989	1
83110-32581	SV21..LE	08/1989 - 02/1990	1
83110-03061	SV21..LE	02/1991 - 09/1991	1
83110-03060	SV21..LE	02/1990 - 02/1991	1
83132 - CASE, COMBINATION METER
83132-32500	SV21..LE	07/1988 - 09/1991	1
83133 - PLATE, COMBINATION METER, NO.1
83133-32690	SV21..LE	07/1988 - 09/1991	1
83133A - PLATE, COMBINATION METER, NO.2
83133-32610	SV21	07/1988 - 09/1991	1
83145 - LENS, METER, NO.1
83145-32370	SV21..DX,LE	07/1988 - 09/1991	1
83242 - TACHOMETER ASSY, ENGINE
83242-32830	SV21..LE	07/1988 - 08/1989	1
83242-32440	SV21..LE	08/1989 - 09/1991	1
83243A - GAUGE SUB-ASSY, FUEL RECEIVER
83243-32670	SV21..LE	07/1988 - 09/1991	1
83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER
83244-32550	SV21..DX,LE	07/1988 - 09/1991	1
83247 - PLATE, METER CIRCUIT
83247-32880	SV21..LE	07/1988 - 09/1991	1
Common parts
90099-00917
90099-00929
90099-00939
93540-14020
93567-55016

(8807- )

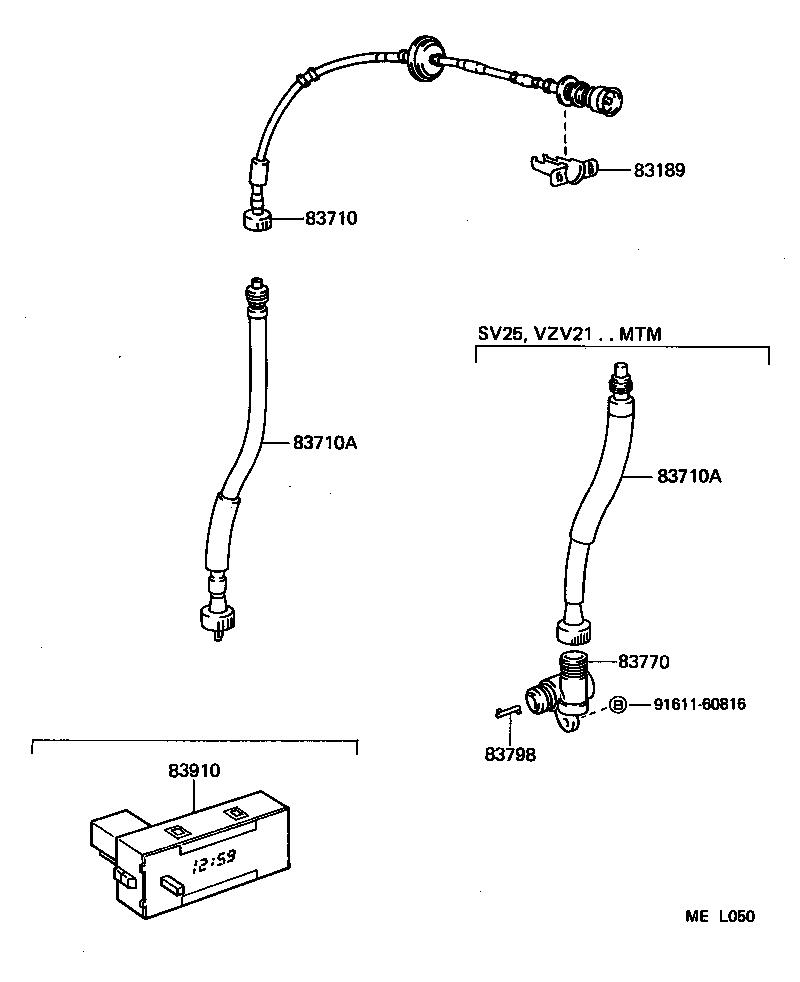

Click highlighted areas on diagram

Part #	Description	Period	Qty
83189 - BRACKET, METER
83189-03010	SV21,VZV21	07/1988 - 09/1991	1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-32210	SV21	07/1988 - 09/1991	1
83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2
83710-32170	SV21	07/1988 - 09/1991	1
83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2
83710-32170	SV21	07/1988 - 09/1991	1
83910 - CLOCK ASSY
83910-32061	SV21,VZV21	07/1988 - 06/1991	1
83910-03030	SV21,VZV21	06/1991 - 09/1991	1
Common parts
91611-60816

(8807- )

Click highlighted areas on diagram

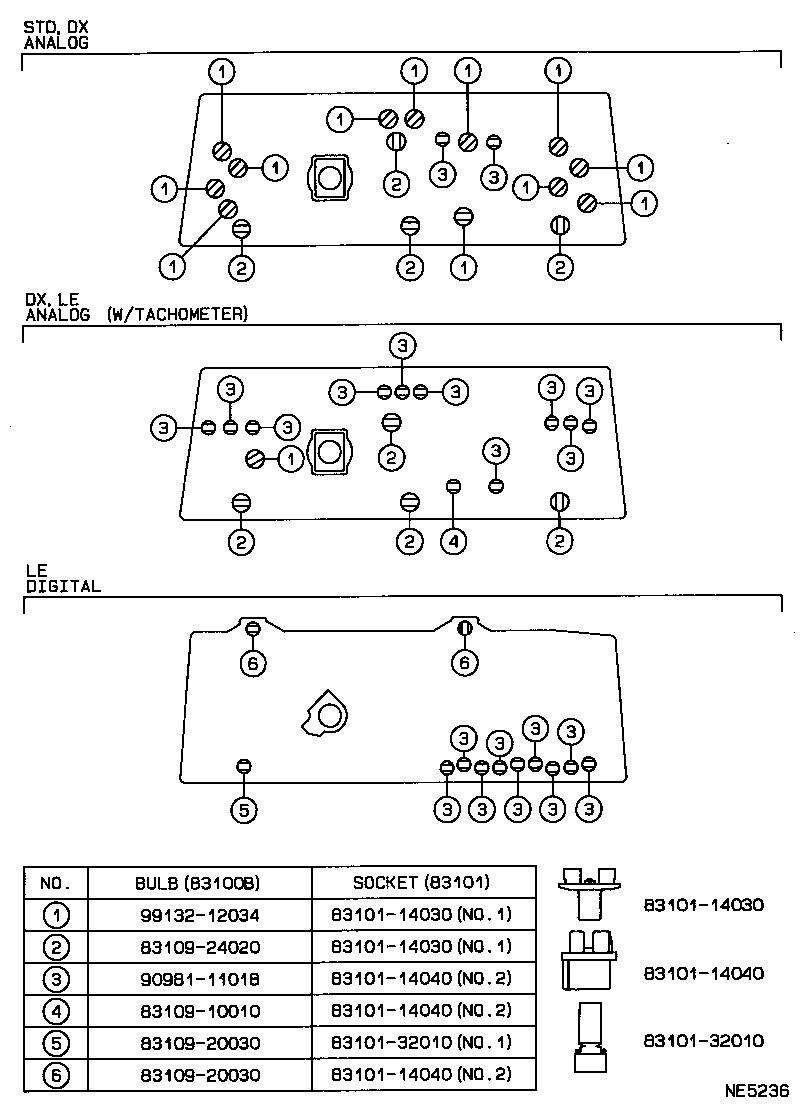

SOCKET & BULB

Part #	Description	Period	Qty
83100B - BULB, COMBINATION METER, NO.1
83109-10010	SV21..DX,LE 12V 1.4W,ORANGE CAP	07/1988 - 09/1991	1
90981-11018	SV21..DX,LE 12V 1.2W W/O SOCKET	07/1988 - 09/1991	10
99132-12034	SV21..DX,LE 12V 3.4W	07/1988 - 09/1991	15
83109-24020	SV21 12V3.4W W(GREEN CAP)	07/1988 - 09/1991	4
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030	SV21..DX,LE NO.1	07/1988 - 09/1991	5
83101-14040	SV21..DX,LE NO.2	07/1988 - 09/1991	11
Common parts
83101-14030
83101-14040
83101-32010
83109-10010
83109-20030
83109-24020
90981-11018
99132-12034

SV21L-AEPNKA (1988)

(8807- )DX,LE

(8807- )

(8807- )
