SV21L-AEPNKA (1988)

Toyota Camry (Nap)

Production Jul 1988 - Sep 1991

Engine 3SFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(8807- )

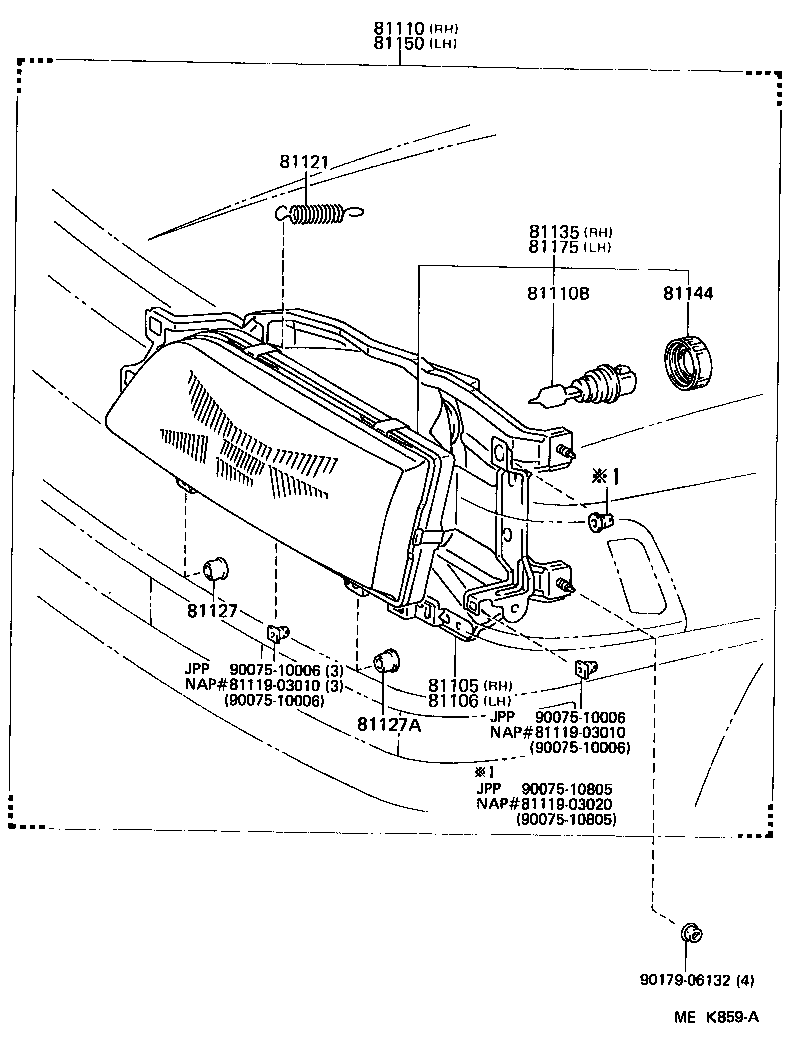

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81101-03010	SV21,VZV21	07/1988 - 09/1991	1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81102-03010	SV21,VZV21	07/1988 - 09/1991	1
81110 - HEADLAMP ASSY, RH
81110-03010	SV21,VZV21	07/1988 - 09/1991	1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13032	SV21,VZV21 12V 65/45W,HAL,WH	07/1988 - 09/1991	2
81121 - SPRING, HEADLAMP TENSION
81121-03010	SV21,VZV21	07/1988 - 09/1991	2
81127 - BEARING, HEADLAMP, NO.1
81127-03010	SV21,VZV21	07/1988 - 09/1991	2
81127A - BEARING, HEADLAMP, NO.2
81127-03020	SV21,VZV21	07/1988 - 09/1991	2
81135 - UNIT ASSY, HEADLAMP, RH
81130-03010	SV21,VZV21	07/1988 - 09/1991	1
81144 - COVER, HEADLAMP, NO.1
81139-03010	SV21,VZV21	07/1988 - 09/1991	2
81150 - HEADLAMP ASSY, LH
81150-03010	SV21,VZV21	07/1988 - 09/1991	1
81175 - UNIT ASSY, HEADLAMP, LH
81170-03010	SV21,VZV21	07/1988 - 09/1991	1
Common parts
81119-03010
81119-03020
90075-10006
90075-10805
90179-06132
