SV21L-AEPNKA (1988)

Toyota Camry (Nap)

Production Jul 1988 - Sep 1991
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8807- )

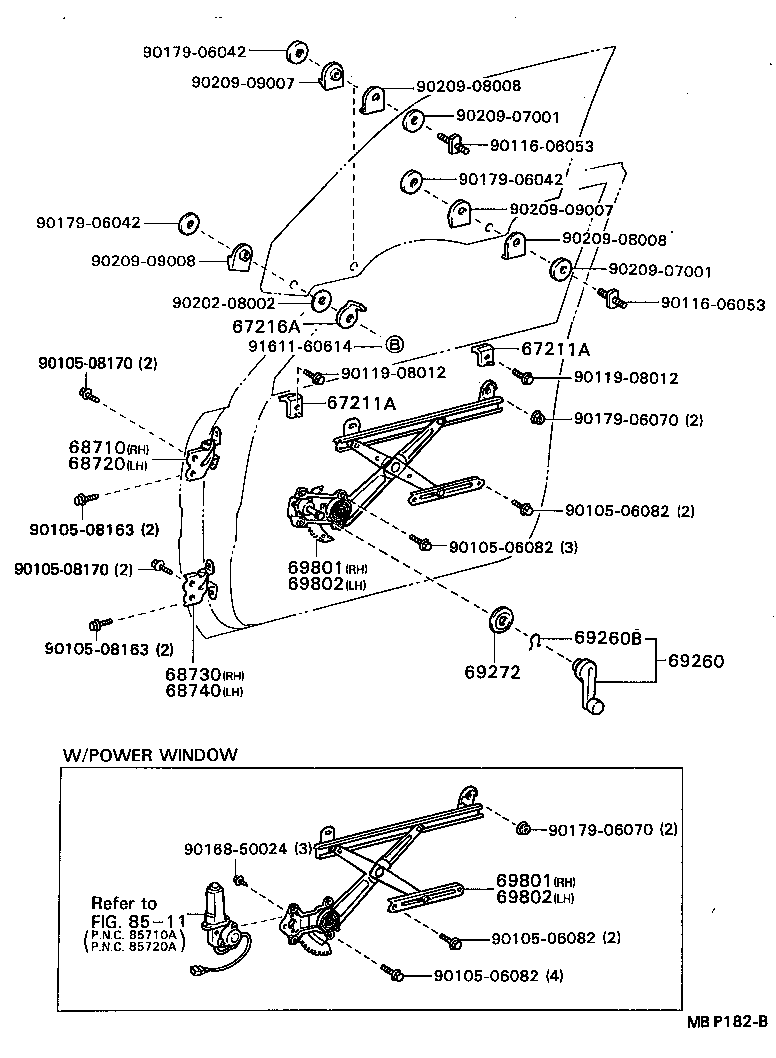

Click highlighted areas on diagram

diagram 67211A 67211A 67216A 68710 68720 68730 68740 69260 69260B 69272 69801 69801 69802 69802 8511 9010506082 9010506082 9010506082 9010506082 9010508163 9010508163 9010508170 9010508170 9011606053 9011606053 9011908012 9011908012 9016850024 9017906042 9017906042 9017906042 9017906070 9017906070 9020208002 9020907001 9020907001 9020908008 9020908008 9020909007 9020909007 9020909008 9161160614
Part # Description Qty Price
67211A - STOP, FRONT DOOR WINDOW, UPPER
67211-32010

SV21,VZV21

 4
67211A - STOP, FRONT DOOR WINDOW, UPPER
67211-32010

SV21,VZV21

 4
67216A - STOPPER, FRONT DOOR GLASS, UPPER NO.2
67216-32010

SV21,VZV21

 2
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-32030

SV21,VZV21

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-32030

SV21,VZV21

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-16020

SV21,VZV21

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-16020

SV21,VZV21

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-03010D0

SV21,VZV21

MAROON,TRIM3#

 2
69260-03010J0

SV21,VZV21

DARK BLUE,TRIM8#

 2
69260-03010B0

SV21,VZV21

MEDIUM GRAY,TRIM1#

 2
69260-2203014

SV21,VZV21

DARK BLUE,TRIM8#

 2
69260-2203026

SV21,VZV21

BROWN,TRIM4#

 2
69260-2203022

SV21,VZV21

MAROON,TRIM3#

 2
69260-2203023

SV21,VZV21

MEDIUM GRAY,TRIM1#

 2
69260-03010E0

SV21,VZV21

BROWN,TRIM4#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90080-52001

SV21,VZV21

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69268-03010

SV21,VZV21

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-32030

SV21..DX,LE

W(POWER WINDOW)

 1
69801-03010

SV21,VZV21..DX,LE

W(POWER WINDOW)

 1
69810-03010

SV21,VZV21

 1
69810-32050

SV21

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-32030

SV21..DX,LE

W(POWER WINDOW)

 1
69801-03010

SV21,VZV21..DX,LE

W(POWER WINDOW)

 1
69810-03010

SV21,VZV21

 1
69810-32050

SV21

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-03010

SV21,VZV21..DX,LE

W(POWER WINDOW)

 1
69802-32030

SV21..DX,LE

W(POWER WINDOW)

 1
69820-32050

SV21

 1
69820-03010

SV21,VZV21

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-03010

SV21,VZV21..DX,LE

W(POWER WINDOW)

 1
69802-32030

SV21..DX,LE

W(POWER WINDOW)

 1
69820-32050

SV21

 1
69820-03010

SV21,VZV21

 1
Common parts
90105-06082
90105-08163
90105-08170
90116-06053
90119-08012
90168-50024
90179-06042
90179-06070
90202-08002
90209-07001
90209-08008
90209-09007
90209-09008
91611-60614
Linked diagrams
8511
