SV21L-AEPNKA (1988)
Toyota Camry (Nap)
Production
Jul 1988
-
Sep 1991
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8807- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57206A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2 | ||||
| 57206-32010 |
SV21,VZV21 |
1 | ||
| 58027A - REINFORCE SUB-ASSY, SEAT BELT ANCHOR | ||||
| 58027-32020 |
SV21,VZV21 |
1 | ||
| 58102A - REINFORCEMENT SUB-ASSY, FRONT FLOOR | ||||
| 58102-03900 |
SV21,VZV21 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-03010 |
SV21,VZV21..4FC |
1 | ||
| 58131A - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 | ||||
| 58131-32010 |
SV21,VZV21 |
2 | ||
| 58131A - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 | ||||
| 58131-32010 |
SV21,VZV21 |
2 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58107-03010 |
SV21,VZV21 |
1 | ||
| 58207 - BRACKET SUB-ASSY, PARKING BRAKE CABLE, NO.1 | ||||
| 58207-32020 |
SV21,VZV21 |
1 | ||
| 58367 - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-22040 |
SV21,VZV21 |
1 | ||
| 58369B - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-32010 |
SV21,VZV21 |
1 | ||
| 58396A - BRACKET, WIRE HARNESS CLAMP | ||||
| 58396-32010 |
SV21,VZV21 |
1 | ||
| Common parts | ||||
| 90119-11012 | ||||
| 90950-01005 | ||||
| 90950-01060 | ||||
(8807- )

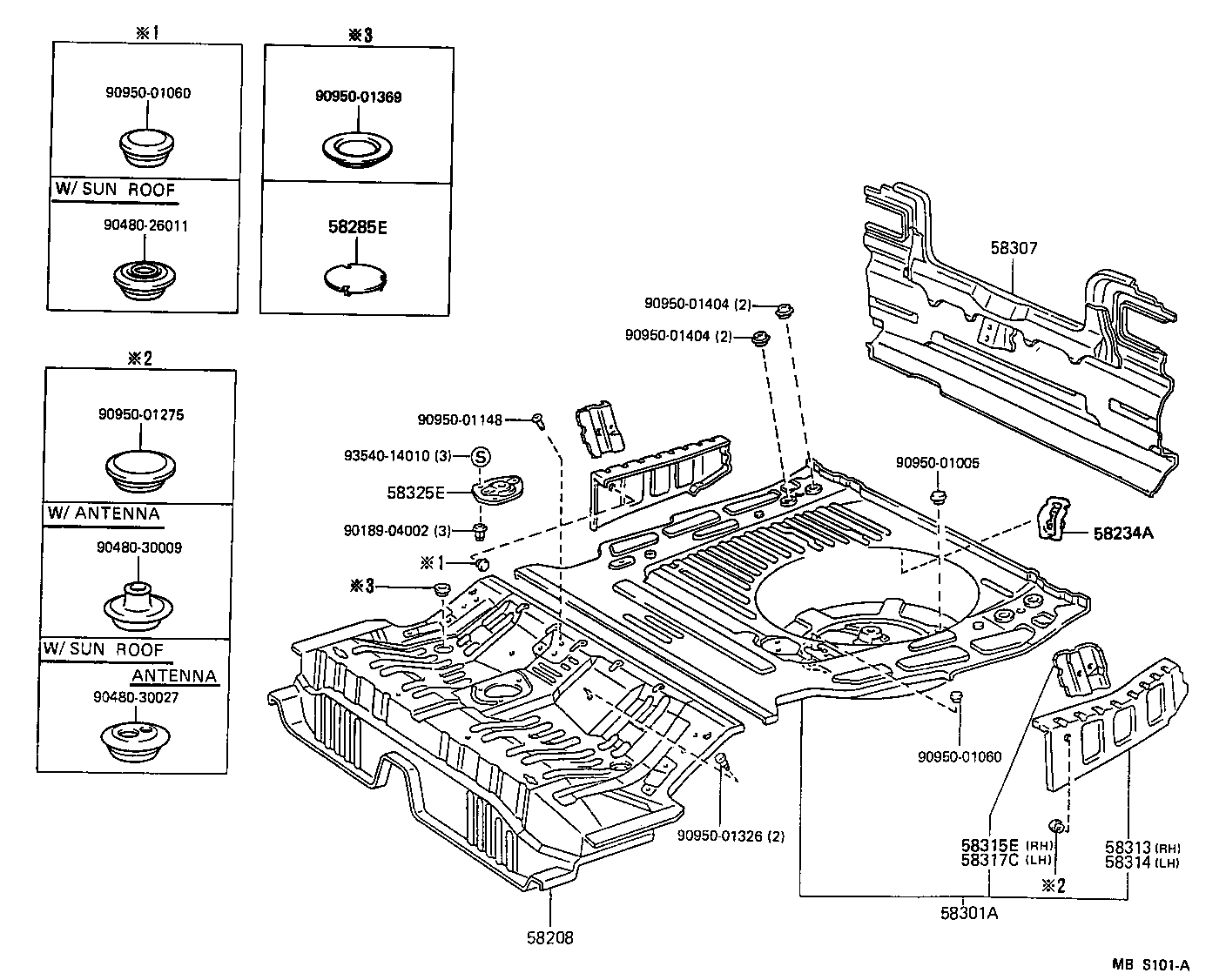

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58208 - PAN, CENTER FLOOR | ||||
| 58201-03010 |
SV21,VZV21..LE |
1 | ||
| 58234A - BRACKET, EXHAUST PIPE MOUNTING, INNER | ||||
| 58234-32020 |
SV21,VZV21 |
1 | ||
| 58285E - COVER, CENTER FLOOR HOLE | ||||
| 58285-20030 |
SV21,VZV21 |
2 | ||
| 58301A - PANEL SUB-ASSY, REAR FLOOR | ||||
| 58301-03010 |
SV21,VZV21 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-03010 |
SV21,VZV21 |
1 | ||
| 58307-03020 |
SV21..DX,LE |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58313-32051 |
SV21,VZV21 |
1 | ||
| 58313-32050 |
SV21 |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-32051 |
SV21,VZV21 |
1 | ||
| 58314-32050 |
SV21 |
1 | ||
| 58315E - EXTENSION REAR FLOOR SIDE PANEL, FRONT RH | ||||
| 58315-03010 |
SV21,VZV21 |
1 | ||
| 58317C - EXTENSION, REAR FLOOR SIDE PANEL, REAR LH | ||||
| 58317-03010 |
SV21,VZV21 |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-32020 |
SV21,VZV21 |
1 | ||
| Common parts | ||||
| 90189-04002 | ||||
| 90480-26011 | ||||
| 90480-30009 | ||||
| 90480-30027 | ||||
| 90950-01005 | ||||
| 90950-01060 | ||||
| 90950-01148 | ||||
| 90950-01275 | ||||
| 90950-01326 | ||||
| 90950-01369 | ||||
| 90950-01404 | ||||
| 93540-14010 | ||||
