SV21L-AEPDKA (1988)
Toyota Camry (Nap)
Production
Jul 1988
-
Sep 1991
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8807- )

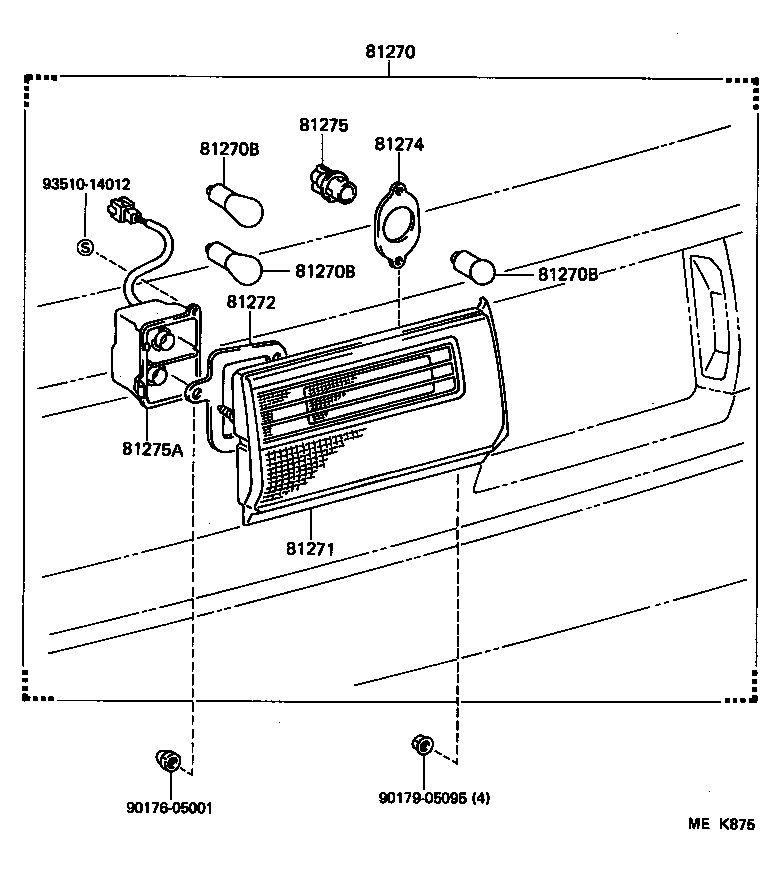

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81690-03011 |
SV21,VZV21 LH |
1 | ||
| 81270-03021 |
SV21,VZV21 RH |
1 | ||
| 81270-03011 |
SV21,VZV21 RH |
1 | ||
| 81690-03021 |
SV21,VZV21 LH |
1 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 90081-81002 |
SV21,VZV21 12V 27/8W |
2 | ||
| 90081-81004 |
SV21,VZV21 12V 27W |
2 | ||
| 90081-81005 |
SV21,VZV21 12V 7.5W |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 90081-81002 |
SV21,VZV21 12V 27/8W |
2 | ||
| 90081-81004 |
SV21,VZV21 12V 27W |
2 | ||
| 90081-81005 |
SV21,VZV21 12V 7.5W |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 90081-81002 |
SV21,VZV21 12V 27/8W |
2 | ||
| 90081-81004 |
SV21,VZV21 12V 27W |
2 | ||
| 90081-81005 |
SV21,VZV21 12V 7.5W |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-03020 |
SV21,VZV21 RH |
1 | ||
| 81691-03010 |
SV21,VZV21 LH |
1 | ||
| 81271-03010 |
SV21,VZV21 RH |
1 | ||
| 81691-03020 |
SV21,VZV21 LH |
1 | ||
| 81272 - GASKET, LICENSE PLATE LAMP LENS | ||||
| 81272-03010 |
SV21,VZV21 |
2 | ||
| 81274 - GASKET, LICENSE PLATE LAMP BODY | ||||
| 81274-03010 |
SV21,VZV21 |
2 | ||
| 81275 - SOCKET AND WIRE, LICENSE PLATE LAMP | ||||
| 81275-03020 |
SV21,VZV21 |
2 | ||
| 81275A - CORD, LICENSE PLATE LAMP | ||||
| 81275-03010 |
SV21,VZV21 RH |
1 | ||
| 81695-03010 |
SV21,VZV21 LH |
1 | ||
| 81695-03020 |
SV21,VZV21 LH |
1 | ||
| 81275-03030 |
SV21,VZV21 RH |
1 | ||
| Common parts | ||||
| 90176-05001 | ||||
| 90179-05095 | ||||
| 93510-14012 | ||||
