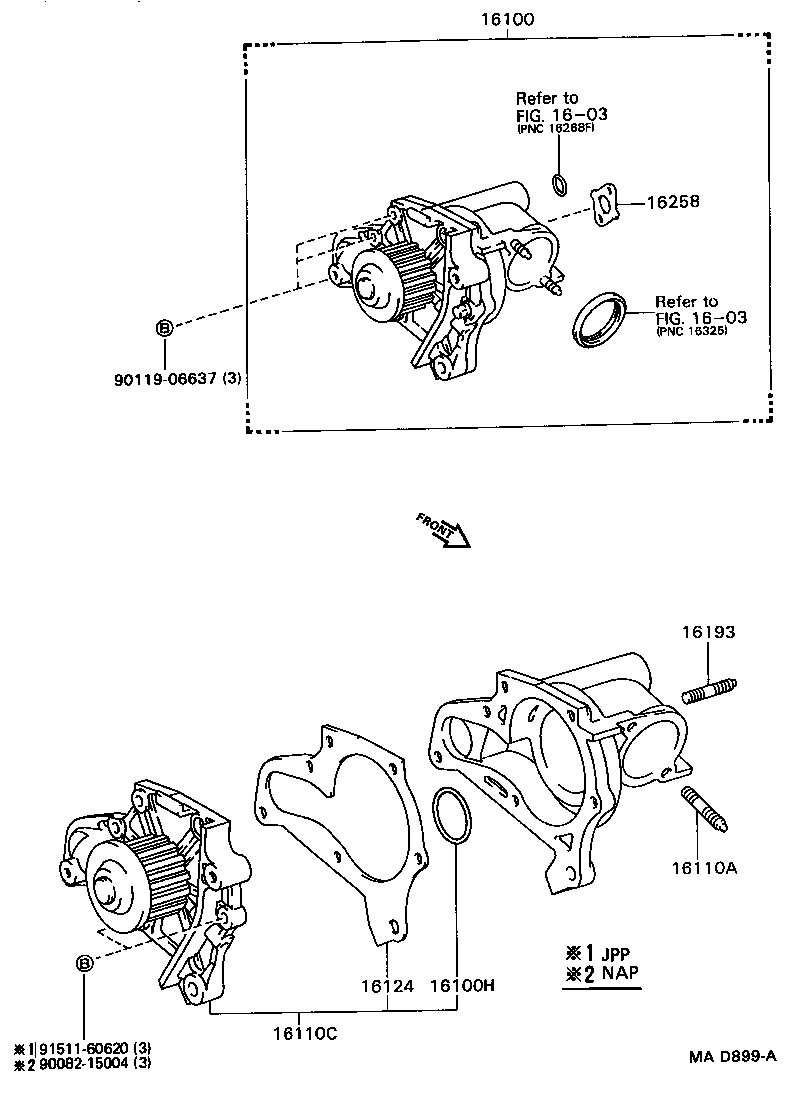

Toyota Camry (nap) SV21 WATER PUMP

Part #	Description	Period	Qty
16100 - PUMP ASSY, ENGINE WATER
16100-79075	3SFE..SV21	07/1988 - 03/1991	1
16100-09030	3SFE..SV21	08/1989 - 09/1991	1
16100-79185	3SFE..SV21	03/1991 - 09/1991	1
16100H - RING, O(FOR WATER PUMP)
90301-37005	3SFE..SV21	08/1988 - 09/1991	1
96711-24037	3SFE..SV21	07/1988 - 08/1988	1
16110A - BOLT, STUD(FOR WATER OUTLET SETTING)
16193-03010	3SFE..SV21 USA SOURCE	08/1989 - 09/1991	2
16193-63010	3SFE..SV21	07/1988 - 09/1991	2
16110C - PUMP ASSY, WATER, W/O COVER
16110-09010	3SFE..SV21	12/1989 - 09/1991	1
16110-79025	3SFE..SV21	07/1988 - 09/1991	1
16124 - GASKET, WATER PUMP COVER
16124-74020	3SFE..SV21	09/1988 - 09/1991	1
16124-03010	3SFE..SV21 USA SOURCE	08/1989 - 09/1991	1
16193 - BOLT, STUD(FOR WATER PUMP COVER)
90080-11042	3SFE..SV21 USA SOURCE	08/1989 - 09/1991	2
90029-01500	3SFE..SV21	07/1988 - 09/1991	2
16258 - GASKET(FOR HEATER RETURN)
16258-15011	3SFE..SV21	07/1988 - 07/1989	1
16258-74020	3SFE..SV21	07/1989 - 09/1991	1
Common parts
90082-15004
90119-06637
91511-60620
Linked diagrams
1603

SV21L-AEPDKA (1988)
