Toyota Camry (nap) SV21 INTERIOR LAMP

Part #	Description	Period	Qty
81260A - LAMP ASSY, MAP
81260-03020D0	SV21,VZV21..DX MAROON,TRIM3#	07/1988 - 09/1990	1
81260-03020B0	SV21,VZV21..DX LIGHT GRAY,TRIM1#	07/1988 - 09/1990	1
81260-03020E0	SV21,VZV21..DX LIGHT BROWN,TRIM4#	07/1988 - 09/1990	1
81260-03020J0	SV21,VZV21..DX LIGHT BLUE,TRIM8#	07/1988 - 09/1990	1
81260A - LAMP ASSY, MAP
81260-03020D0	SV21,VZV21..DX MAROON,TRIM3#	07/1988 - 09/1990	1
81260-03020B0	SV21,VZV21..DX LIGHT GRAY,TRIM1#	07/1988 - 09/1990	1
81260-03020E0	SV21,VZV21..DX LIGHT BROWN,TRIM4#	07/1988 - 09/1990	1
81260-03020J0	SV21,VZV21..DX LIGHT BLUE,TRIM8#	07/1988 - 09/1990	1
81260C - BULB(FOR MAP LAMP)
90081-81007	SV21,VZV21..DX,LE 12V 10W	07/1988 - 09/1991	1
81260C - BULB(FOR MAP LAMP)
90081-81007	SV21,VZV21..DX,LE 12V 10W	07/1988 - 09/1991	1
81261 - LENS AND COVER, MAP LAMP
81261-03010E0	SV21,VZV21..DX,LE LIGHT BROWN,TRIM4#	07/1988 - 09/1990	1
81261-03010B0	SV21,VZV21..DX,LE LIGHT GRAY,TRIM1#	07/1988 - 09/1990	1
81261-03010J0	SV21,VZV21..DX,LE LIGHT BLUE,TRIM8#	07/1988 - 09/1990	1
81261-03010D0	SV21,VZV21..DX,LE MAROON,TRIM3#	07/1988 - 09/1990	1
81261 - LENS AND COVER, MAP LAMP
81261-03010E0	SV21,VZV21..DX,LE LIGHT BROWN,TRIM4#	07/1988 - 09/1990	1
81261-03010B0	SV21,VZV21..DX,LE LIGHT GRAY,TRIM1#	07/1988 - 09/1990	1
81261-03010J0	SV21,VZV21..DX,LE LIGHT BLUE,TRIM8#	07/1988 - 09/1990	1
81261-03010D0	SV21,VZV21..DX,LE MAROON,TRIM3#	07/1988 - 09/1990	1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-03010	SV21,VZV21	07/1988 - 09/1991	1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
90081-81006	SV21,VZV21 12V 3.8W	07/1988 - 09/1991	1
81331A - COVER, LUGGAGE COMPARTMENT LAMP
81331-03010	SV21,VZV21	07/1988 - 09/1991	1
81870D - LAMP ASSY, KEY CYLINDER
81870-32040	SV21,VZV21..DX,LE	03/1990 - 09/1991	1
81870E - BULB, KEY CYLINDER LAMP
90981-11018	SV21,VZV21..DX,LE 12V 1.2W W/O SOCKET	03/1990 - 09/1991	1
Common parts
93315-14010
93319-14010
93560-14012
93560-14016

Part #	Description	Period	Qty
81240 - LAMP ASSY, ROOM, NO.1
81240-03010E0	SV21,VZV21 LIGHT BROWN,TRIM4#	07/1988 - 09/1990	1
81240-03010B0	SV21,VZV21 LIGHT GRAY,TRIM1#	07/1988 - 09/1990	1
81240-03010D0	SV21,VZV21 MAROON,TRIM3#	07/1988 - 09/1990	1
81240-03010J0	SV21,VZV21 LIGHT BLUE,TRIM8#	07/1988 - 09/1990	1
81240B - BULB, ROOM LAMP, NO.1
90080-81013	SV21,VZV21 12V 10W	07/1988 - 09/1991	1
81241 - LENS, ROOM LAMP, NO.1
81241-03010	SV21,VZV21	07/1988 - 09/1991	1
81260 - LAMP ASSY, GLOVE BOX
81260-32071	SV21,VZV21..DX,LE	07/1988 - 09/1991	1
81260 - LAMP ASSY, GLOVE BOX
81260-32071	SV21,VZV21..DX,LE	07/1988 - 09/1991	1
81260B - BULB(FOR GLOVE BOX)
90981-11018	SV21,VZV21..DX,LE 12V 1.2W W/O SOCKET	07/1988 - 09/1991	1
81260B - BULB(FOR GLOVE BOX)
90981-11018	SV21,VZV21..DX,LE 12V 1.2W W/O SOCKET	07/1988 - 09/1991	1
Common parts
90164-45006
93510-54020

SV21L-AEMDKA (1988)

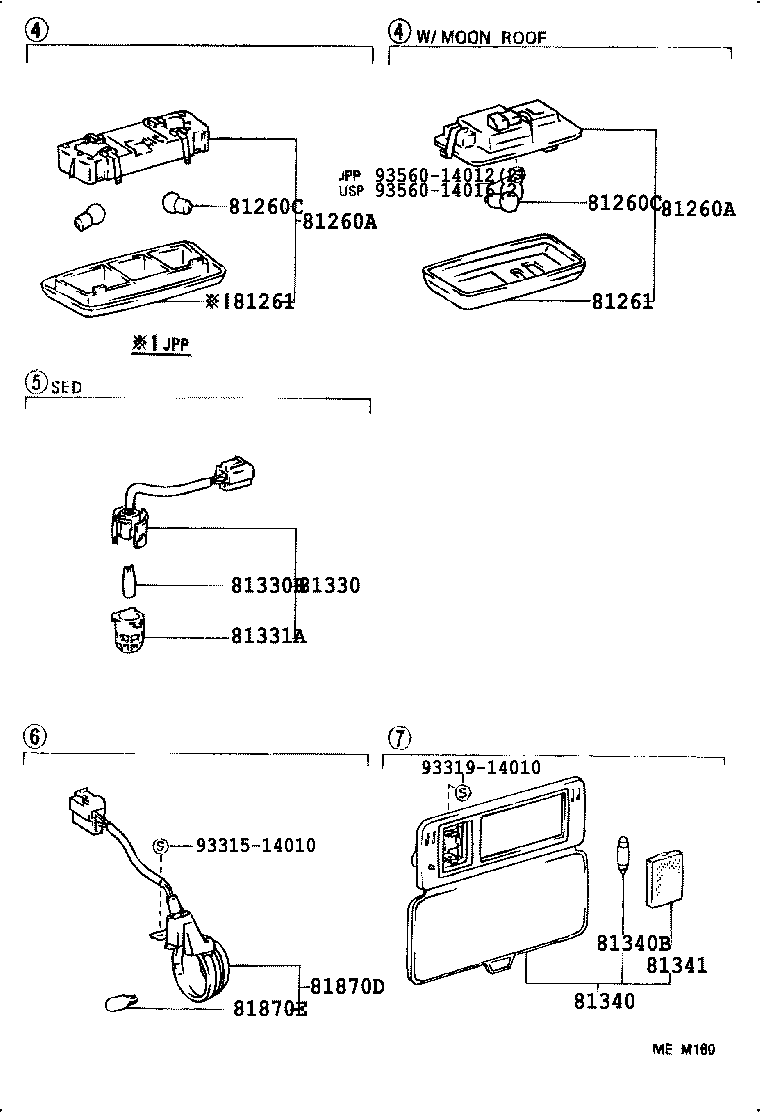

ILLUST NO. 2 OF 2(8807- )

ILLUST NO. 1 OF 2(8807- )
