SV21L-AEMDKA (1988)
Toyota Camry (Nap)
ILLUST NO. 3 OF 3(8807-8909)
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 3 OF 3(8909-9009)
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 3 OF 3(9009- )
| Part # | Description | Qty | Price |
|---|

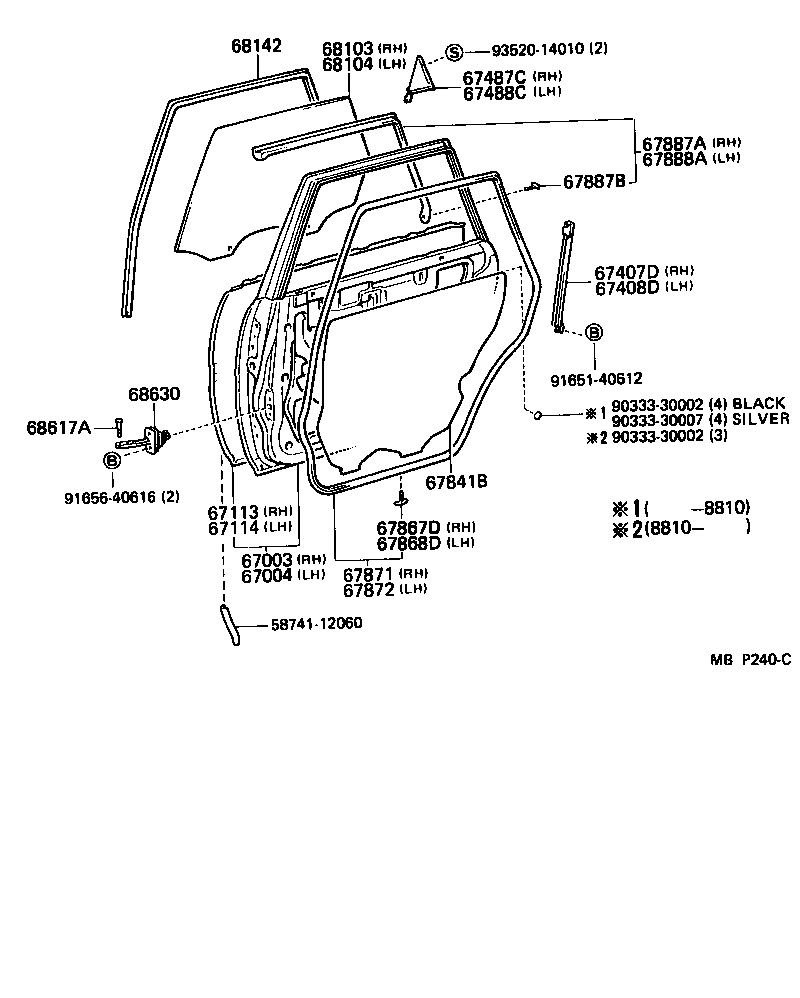

ILLUST NO. 1 OF 3(8807- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-03010 |
SV21,VZV21 |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-03010 |
SV21,VZV21 |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-03010 |
SV21,VZV21 |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-03010 |
SV21,VZV21 |
1 | ||
| 67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH | ||||
| 67407-03010 |
SV21,VZV21 |
1 | ||
| 67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH | ||||
| 67408-03010 |
SV21,VZV21 |
1 | ||
| 67487C - SEAL, REAR DOOR REAR GUIDE, RH | ||||
| 67487-32030 |
SV21,VZV21 |
1 | ||
| 67488C - SEAL, REAR DOOR REAR GUIDE, LH | ||||
| 67488-32030 |
SV21,VZV21 |
1 | ||
| 67841B - COVER, REAR DOOR SERVICE HOLE | ||||
| 67841-32050 |
SV21,VZV21 |
2 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67868-03040 |
SV21,VZV21 |
17 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-03040 |
SV21,VZV21 |
17 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-03010 |
SV21,VZV21 |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-03010 |
SV21,VZV21 |
1 | ||
| 67887A - WEATHERSTRIP, REAR DOOR, NO.2 RH | ||||
| 67887-03010 |
SV21,VZV21 |
1 | ||
| 67887B - CLIP(FOR REAR DOOR WEATHERSTRIP) | ||||
| 67869-02010 |
SV21,VZV21 |
2 | ||
| 67888A - WEATHERSTRIP, REAR DOOR, NO.2 LH | ||||
| 67888-03010 |
SV21,VZV21 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-03010 |
SV21,VZV21 *TT,T=3.5 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-03010 |
SV21,VZV21 *TT,T=3.5 |
1 | ||
| 68142 - RUN, REAR DOOR GLASS | ||||
| 68142-32050 |
SV21,VZV21 RH |
1 | ||
| 68152-32010 |
SV21,VZV21 LH |
1 | ||
| 68617A - PIN, REAR DOOR CHECK | ||||
| 68617-32010 |
SV21,VZV21 |
2 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-32031 |
SV21,VZV21 |
2 | ||
| Common parts | ||||
| 58741-12060 | ||||
| 90333-30002 | ||||
| 90333-30007 | ||||
| 91651-40612 | ||||
| 91656-40616 | ||||
| 93520-14010 | ||||

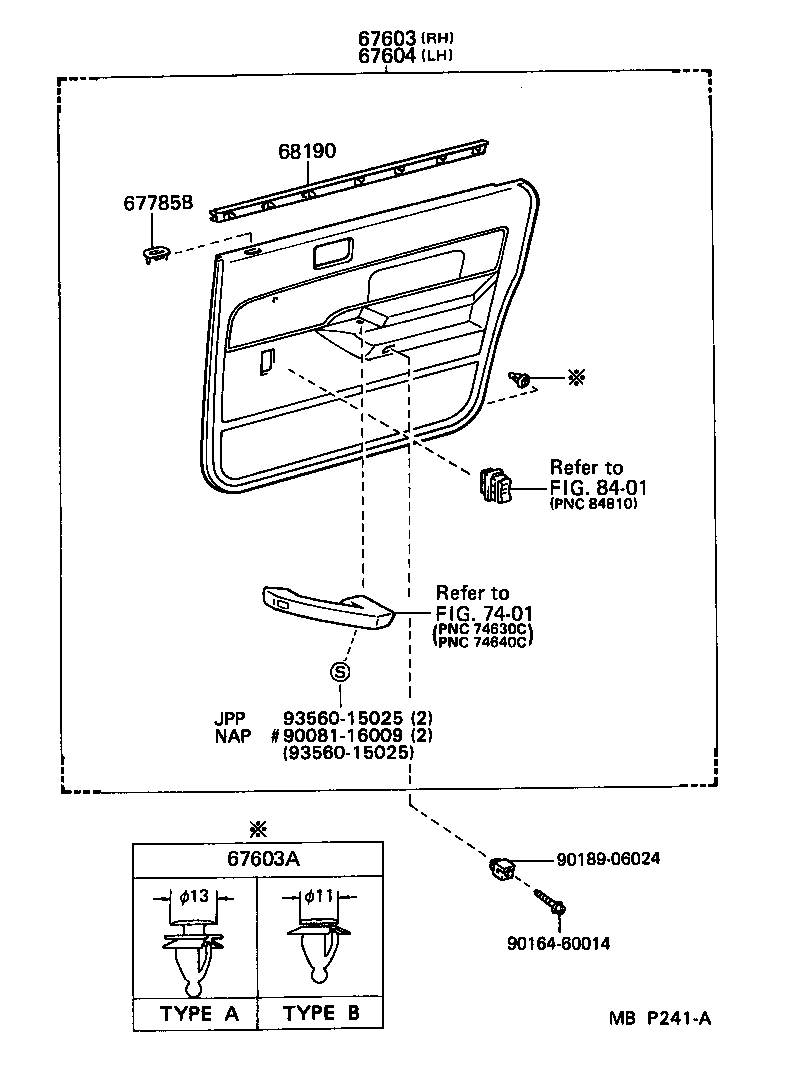

ILLUST NO. 2 OF 3(8807- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-03011E0 |
SV21,VZV21..DX BROWN,TRIM4#,(L) |
1 | ||
| 67630-03011D0 |
SV21,VZV21..DX DARK BLUE,TRIM3# |
1 | ||
| 67630-03011J0 |
SV21,VZV21..DX DARK BLUE,TRIM8#,(L) |
1 | ||
| 67630-03011B0 |
SV21,VZV21..DX MEDIUM GRAY,TRIM1#,(L) |
1 | ||
| 67630-03041J0 |
SV21,VZV21..DX W(POWER WINDOW),DARK BLUE,TRIM8#,(L) |
1 | ||
| 67630-03041E0 |
SV21,VZV21..DX W(POWER WINDOW),BROWN,TRIM4#,(L) |
1 | ||
| 67630-03041D0 |
SV21,VZV21..DX W(POWER WINDOW),MAROON,TRIM3#,(L) |
1 | ||
| 67630-03041B0 |
SV21,VZV21..DX W(POWER WINDOW),MEDIUM GRAY,TRIM1#,(L) |
1 | ||
| 67630-32730B0 |
SV21,VZV21..DX MEDIUM GRAY,TRIM1# |
1 | ||
| 67630-32740B0 |
SV21,VZV21..DX W(POWER WINDOW),MEDIUM GRAY,TRIM1# |
1 | ||
| 67630-32730E0 |
SV21,VZV21..DX BROWN,TRIM4# |
1 | ||
| 67630-32730J0 |
SV21,VZV21..DX DARK BLUE,TRIM8# |
1 | ||
| 67630-32740D0 |
SV21,VZV21..DX W(POWER WINDOW),MAROON,TRIM3# |
1 | ||
| 67630-32730D0 |
SV21,VZV21..DX MAROON,TRIM3# |
1 | ||
| 67630-32740E0 |
SV21,VZV21..DX W(POWER WINDOW),BROWN,TRIM4# |
1 | ||
| 67630-03012B0 |
SV21,VZV21..DX MEDIUM GRAY,TRIM1#,(L) |
1 | ||
| 67630-03042B0 |
SV21,VZV21..DX W(POWER WINDOW),MEDIUM GRAY,TRIM1#,(L) |
1 | ||
| 67630-03042D0 |
SV21,VZV21..DX W(POWER WINDOW),MAROON,TRIM3# |
1 | ||
| 67630-03042E0 |
SV21,VZV21..DX W(POWER WINDOW),BROWN,TRIM4#,(L) |
1 | ||
| 67630-03012E0 |
SV21,VZV21..DX BROWN,TRIM4#,(L) |
1 | ||
| 67630-03012D0 |
SV21,VZV21..DX MAROON,TRIM3#,(L) |
1 | ||
| 67630-32740J0 |
SV21,VZV21..DX W(POWER WINDOW),DARK BLUE,TRIM8# |
1 | ||
| 67630-03012J0 |
SV21,VZV21..DX DARK BLUE,TRIM8#,(L) |
1 | ||
| 67630-03042J0 |
SV21,VZV21..DX W(POWER WINDOW),DARK BLUE,TRIM8#,(L) |
1 | ||
| 67630-32741J0 |
SV21,VZV21..DX W(POWER WINDOW),DARK BLUE,TRIM8# |
1 | ||
| 67630-32731E0 |
SV21,VZV21..DX BROWN,TRIM4# |
1 | ||
| 67630-32731B0 |
SV21,VZV21..DX MEDIUM GRAY,TRIM1# |
1 | ||
| 67630-32731D0 |
SV21,VZV21..DX MAROON,TRIM3# |
1 | ||
| 67630-32731J0 |
SV21,VZV21..DX DARK BLUE,TRIM8# |
1 | ||
| 67630-32741E0 |
SV21,VZV21..DX W(POWER WINDOW),BROWN,TRIM4# |
1 | ||
| 67630-32741B0 |
SV21,VZV21..DX W(POWER WINDOW),MEDIUM GRAY,TRIM1# |
1 | ||
| 67630-32741D0 |
SV21,VZV21..DX W(POWER WINDOW),MAROON,TRIM4# |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-03030 |
SV21,VZV21 TYPE B |
3 | ||
| 67771-03020 |
SV21,VZV21 TYPE A |
5 | ||
| 67771-03040 |
SV21,VZV21..DX,STD TYPE A |
5 | ||
| 67771-03020 |
SV21,VZV21..DX,STD TYPE A |
5 | ||
| 67771-03050 |
SV21,VZV21..DX,STD TYPE B |
3 | ||
| 67771-03030 |
SV21,VZV21..DX,STD TYPE B |
3 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-03011D0 |
SV21,VZV21..DX MAROON,TRIM3#,(L) |
1 | ||
| 67640-03011B0 |
SV21,VZV21..DX MEDIUM GRAY,TRIM1#,(L) |
1 | ||
| 67640-03011E0 |
SV21,VZV21..DX BROWN,TRIM4#,(L) |
1 | ||
| 67640-03011J0 |
SV21,VZV21..DX DARK BLUE,TRIM8#,(L) |
1 | ||
| 67640-03041E0 |
SV21,VZV21..DX W(POWER WINDOW),BROWN,TRIM4#,(L) |
1 | ||
| 67640-03041D0 |
SV21,VZV21..DX W(POWER WINDOW),MAROON,TRIM3#,(L) |
1 | ||
| 67640-32740D0 |
SV21,VZV21..DX W(POWER WINDOW),MAROON,TRIM3# |
1 | ||
| 67640-32730J0 |
SV21,VZV21..DX DARK BLUE,TRIM8# |
1 | ||
| 67640-03041J0 |
SV21,VZV21..DX W(POWER WINDOW),DARK BLUE,TRIM8#,(L) |
1 | ||
| 67640-32740E0 |
SV21,VZV21..DX W(POWER WINDOW),BROWN,TRIM4# |
1 | ||
| 67640-32730D0 |
SV21,VZV21..DX MAROON,TRIM3# |
1 | ||
| 67640-03041B0 |
SV21,VZV21..DX W(POWER WINDOW),MEDIUM GRAY,TRIM1#,(L) |
1 | ||
| 67640-32740J0 |
SV21,VZV21..DX W(POWER WINDOW),DARK BLUE,TRIM8# |
1 | ||
| 67640-32740B0 |
SV21,VZV21..DX W(POWER WINDOW),MEDIUM GRAY,TRIM1# |
1 | ||
| 67640-32730E0 |
SV21,VZV21..DX BROWN,TRIM4# |
1 | ||
| 67640-32730B0 |
SV21,VZV21..DX MEDIUM GRAY,TRIM1# |
1 | ||
| 67640-03012E0 |
SV21,VZV21..DX BROWN,TRIM4#,(L) |
1 | ||
| 67640-32741D0 |
SV21,VZV21..DX W(POWER WINDOW),MAROON,TRIM3# |
1 | ||
| 67640-32731J0 |
SV21,VZV21..DX DARK BLUE,TRIM8# |
1 | ||
| 67640-03042D0 |
SV21,VZV21..DX W(POWER WINDOW),MAROON,TRIM3#,(L) |
1 | ||
| 67640-32731D0 |
SV21,VZV21..DX MAROON,TRIM3# |
1 | ||
| 67640-03012B0 |
SV21,VZV21..DX MEDIUM GRAY,TRIM1#,(L) |
1 | ||
| 67640-32741B0 |
SV21,VZV21..DX W(POWER WINDOW),MEDIUM GRAY,TRIM1# |
1 | ||
| 67640-32731B0 |
SV21,VZV21..DX MEDIUM GRAY,TRIM1# |
1 | ||
| 67640-03012D0 |
SV21,VZV21..DX MAROON,TRIM3#,(L) |
1 | ||
| 67640-03042E0 |
SV21,VZV21..DX W(POWER WINDOW),BROWN,TRIM4#,(L) |
1 | ||
| 67640-03042B0 |
SV21,VZV21..DX W(POWER WINDOW),MEDIUM GRAY,TRIM1#,(L) |
1 | ||
| 67640-03042J0 |
SV21,VZV21..DX W(POWER WINDOW),DARK BLUE,TRIM8#,(L) |
1 | ||
| 67640-32741J0 |
SV21,VZV21..DX W(POWER WINDOW),DARK BLUE,TRIM8# |
1 | ||
| 67640-32741E0 |
SV21,VZV21..DX W(POWER WINDOW),BROWN,TRIM4# |
1 | ||
| 67640-32731E0 |
SV21,VZV21..DX BROWN,TRIM4# |
1 | ||
| 67640-03012J0 |
SV21,VZV21..DX DARK BLUE,TRIM8#,(L) |
1 | ||
| 67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 69751-02010B1 |
SV21,VZV21 MEDIUM GRAY,TRIM1# |
2 | ||
| 69751-03010B0 |
SV21 MEDIUM GRAY,TRIM1# |
2 | ||
| 69751-03010J0 |
SV21 DARK BLUE,TRIM8# |
2 | ||
| 69751-02010B1 |
SV21,VZV21..DX,STD MEDIUM GRAY,TRIM1# |
2 | ||
| 69751-02010D0 |
SV21,VZV21 MAROON,TRIM3# |
2 | ||
| 69751-03010D0 |
SV21 MAROON,TRIM3# |
2 | ||
| 69751-02010D0 |
SV21,VZV21..DX,STD MAROON,TRIM3# |
2 | ||
| 69751-02010E0 |
SV21,VZV21..DX,STD BROWN,TRIM4# |
2 | ||
| 69751-03010E0 |
SV21 BROWN,TRIM4# |
2 | ||
| 69751-02010J0 |
SV21,VZV21..DX,STD DARK BLUE,TRIM8# |
2 | ||
| 69751-02010E0 |
SV21,VZV21 BROWN,TRIM4# |
2 | ||
| 69751-02010J0 |
SV21,VZV21 DARK BLUE,TRIM8# |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-03010 |
SV21,VZV21 |
2 | ||
| Common parts | ||||
| 90081-16009 | ||||
| 90164-60014 | ||||
| 90189-06024 | ||||
| 93560-15025 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8401 | ||||
