Toyota Camry (nap) SV21 ROOF PANEL & BACK WINDOW GLASS

Manufacturers Home
Toyota
US
CAMRY (NAP)
SV21L-AEMDKA (1988)
6104 - ROOF PANEL & BACK WINDOW GLASS

SV21L-AEMDKA (1988)

Toyota Camry (Nap)

Production Jul 1988 - Sep 1991

Engine 3SFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

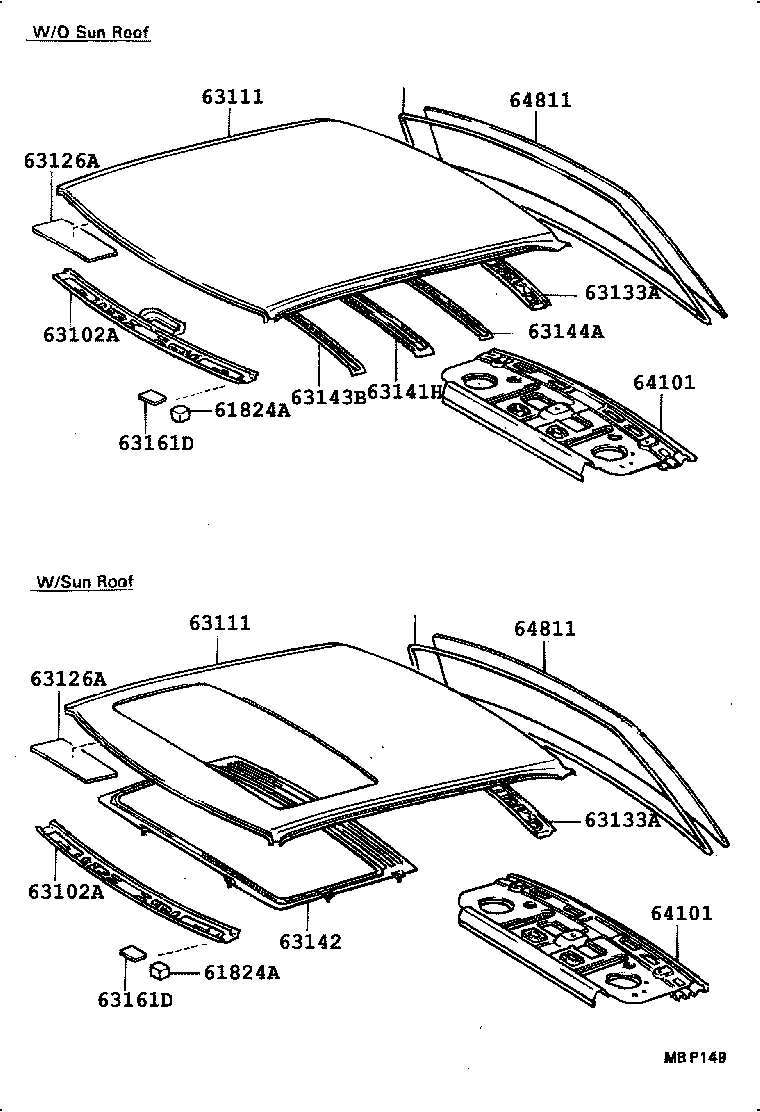

(8807- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
61824A - PLATE, NOISE CONTROL, NO.1
61824-03020	SV21,VZV21 60 X 60 X 60	07/1988 - 09/1991	2
61824-03030	SV21,VZV21 60 X 60 X 30	07/1988 - 09/1991	2
61824A - PLATE, NOISE CONTROL, NO.1
61824-03020	SV21,VZV21 60 X 60 X 60	07/1988 - 09/1991	2
61824-03030	SV21,VZV21 60 X 60 X 30	07/1988 - 09/1991	2
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-03020	SV21,VZV21..DX,STD	07/1988 - 09/1991	1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-03020	SV21,VZV21..DX,STD	07/1988 - 09/1991	1
63111 - PANEL, ROOF
63111-03010	SV21,VZV21	07/1988 - 09/1991	1
63111-03020	SV21,VZV21..DX,LE W(MOON ROOF)	07/1988 - 09/1991	1
63111 - PANEL, ROOF
63111-03010	SV21,VZV21	07/1988 - 09/1991	1
63111-03020	SV21,VZV21..DX,LE W(MOON ROOF)	07/1988 - 09/1991	1
63126A - DAMPER, WINDSHIELD HEADER PANEL
63126-32010	SV21,VZV21	07/1988 - 09/1991	2
63126A - DAMPER, WINDSHIELD HEADER PANEL
63126-32010	SV21,VZV21	07/1988 - 09/1991	2
63133A - FRAME, BACK WINDOW, UPPER
63133-32020	SV21,VZV21	07/1988 - 09/1991	1
63133A - FRAME, BACK WINDOW, UPPER
63133-32020	SV21,VZV21	07/1988 - 09/1991	1
63141H - REINFORCEMENT, ROOF PANEL, CENTER
63141-32030	SV21,VZV21	07/1988 - 09/1991	1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-32020	SV21,VZV21..DX,LE	07/1988 - 09/1991	1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-32010	SV21,VZV21	07/1988 - 09/1991	1
63144A - REINFORCEMENT, ROOF PANEL, NO.4
63144-32010	SV21,VZV21	07/1988 - 09/1991	1
63161D - PLATE, ROOF HEADER PANEL, NO.1
63161-03010	SV21,VZV21	07/1988 - 09/1991	4
63161D - PLATE, ROOF HEADER PANEL, NO.1
63161-03010	SV21,VZV21	07/1988 - 09/1991	4
64101 - PANEL SUB-ASSY, UPPER BACK
64101-03020	SV21,VZV21..DX,STD	07/1988 - 09/1991	1
64101-03010	SV21,VZV21..DX W(SPLIT SEAT)	08/1989 - 09/1991	1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-03020	SV21,VZV21..DX,STD	07/1988 - 09/1991	1
64101-03010	SV21,VZV21..DX W(SPLIT SEAT)	08/1989 - 09/1991	1
64811 - GLASS, BACK WINDOW
64811-03011	SV21,VZV21 *EHTT,T=4.0,BLUE	07/1988 - 09/1991	1
64811 - GLASS, BACK WINDOW
64811-03011	SV21,VZV21 *EHTT,T=4.0,BLUE	07/1988 - 09/1991	1

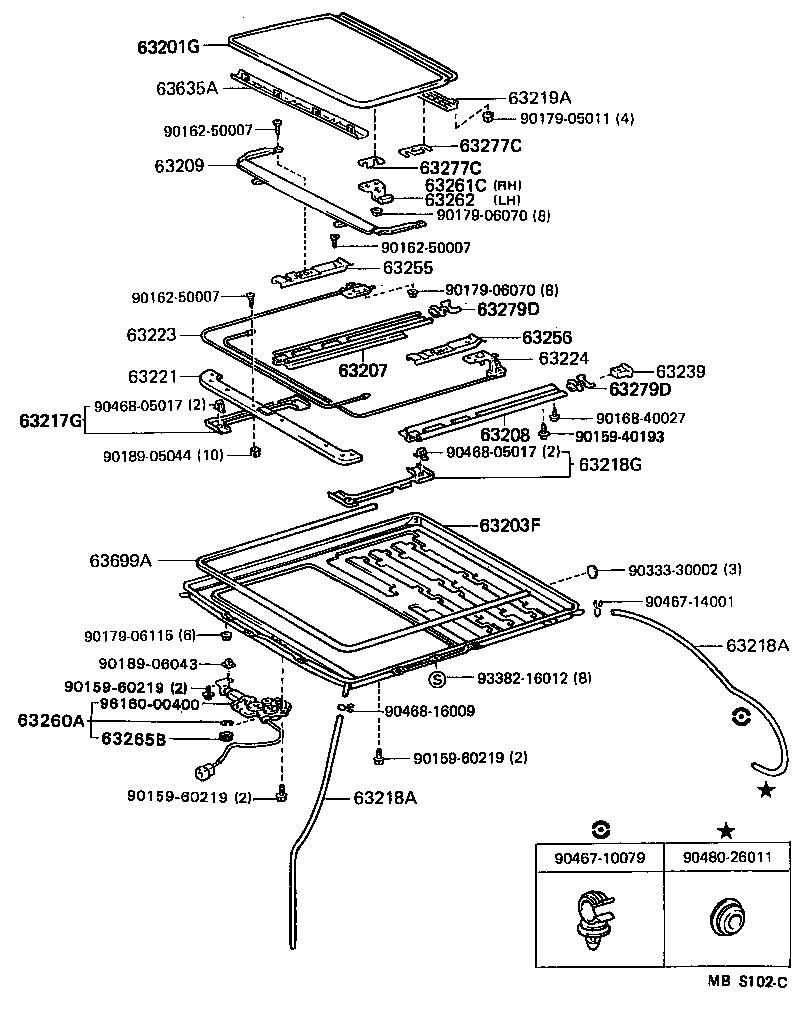

(8807- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
63201G - GLASS SUB-ASSY, SLIDING ROOF
63201-03010	SV21,VZV21..DX,LE *TL,T=4.7,BRONZE	07/1988 - 09/1991	1
63203F - HOUSING SUB-ASSY, SLIDING ROOF
63203-03010	SV21,VZV21..DX,LE	07/1988 - 09/1991	1
63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH
63207-32010	SV21..DX,LE	07/1988 - 12/1988	1
63207-32011	SV21..DX,LE	12/1988 - 08/1989	1
63207-32012	SV21,VZV21..DX,LE	08/1989 - 09/1991	1
63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH
63208-32010	SV21..DX,LE	07/1988 - 12/1988	1
63208-32012	SV21,VZV21..DX,LE	08/1989 - 09/1991	1
63208-32011	SV21..DX,LE	12/1988 - 08/1989	1
63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR
63209-32012	SV21,VZV21..DX,LE	07/1988 - 09/1991	1
63217G - GARNISH, SLIDING ROOF SIDE, RH
63217-32010D0	SV21,VZV21..DX,LE MAROON,TRIM3#	07/1988 - 09/1991	1
63217-32010B0	SV21,VZV21..DX,LE LIGHT GRAY,TRIM1#	07/1988 - 09/1991	1
63217-32010E0	SV21,VZV21..DX,LE LIGHT BROWN,TRIM4#	07/1988 - 09/1991	1
63217-32010J0	SV21,VZV21..DX,LE LIGHT BLUE,TRIM8#	07/1988 - 09/1991	1
63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
63249-32050	SV21,VZV21..DX,LE REAR	07/1988 - 09/1991	2
63249-20080	SV21,VZV21..DX,LE FRONT	07/1988 - 09/1991	2
63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
63249-32050	SV21,VZV21..DX,LE REAR	07/1988 - 09/1991	2
63249-20080	SV21,VZV21..DX,LE FRONT	07/1988 - 09/1991	2
63218G - GARNISH, SLIDING ROOF SIDE, LH
63218-32010D0	SV21,VZV21..DX,LE MAROON,TRIM3#	07/1988 - 09/1991	1
63218-32010E0	SV21,VZV21..DX,LE LIGHT BROWN,TRIM4#	07/1988 - 09/1991	1
63218-32010J0	SV21,VZV21..DX,LE LIGHT BLUE,TRIM8#	07/1988 - 09/1991	1
63218-32010B0	SV21,VZV21..DX,LE LIGHT GRAY,TRIM1#	07/1988 - 09/1991	1
63219A - GARNISH, SLIDING ROOF, REAR
63219-32011B0	SV21,VZV21..DX,LE LIGHT GRAY,TRIM1#	07/1988 - 09/1991	1
63219-32011J0	SV21,VZV21..DX,LE LIGHT BLUE,TRIM8#	07/1988 - 09/1991	1
63219-32011E0	SV21,VZV21..DX,LE LIGHT BROWN,TRIM4#	07/1988 - 09/1991	1
63219-32011D0	SV21,VZV21..DX,LE MAROON,TRIM3#	07/1988 - 09/1991	1
63221 - CASING, SLIDING ROOF CABLE GUIDE
63221-32010	SV21,VZV21..DX,LE	07/1988 - 09/1991	1
63223 - CABLE, SLIDING ROOF DRIVE, RH
63223-32011	SV21,VZV21..DX,LE	08/1989 - 04/1991	1
63223-32010	SV21..DX,LE	07/1988 - 08/1989	1
63223-32012	SV21,VZV21..DX,LE	04/1991 - 09/1991	1
63224 - CABLE, SLIDING ROOF DRIVE, LH
63224-32012	SV21,VZV21..DX,LE	04/1991 - 09/1991	1
63224-32010	SV21..DX,LE	07/1988 - 08/1989	1
63224-32011	SV21,VZV21..DX,LE	08/1989 - 04/1991	1
63239 - STOPPER, SLIDING ROOF PANEL
63239-24010	SV21,VZV21..DX,LE	07/1988 - 09/1991	2
63255 - COVER, SLIDING ROOF GUIDE RAIL, RH
63255-32010	SV21,VZV21..DX,LE	07/1988 - 09/1991	1
63256 - COVER, SLIDING ROOF GUIDE RAIL, LH
63255-32010	SV21,VZV21..DX,LE	07/1988 - 09/1991	1
63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE
63260-32011	SV21,VZV21..DX,LE	03/1991 - 09/1991	1
63260-32010	SV21,VZV21..DX,LE	07/1988 - 03/1991	1
63261C - SHOE, SLIDING ROOF, FRONT RH
63261-32011	SV21,VZV21..DX,LE	12/1989 - 09/1991	1
63261-32010	SV21,VZV21..DX,LE	07/1988 - 12/1989	1
63262 - SHOE, SLIDING ROOF, FRONT LH
63262-32010	SV21,VZV21..DX,LE	07/1988 - 12/1989	1
63262-32011	SV21,VZV21..DX,LE	12/1989 - 09/1991	1
63265B - GEAR, SLIDING ROOF DRIVE
63265-20010	SV21,VZV21..DX,LE	11/1989 - 09/1991	1
63277C - SHIM, SLIDING ROOF PANEL
63277-24010	SV21,VZV21..DX,LE T=1.0,REAR,T=2.0	07/1988 - 09/1991	1
63277-30020	SV21,VZV21..DX,LE T=1.0,REAR,T=1.0	07/1988 - 09/1991	1
63277-32020	SV21,VZV21..DX,LE T=2.0,FRONT,T=1.0	07/1988 - 09/1991	1
63277-32010	SV21,VZV21..DX,LE T=2.0,FRONT,T=2.0	07/1988 - 09/1991	1
63277C - SHIM, SLIDING ROOF PANEL
63277-24010	SV21,VZV21..DX,LE T=1.0,REAR,T=2.0	07/1988 - 09/1991	1
63277-30020	SV21,VZV21..DX,LE T=1.0,REAR,T=1.0	07/1988 - 09/1991	1
63277-32020	SV21,VZV21..DX,LE T=2.0,FRONT,T=1.0	07/1988 - 09/1991	1
63277-32010	SV21,VZV21..DX,LE T=2.0,FRONT,T=2.0	07/1988 - 09/1991	1
63279D - STOPPER, SLIDING ROOF GUIDE RAIL
63279-32010	SV21,VZV21..DX,LE	04/1989 - 09/1991	2
63279D - STOPPER, SLIDING ROOF GUIDE RAIL
63279-32010	SV21,VZV21..DX,LE	04/1989 - 09/1991	2
63635A - GARNISH, SLIDING ROOF, FRONT
63635-32011B0	SV21,VZV21..DX,LE LIGHT GRAY,TRIM1#	07/1988 - 09/1991	1
63635-32011D0	SV21,VZV21..DX,LE MAROON,TRIM3#	07/1988 - 09/1991	1
63635-32011E0	SV21,VZV21..DX,LE LIGHT BROWN,TRIM4#	07/1988 - 09/1991	1
63635-32011J0	SV21,VZV21..DX,LE LIGHT BLUE,TRIM8#	07/1988 - 09/1991	1
63699A - SEAL, SLIDING ROOF GUIDE RAIL
63699-12040	SV21,VZV21..DX,LE	07/1988 - 09/1991	1
Common parts
90159-40193
90159-60219
90162-50007
90168-40027
90179-05011
90179-06070
90179-06115
90189-05044
90189-06043
90333-30002
90467-10079
90467-14001
90468-05017
90468-16009
90480-26011
93382-16012
96160-00400
