SV21L-AEMBKA (1988)
Toyota Camry (Nap)
(8807- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

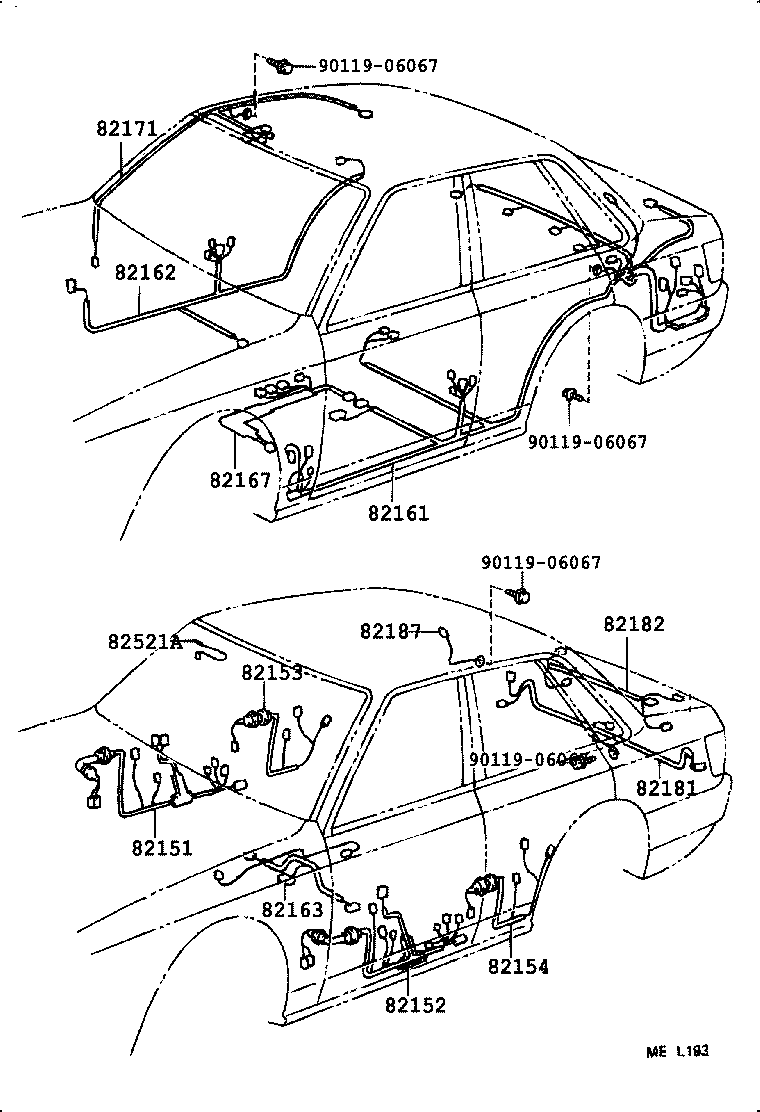

| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-03012 |
SV21,VZV21..DX,STD |
1 | ||
| 82151-03011 |
SV21..DX,STD |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-03011 |
SV21..DX,STD |
1 | ||
| 82152-03012 |
SV21,VZV21..DX,STD |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-03031 |
SV21..STD |
1 | ||
| 82161-03030 |
SV21..STD |
1 | ||
| 82161-03032 |
SV21..STD |
1 | ||
| 82161-03033 |
SV21..STD |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-03011 |
SV21 |
1 | ||
| 82162-03012 |
SV21,VZV21 |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-03013 |
SV21,VZV21 |
1 | ||
| 82163-03011 |
SV21 |
1 | ||
| 82163-03012 |
SV21,VZV21 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-03011 |
SV21..DX,STD |
1 | ||
| 82171-03012 |
SV21,VZV21..DX,STD |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-03011 |
SV21 |
1 | ||
| 82181-03012 |
SV21,VZV21 |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-03011 |
SV21 |
1 | ||
| 82182-03012 |
SV21,VZV21 |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-03010 |
SV21,VZV21 |
1 | ||
| Common parts | ||||
| 90119-06067 | ||||
(8807- )
REPAIR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-22020 |
SV21,VZV21 |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-22050 |
SV21,VZV21 |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-32010 |
SV21,VZV21 |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-22010 |
SV21,VZV21 |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-20050 |
SV21,VZV21 |
1 | ||
| Common parts | ||||
| 82981-22020 | ||||
| 82982-22050 | ||||
| 82983-32010 | ||||
| 82984-22010 | ||||
| 82991-20050 | ||||

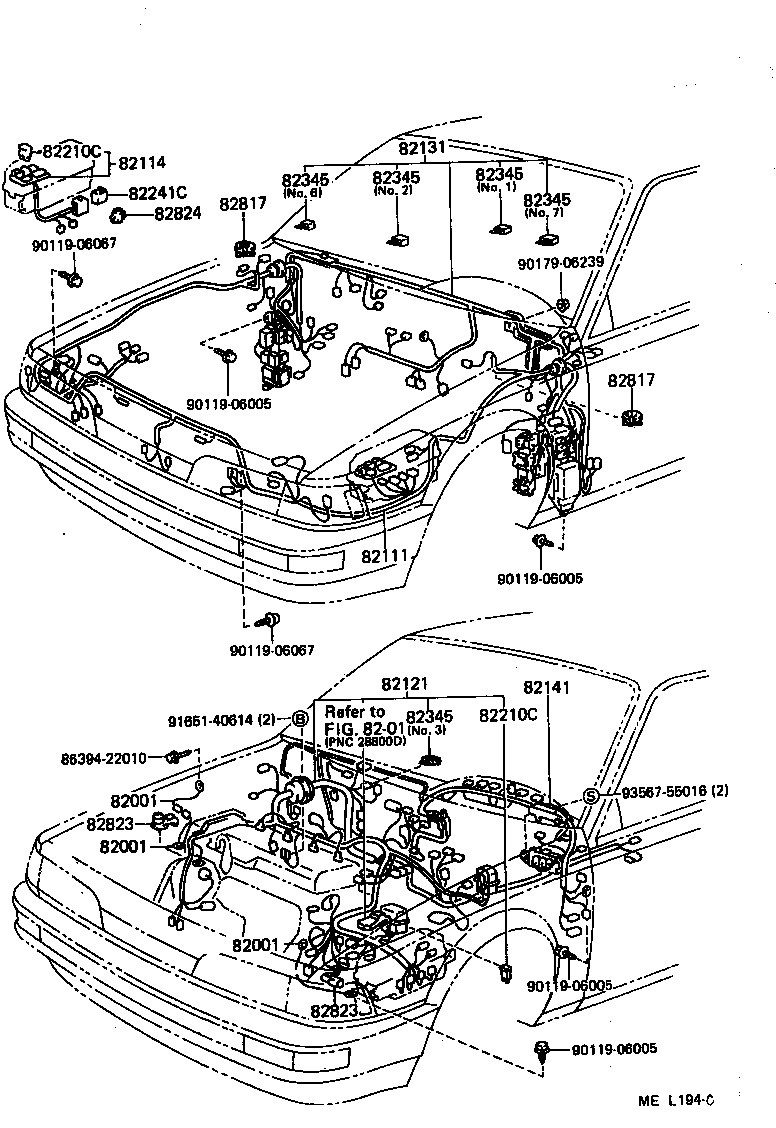

(8807- )SV21
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07287 |
SV21,VZV21 SUSPENSION TOWER |
1 | ||
| 90980-07280 |
SV21 ENGINE HANGER |
1 | ||
| 90980-07136 |
SV21 TRANSMISSION |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07287 |
SV21,VZV21 SUSPENSION TOWER |
1 | ||
| 90980-07280 |
SV21 ENGINE HANGER |
1 | ||
| 90980-07136 |
SV21 TRANSMISSION |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07287 |
SV21,VZV21 SUSPENSION TOWER |
1 | ||
| 90980-07280 |
SV21 ENGINE HANGER |
1 | ||
| 90980-07136 |
SV21 TRANSMISSION |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-03023 |
SV21,VZV21 W(CRUISE CONTROL) |
1 | ||
| 82111-03013 |
SV21,VZV21 |
1 | ||
| 82111-03011 |
SV21 |
1 | ||
| 82111-03021 |
SV21 W(CRUISE CONTROL) |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-03010 |
SV21 |
1 | ||
| 82114-03011 |
SV21 |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-3H051 |
SV21..5F (J) |
1 | ||
| 82121-3H050 |
SV21..5F |
1 | ||
| 82121-3H052 |
SV21..5F (J) |
1 | ||
| 82121-03011 |
SV21..5F (L) |
1 | ||
| 82121-03010 |
SV21..5F (L) |
1 | ||
| 82121-3H053 |
SV21..5F (J) |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-03060 |
SV21..STD |
1 | ||
| 82131-03061 |
SV21..STD |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-03032 |
SV21..STD |
1 | ||
| 82141-03030 |
SV21..STD |
1 | ||
| 82141-03031 |
SV21..STD |
1 | ||
| 82141-03033 |
SV21..STD |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
SV21 40A,TERM.:FEMALE,GRN |
2 | ||
| 90982-08203 |
SV21 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08189 |
SV21,VZV21 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08253 |
SV21,VZV21 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08203 |
SV21 80A,TERM.:MALE,BLK |
2 | ||
| 90982-08188 |
SV21,VZV21 30A,TERM.:FEMALE,PNK |
2 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
SV21 40A,TERM.:FEMALE,GRN |
2 | ||
| 90982-08203 |
SV21 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08189 |
SV21,VZV21 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08253 |
SV21,VZV21 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08203 |
SV21 80A,TERM.:MALE,BLK |
2 | ||
| 90982-08188 |
SV21,VZV21 30A,TERM.:FEMALE,PNK |
2 | ||
| 82241C - WIRE, RELAY | ||||
| 82241-32020 |
SV21;VZV21..DX |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
SV21,VZV21 COWL WIRE,NO.7 |
1 | ||
| 82345-32010 |
SV21,VZV21 COWL WIRE,NO.6 |
1 | ||
| 82345-32010 |
VZV21..DX;SV21..STD;SV21..5F..DX COWL WIRE,NO.6 |
1 | ||
| 82345-20040 |
SV21,VZV21 COWL WIRE,NO.2 |
1 | ||
| 82345-12050 |
SV21,VZV21 COWL WIRE,NO.1 |
1 | ||
| 82345-12050 |
VZV21..DX;SV21..STD;SV21..5F..DX COWL WIRE,NO.1 |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
SV21,VZV21 COWL WIRE,NO.7 |
1 | ||
| 82345-32010 |
SV21,VZV21 COWL WIRE,NO.6 |
1 | ||
| 82345-32010 |
VZV21..DX;SV21..STD;SV21..5F..DX COWL WIRE,NO.6 |
1 | ||
| 82345-20040 |
SV21,VZV21 COWL WIRE,NO.2 |
1 | ||
| 82345-12050 |
SV21,VZV21 COWL WIRE,NO.1 |
1 | ||
| 82345-12050 |
VZV21..DX;SV21..STD;SV21..5F..DX COWL WIRE,NO.1 |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
SV21,VZV21 COWL WIRE,NO.7 |
1 | ||
| 82345-32010 |
SV21,VZV21 COWL WIRE,NO.6 |
1 | ||
| 82345-32010 |
VZV21..DX;SV21..STD;SV21..5F..DX COWL WIRE,NO.6 |
1 | ||
| 82345-20040 |
SV21,VZV21 COWL WIRE,NO.2 |
1 | ||
| 82345-12050 |
SV21,VZV21 COWL WIRE,NO.1 |
1 | ||
| 82345-12050 |
VZV21..DX;SV21..STD;SV21..5F..DX COWL WIRE,NO.1 |
1 | ||
| 82345 - DIODE | ||||
| 82345-32010 |
VZV21..DX;SV21..STD;SV21..5F..DX COWL WIRE,NO.6 |
1 | ||
| 82345-32020 |
SV21,VZV21 COWL WIRE,NO.7 |
1 | ||
| 82345-32010 |
SV21,VZV21 COWL WIRE,NO.6 |
1 | ||
| 82345-20040 |
SV21,VZV21 COWL WIRE,NO.2 |
1 | ||
| 82345-12050 |
SV21,VZV21 COWL WIRE,NO.1 |
1 | ||
| 82345-12050 |
VZV21..DX;SV21..STD;SV21..5F..DX COWL WIRE,NO.1 |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
SV21,VZV21 COWL WIRE,NO.7 |
1 | ||
| 82345-32010 |
SV21,VZV21 COWL WIRE,NO.6 |
1 | ||
| 82345-32010 |
VZV21..DX;SV21..STD;SV21..5F..DX COWL WIRE,NO.6 |
1 | ||
| 82345-20040 |
SV21,VZV21 COWL WIRE,NO.2 |
1 | ||
| 82345-12050 |
SV21,VZV21 COWL WIRE,NO.1 |
1 | ||
| 82345-12050 |
VZV21..DX;SV21..STD;SV21..5F..DX COWL WIRE,NO.1 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-32420 |
SV21,VZV21 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-32420 |
SV21,VZV21 |
2 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22050 |
SV21 |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22050 |
SV21 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-32030 |
SV21;VZV21..DX |
1 | ||
| Common parts | ||||
| 86394-22010 | ||||
| 90119-06005 | ||||
| 90119-06067 | ||||
| 90179-06239 | ||||
| 91651-40614 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8201 | ||||
(8807- )
CLAMP & GROMMET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12770 | ||||
| 82711-14350 | ||||
| 82711-22270 | ||||
| 82711-24070 | ||||
| 82711-32520 | ||||
| 82711-32620 | ||||
| 82711-32640 | ||||
| 82711-32650 | ||||
| 82711-32660 | ||||
| 82711-32670 | ||||
| 82711-32730 | ||||
| 82711-32780 | ||||
| 82711-32810 | ||||
| 82711-32830 | ||||
| 82711-3H090 | ||||
| 82711-3H170 | ||||
| 82711-3H200 | ||||
| 82715-22410 | ||||
| 82715-22520 | ||||
| 82715-32020 | ||||
| 85373-32010 | ||||
(8807- )

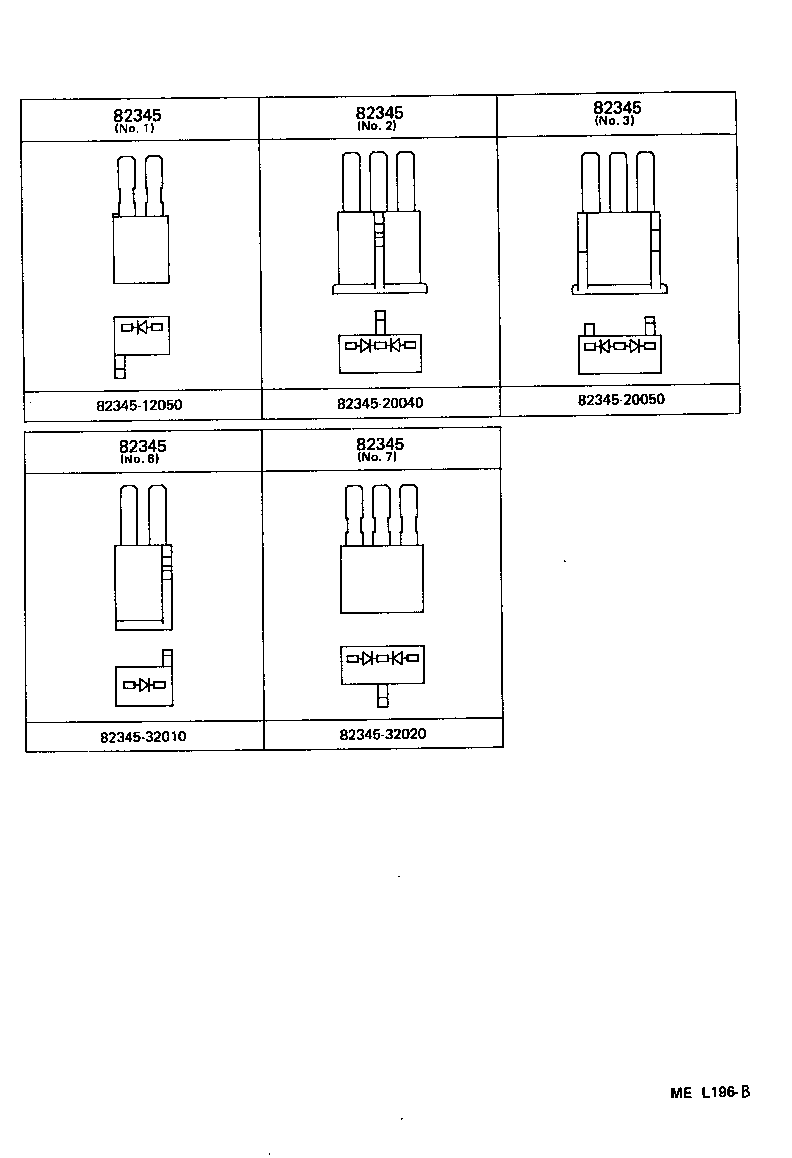

DIODE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82345 - DIODE | ||||
| 82345-32020 |
SV21,VZV21 COWL WIRE,NO.7 |
1 | ||
| 82345-32010 |
SV21,VZV21 COWL WIRE,NO.6 |
1 | ||
| 82345-32010 |
VZV21..DX;SV21..STD;SV21..5F..DX COWL WIRE,NO.6 |
1 | ||
| 82345-20040 |
SV21,VZV21 COWL WIRE,NO.2 |
1 | ||
| 82345-12050 |
SV21,VZV21 COWL WIRE,NO.1 |
1 | ||
| 82345-12050 |
VZV21..DX;SV21..STD;SV21..5F..DX COWL WIRE,NO.1 |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
SV21,VZV21 COWL WIRE,NO.7 |
1 | ||
| 82345-32010 |
SV21,VZV21 COWL WIRE,NO.6 |
1 | ||
| 82345-32010 |
VZV21..DX;SV21..STD;SV21..5F..DX COWL WIRE,NO.6 |
1 | ||
| 82345-20040 |
SV21,VZV21 COWL WIRE,NO.2 |
1 | ||
| 82345-12050 |
SV21,VZV21 COWL WIRE,NO.1 |
1 | ||
| 82345-12050 |
VZV21..DX;SV21..STD;SV21..5F..DX COWL WIRE,NO.1 |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
SV21,VZV21 COWL WIRE,NO.7 |
1 | ||
| 82345-32010 |
SV21,VZV21 COWL WIRE,NO.6 |
1 | ||
| 82345-32010 |
VZV21..DX;SV21..STD;SV21..5F..DX COWL WIRE,NO.6 |
1 | ||
| 82345-20040 |
SV21,VZV21 COWL WIRE,NO.2 |
1 | ||
| 82345-12050 |
SV21,VZV21 COWL WIRE,NO.1 |
1 | ||
| 82345-12050 |
VZV21..DX;SV21..STD;SV21..5F..DX COWL WIRE,NO.1 |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
SV21,VZV21 COWL WIRE,NO.7 |
1 | ||
| 82345-32010 |
SV21,VZV21 COWL WIRE,NO.6 |
1 | ||
| 82345-32010 |
VZV21..DX;SV21..STD;SV21..5F..DX COWL WIRE,NO.6 |
1 | ||
| 82345-20040 |
SV21,VZV21 COWL WIRE,NO.2 |
1 | ||
| 82345-12050 |
SV21,VZV21 COWL WIRE,NO.1 |
1 | ||
| 82345-12050 |
VZV21..DX;SV21..STD;SV21..5F..DX COWL WIRE,NO.1 |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
SV21,VZV21 COWL WIRE,NO.7 |
1 | ||
| 82345-32010 |
SV21,VZV21 COWL WIRE,NO.6 |
1 | ||
| 82345-32010 |
VZV21..DX;SV21..STD;SV21..5F..DX COWL WIRE,NO.6 |
1 | ||
| 82345-20040 |
SV21,VZV21 COWL WIRE,NO.2 |
1 | ||
| 82345-12050 |
SV21,VZV21 COWL WIRE,NO.1 |
1 | ||
| 82345-12050 |
VZV21..DX;SV21..STD;SV21..5F..DX COWL WIRE,NO.1 |
1 | ||
| Common parts | ||||
| 82345-12050 | ||||
| 82345-20040 | ||||
| 82345-20050 | ||||
| 82345-32010 | ||||
| 82345-32020 | ||||
