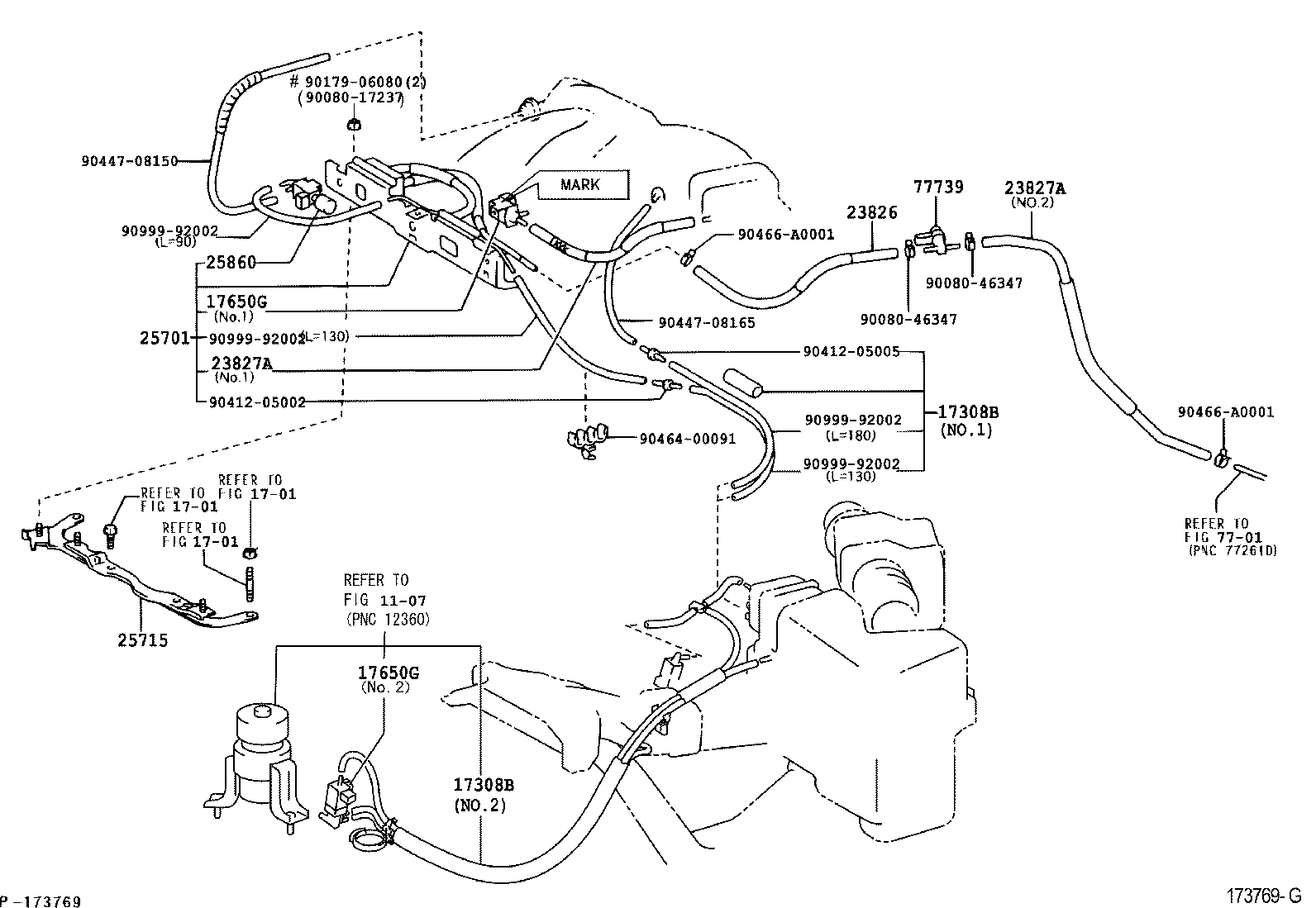

Toyota Camry (nap) MCV31 VACUUM PIPING

Part #	Description	Period	Qty
17308B - HOSE SUB-ASSY, VACUUM
17308-20170	1MZFE,3MZFE..MCV3#..NAP	07/2001 - 06/2004	1
17308-0A070	3MZFE..MCV31..NAP NO.2	09/2003 - 06/2004	1
17308-20170	1MZFE,3MZFE..MCV3#..NAP NO.1	06/2004 - 02/2006	1
17308-0A070	1MZFE,3MZFE..MCV3#..NAP NO.2	06/2004 - 02/2006	1
17308B - HOSE SUB-ASSY, VACUUM
17308-20170	1MZFE,3MZFE..MCV3#..NAP	07/2001 - 06/2004	1
17308-0A070	3MZFE..MCV31..NAP NO.2	09/2003 - 06/2004	1
17308-20170	1MZFE,3MZFE..MCV3#..NAP NO.1	06/2004 - 02/2006	1
17308-0A070	1MZFE,3MZFE..MCV3#..NAP NO.2	06/2004 - 02/2006	1
17650G - VALVE, DUTY VACUUM SWITCHING
90910-12259	1MZFE,3MZFE..MCV3#..NAP MARK 90910-12259	06/2004 - 12/2999	1
90910-12272	1MZFE,3MZFE..MCV3#..NAP MARK 90910-12272	06/2004 - 12/2999	1
90910-12204	1MZFE,3MZFE..MCV3#..NAP	06/2004 - 12/2999	1
90910-12272	1MZFE,3MZFE..MCV3#..NAP MARK 90910-12272	09/2003 - 06/2004	1
90910-12259	3MZFE..MCV31..NAP NO.1,MARK 90910-12259	09/2003 - 06/2004	1
17650G - VALVE, DUTY VACUUM SWITCHING
90910-12259	1MZFE,3MZFE..MCV3#..NAP MARK 90910-12259	06/2004 - 12/2999	1
90910-12272	1MZFE,3MZFE..MCV3#..NAP MARK 90910-12272	06/2004 - 12/2999	1
90910-12204	1MZFE,3MZFE..MCV3#..NAP	06/2004 - 12/2999	1
90910-12272	1MZFE,3MZFE..MCV3#..NAP MARK 90910-12272	09/2003 - 06/2004	1
90910-12259	3MZFE..MCV31..NAP NO.1,MARK 90910-12259	09/2003 - 06/2004	1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-0A051	1MZFE,3MZFE..MCV3#..NAP	06/2004 - 12/2999	1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-0A041	1MZFE,3MZFE..MCV3#..NAP NO.2	06/2004 - 12/2999	1
23827-20060	3MZFE..MCV31..NAP NO.1	09/2003 - 06/2004	1
23827-20060	3MZFE..MCV31..NAP NO.1	06/2004 - 12/2999	1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-0A041	1MZFE,3MZFE..MCV3#..NAP NO.2	06/2004 - 12/2999	1
23827-20060	3MZFE..MCV31..NAP NO.1	09/2003 - 06/2004	1
23827-20060	3MZFE..MCV31..NAP NO.1	06/2004 - 12/2999	1
25701 - VALVE SET, EMISSION CONTROL
25701-20220	3MZFE..MCV31..NAP	06/2004 - 12/2999	1
25701-20220	3MZFE..MCV31..NAP	09/2003 - 06/2004	1
25715 - BRACKET, EMISSION CONTROL VALVE
25715-20021	3MZFE..MCV31..NAP	06/2004 - 12/2999	1
25715-20020	3MZFE..MCV31..NAP	09/2003 - 06/2004	1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-62010	3MZFE..MCV31..NAP	07/2001 - 06/2004	1
25860-62010	3MZFE..MCV31..NAP	06/2004 - 12/2999	1
77739 - VALVE, EVAP SERVICE PORT
77739-06010	MCV3#..NAP	07/2001 - 06/2004	1
77739-06010	MCV3#..NAP	06/2004 - 12/2999	1
Common parts
90080-17237
90080-46347
90179-06080
90412-05002
90412-05005
90447-08150
90447-08165
90464-00091
90466-A0001
90999-92002
Linked diagrams
1107
1701
7701

MCV31L-CEASKA (2003)

(0309- )3MZFE..NAP
