MCV30L-CEPSKA (2001)

Toyota Camry (Nap)

Production Jul 2001 - Jan 2003
Engine 1MZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

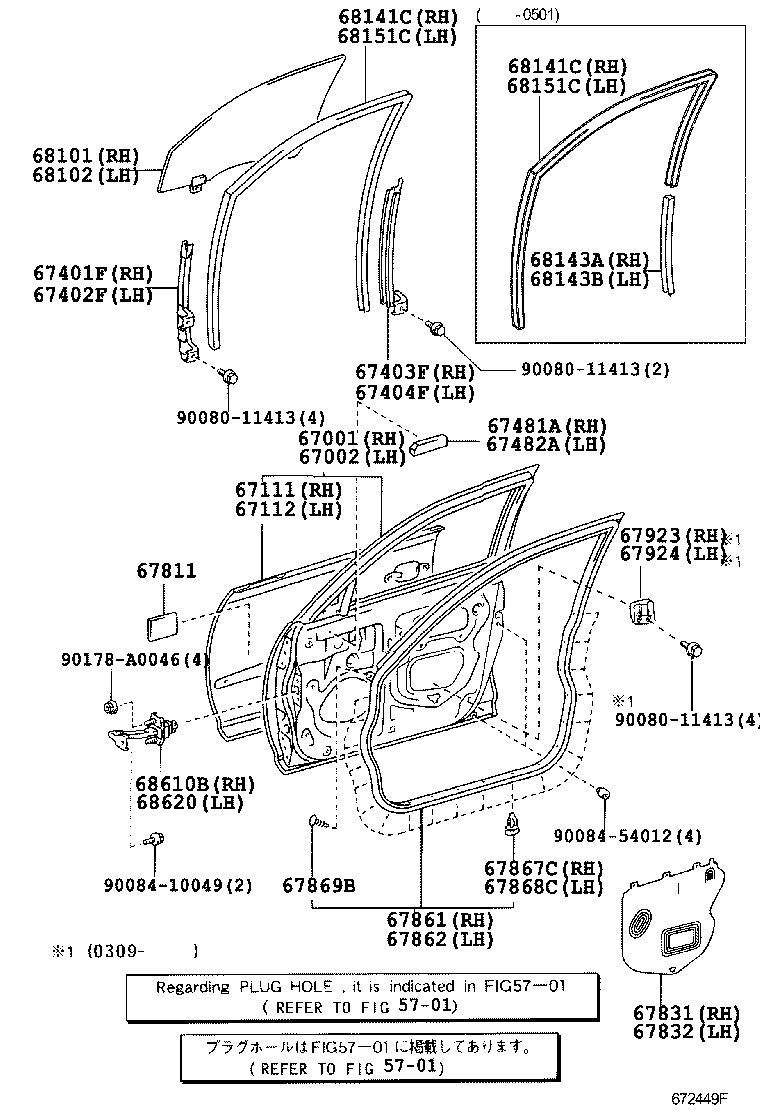

ILLUST NO. 2 OF 2(0107- )NAP

Click highlighted areas on diagram

diagram 5701 5701 67001 67002 67111 67112 67401F 67402F 67403F 67404F 67481A 67482A 67811 67831 67832 67861 67862 67867C 67868C 67869B 67923 67924 68101 68102 68141C 68141C 68143A 68143B 68151C 68151C 68610B 68620 9008011413 9008011413 9008011413 9008410049 9008454012 90178A0046
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-AA050

ACV30,MCV30..NAP

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-AA050

ACV30,MCV30..NAP

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-AA030

ACV30,MCV3#..NAP

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-AA030

ACV30,MCV3#..NAP

 1
67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67401-AA020

ACV30,MCV3#..NAP

 1
67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67402-AA020

ACV30,MCV3#..NAP

 1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-AA040

ACV30,MCV3#..NAP

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-AA040

ACV30,MCV3#..NAP

 1
67481A - SEAL, FRONT DOOR FRONT LOWER FRAME, RH
67481-AA020

ACV30,MCV3#..NAP

 1
67482A - SEAL, FRONT DOOR FRONT LOWER FRAME, LH
67481-AA020

ACV30,MCV3#..NAP

 1
67811 - PAD, FRONT DOOR SILENCER
67811-AA040

ACV30,MCV3#..NAP

 4
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-AA050

ACV30,MCV3#..NAP

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-AA050

ACV30,MCV3#..NAP

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-AA040

ACV30,MCV3#..NAP

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-AA040

ACV30,MCV3#..NAP

 1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-12150

ACV30,MCV3#..NAP

 19
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-12150

ACV30,MCV3#..NAP

 19
67869B - CLIP, FRONT DOOR WEATHERSTRIP
67869-20030

ACV30,MCV3#..NAP

 2
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-AA030

ACV30,MCV3#..NAP

*TT,T=5.0,GREEN

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-AA030

ACV30,MCV3#..NAP

*TT,T=5.0,GREEN

 1
68141C - RUN, FRONT DOOR GLASS, RH
68141-AA030

ACV30,MCV3#..NAP

 1
68141C - RUN, FRONT DOOR GLASS, RH
68141-AA030

ACV30,MCV3#..NAP

 1
68143A - RUN, FRONT DOOR GLASS, NO.2
68143-AA010

ACV30,MCV3#..NAP

 1
68143B - RUN, FRONT DOOR GLASS, NO.2
68144-AA010

ACV30,MCV3#..NAP

 1
68151C - RUN, FRONT DOOR GLASS, LH
68151-AA030

ACV30,MCV3#..NAP

 1
68151C - RUN, FRONT DOOR GLASS, LH
68151-AA030

ACV30,MCV3#..NAP

 1
68610B - CHECK ASSY, FRONT DOOR, RH
68610-AA030

ACV30,MCV3#..NAP

 1
68620 - CHECK ASSY, FRONT DOOR, LH
68620-AA030

ACV30,MCV3#..NAP

 1
Common parts
90080-11413
90084-10049
90084-54012
90178-A0046
Linked diagrams
5701

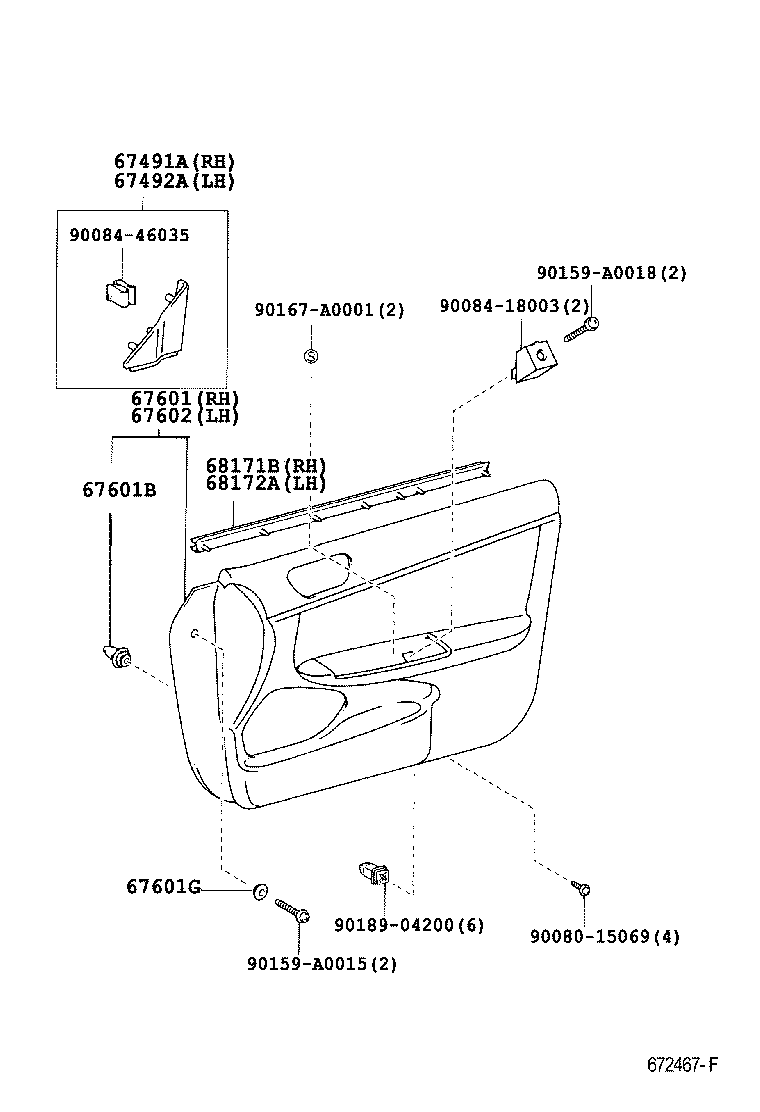

ILLUST NO. 1 OF 2(0107- )NAP

Click highlighted areas on diagram

diagram 67491A 67492A 67601 67601B 67601G 67602 68171B 68172A 9008015069 9008418003 9008446035 90159A0015 90159A0018 90167A0001 9018904200
Part # Description Qty Price
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-AA040

ACV30,MCV3#..NAP

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-AA040

ACV30,MCV3#..NAP

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-AA430E0

ACV30,MCV30..NAP..SE

FAWN,TRIM4#

 1
67610-AA440E1

ACV30,MCV30..NAP..SE

LEATHER TYPE,FAWN,TRIM4#

 1
67610-AA430B0

ACV30,MCV30..NAP..SE

STONE,TRIM1#

 1
67610-AA440B1

ACV30,MCV30..NAP..SE

LEATHER TYPE,DK.GRAY,TRIM1#

 1
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-10161

MCV30..NAP

 14
67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD)
90950-01746B7

ACV30,MCV3#..NAP..SE

DK.GRAY,TRIM1#,4#

 2
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-AA400B1

ACV30,MCV30..NAP..SE

LEATHER TYPE,DK.GRAY,TRIM1#

 1
67620-AA390E0

ACV30,MCV30..NAP..SE

FAWN,TRIM4#

 1
67620-AA400E1

ACV30,MCV30..NAP..SE

LEATHER TYPE,FAWN,TRIM4#

 1
67620-AA390B0

ACV30,MCV30..NAP..SE

DK.GRAY,TRIM1#

 1
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-AA020

ACV30,MCV3#..NAP

 1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-AA010

ACV30,MCV3#..NAP

 1
Common parts
90080-15069
90084-18003
90084-46035
90159-A0015
90159-A0018
90167-A0001
90189-04200
