MCV30L-CEPSKA (2001)

Toyota Camry (Nap)

Production Jul 2001 - Jan 2003
Engine 1MZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )NAP

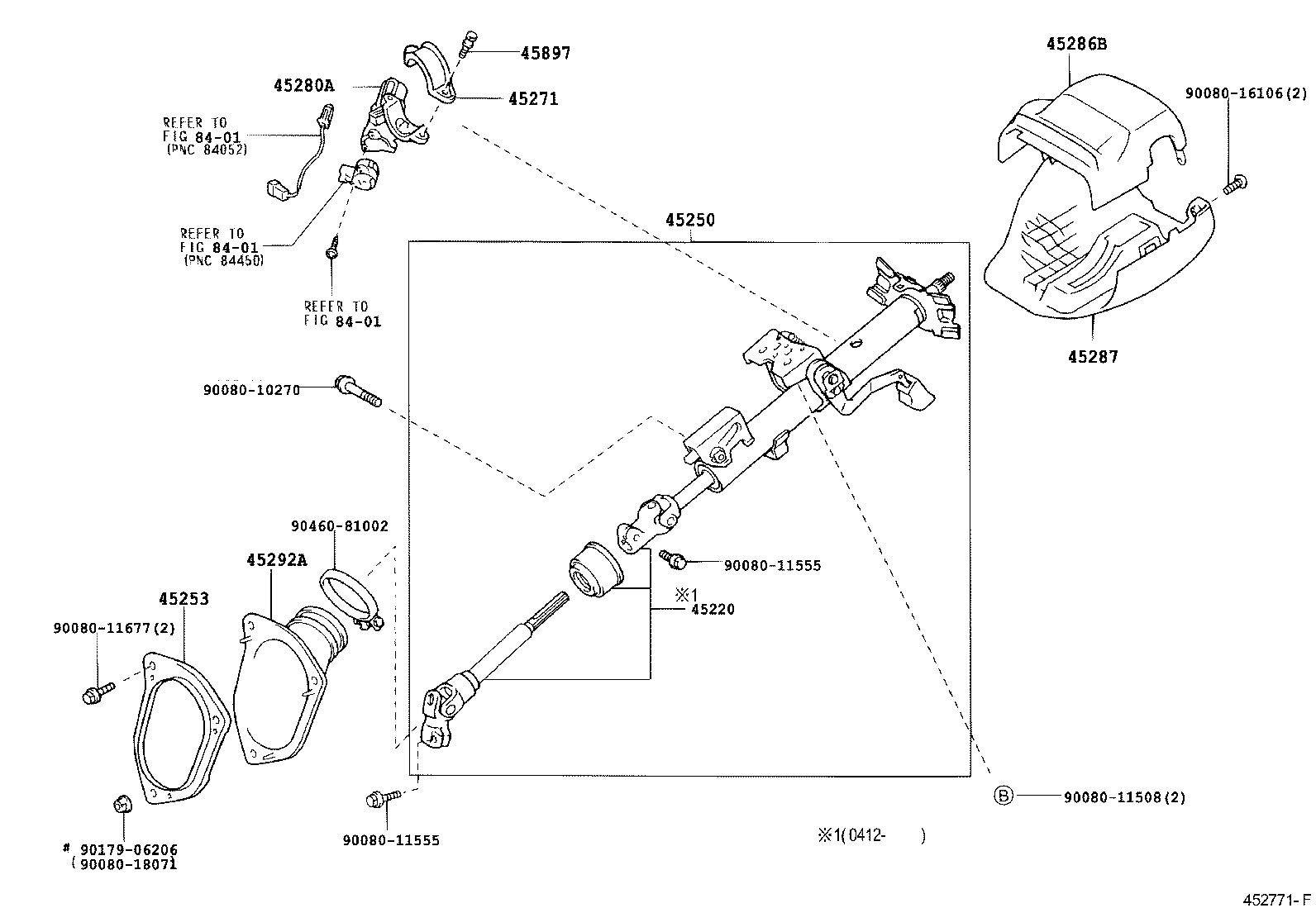

Click highlighted areas on diagram

diagram 45220 45250 45253 45271 45280A 45286B 45287 45292A 45897 8401 8401 8401 9008010270 9008011508 9008011555 9008011555 9008011677 9008016106 9008018071 9017906206 9046081002
Part # Description Qty Price
45250 - COLUMN ASSY, STEERING
45250-06340

ACV30,MCV30..NAP

 1
45253 - COVER, STEERING COLUMN HOLE
45253-06020

ACV30,MCV30..NAP

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-16020

ACV30,MCV30..NAP

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-06020

ACV30,MCV30..NAP

 1
45286B - COVER, STEERING COLUMN, UPR
45286-06060B1

MCV30..NAP..SE

DK.GRAY,TRIM1#,4#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-06060B1

MCV30..NAP..SE

DK.GRAY,TRIM1#,4#

 1
45292A - COVER, MAIN SHAFT LOWER DUST
45292-06020

ACV30,MCV30..NAP

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

ACV30,MCV30..NAP

 2
Common parts
90080-10270
90080-11508
90080-11555
90080-11677
90080-16106
90080-18071
90179-06206
90460-81002
Linked diagrams
8401
