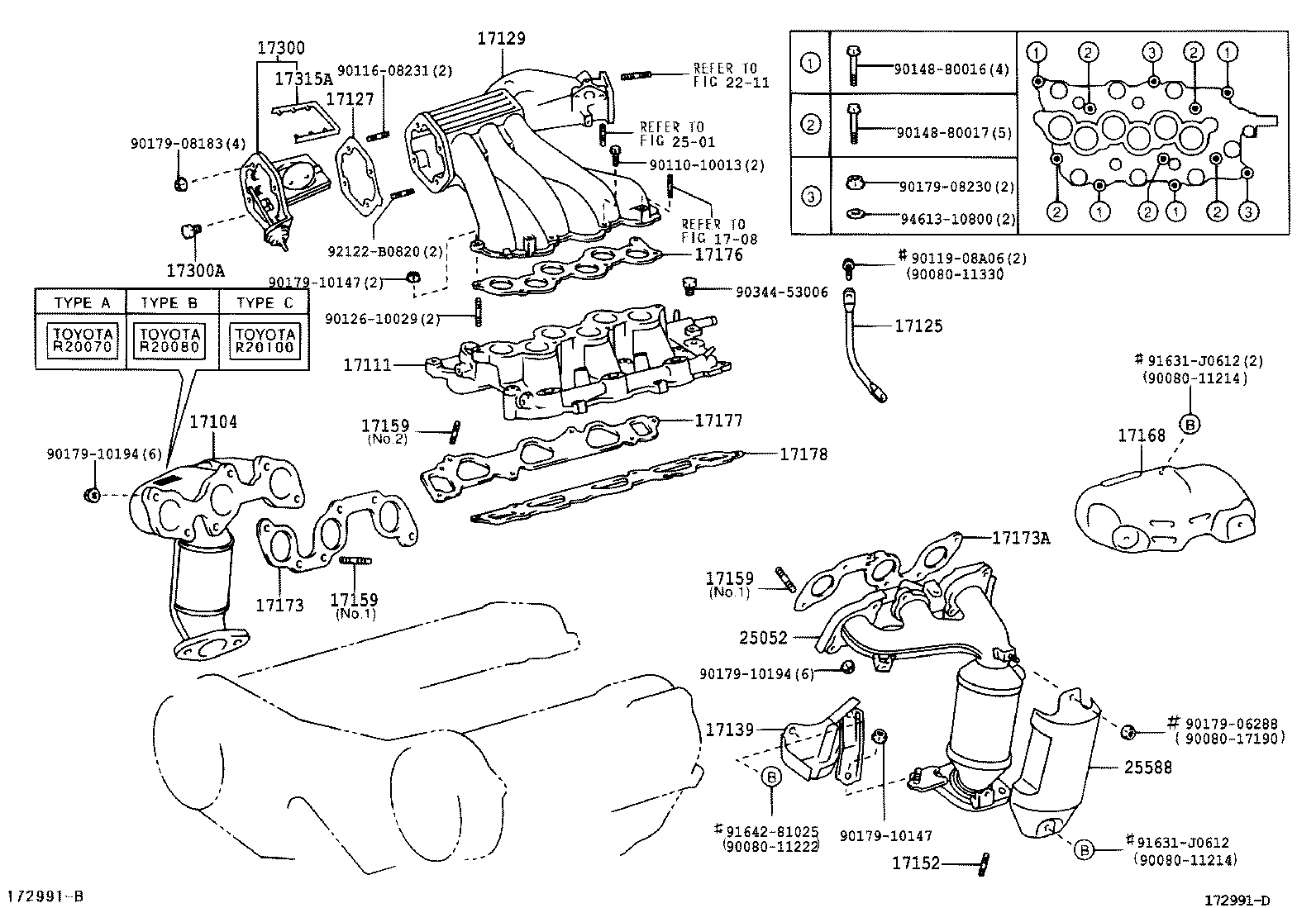

Toyota Camry (nap) MCV30 MANIFOLD

Part #	Description	Period	Qty
17104 - MANIFOLD SUB-ASSY, EXHAUST, RH
17140-20100	1MZFE..MCV30..NAP TYPE C:REFER TO ILLUSTRATION	07/2001 - 01/2003	1
17140-20070	1MZFE..MCV30..NAP TYPE A:REFER TO ILLUSTRATION	07/2001 - 06/2004	1
17111 - MANIFOLD, INTAKE
17101-20021	1MZFE..MCV30..NAP (J)	07/2001 - 01/2003	1
17101-0A021	1MZFE..MCV30..NAP (L)	07/2001 - 01/2003	1
17125 - STAY, SURGE TANK, NO.1
17125-0A010	1MZFE..MCV30..NAP	07/2001 - 01/2003	1
17127 - GASKET, SURGE TANK COVER
17127-0A010	1MZFE..MCV30..NAP	07/2001 - 01/2003	1
17129 - TANK, INTAKE AIR SURGE
17109-0A080	1MZFE..MCV30..NAP (L)	05/2002 - 01/2003	1
17109-20090	1MZFE..MCV30..NAP (J)	07/2001 - 05/2002	1
17109-20110	1MZFE..MCV30..NAP (J)	05/2002 - 01/2003	1
17109-0A050	1MZFE..MCV30..NAP (L)	07/2001 - 05/2002	1
17139 - STAY, MANIFOLD, NO.2
17139-20040	1MZFE..MCV30..NAP	07/2001 - 01/2003	1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10149	1MZFE..MCV30..NAP	07/2001 - 01/2003	2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08013	3MZFE..MCV31..NAP;1MZFE..MCV30..NAP..4FC NO.2	07/2001 - 06/2004	2
90126-10030	3MZFE..MCV31..NAP;1MZFE..MCV30..NAP..4FC NO.1	07/2001 - 06/2004	6
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08013	3MZFE..MCV31..NAP;1MZFE..MCV30..NAP..4FC NO.2	07/2001 - 06/2004	2
90126-10030	3MZFE..MCV31..NAP;1MZFE..MCV30..NAP..4FC NO.1	07/2001 - 06/2004	6
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08013	3MZFE..MCV31..NAP;1MZFE..MCV30..NAP..4FC NO.2	07/2001 - 06/2004	2
90126-10030	3MZFE..MCV31..NAP;1MZFE..MCV30..NAP..4FC NO.1	07/2001 - 06/2004	6
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-20060	1MZFE..MCV30..NAP	07/2001 - 01/2003	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-20020	1MZFE..MCV30..NAP	07/2001 - 01/2003	1
17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH
17173-20020	1MZFE..MCV30..NAP	07/2001 - 01/2003	1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-62030	1MZFE..MCV30..NAP	07/2001 - 01/2003	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-20020	1MZFE..MCV30..NAP	07/2001 - 01/2003	1
17178 - GASKET, INTAKE MANIFOLD TO HEAD, NO.2
17178-20020	1MZFE..MCV30..NAP	07/2001 - 01/2003	1
17300 - VALVE ASSY, INTAKE AIR CONTROL
17300-20020	1MZFE..MCV30..NAP	07/2001 - 01/2003	1
17300A - PLUG, W/HEAD TAPER SCREW(FOR AIR CONTROL VALVE)
90345-51006	1MZFE..MCV30..NAP	07/2001 - 01/2003	1
17315A - GASKET, INTAKE AIR CONTROL VALVE
17315-62020	1MZFE..MCV30..NAP	07/2001 - 01/2003	1
25052 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD, NO.2
25052-20170	1MZFE..MCV30..NAP	07/2001 - 06/2004	1
25588 - INSULATOR, MANIFOLD CONVERTER, NO.3
25588-20010	1MZFE..MCV30..NAP	07/2001 - 01/2003	1
Common parts
90080-11214
90080-11222
90080-11330
90080-17190
90110-10013
90116-08231
90119-08A06
90126-10029
90148-80016
90148-80017
90179-06288
90179-08183
90179-08230
90179-10147
90179-10194
90344-53006
91631-J0612
91642-81025
92122-B0820
94613-10800
Linked diagrams
1708
2211
2501

MCV30L-CEPNKA (2001)

(0107-0301)1MZFE..NAP
