MCV30L-CEPGKA (2001)
Toyota Camry (Nap)
Production
Jul 2001
-
Jan 2003
Engine
1MZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

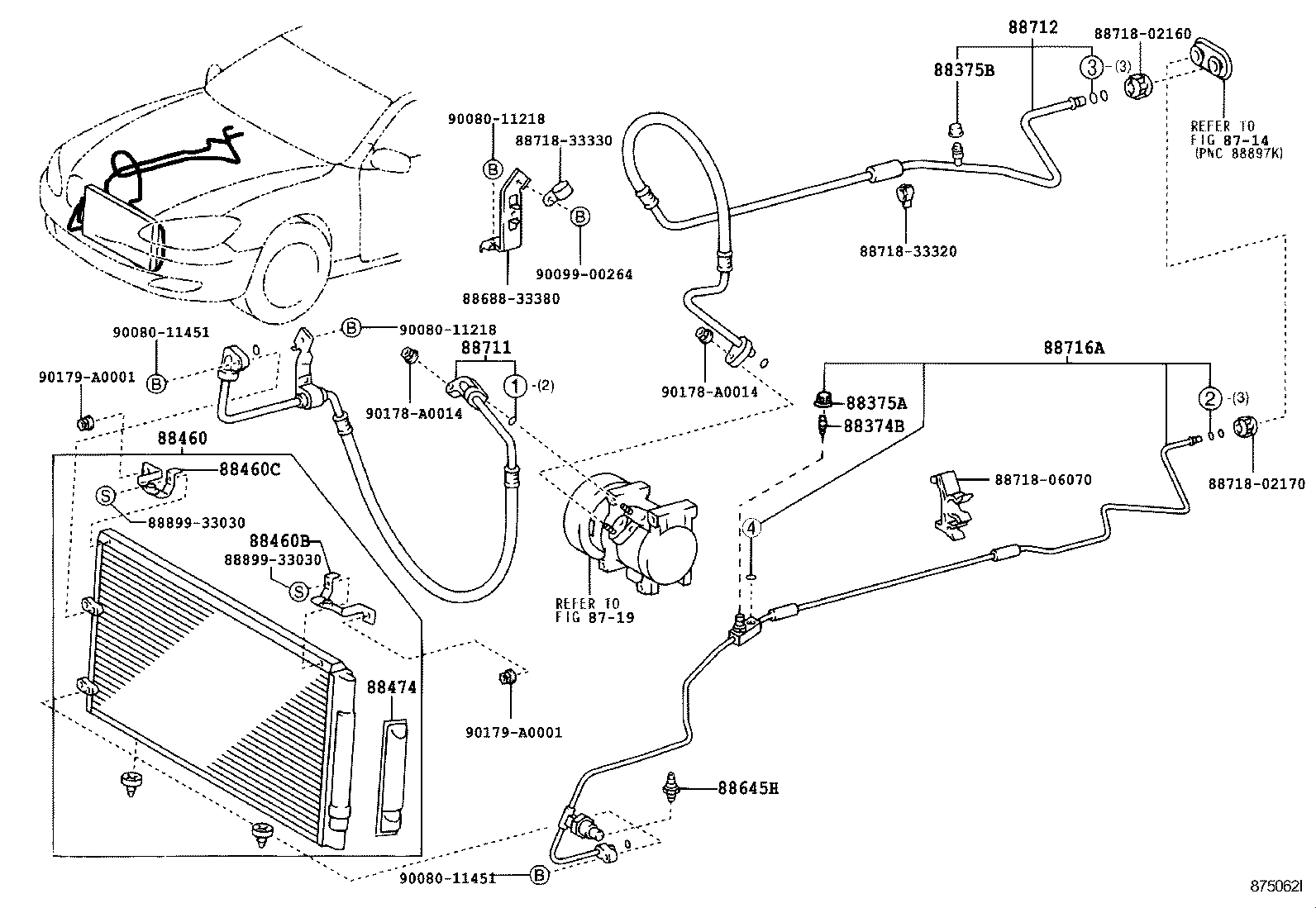

ILLUST NO. 1 OF 2(0107-0406)NAP
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-06070 |
ACV30,MCV3#..NAP |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-06120 |
ACV30,MCV3#..NAP |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-06140 |
ACV30,MCV3#..NAP |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-08010 |
ACV30,MCV3#..NAP |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-06110 |
MCV3#..NAP |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-06050 |
MCV3#..NAP |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-06200 |
ACV30,MCV30..NAP |
1 | ||
| Common parts | ||||
| 88688-33380 | ||||
| 88718-02160 | ||||
| 88718-02170 | ||||
| 88718-06070 | ||||
| 88718-33320 | ||||
| 88718-33330 | ||||
| 88899-33030 | ||||
| 90080-11218 | ||||
| 90080-11451 | ||||
| 90099-00264 | ||||
| 90178-A0014 | ||||
| 90179-A0001 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||

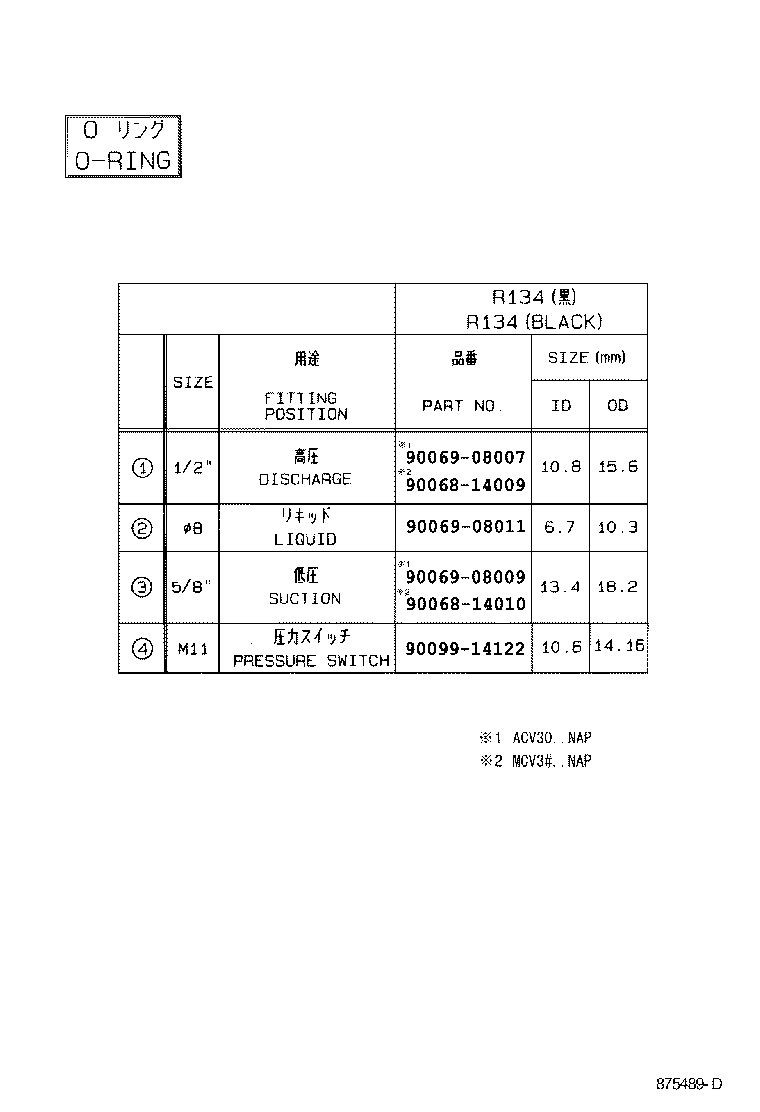

ILLUST NO. 2 OF 2(0107- )NAP
Click highlighted areas on diagram
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90068-14009 | ||||
| 90068-14010 | ||||
| 90069-08007 | ||||
| 90069-08009 | ||||
| 90069-08011 | ||||
| 90099-14122 | ||||
