MCV30L-CEPGKA (2001)
Toyota Camry (Nap)

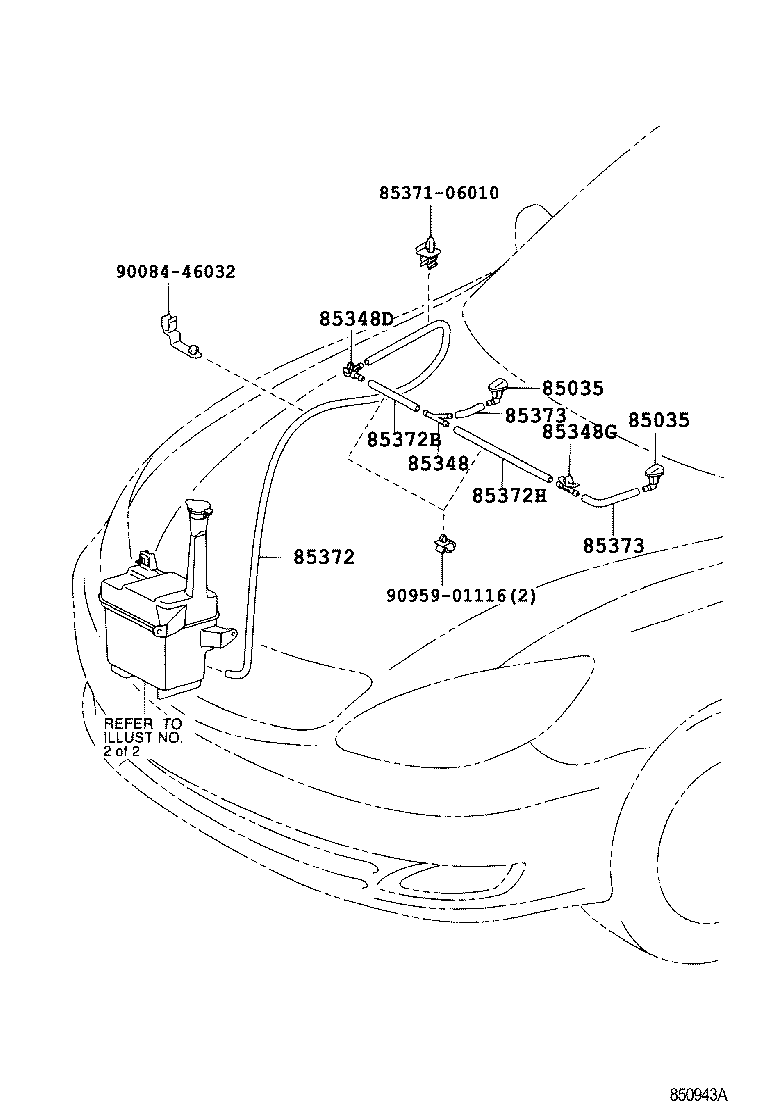

ILLUST NO. 1 OF 2(0107- )NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-AA040 |
ACV30,MCV30..NAP |
2 | ||
| 85381-AA041 |
ACV30,MCV30..NAP |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-AA040 |
ACV30,MCV30..NAP |
2 | ||
| 85381-AA041 |
ACV30,MCV30..NAP |
2 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85378-AA010 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85377-06020 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-AA020 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 85374-AA060 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC L=1825 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 85374-AA040 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC L=345 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 85374-AA050 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC L=520 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90068-33024 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC L=170 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90068-33024 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC L=170 |
2 | ||
| Common parts | ||||
| 85371-06010 | ||||
| 90084-46032 | ||||
| 90959-01116 | ||||

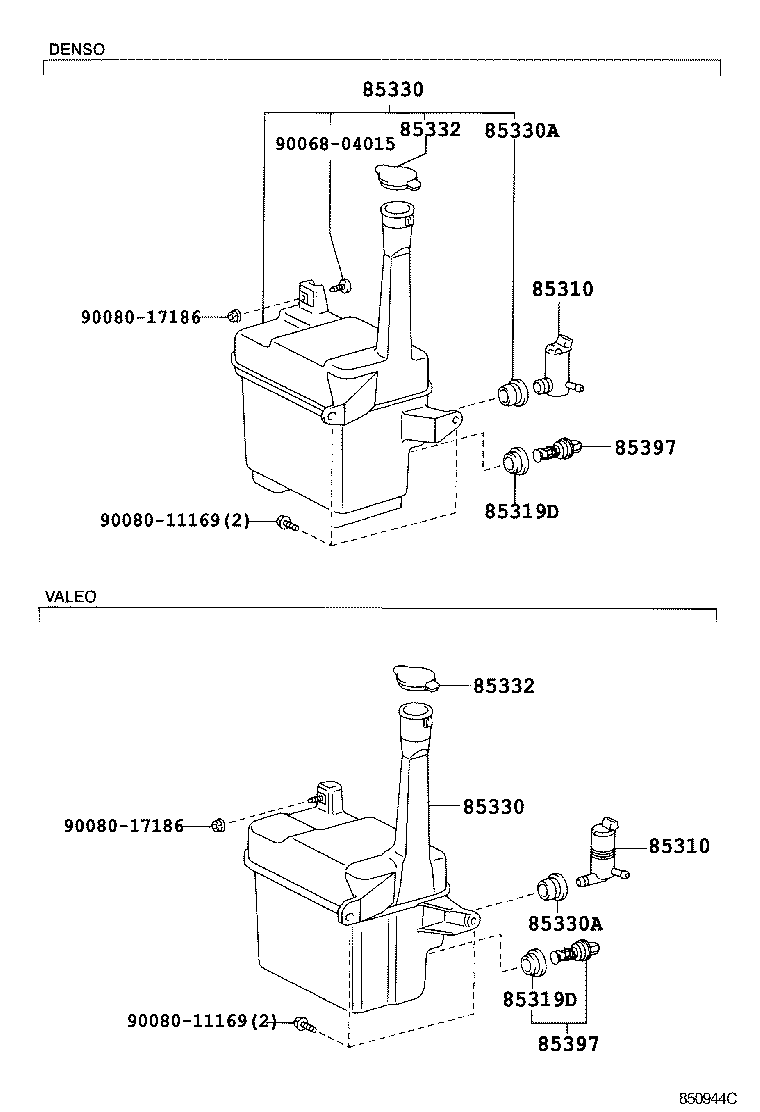

ILLUST NO. 2 OF 2(0107- )NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-AA010 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC DENSO |
1 | ||
| 85330-06030 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC VALEO |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-AA010 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC DENSO |
1 | ||
| 85330-06030 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC VALEO |
1 | ||
| 85319D - PACKING, FRONT WASHER | ||||
| 85319-AA020 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC DENSO |
1 | ||
| 90069-20003 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC VALEO |
1 | ||
| 85319D - PACKING, FRONT WASHER | ||||
| 85319-AA020 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC DENSO |
1 | ||
| 90069-20003 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC VALEO |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-AA040 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC DENSO |
1 | ||
| 85315-AA030 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC VALEO |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-AA040 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC DENSO |
1 | ||
| 85315-AA030 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC VALEO |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90068-32002 |
ACV30,MCV3#..NAP DENSO |
1 | ||
| 85365-02010 |
ACV30,MCV3#..NAP VALEO |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90068-32002 |
ACV30,MCV3#..NAP DENSO |
1 | ||
| 85365-02010 |
ACV30,MCV3#..NAP VALEO |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-06021 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC VALEO |
1 | ||
| 85316-AA020 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC DENSO |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-06021 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC VALEO |
1 | ||
| 85316-AA020 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC DENSO |
1 | ||
| 85397 - SWITCH ASSY,LEVEL WARNING | ||||
| 85397-AA020 |
ACV30,MCV30..NAP DENSO |
1 | ||
| 85397-AA010 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC VALEO |
1 | ||
| 85397 - SWITCH ASSY,LEVEL WARNING | ||||
| 85397-AA020 |
ACV30,MCV30..NAP DENSO |
1 | ||
| 85397-AA010 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC VALEO |
1 | ||
| Common parts | ||||
| 90068-04015 | ||||
| 90080-11169 | ||||
| 90080-17186 | ||||
