MCV30L-CEPGKA (2001)
Toyota Camry (Nap)
Production
Jul 2001
-
Jan 2003
Engine
1MZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0107- )NAP

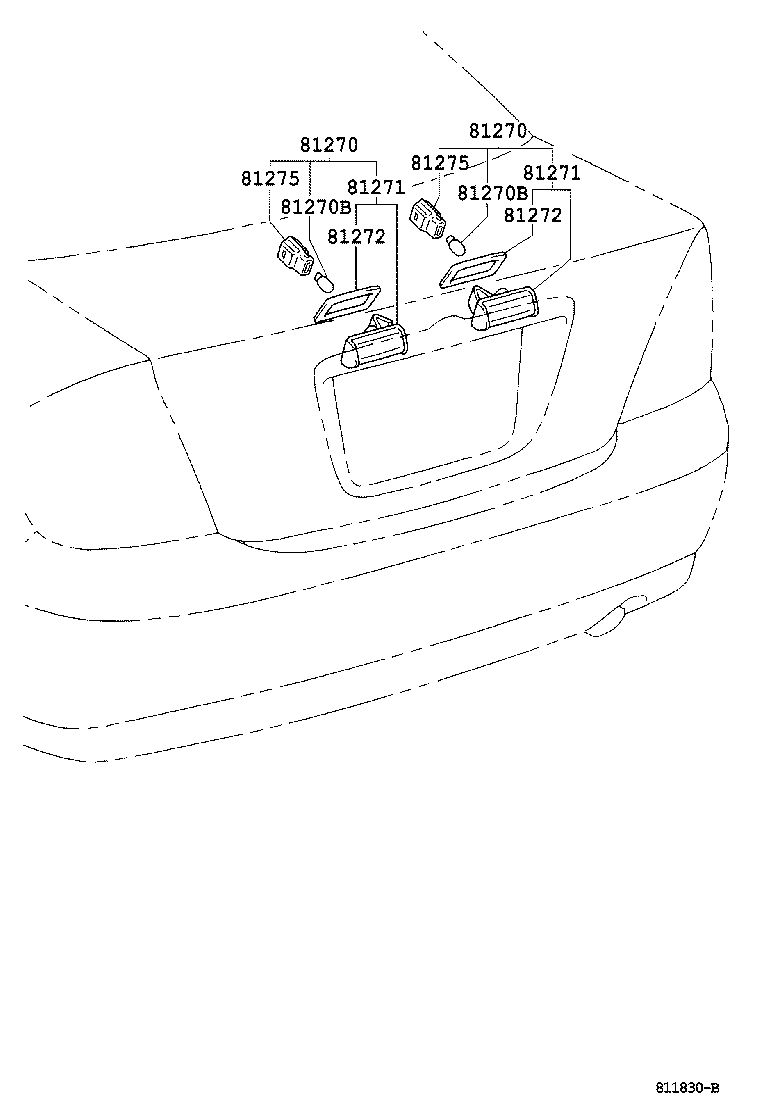

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-AA020 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC |
2 | ||
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-AA020 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 90084-98043 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC 12V 5W |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 90084-98043 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC 12V 5W |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-AA020 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-AA020 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC |
2 | ||
| 81272 - GASKET, LICENSE PLATE LAMP LENS | ||||
| 81274-AA020 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC |
2 | ||
| 81272 - GASKET, LICENSE PLATE LAMP LENS | ||||
| 81274-AA020 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC |
2 | ||
| 81275 - SOCKET AND WIRE, LICENSE PLATE LAMP | ||||
| 90075-60037 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC |
2 | ||
| 81275 - SOCKET AND WIRE, LICENSE PLATE LAMP | ||||
| 90075-60037 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC |
2 | ||
