MCV30L-CEPGKA (2001)
Toyota Camry (Nap)

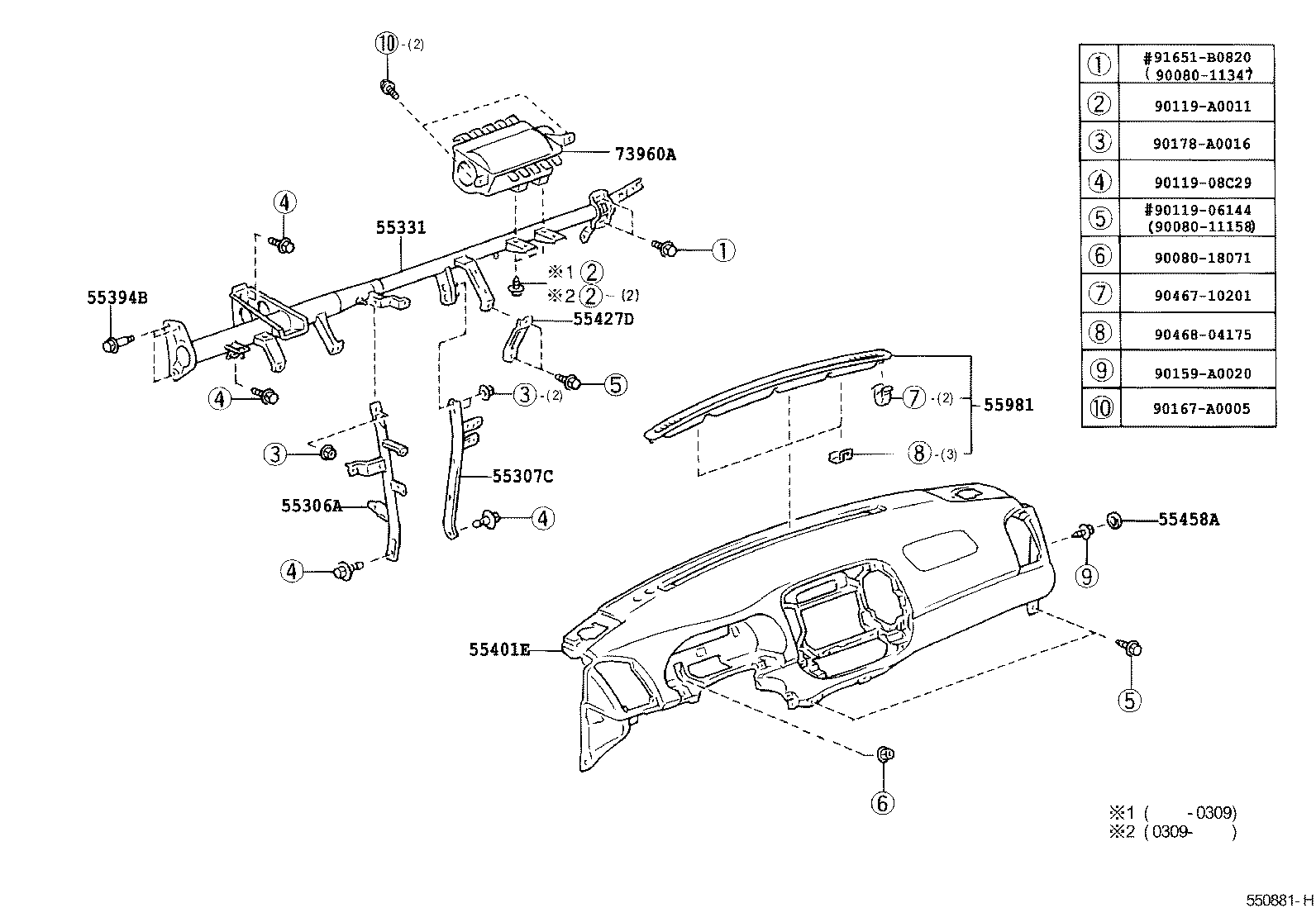

ILLUST NO. 1 OF 2(0107- )NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-06030 |
ACV30,MCV30..NAP |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-06040 |
ACV30,MCV30..NAP |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-06060 |
ACV30,MCV30..NAP |
1 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-33020 |
ACV30,MCV30..NAP |
3 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-AA040E1 |
MCV30..NAP..(LE,XLE) SANDAL WOOD,TRIM4# |
1 | ||
| 55401-AA040B2 |
MCV30..NAP..(LE,XLE) DK.CHARCOAL,TRIM1# |
1 | ||
| 55427D - RETAINER, INSTRUMENT FINISH PANEL, LOWER, NO.1 | ||||
| 55427-06040 |
ACV30,MCV30..NAP |
1 | ||
| 55458A - CAP, INSTRUMENT PANEL SAFETY PAD | ||||
| 55458-33090B0 |
MCV30..NAP..(LE,XLE) DK.CHARCOAL,TRIM1# |
1 | ||
| 55458-33090E0 |
MCV30..NAP..(LE,XLE) SANDAL WOOD,TRIM4# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-AA050 |
MCV30..NAP |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-06030 |
MCV30..NAP |
1 | ||
| Common parts | ||||
| 90080-11158 | ||||
| 90080-11347 | ||||
| 90080-18071 | ||||
| 90119-06144 | ||||
| 90119-08C29 | ||||
| 90119-A0011 | ||||
| 90159-A0020 | ||||
| 90167-A0005 | ||||
| 90178-A0016 | ||||
| 90467-10201 | ||||
| 90468-04175 | ||||
| 91651-B0820 | ||||

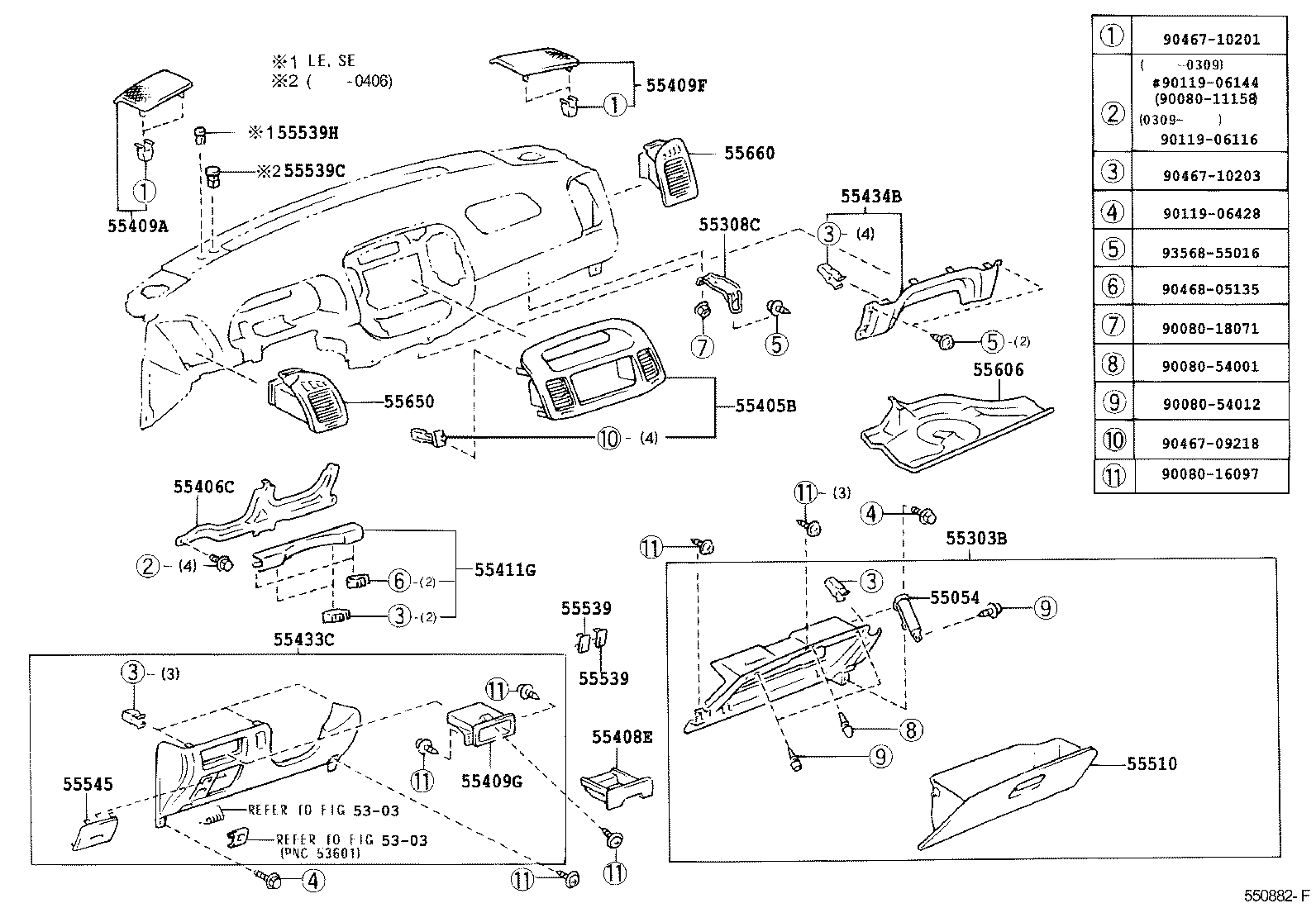

ILLUST NO. 2 OF 2(0107- )NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-33060 |
ACV30,MCV30..NAP |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-AA020B0 |
MCV30..NAP..(LE,XLE) STONE,TRIM1# |
1 | ||
| 55303-AA020E0 |
MCV30..NAP FAWN,TRIM4# |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-AA020 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-AA040E0 |
MCV30..NAP..LE CENTER CLUSTER & RADIO = FLUSH-SURFACE DESIGN,SANDAL WOOD,TRIM4# |
1 | ||
| 55405-AA050B0 |
MCV30..NAP..XLE DK.CHARCOAL,TRIM1# |
1 | ||
| 55405-AA040B0 |
MCV30..NAP..LE CENTER CLUSTER & RADIO = FLUSH-SURFACE DESIGN,DK.CHARCOAL,TRIM1# |
1 | ||
| 55405-AA050E0 |
MCV30..NAP..XLE SANDAL WOOD,TRIM4# |
1 | ||
| 55405-AA030E0 |
MCV30..NAP..XLE CENTER CLUSTER & RADIO = FLUSH-SURFACE DESIGN,SANDAL WOOD,TRIM4# |
1 | ||
| 55405-AA030B0 |
MCV30..NAP..XLE CENTER CLUSTER & RADIO = FLUSH-SURFACE DESIGN,DK.CHARCOAL,TRIM1# |
1 | ||
| 55406C - INSERT SUB-ASSY, INSTRUMENT PANEL, LOWER LH | ||||
| 55406-06030 |
ACV30,MCV30..NAP |
1 | ||
| 55408E - BOX SUB-ASSY, INSTRUMENT PANEL COIN | ||||
| 55408-AA010E0 |
MCV30..NAP FAWN,TRIM4# |
1 | ||
| 55408-AA010B0 |
MCV30..NAP..(LE,XLE) STONE,TRIM1# |
1 | ||
| 55409A - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER | ||||
| 55472-AA010B0 |
MCV30..NAP..(LE,XLE) DK.CHARCOAL,TRIM1# |
1 | ||
| 55472-AA010E0 |
MCV30..NAP..(LE,XLE) SANDAL WOOD,TRIM4# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-AA010B0 |
MCV30..NAP..(LE,XLE) DK.CHARCOAL,TRIM1# |
1 | ||
| 55473-AA010E0 |
MCV30..NAP..(LE,XLE) SANDAL WOOD,TRIM4# |
1 | ||
| 55409G - RETAINER SUB-ASSY, COIN BOX | ||||
| 55409-AA010 |
MCV30..NAP |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-AA040E0 |
MCV30..NAP..(LE,XLE) SANDAL WOOD,TRIM4# |
1 | ||
| 55411-AA040B0 |
MCV30..NAP..(LE,XLE) DK.CHARCOAL,TRIM1# |
1 | ||
| 55433C - PANEL, INSTRUMENT PANEL FINISH, LOWER LH | ||||
| 55302-AA020E0 |
MCV30..NAP FAWN,TRIM4# |
1 | ||
| 55302-AA020B0 |
MCV30..NAP..(LE,XLE) STONE,TRIM1# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-AA010E0 |
MCV30..NAP FAWN,TRIM4# |
1 | ||
| 55434-AA010B0 |
MCV30..NAP..(LE,XLE) STONE,TRIM1# |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55501-AA010B0 |
MCV30..NAP..(LE,XLE) STONE,TRIM1# |
1 | ||
| 55501-AA010E0 |
MCV30..NAP FAWN,TRIM4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-20080E3 |
MCV30..NAP FAWN,TRIM4# |
1 | ||
| 55539-20080B4 |
MCV30..NAP..(LE,XLE) STONE,TRIM1# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-20080E3 |
MCV30..NAP FAWN,TRIM4# |
1 | ||
| 55539-20080B4 |
MCV30..NAP..(LE,XLE) STONE,TRIM1# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55548-02040B2 |
MCV30..NAP..(LE,XLE) DK.CHARCOAL,TRIM1# |
1 | ||
| 55548-02040E1 |
MCV30..NAP..(LE,XLE) SANDAL WOOD,TRIM4# |
1 | ||
| 55539H - COVER, SPARE SWITCH HOLE | ||||
| 55538-AA010E0 |
MCV30..NAP..LE SANDAL WOOD,TRIM4# |
1 | ||
| 55538-AA010B0 |
MCV30..NAP..LE DK.CHARCOAL,TRIM1# |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-AA010B0 |
MCV30..NAP..(LE,XLE) STONE,TRIM1# |
1 | ||
| 55545-AA010E0 |
MCV30..NAP FAWN,TRIM4# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55607-AA020 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-AA020B0 |
MCV30..NAP..LE DK.CHARCOAL,TRIM1# |
1 | ||
| 55650-AA020E0 |
MCV30..NAP..LE SANDAL WOOD,TRIM4# |
1 | ||
| 55650-AA030B0 |
MCV30..NAP..XLE DK.CHARCOAL,TRIM1# |
1 | ||
| 55650-AA030E0 |
MCV30..NAP..XLE SANDAL WOOD,TRIM4# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55670-AA040B0 |
MCV30..NAP..XLE DK.CHARCOAL,TRIM1# |
1 | ||
| 55670-AA030B0 |
MCV30..NAP..LE DK.CHARCOAL,TRIM1# |
1 | ||
| 55670-AA030E0 |
MCV30..NAP..LE SANDAL WOOD,TRIM4# |
1 | ||
| 55670-AA040E0 |
MCV30..NAP..XLE SANDAL WOOD,TRIM4# |
1 | ||
| Common parts | ||||
| 90080-11158 | ||||
| 90080-16097 | ||||
| 90080-18071 | ||||
| 90080-54001 | ||||
| 90080-54012 | ||||
| 90119-06116 | ||||
| 90119-06144 | ||||
| 90119-06428 | ||||
| 90467-09218 | ||||
| 90467-10201 | ||||
| 90467-10203 | ||||
| 90468-05135 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 5303 | ||||
