MCV30L-CEPGKA (2001)

Toyota Camry (Nap)

Production Jul 2001 - Jan 2003
Engine 1MZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0107-0406)NAP

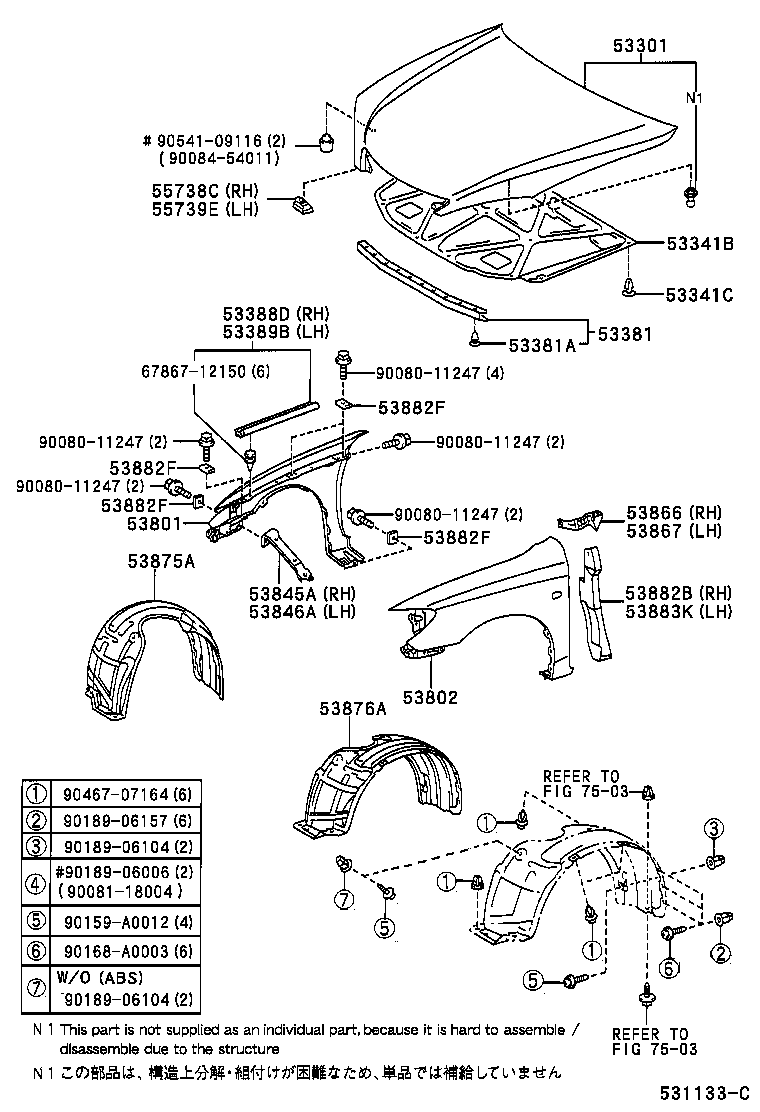

Click highlighted areas on diagram

diagram 53301 53341B 53341C 53381 53381A 53388D 53389B 53801 53802 53845A 53846A 53866 53867 53875A 53876A 53882B 53882F 53882F 53882F 53882F 53883K 55738C 55739E 6786712150 7503 7503 9008011247 9008011247 9008011247 9008011247 9008011247 9008118004 9008454011 90159A0012 90168A0003 9018906006 9018906104 9018906104 9018906157 9046707164 9054109116
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-AA060

MCV30..NAP

 1
53341B - INSULATOR, HOOD
53341-AA010

MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC

 1
53341C - CLIP(FOR HOOD INSULATOR)
90467-09050

MCV30..NAP

 13
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-AA020

MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90080-46010

MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC

 10
53388D - SEAL, HOOD TO FRONT FENDER, RH
53388-AA010

MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC

 1
53389B - SEAL, HOOD TO FRONT FENDER, LH
53389-AA010

MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-AA020

MCV30..NAP

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-AA020

MCV30..NAP

 1
53845A - BRACE, FRONT WHEEL OPENING APRON, RH
53845-AA020

MCV30..NAP

 1
53846A - BRACE, FRONT WHEEL OPENING APRON, LH
53846-AA020

MCV30..NAP

 1
53866 - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-AA010

MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC

 1
53867 - SEAL, FRONT FENDER TO COWL SIDE, LH
53867-AA010

MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC

 1
53875A - LINER, FRONT FENDER, RH
53875-AA010

MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC

 1
53876A - LINER, FRONT FENDER, LH
53876-AA010

MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC

 1
53882B - SEAL, FRONT FENDER, RH
53882-AA010

MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC

 1
53882F - SEAL, FRONT FENDER
53882-16030

MCV30..NAP

 10
53882F - SEAL, FRONT FENDER
53882-16030

MCV30..NAP

 10
53882F - SEAL, FRONT FENDER
53882-16030

MCV30..NAP

 10
53882F - SEAL, FRONT FENDER
53882-16030

MCV30..NAP

 10
53883K - SEAL, FRONT FENDER, LH
53883-AA010

MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC

 1
55738C - STOPPER, HOOD, RH
55738-AA010

MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC

(L)

 1
55738-33020

MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC

(J)

 1
55739E - STOPPER, HOOD, LH
55739-33020

MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC

(J)

 1
55739-AA010

MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC

(L)

 1
Common parts
67867-12150
90080-11247
90081-18004
90084-54011
90159-A0012
90168-A0003
90189-06006
90189-06104
90189-06157
90467-07164
90541-09116
Linked diagrams
7503
